BC50-250Q Trigger Clamp Slimline 250kg Alu

151.423

Heavy duty aluminium clamp

Specifications

Specifications
Description

Product colour	Aluminium
Material	Aluminum

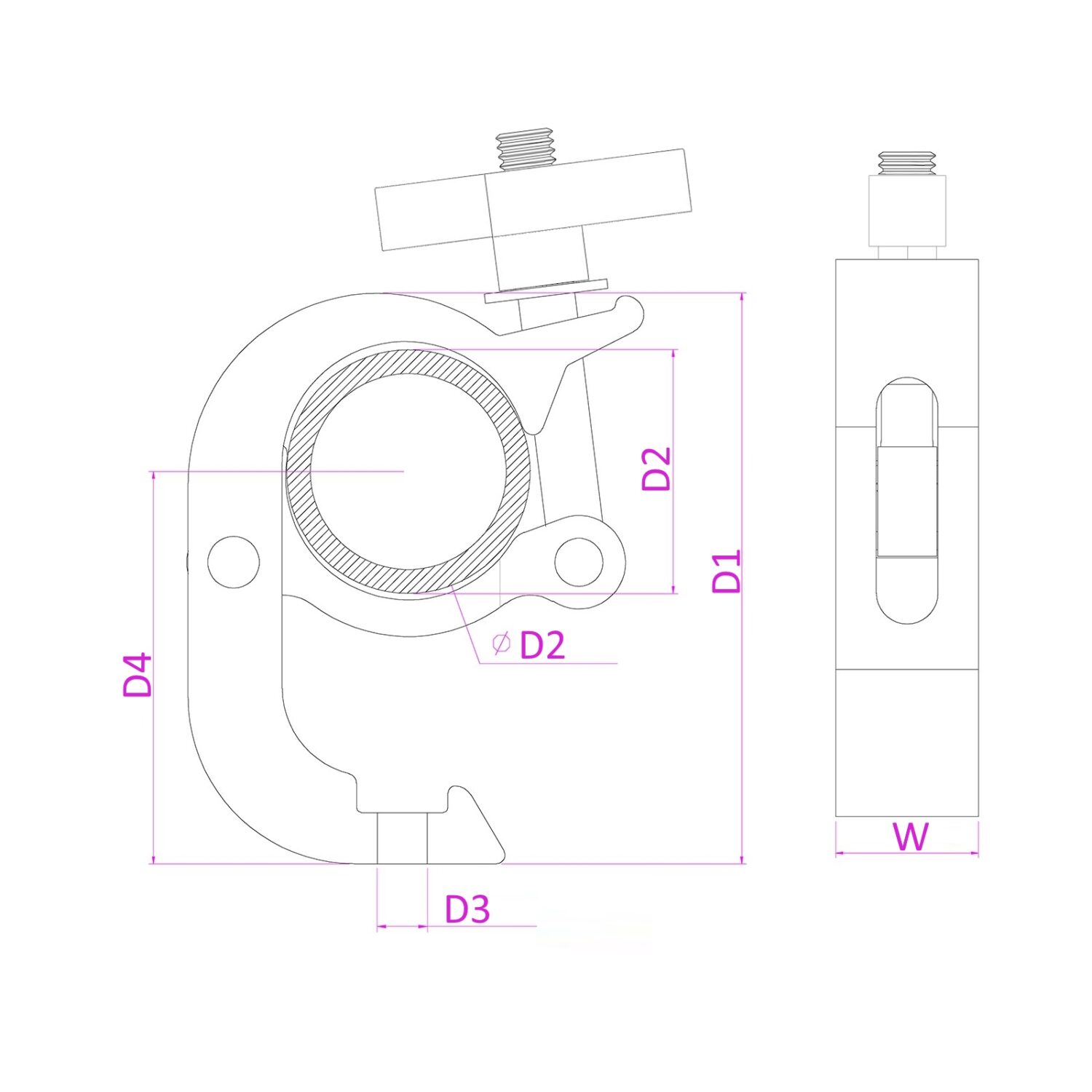

D1 (1mm)	120mm
D2 (1mm)	48 - 51mm
D3 (1mm)	10mm
D4 (1mm)	84mm
W (1mm)	30mm
Threaded Bolt	M10
Max. weight load per piece	250kg
Weight (kg)	0.4650

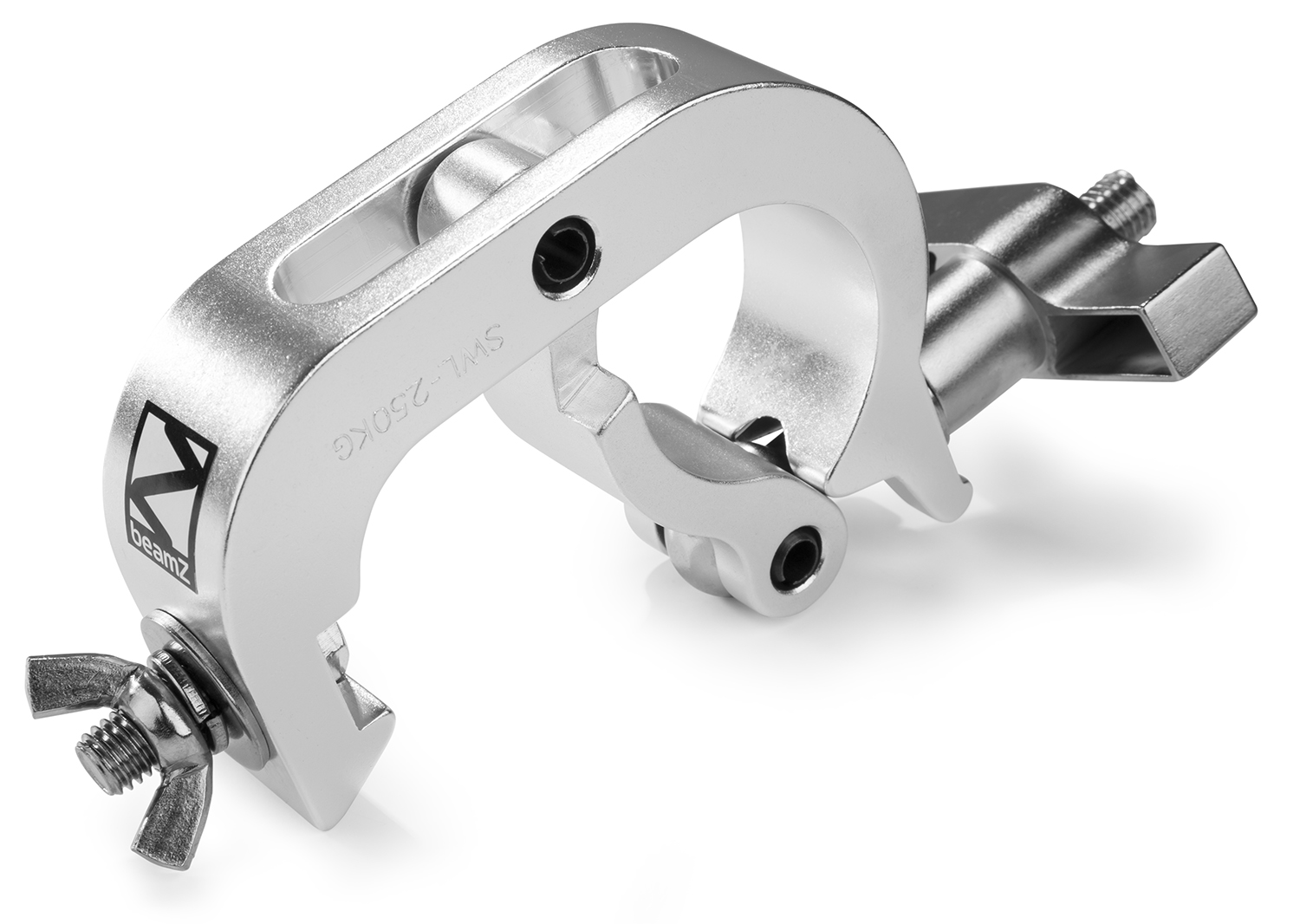

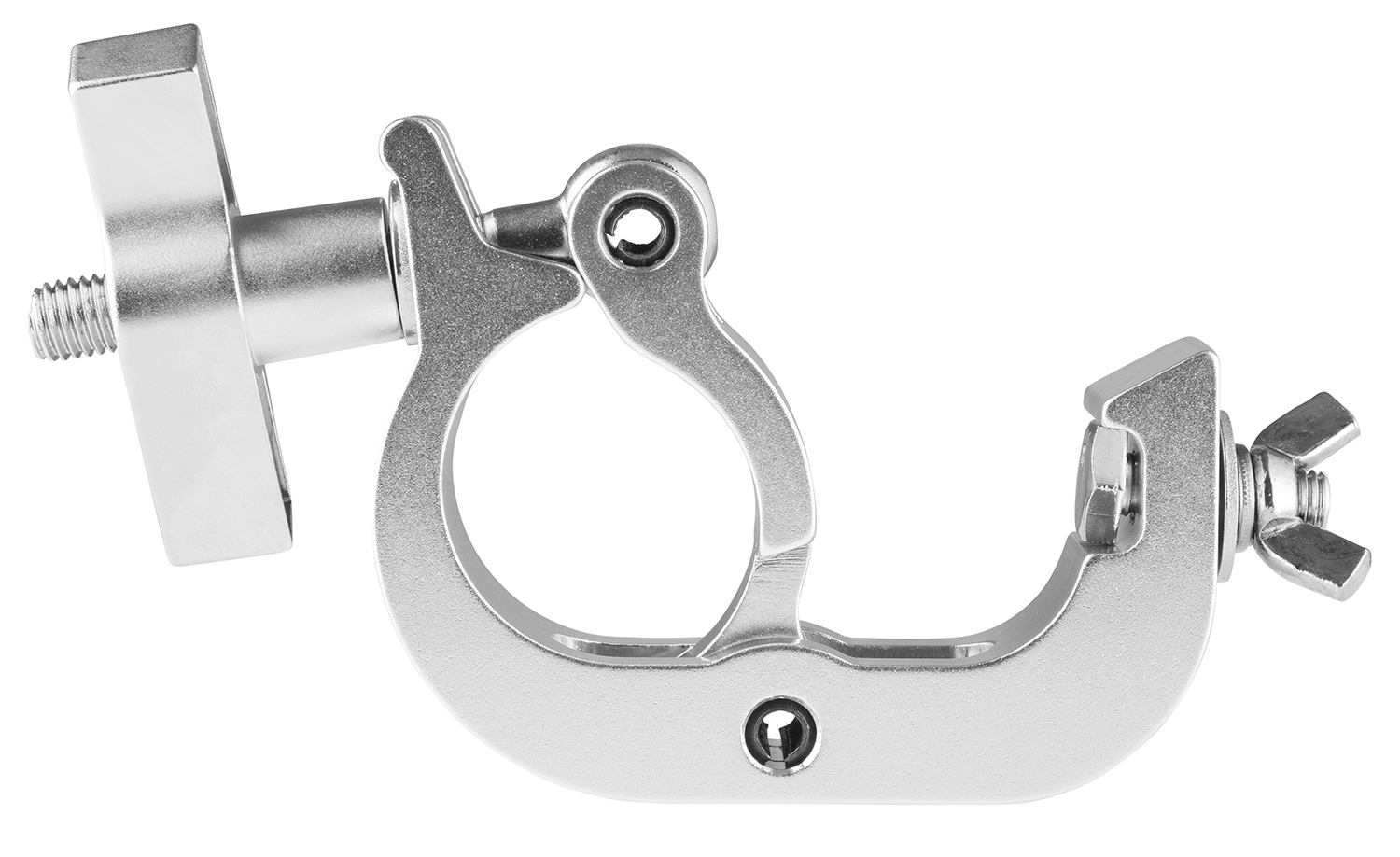

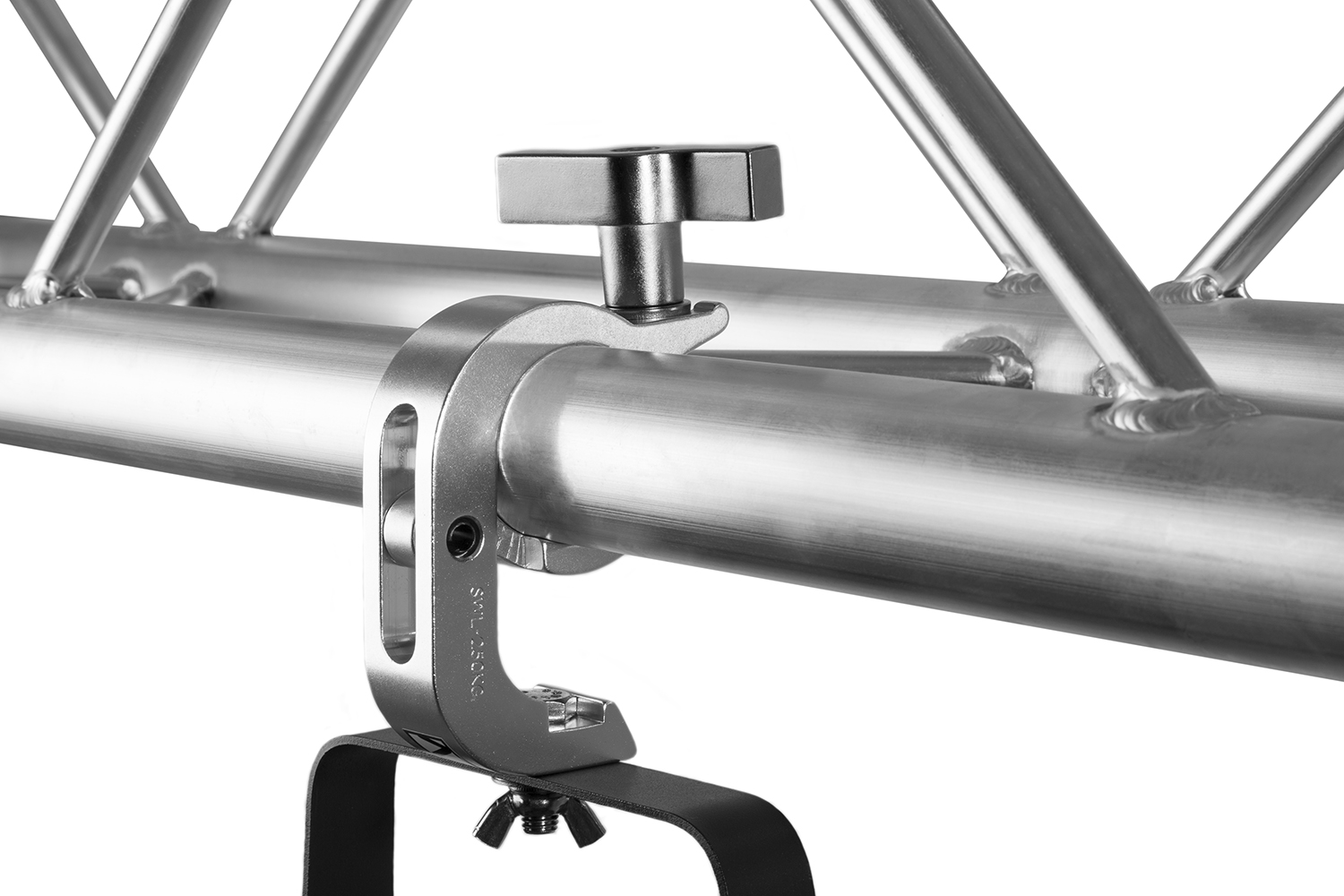

This Heavy duty universal Trigger Clamp designed to allow one person to hang heavy luminaires, through the automatic closing of the Quick coupler. For pipe and truss mounting fixtures. High-strength aluminum construction.
