BC50-250T Quick Trigger Clamp Self Lock 250kg Alu

beamZ

151.421
  • Heavy duty aluminium clamp
  • Self Lock
Product colour Aluminium
Material Aluminum

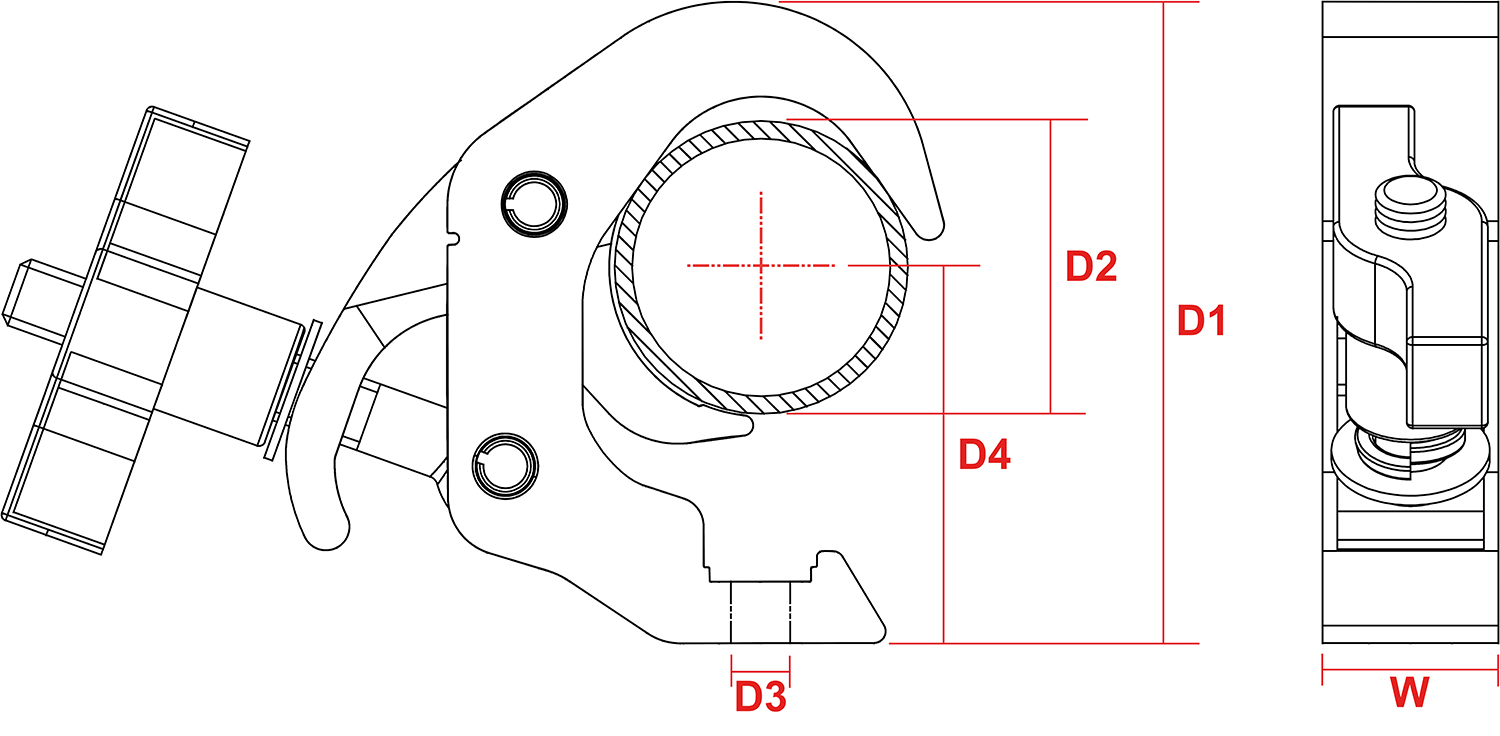

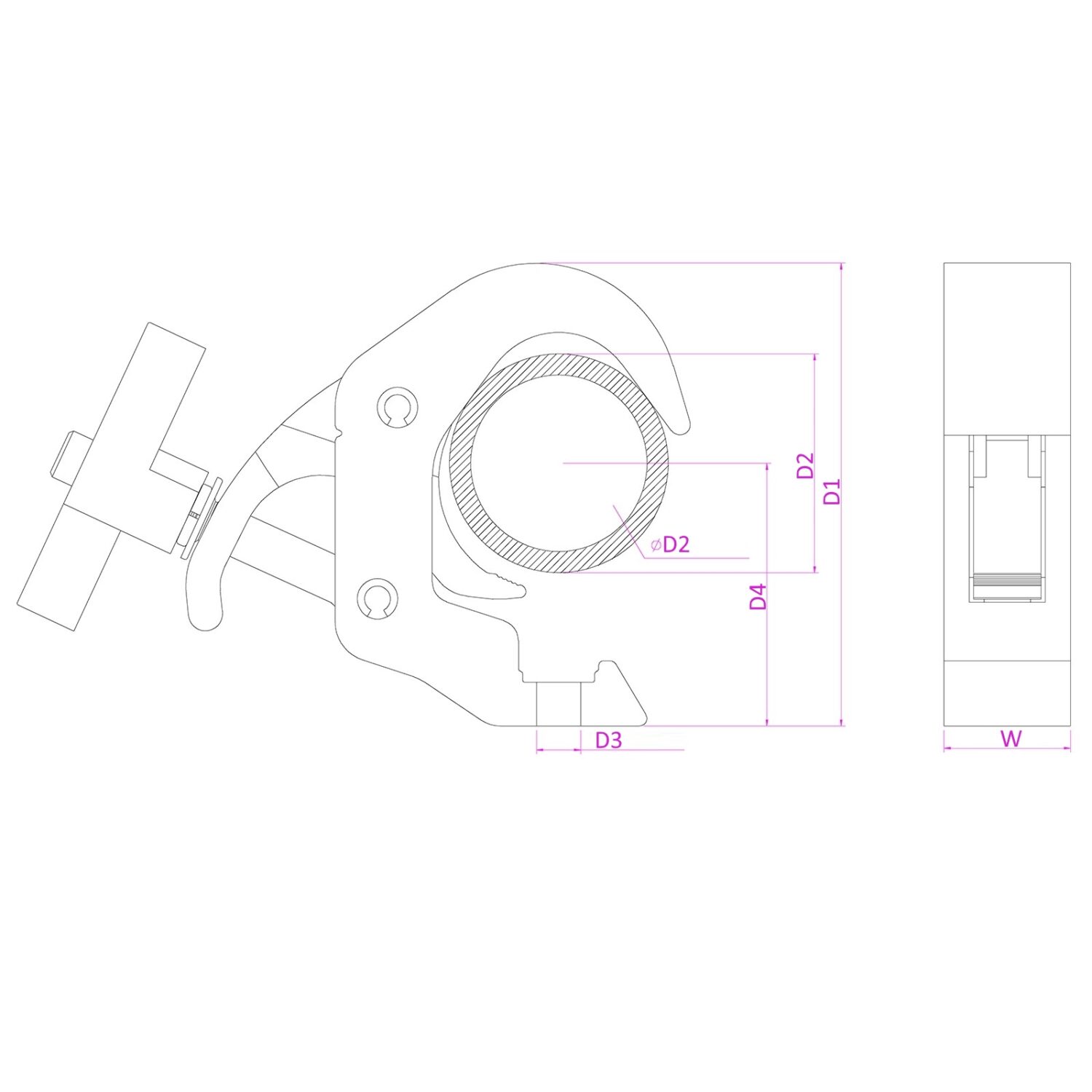

D1 (1mm) 114mm
D2 (1mm) 40 - 63mm
D3 (1mm) 12mm
D4 (1mm) 68mm
W (1mm) 30mm
Threaded Bolt M12
Max. weight load per piece 250kg
Weight (kg) 0.4600

This Quick Trigger clamp is constructed from die casting aluminium and suitable for pipe and truss mounting fixtures. Featuring a jaw opening for a wider range of different tube systems. The handle of the Quick Trigger clamp is situated in the easily accessible horizontal position, leaving user to fasten the coupler without across the truss brace. Ergonomic big handle protects user’s palm from the obstructive bolt.
