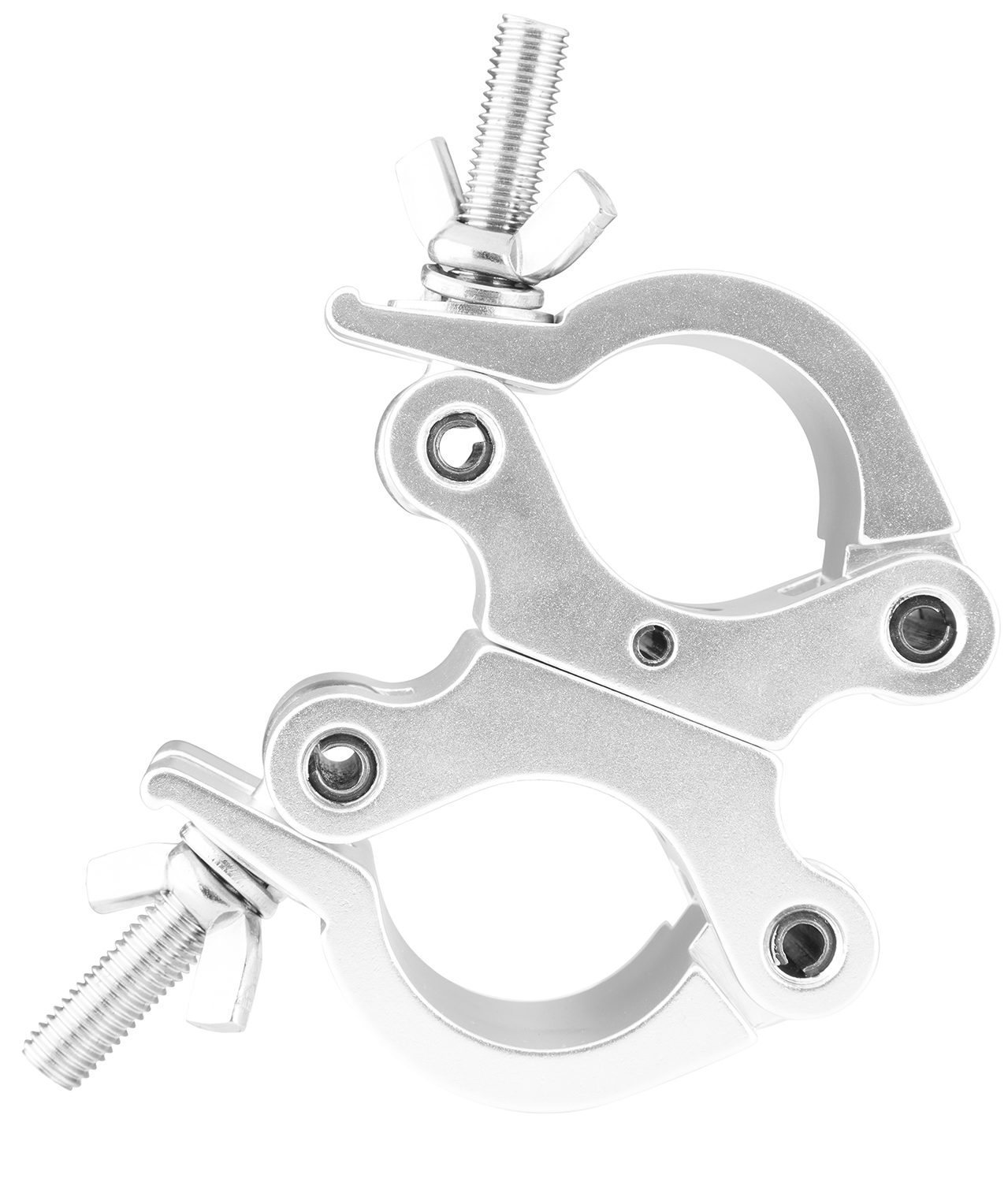

BC50-500D Swivel Coupler 500kg Alu

151.419

Heavy duty aluminium clamp
Butterfly and nut fixing

Specifications

Specifications
Description

Product colour	Aluminium
Material	Aluminum
D1 (1mm)	144mm
D2 (1mm)	48 - 51mm
D4 (1mm)	78mm
W (1mm)	50mm
Threaded Bolt	M10
Max. weight load per piece	500kg
Weight (kg)	1.0000

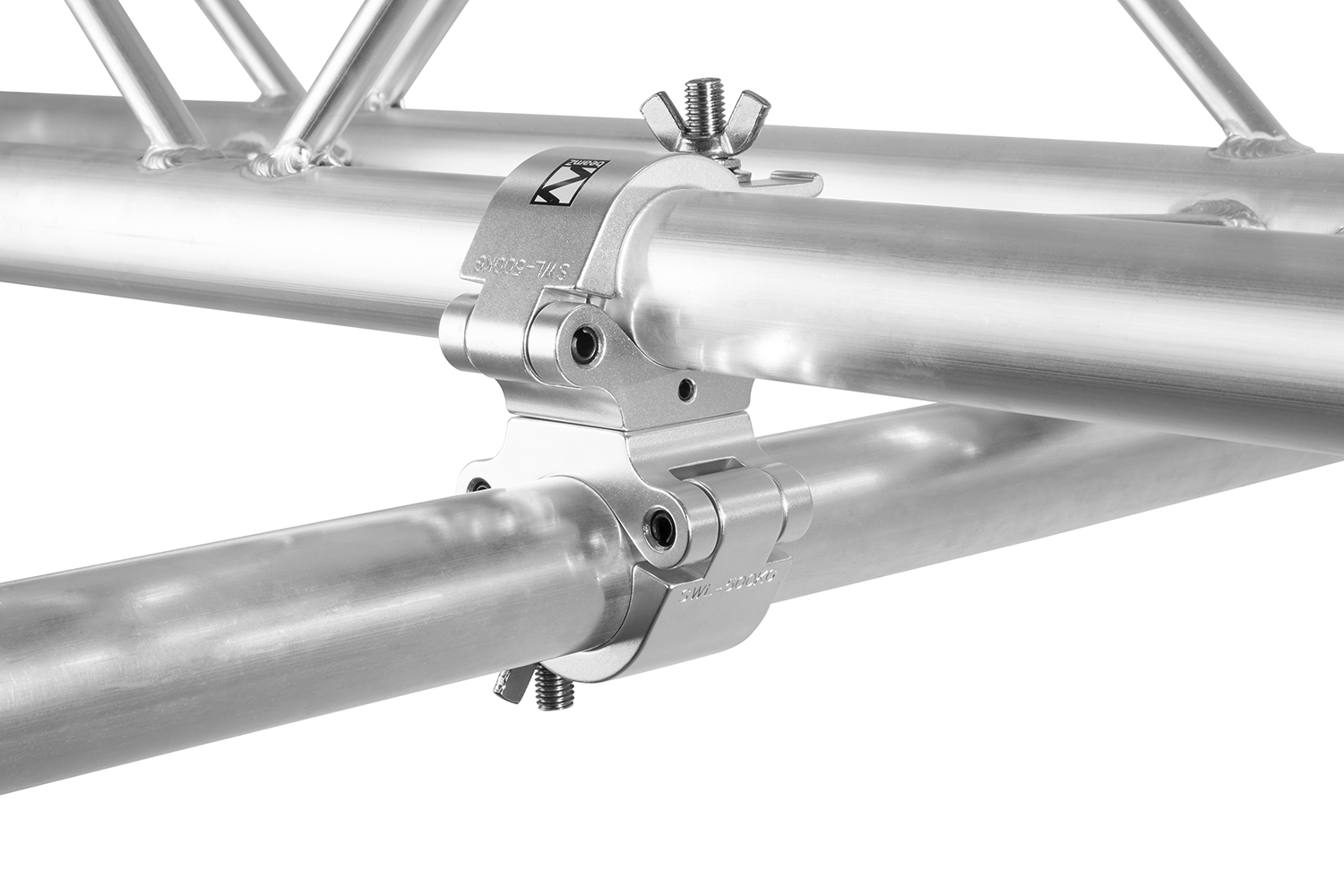

Heavy duty universal aluminium slimline swivel coupler for pipe and truss mounting fixtures. Swivel Coupler provides a firm fixing between adjacent bars whilst allowing 360 degrees of movement. High-strength aluminum construction.
