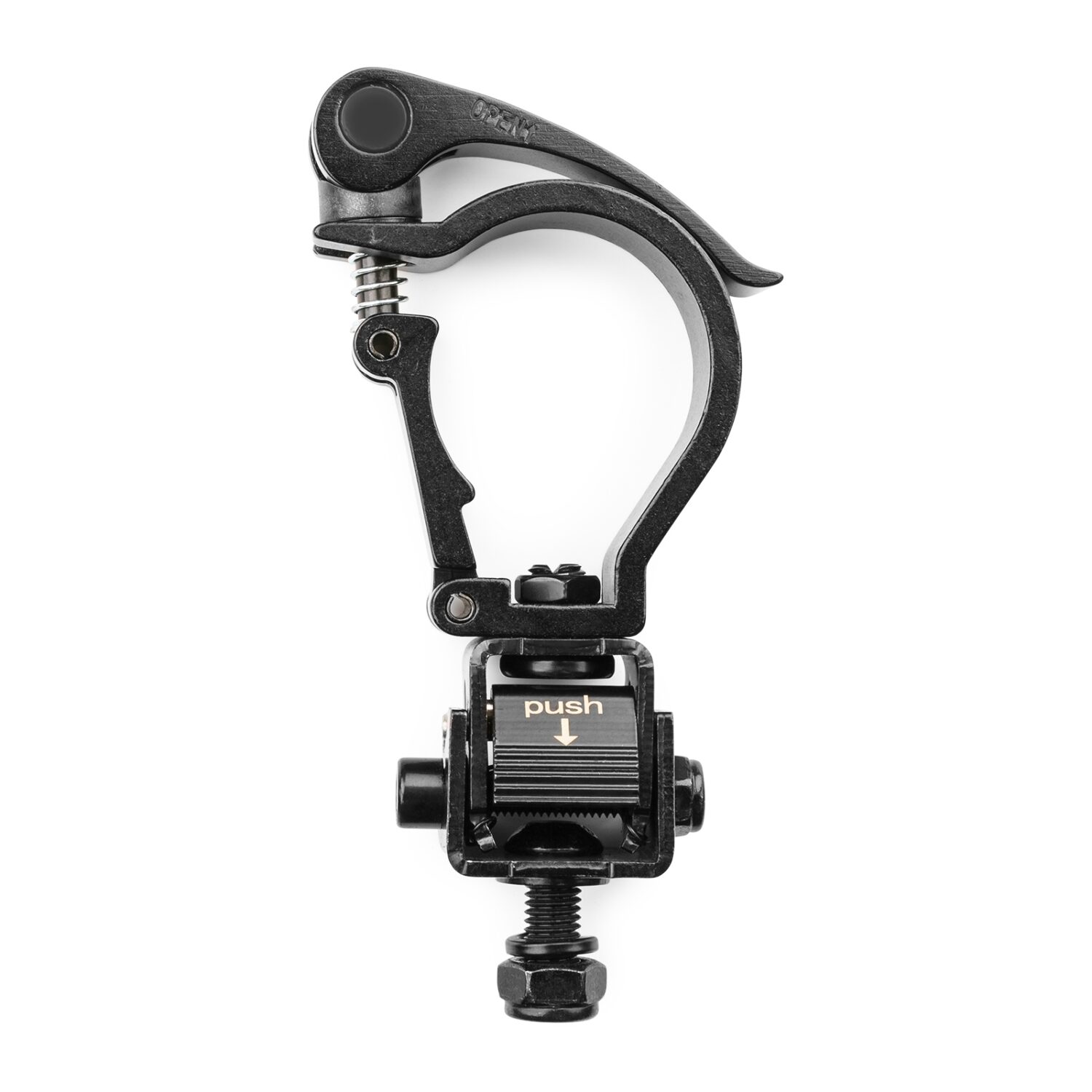

BC50B-50F Foldable Quick Release Clamp Black

beamZ

151.472
  • Tiltable Quick Release Clamp
  • Designed to couple and uncouple quickly
  • High-strength aluminum construction
  • M10 lock nut fixing
  • For 48 – 51 mm pipe/truss diameter
  • Load capacity: 100kg
Specifications
Product colour Black
Material Aluminum
D1 (1mm) 135mm
D2 (1mm) 48 - 51mm
D3 (1mm) 10mm
D4 (1mm) 85mm
W (1mm) 30mm
Threaded Bolt M10
Max. weight load per piece 100kg
Weight (kg) 0.3500

Universal compact aluminium slimline half coupler for pipe and truss mounting fixtures. For easy tilting of the mounting system to transport the light effect in a flight case. High-strength aluminum construction.
