BTF300Z Fresnel Zoom 300W LED White 3200K

151.381

300W Warm White COB LED
Colour Temperature: 3200K
Lifetime LED: 50.000 hours
8° to 60° Motorized zoom
Compact and lightweight Aluminium body
HQ optical system
CRI 98 (Colour Rendering Index) TLCI up to 98
16 bit dimming via DMX
Flicker free with selectable PWM
Dimmer curves selectable
Control Panel: full colour LCD Display
DMX (3-pin) or manual control options
Intelligent temperature control for silent operation
Powerconnector in&out
Including power cable, barndoor, safety cord and colour frame

Specifications

Specifications
Description
Videos
Download & links

Product colour	Black
Light source	Single colour LED
Colour temperature	3200K
LED colours	Warm White
LED power (single LED)	300W
Quantity of LEDs	1
Beam angle: Min	8
Beam angle: Max	47
Field angle: min	19
Field angle: max	60
Illuminance	136.852 lx @ 1m
Flash rate per second	1 - 20Hz
DMX channels	1, 2, 3, 4
DMX connection	3-pin XLR
Modes	DMX, Manual
IP rating	IP20
Cooling	Temperature controlled fan
Display	LCD
Power plug	Power-connector
Power consumption	2.32 - 1.10A
Power supply	100-240VAC 50/60Hz
Dimensions (L x W x H)	428 x 266 x 451mm
Weight (kg)	9.2000
Included accessories	Mounting bracket, Safety cord, Power cable

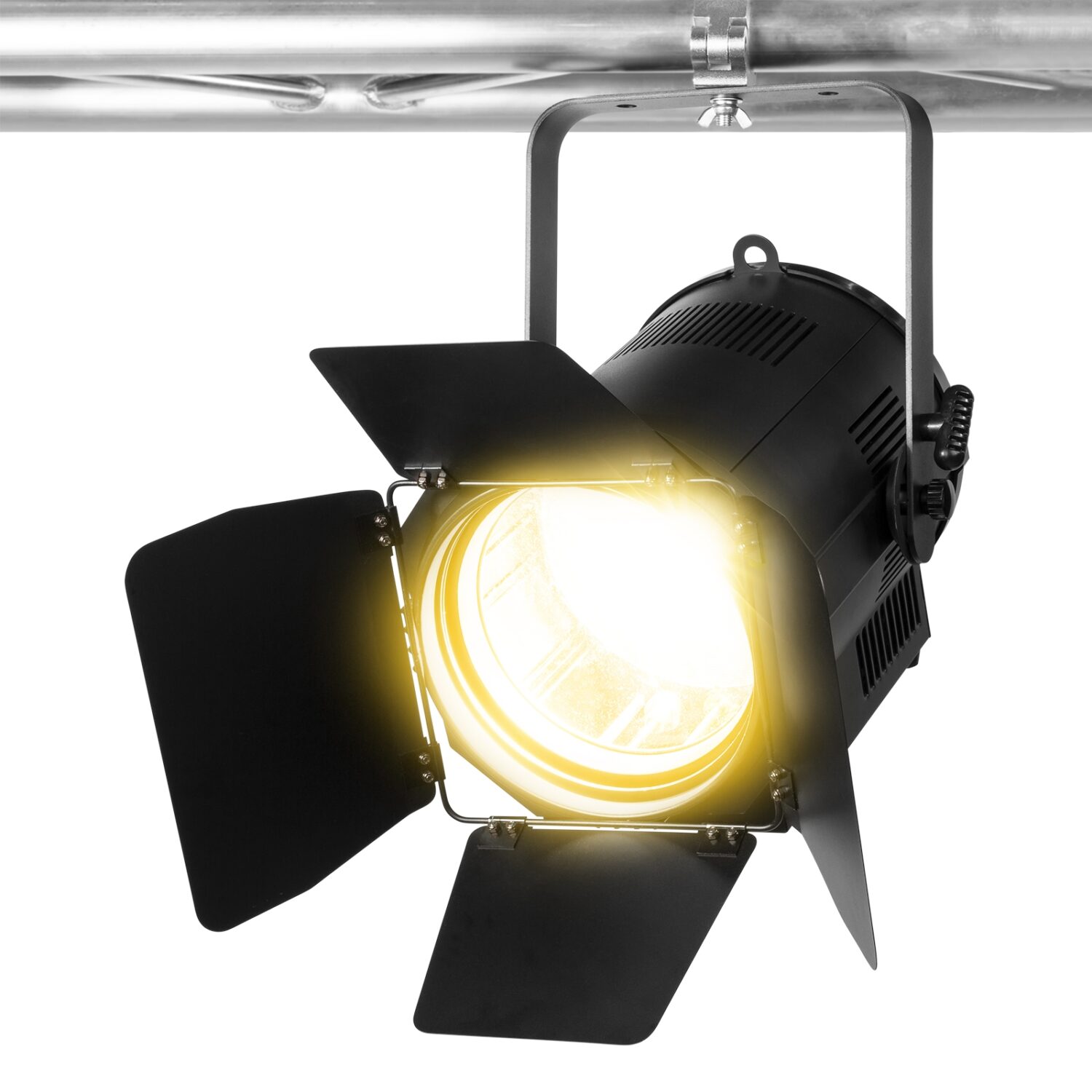

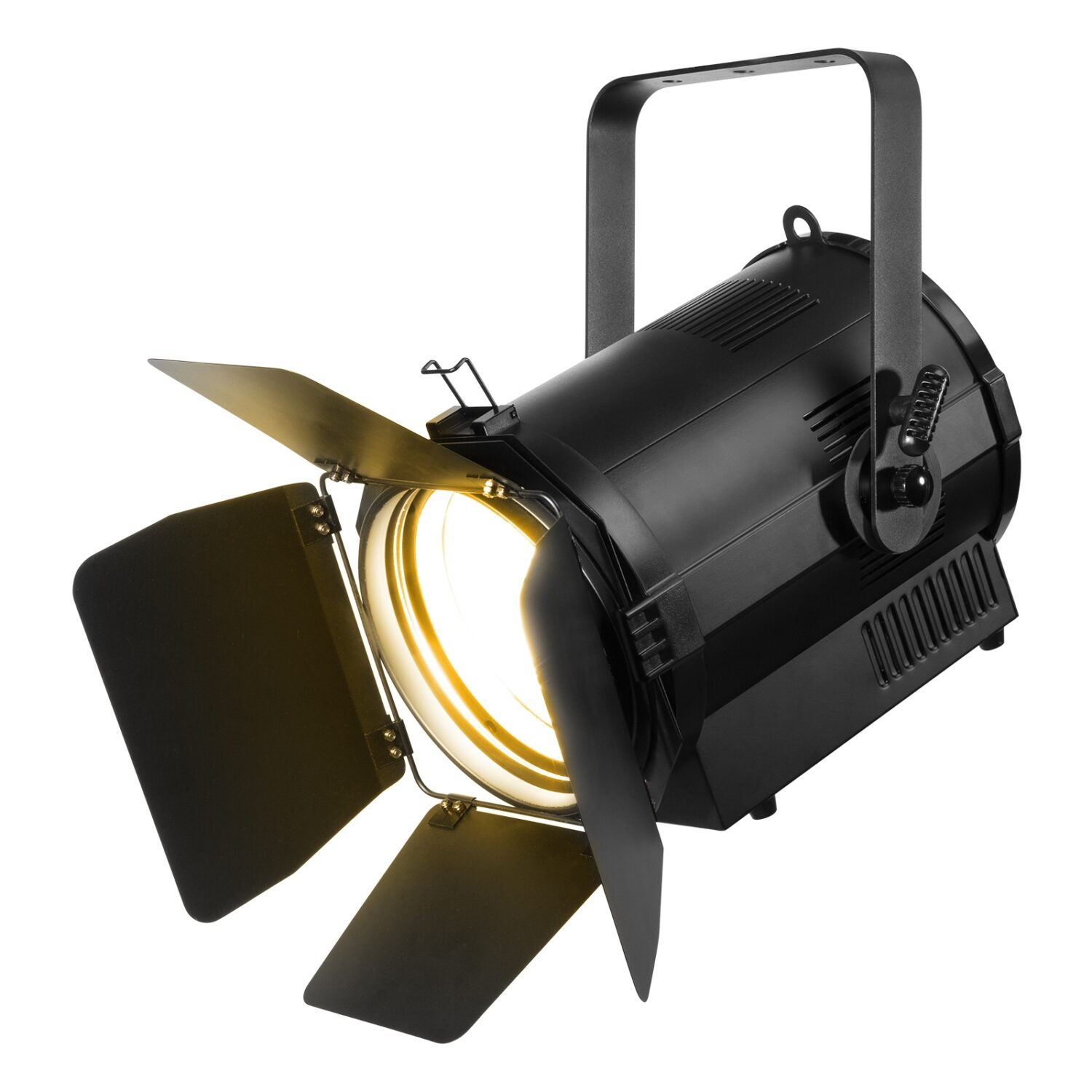

The BeamZ BTF300Z Fresnel Zoom uses a high power single source LED engine to provide a smooth and even field of warm white light, providing a modern replacement for traditional fresnels. The BTF300Z is equipped with high-quality optics, a motorized 8 – 47 degree zoom function and is both dimmable and able to be operated as a strobe up to 17 flashes per second. Ideal for use in theatres, studios, museums, exhibitions or any stage setting that requires smooth warm white output from an energy saving fixture with exceptionally long life. Features Powerconnector in&out and DMX controllability. Supplied with barndoors for beam shaping and glare reduction, safety cord and colour frame.
