BTK050Z-3 Mini Fresnel Zoom 2x 50W LED WW/CW

155.096

50W Cool White + 50W Warm White COB LED
Colour Temperature: 2700K – 6500K
Replaces 300-500W Halogen Lamps
10° to 60° Manual zoom
Compact and lightweight body
HQ optical system
CRI 92 (Colour Rendering Index) TLCI 98(3200K), TLCI 96(5600k)
16 bit dimming via DMX
Flicker free

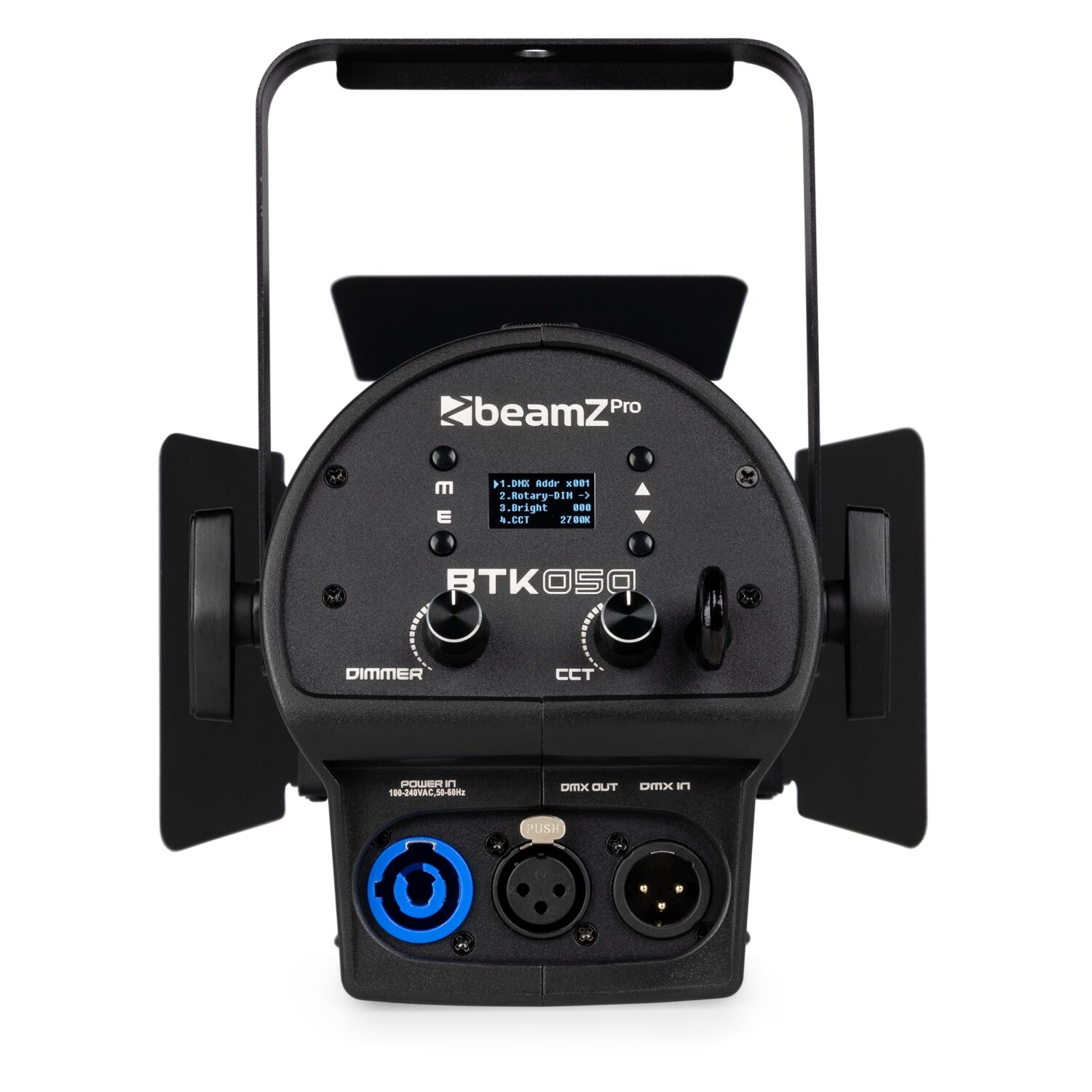

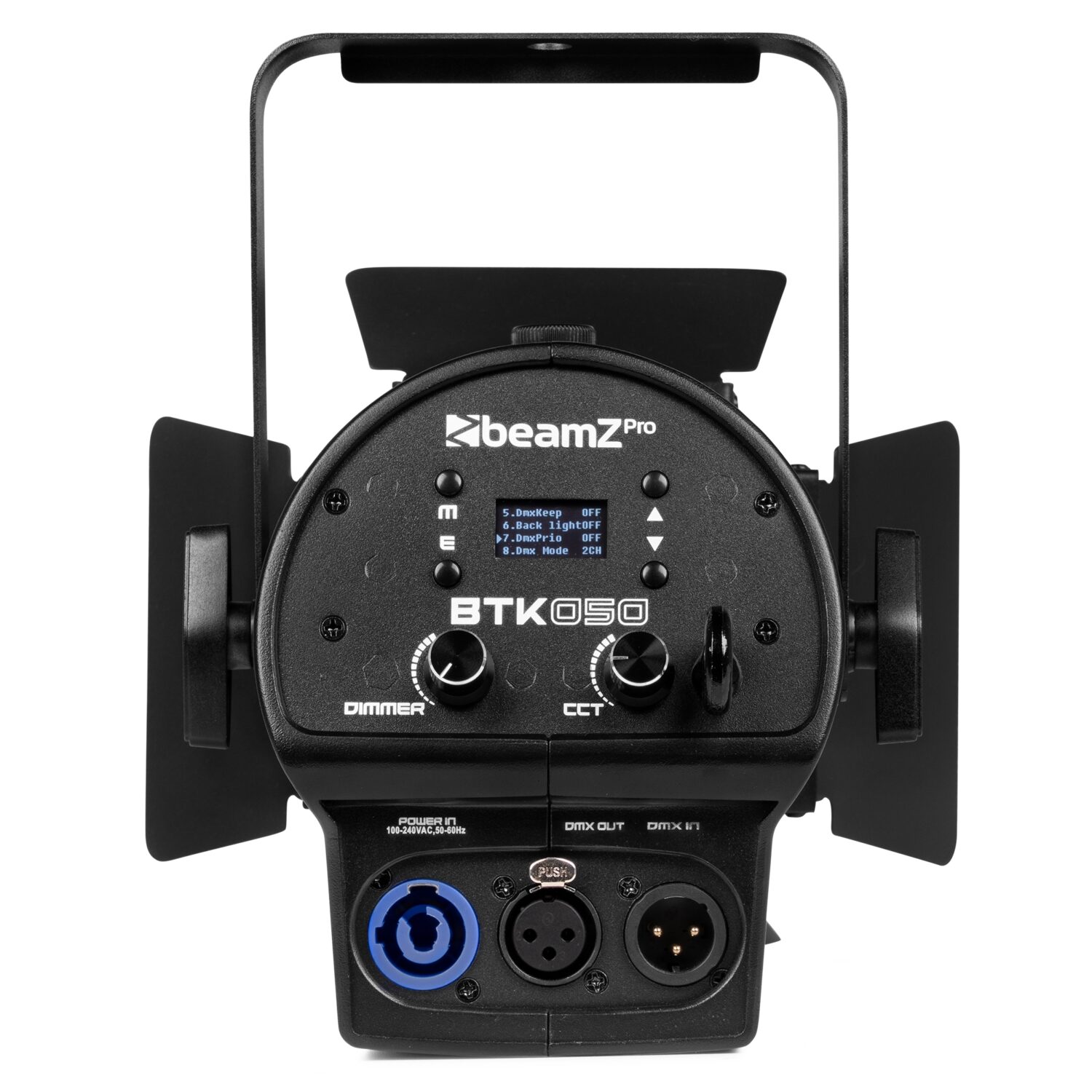

Control Panel: OLED Display
DMX (3-pin) and manual control options
Intelligent temperature control for silent operation
P-Con Powerconnector input

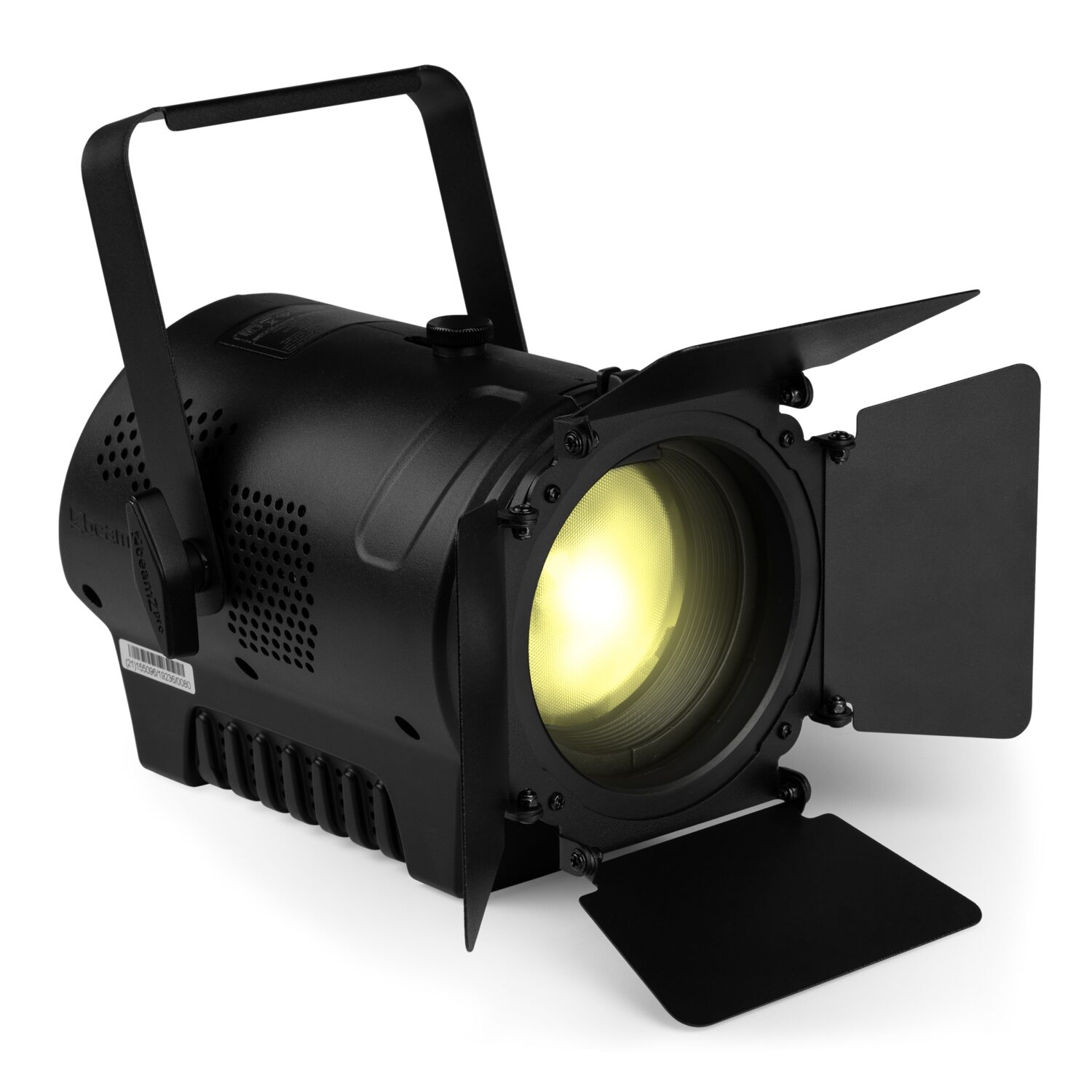

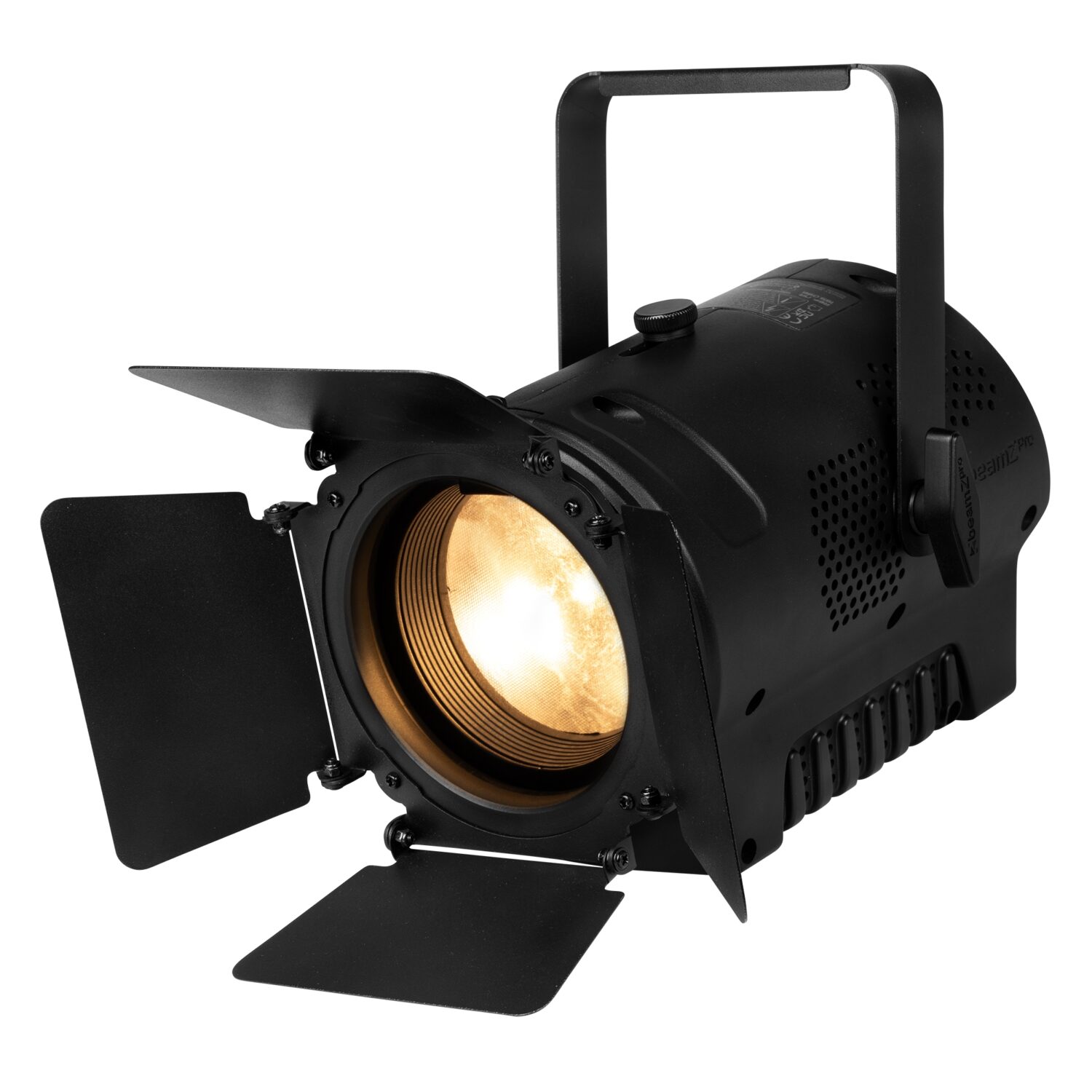

Including barndoor

Specifications

Specifications
Description
Download & links

Product colour	Black
Light source	Single colour LED
Colour temperature	2700K - 6500K
Colours	Cool White, Warm White
Quantity of LEDs	1
Beam angle: Min	10°
Beam angle: Max	60°
Illuminance	18.668 lx @ 1m
Flash rate per second	1 - 13Hz
DMX channels	2, 3
DMX connection	3-pin XLR
Modes	DMX, Manual
IP rating	IP20
Cooling	Convection
Display	oLed
Power plug	P-Con
Power consumption	0.722 - 0.359A
Power supply	100-240VAC 50/60Hz
Dimensions (L x W x H)	230 x 160 x 210mm
Weight (kg)	1.5500
Included accessories	Barndoor, Mounting bracket, Power cable

The beamZ BTK050Z is a compact yet powerful fixture features dual 50W warm white and cool white LEDs, delivering a seamless blend of white tones (2700K – 6500K) for natural lighting effects. With an adjustable zoom range from 10° to 60°, the BTK050Z is perfect for highlighting key areas or washing large spaces with ease. Its robust design ensures durability, while the silent operation makes this fresnel ideal for theatres, studios, and live performances.
