BWA550Z Outdoor PRO PAR with Zoom

150.775

19x 15W 4-in-1 LEDs
RGBW colour mixing
Motorized zoom
Zoom range: 2° – 25°
IP65 weatherproof
3 separate controllable LED zones
0-100% electronic dimmer
Lightweight aluminium housing
Low noise level due to the efficient cooling system
DMX and Stand-alone mode
Master/slave function
DMX in/output via 3-pin XLR
RDM controllable
3 Auto programs with adjustable speed
Control panel with touchscreen OLED display
P-Con TR input/output
Double bracket also acts as floor stand
Including Omega bracket

Specifications

Specifications
Description
Download & links

Product colour	Black
Light source	4-in-1 LED
LED colours	Red, Green, Blue, White
LED power (single LED)	15W
Quantity of LEDs	19
Beam angle: Min	2°
Beam angle: Max	25°
Field angle: min	10°
Field angle: max	51°
Illuminance	88.808 lx @ 1m
Flash rate per second	1 - 20Hz
DMX channels	11, 22
DMX connection	3-pin XLR
Modes	Automatic programs, DMX, Manual, Master/Slave
IP rating	IP65
Cooling	Temperature controlled fan
Display	oLed
Power plug	Power-connector TR
Power consumption	2.63 - 1.28A
Power supply	100-240VAC 50/60Hz
Dimensions (L x W x H)	370 x 296 x 218 mm
Weight (kg)	9.4000
Included accessories	Mounting bracket, Power cable, DMX cable

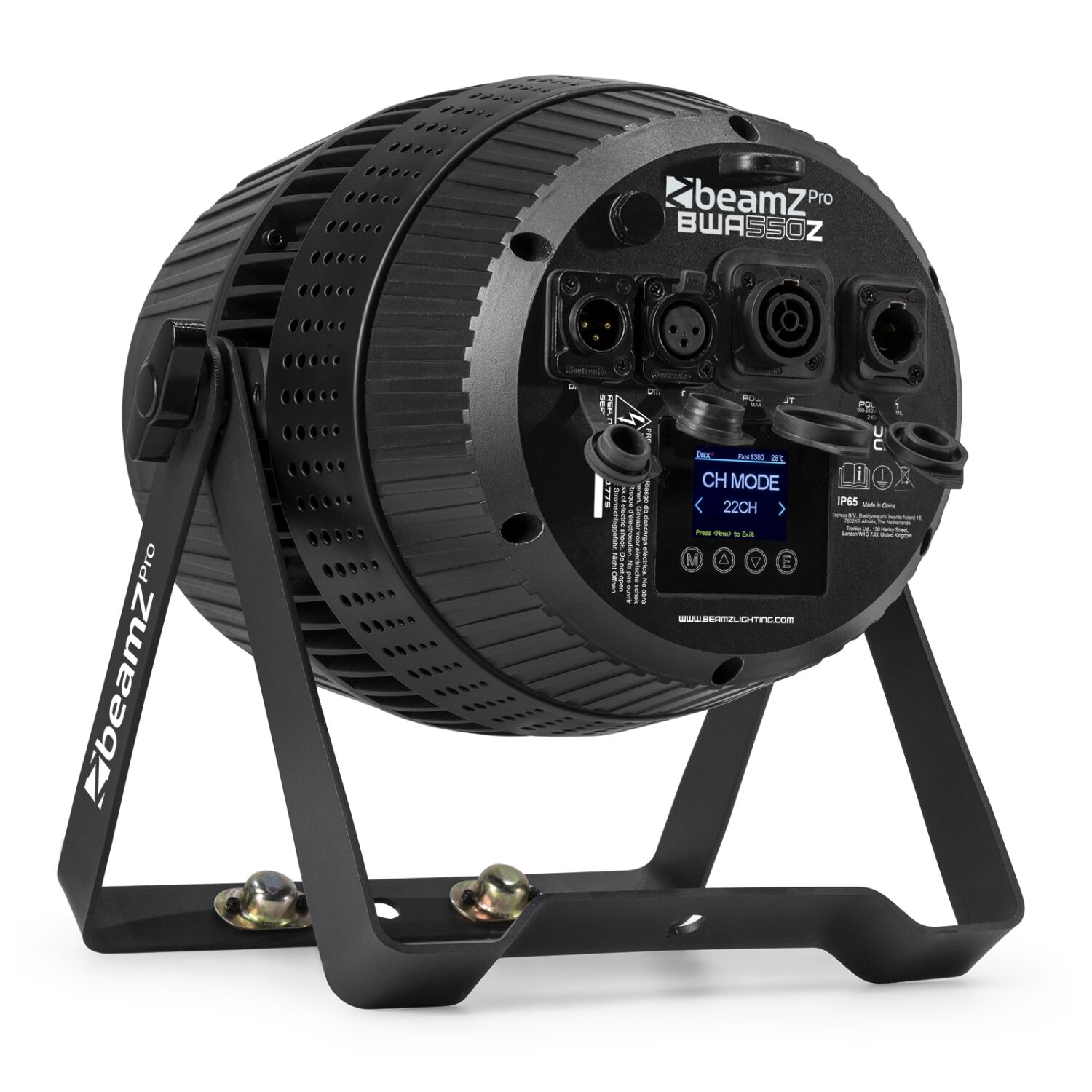

The BWA550Z is part of a series of new generation Pro LED PAR fixtures designed for various purposes such as stage and architectural lighting. This weatherproof robust Pro PAR can be controlled via different DMX settings in 3 separate controllable LED zones. The PAR features 19 LED modules with large lenses, giving you the ability to mix any colour! The BAC550Z also has a motorized zoom lens allowing the fixture to create fantastic beam or wash effects. The additional P-Con output allows you to easily connect the power of multiple units to one outlet.

BWA550Z Outdoor PRO PAR with Zoom
