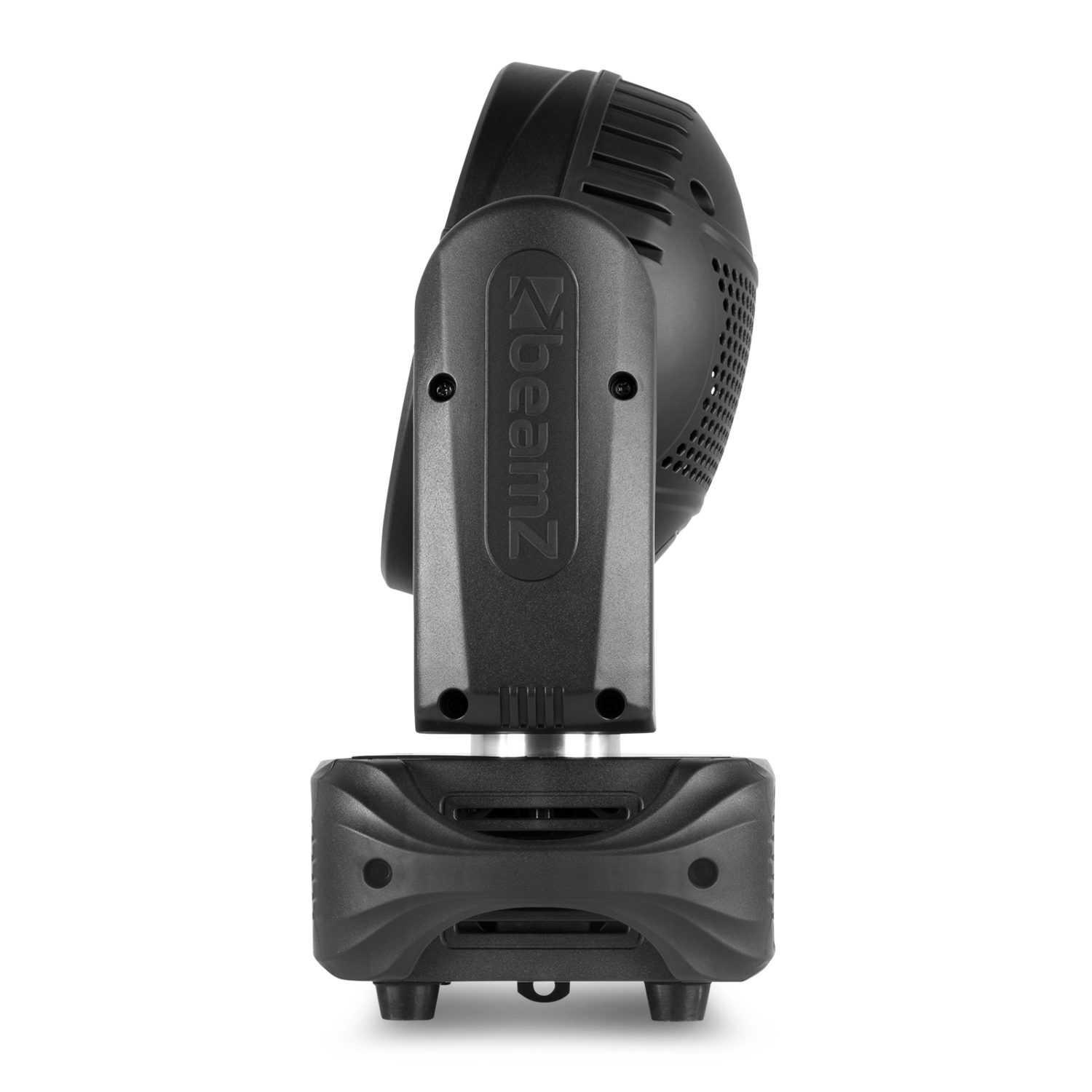

Fuze1910 LED Wash Moving Head with Ring Control

beamZ

150.354
  • Compact moving head wash with circle control
  • 19x 10W 4-in-1 LEDs
  • RGBW Colour mix (red, green, blue and white)
  • Linear colour temperature 2800K-8000K
  • Circle (3 rings) controllable
  • 16 or 28 DMX channels
  • DMX, Auto, Sound and Stand-alone mode
  • Master/slave synchronization
  • 0-100% Electronic Dimmer
  • Wide pan and tilt range with smooth movement
  • Reset function
  • Control panel with TFT LCD display
  • DMX in/output via 3-pin XLR
  • Quick release omega style brackets included
  • Powerconnector cable, DMX cable and safety cord included
Colour temperature 2700K - 8000K
Light source 4-in-1 LED
Colours Red, Green, Blue, White
LED power (single LED) 10W
Quantity of LEDs 19
Beam angle 20°
Field angle 35°
Illuminance 26.000 lx @ 1m
Head movement: Pan 540
Head movement: Tilt 180
Flash rate per second 1 - 21Hz
Modes Automatic programs, DMX, Manual, Master/Slave
Sound to light mode Yes
DMX channels 16, 28
DMX connection 3-pin XLR
Display LCD
IP rating IP20
Cooling Temperature controlled fan
Power plug P-Con
Power consumption 1.66 - 0.81A
Power supply 100-240VAC 50/60Hz
Dimensions (L x W x H) 270 x 310 x 360mm
Weight (kg) 5.6500
Included accessories Mounting bracket, Safety cord, Power cable, DMX cable

The Fuze series consists of a series of compact moving heads equipped with a powerful LED light source that guarantees impressive colour washes and stunning visual effects. Exact positioning is possible through 16-bit movement resolution (540-degree pan and 180-degree tilt). These fixtures are designed in a compact housing and are ideal for lighting designers, DJs, bands, clubs, bars and installations where small footprint and low weight is critical. It can be controlled by DMX, with sound activation or used in standalone mode with the Master/Slave function.
