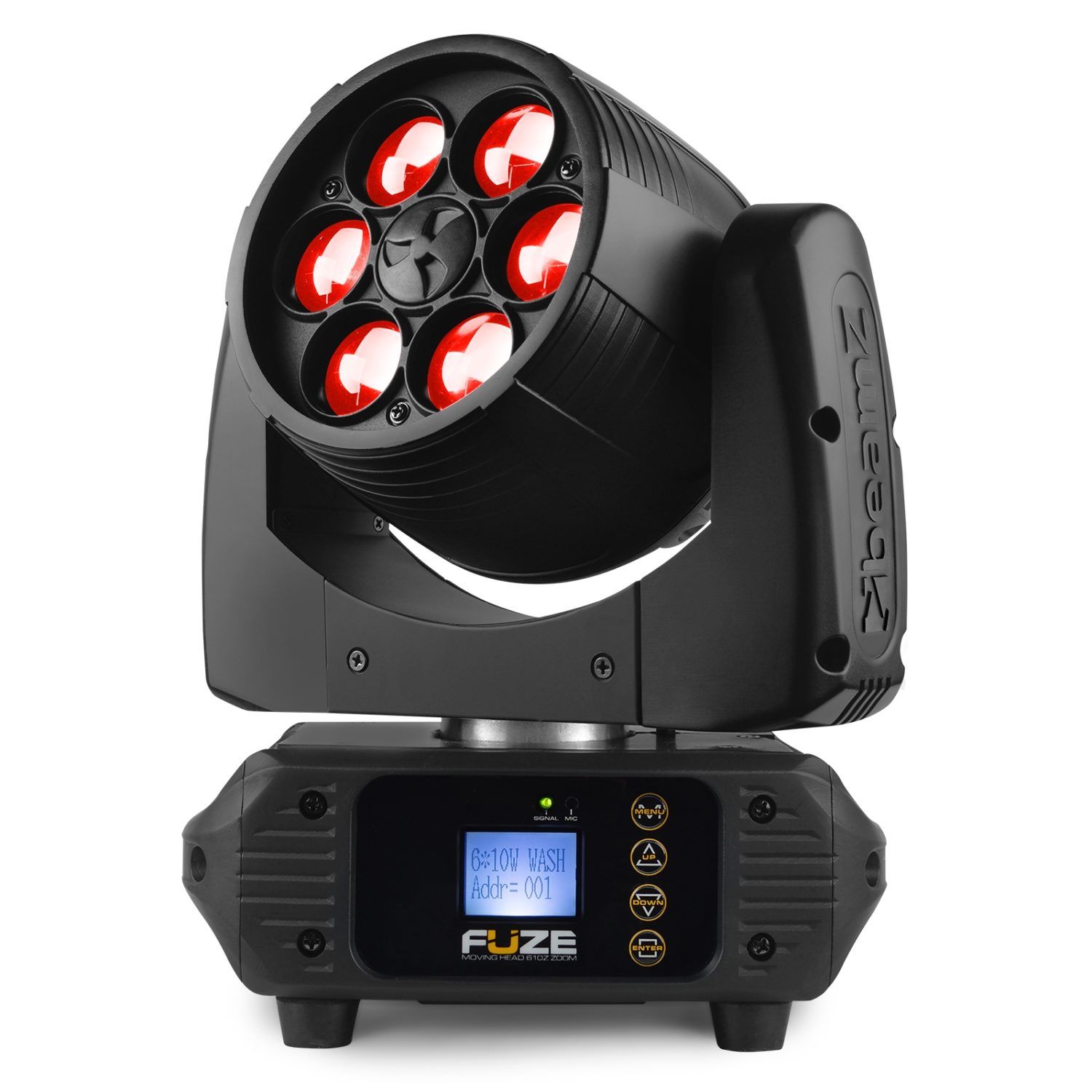

Fuze610Z LED Wash Moving Head with Zoom

beamZ

150.386
  • 6x 10 RGBW LEDs
  • 13 or 15 DMX channels
  • DMX and Stand-alone mode
  • Master/slave synchronization
  • Sound activated with adjustable sensitivity
  • Auto mode
  • Beam angle 2°-24°
  • Electronic linear zoom
  • 0-100% Electronic Dimmer
  • Strobe: 1-21Hz
  • Automatic pan/tilt correction
  • Reset function
  • Control panel with LCD display
  • DMX in/output via 3-pin XLR
  • Powerconnector input/output
  • Quick lock omega clamp included
  • DMX cable included
  • Powerconnector cable and safety cord included
  • Included remote control
Specifications
Light source 4-in-1 LED
Colours Red, Green, Blue, White
LED power (single LED) 10W
Quantity of LEDs 6
Beam angle: Min 2
Beam angle: Max 24
Field angle: min 8
Field angle: max 41
Illuminance 39.000lx@1m
Head movement: Pan 630
Head movement: Tilt 270
Flash rate per second 1 - 21Hz
Modes Automatic programs, DMX, Manual, Master/Slave
Sound to light mode Yes
DMX channels 13, 15
DMX connection 3-pin XLR
Display LCD
IP rating IP20
Cooling Temperature controlled fan
Power plug P-Con
Power consumption 1.1 - 0.6A
Power supply 100-240VAC 50/60Hz
Dimensions (L x W x H) 240 x 230 x 260
Weight (kg) 4.5500
Included accessories Remote control (wireless), Mounting bracket, Safety cord, Power cable, DMX cable

The Fuze610Z is powered by 6x 10W RGBW 4-IN-1 colour LEDs and is equipped with motorised zoom allowing for a variable beam angle from 2°- 24°. With the high-quality optics it’s also possible to combine all six light beams into one big, fat beam. Exact positioning is possible through 16-bit movement resolution (540-degree pan and 180-degree tilt). The fixture is designed in a compact housing and is ideal for lighting designers, DJs, bands, clubs, bars and installations where small footprint and low weight is critical. It can be controlled by DMX, with sound activation or used in standalone mode with the Master/Slave function.
