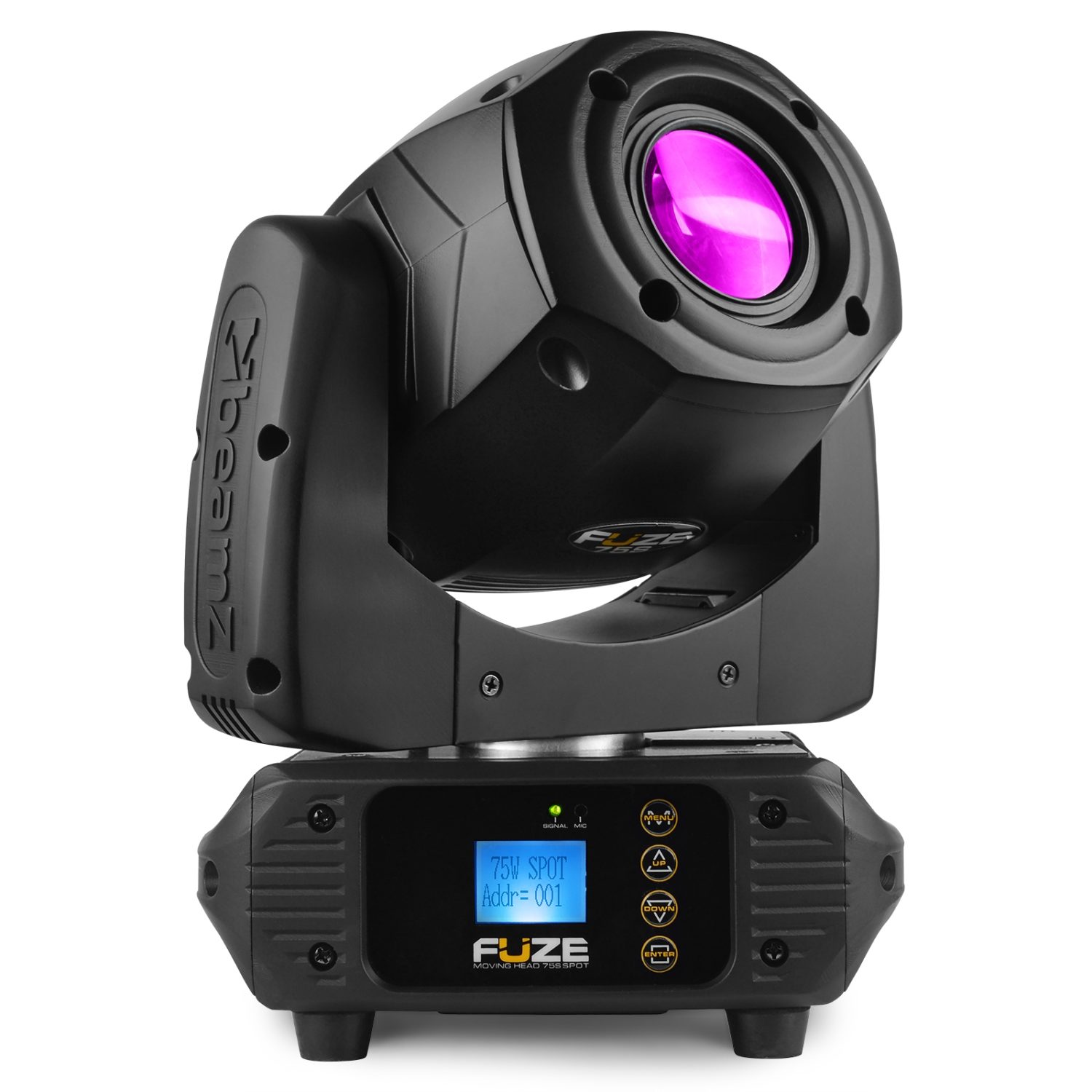

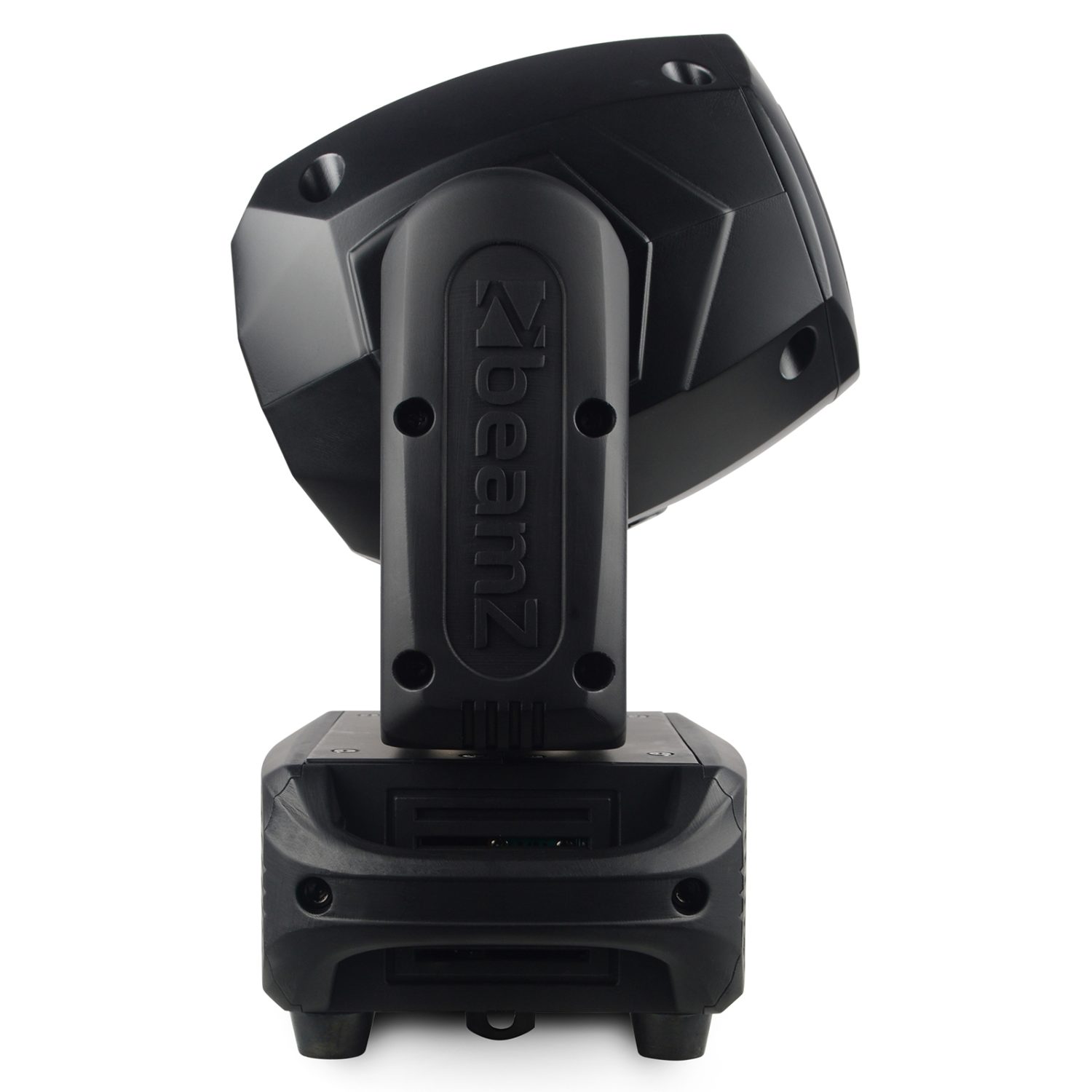

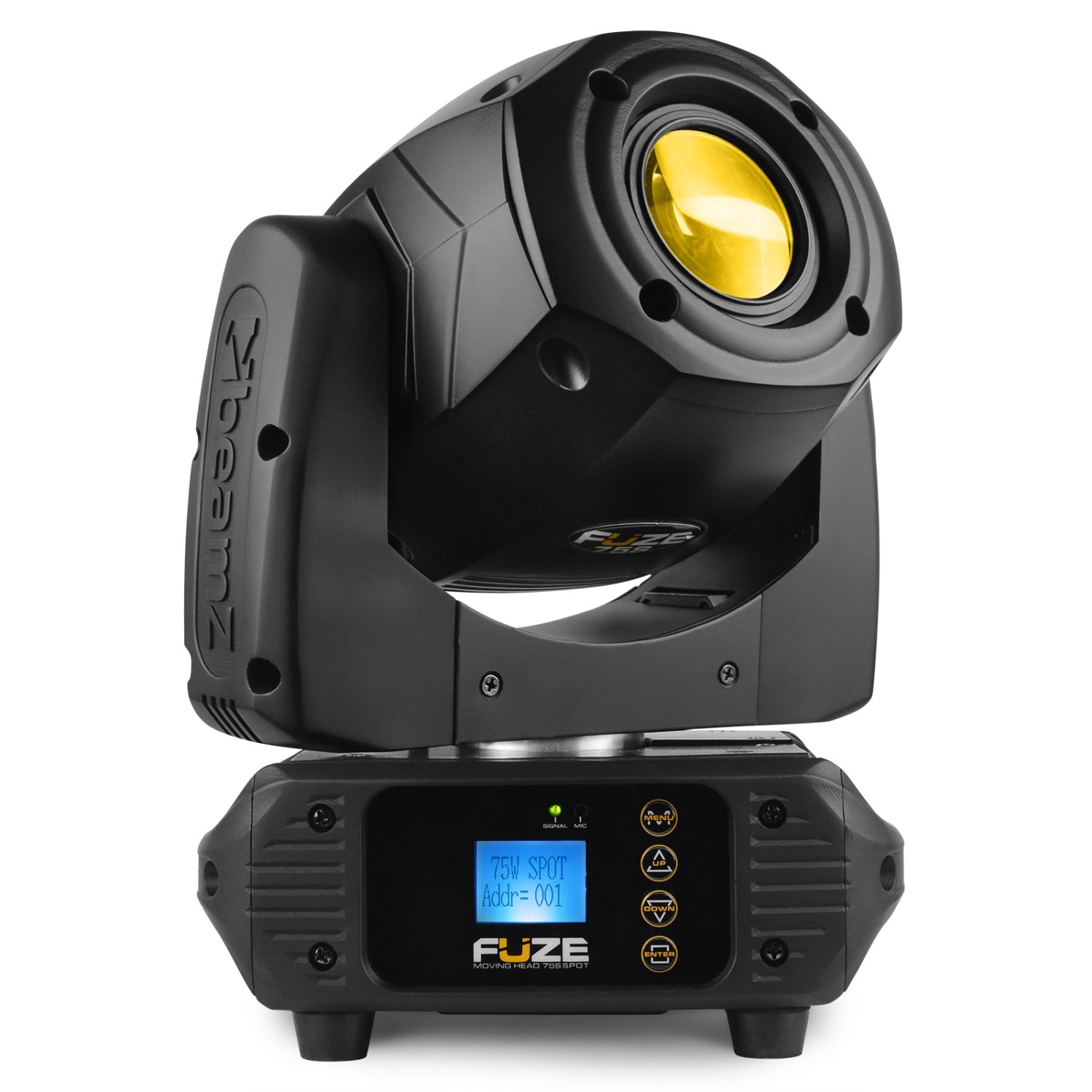

Fuze75S LED Spot Moving Head

150.382

75W High Intensity White LED
11 or 13 DMX channels
DMX and Stand-alone mode
Master/slave synchronization
Sound activated with adjustable sensitivity
Auto mode
Beam angle 12°

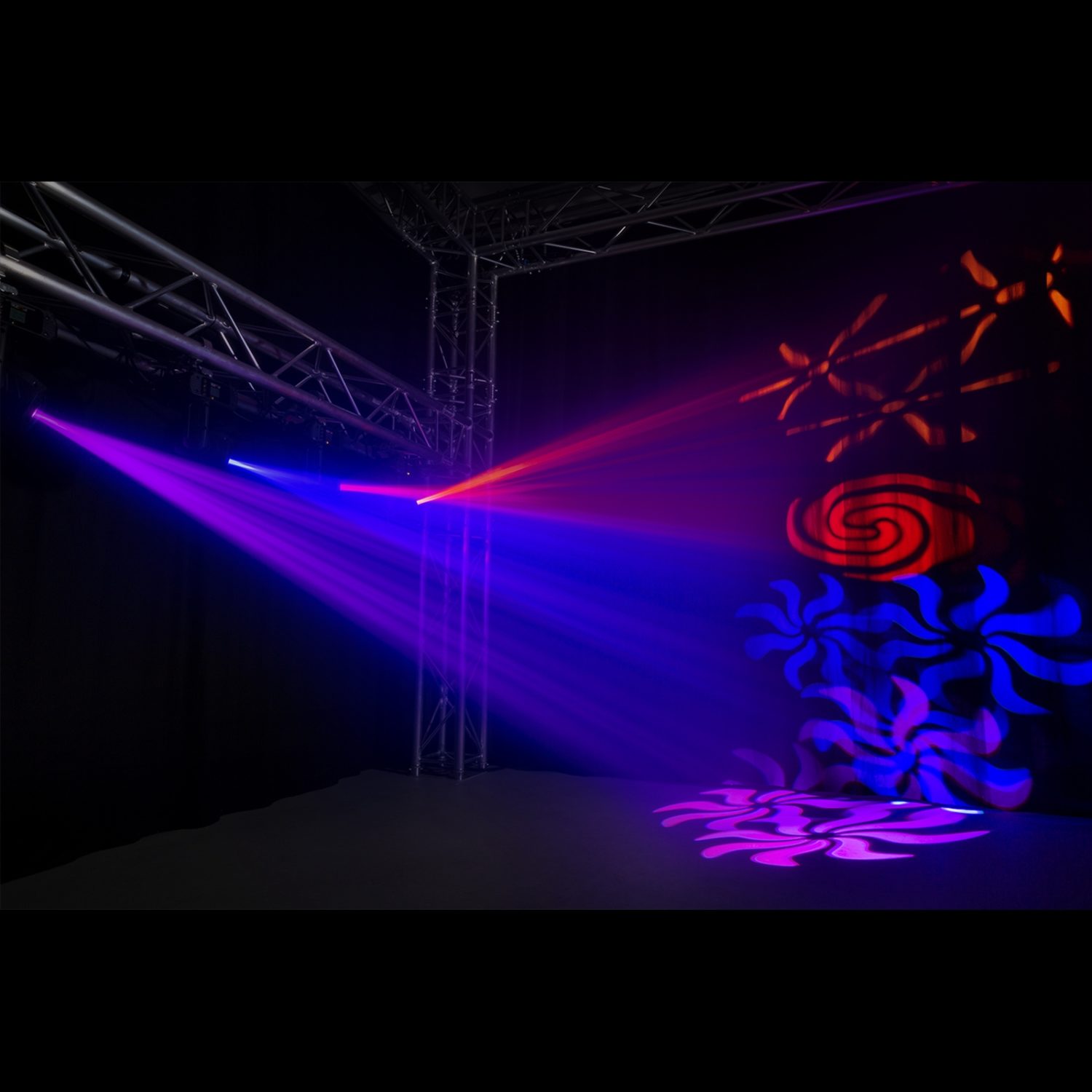

Gobo Wheel: 6x metal gobos + open (interchangeable)
Gobo functions: gobo shake and gobo rotation
8 Colours + open
Rotatable 3 facet prism
Motorized focus
0-100% Electronic Dimmer
User-selectable pan and tilt
Strobe: 1-11Hz
Automatic pan/tilt correction
Reset function

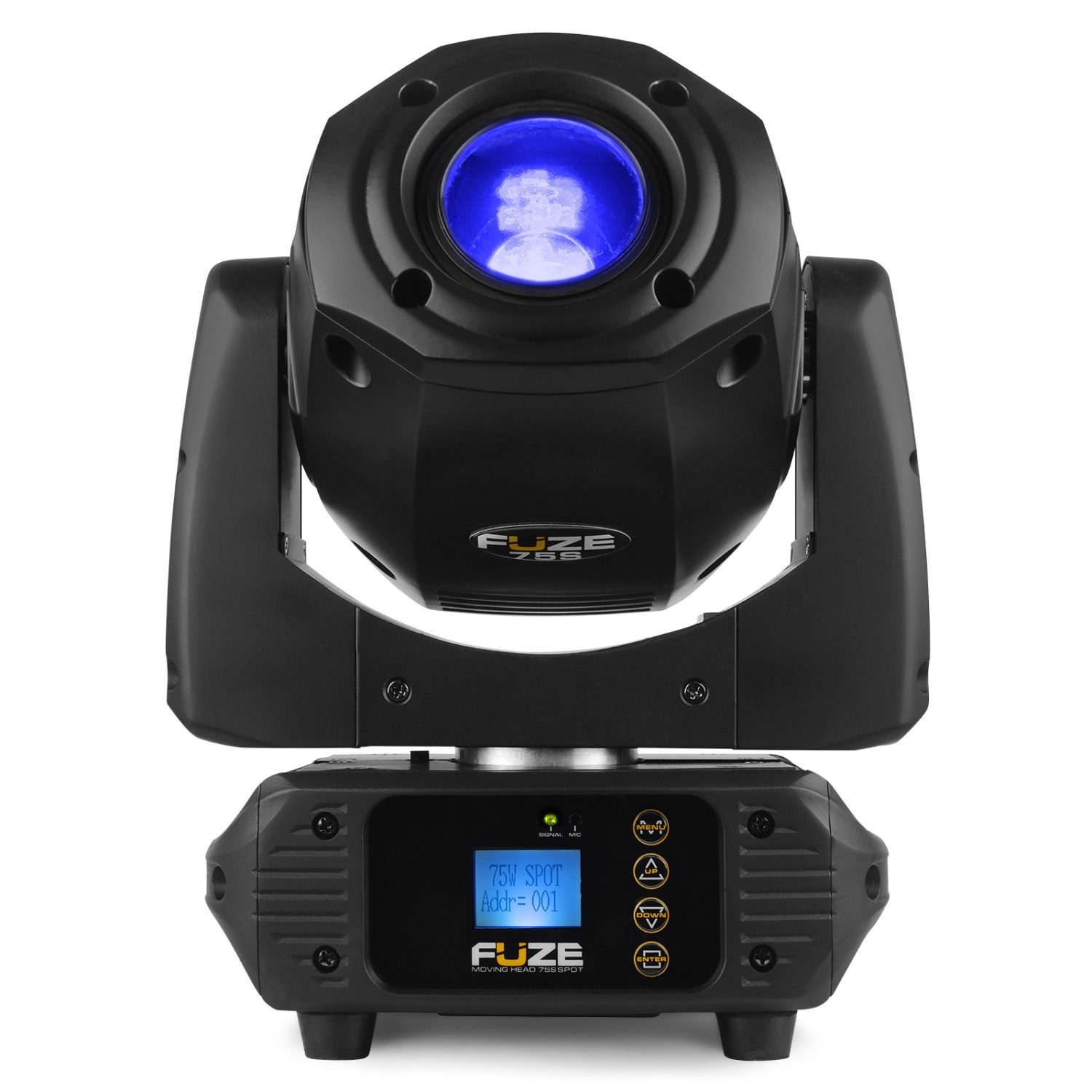

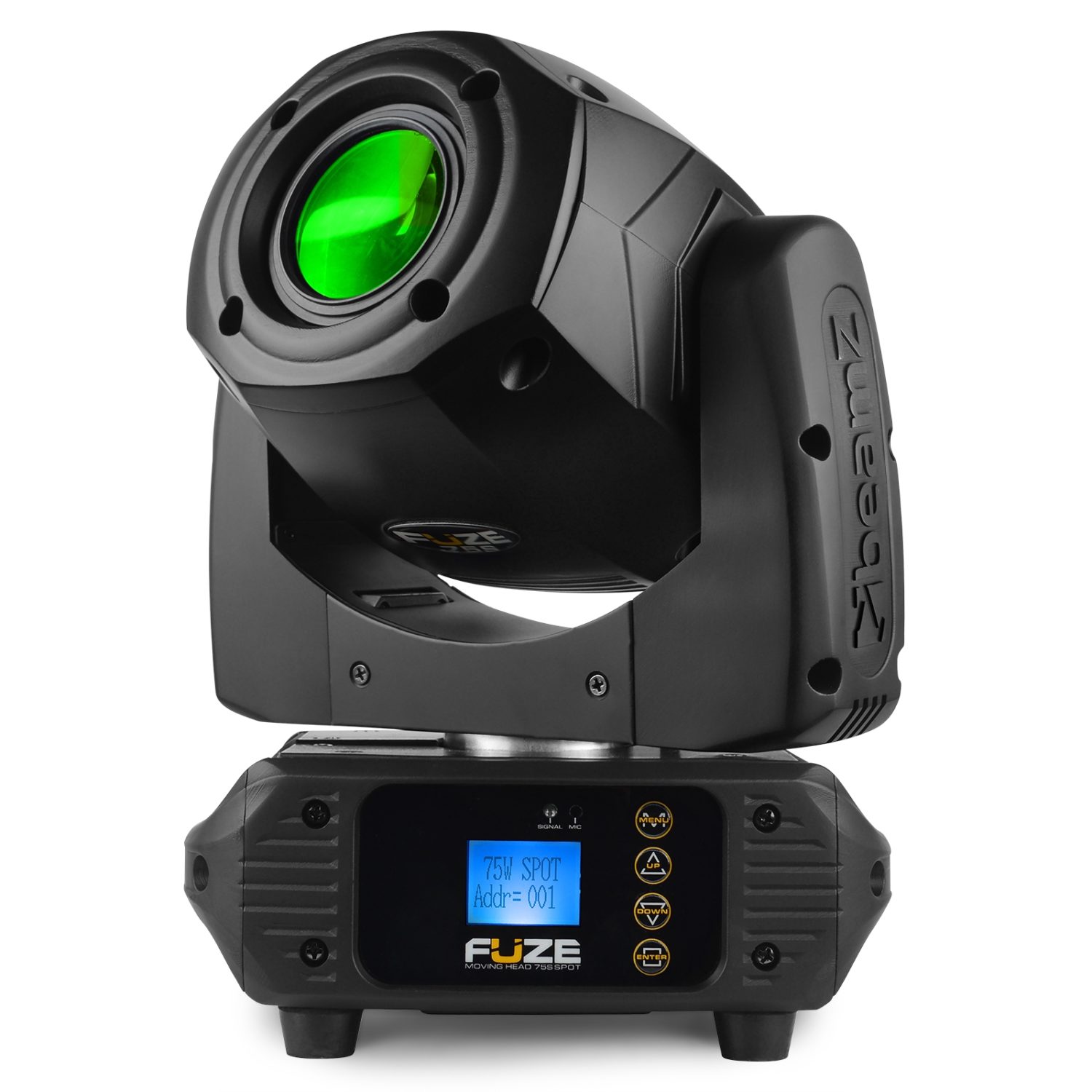

Control panel with LCD display

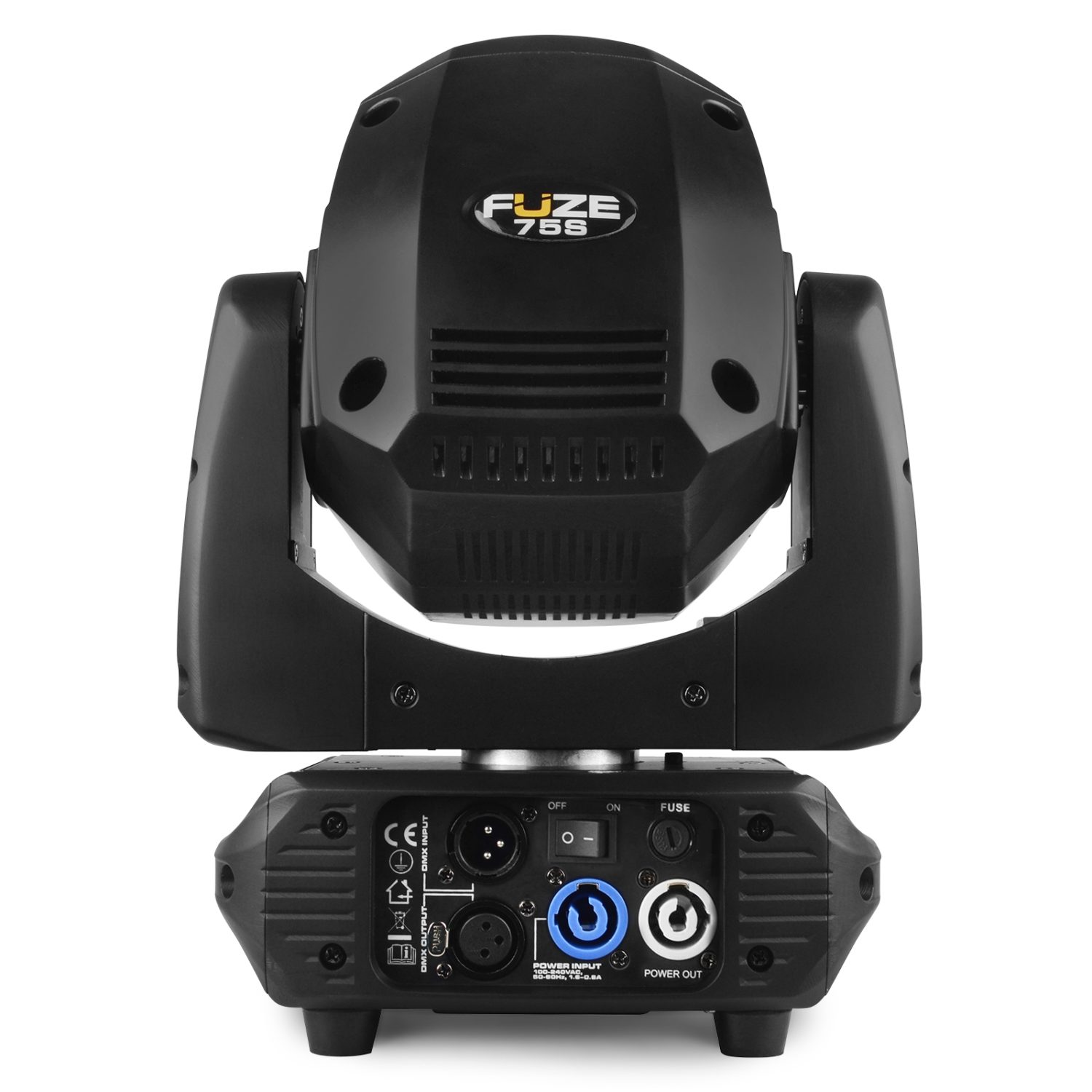

DMX in/output via 3-pin XLR
Powerconnector input/output
Quick lock omega clamp included
DMX cable included
Powerconnector cable and safety cord included

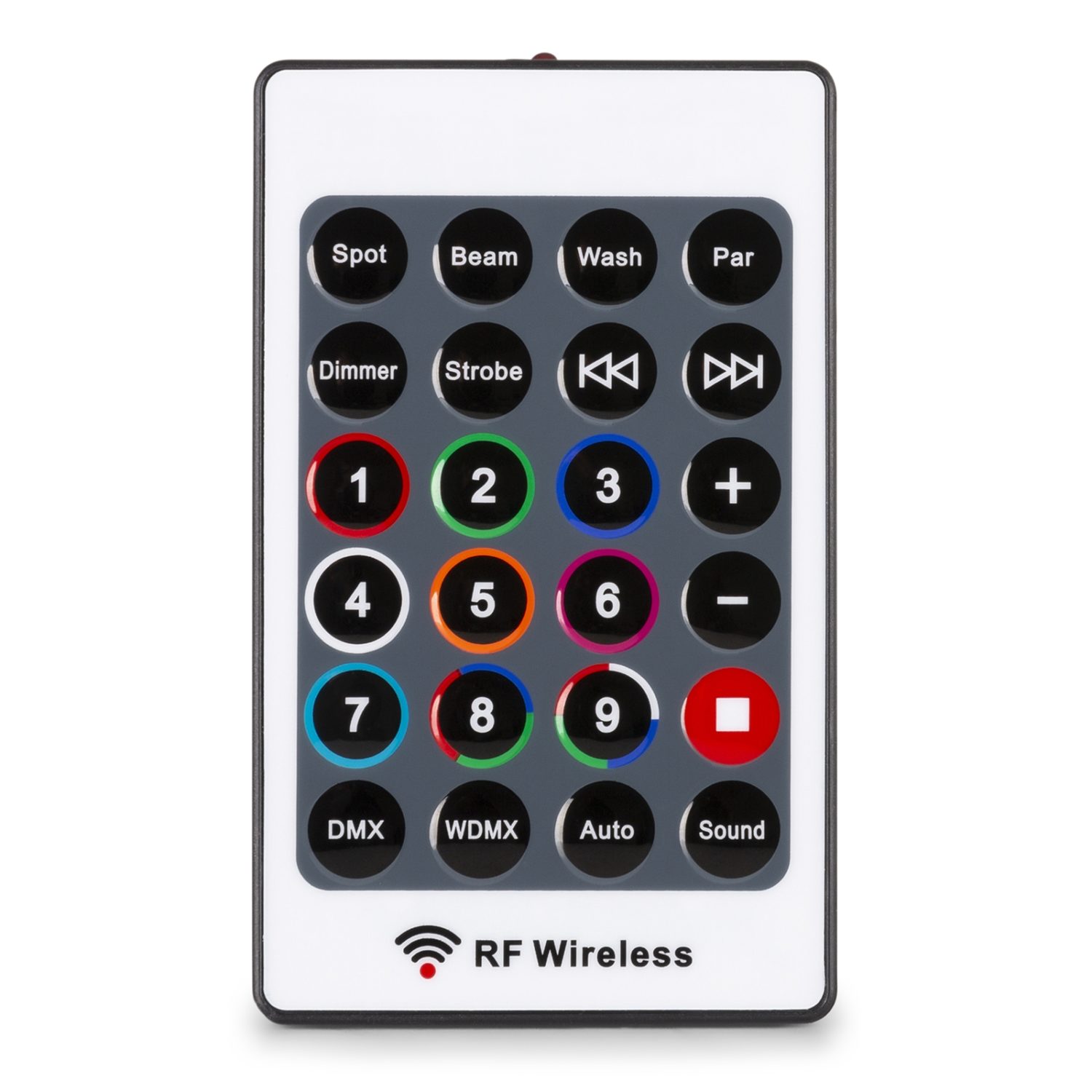

Included remote control

Specifications

Specifications
Description
Videos
Download & links

Light source	Single colour LED
Colours	White
LED power (single LED)	75W
Quantity of LEDs	1
Colour wheel	8 colours + open
Beam angle	12°
Motorized focus	Yes
Illuminance	70.000lx@1m
Head movement: Pan	630
Head movement: Tilt	270
Rotating gobos: Quantity	6
Gobo shake	Yes
Interchangeable gobos	Yes
Gobo dimensions	15.98mm
Prisma 1	3 Facet
Flash rate per second	1 - 11Hz
Modes	Automatic programs, DMX, Manual, Master/Slave
Sound to light mode	Yes
DMX channels	11, 13
DMX connection	3-pin XLR
Display	LCD
IP rating	IP20
Cooling	Temperature controlled fan
Power plug	P-Con
Power consumption	1.6 - 0.8A
Power supply	100-240VAC 50/60Hz
Dimensions (L x W x H)	245 x 230 x 290
Weight (kg)	5.3000

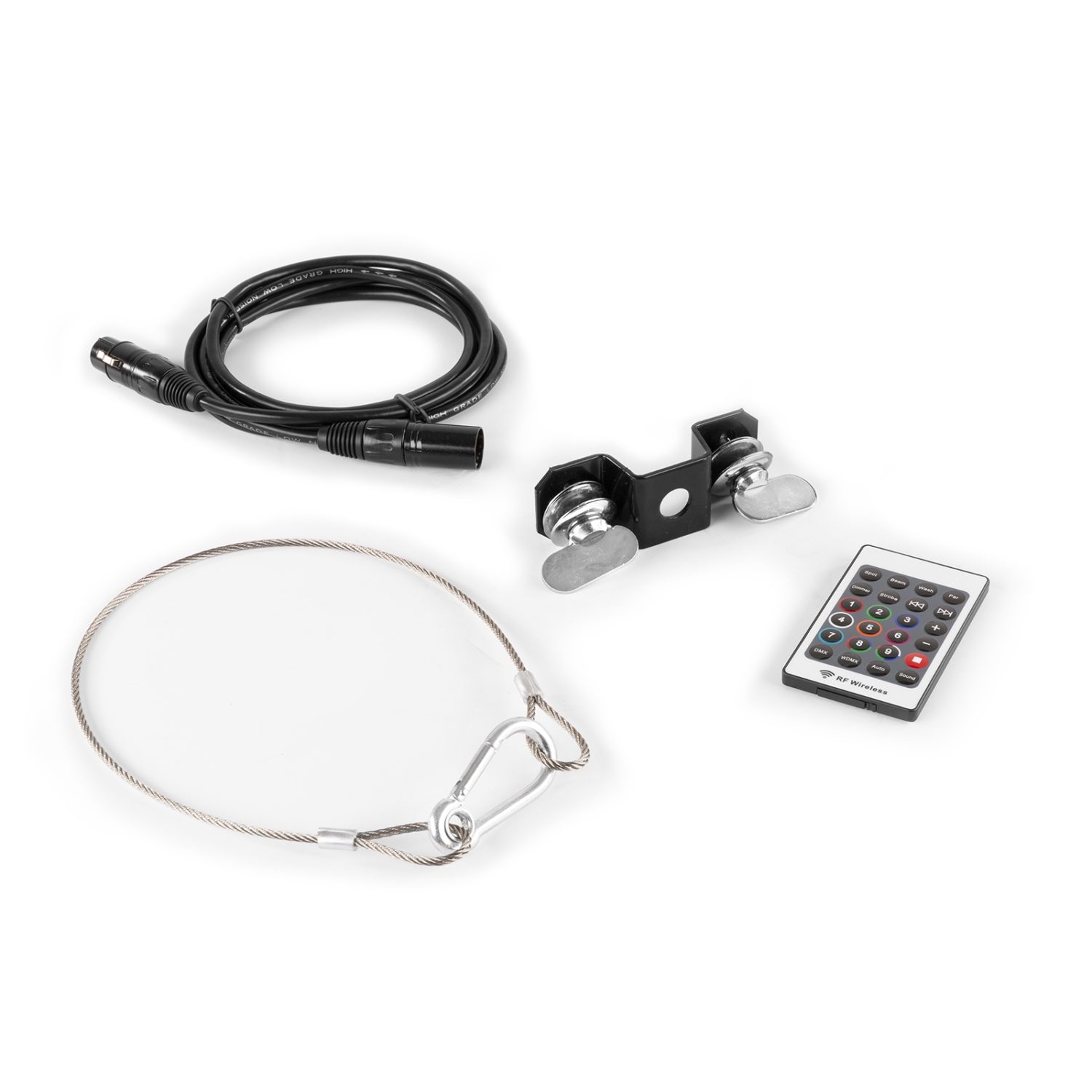

Included accessories	Remote control (wireless), Mounting bracket, Safety cord, Power cable, DMX cable

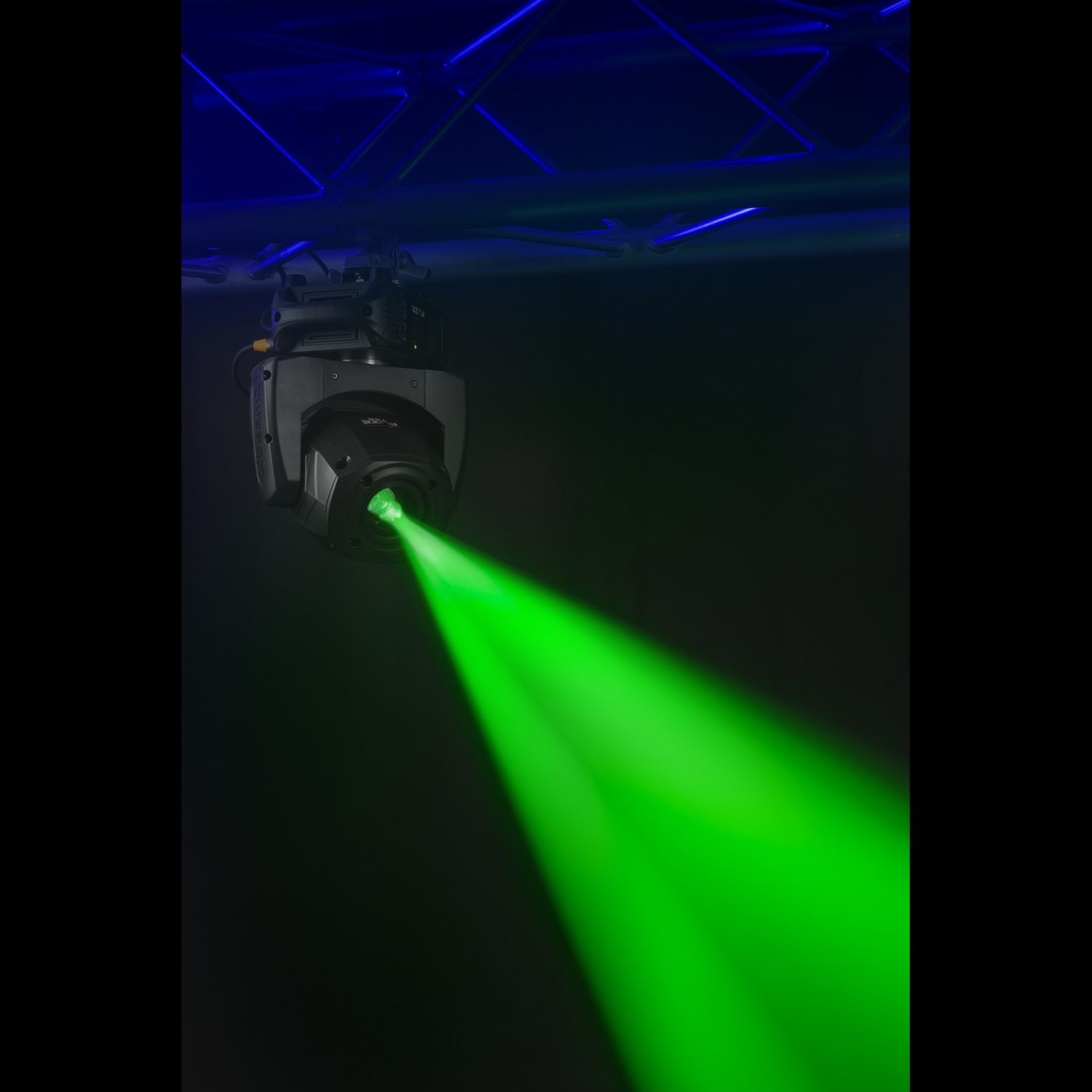

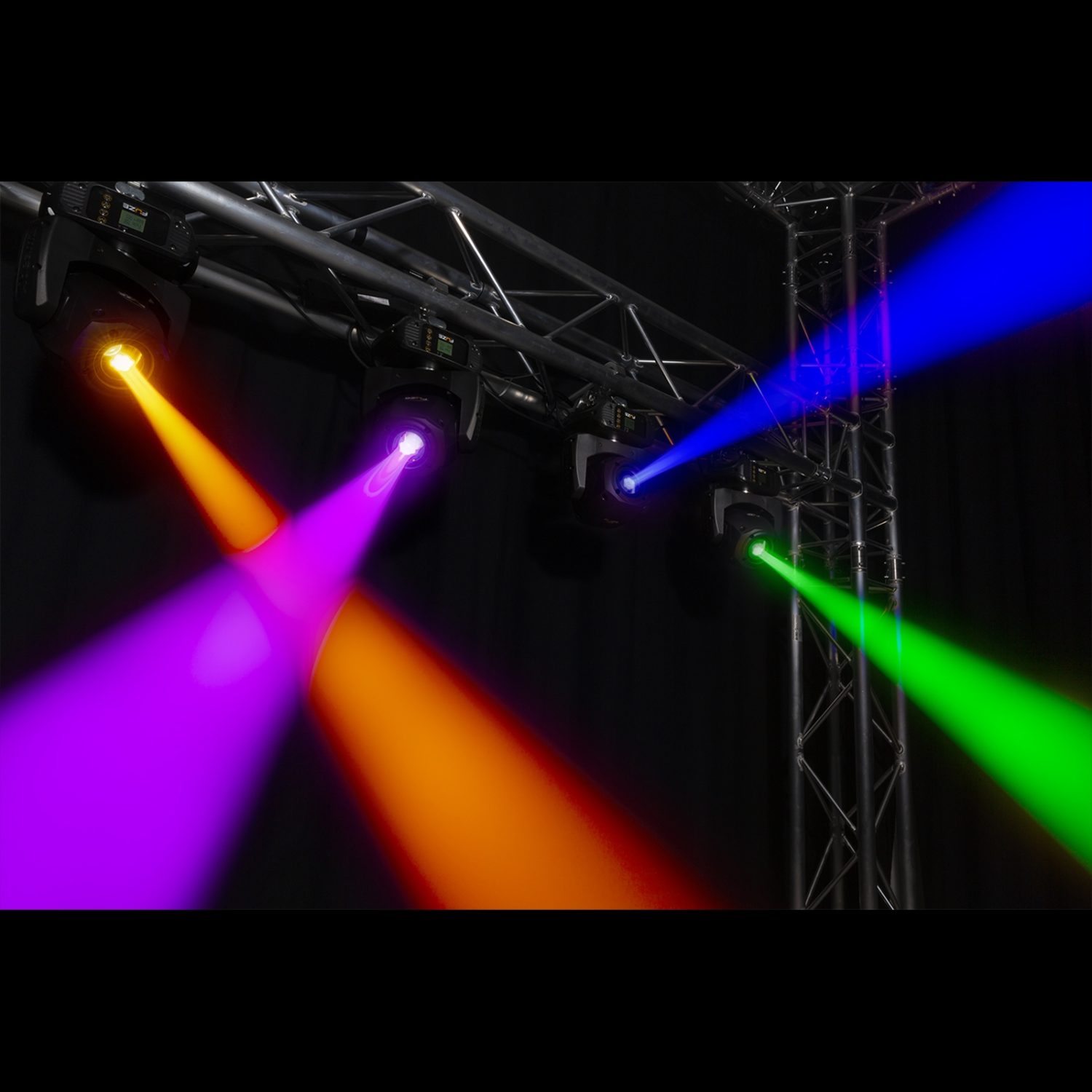

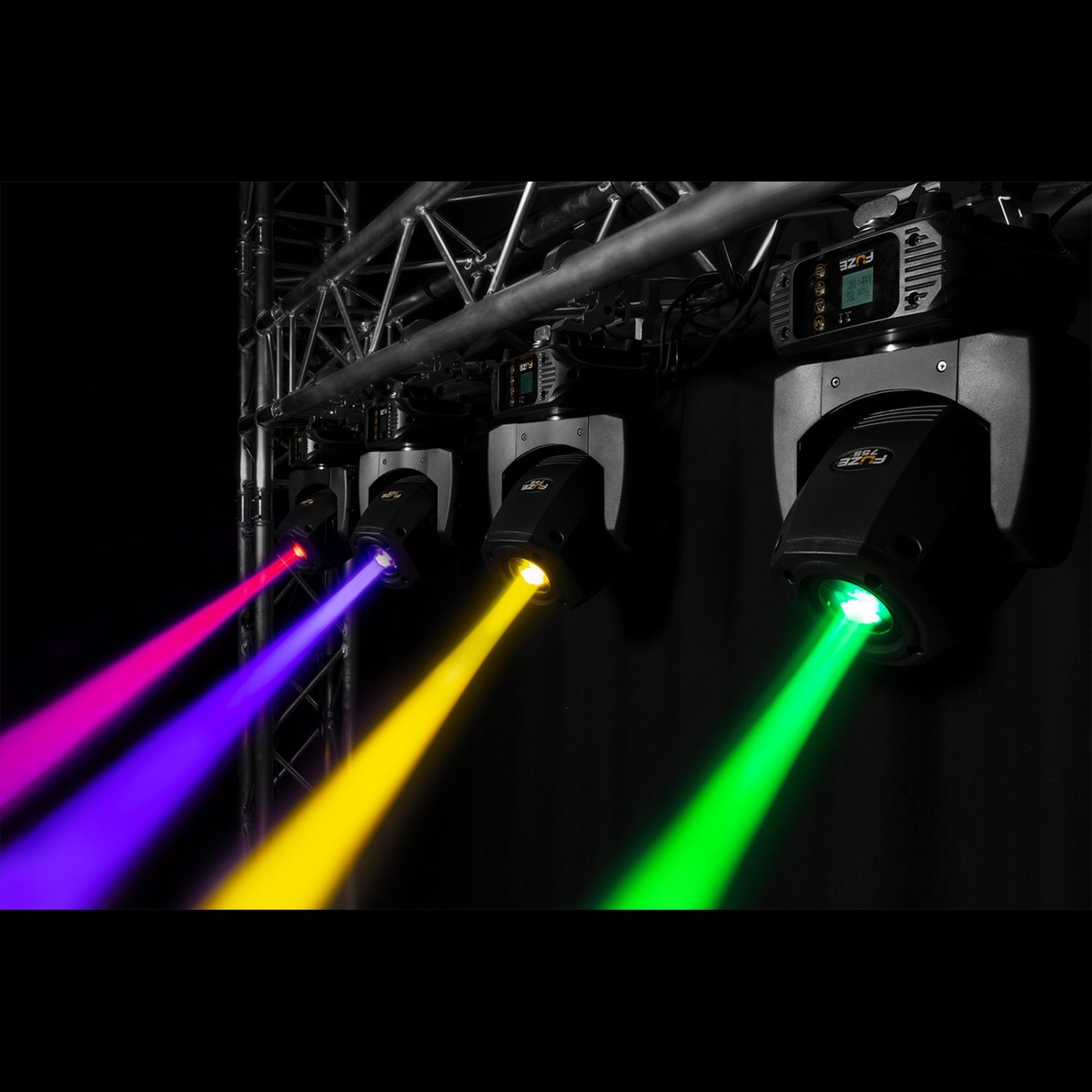

The Fuze75S Spot LED Moving Head is a lightweight and compact moving head featuring a powerful 75W LED. It produces sharp, light-coloured beams that can be customised using the colour and gobo wheels. The Fuze75S also features a 3-facet prism that splits the beam for great effects and to cover larger areas. Operation via DMX, Auto mode with exiting built-in light shows, Sound Active Mode or linked in Master/Slave mode. Perfect for lighting designers, DJs, bands, clubs, bars and installations where small footprint and low weight is critical.
