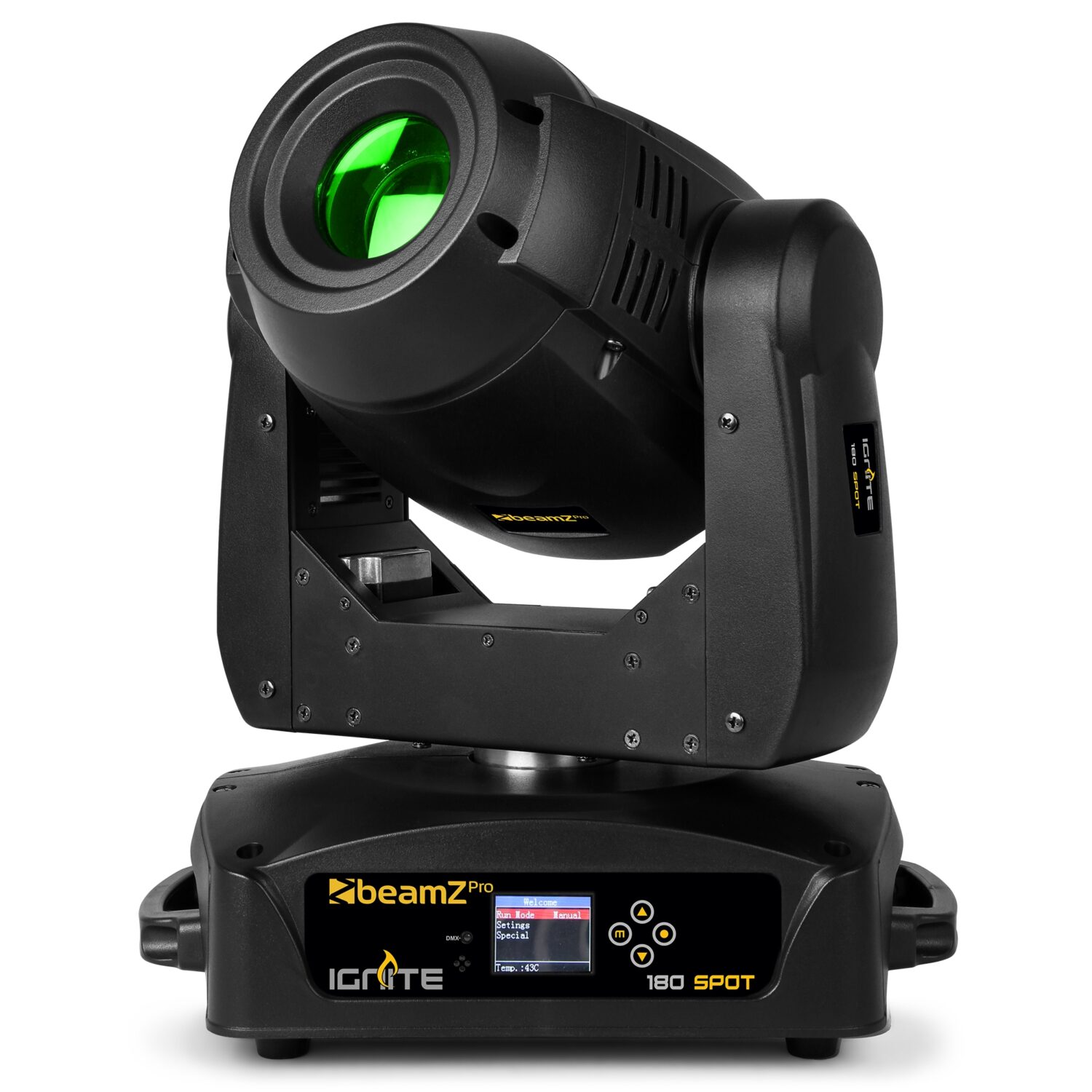

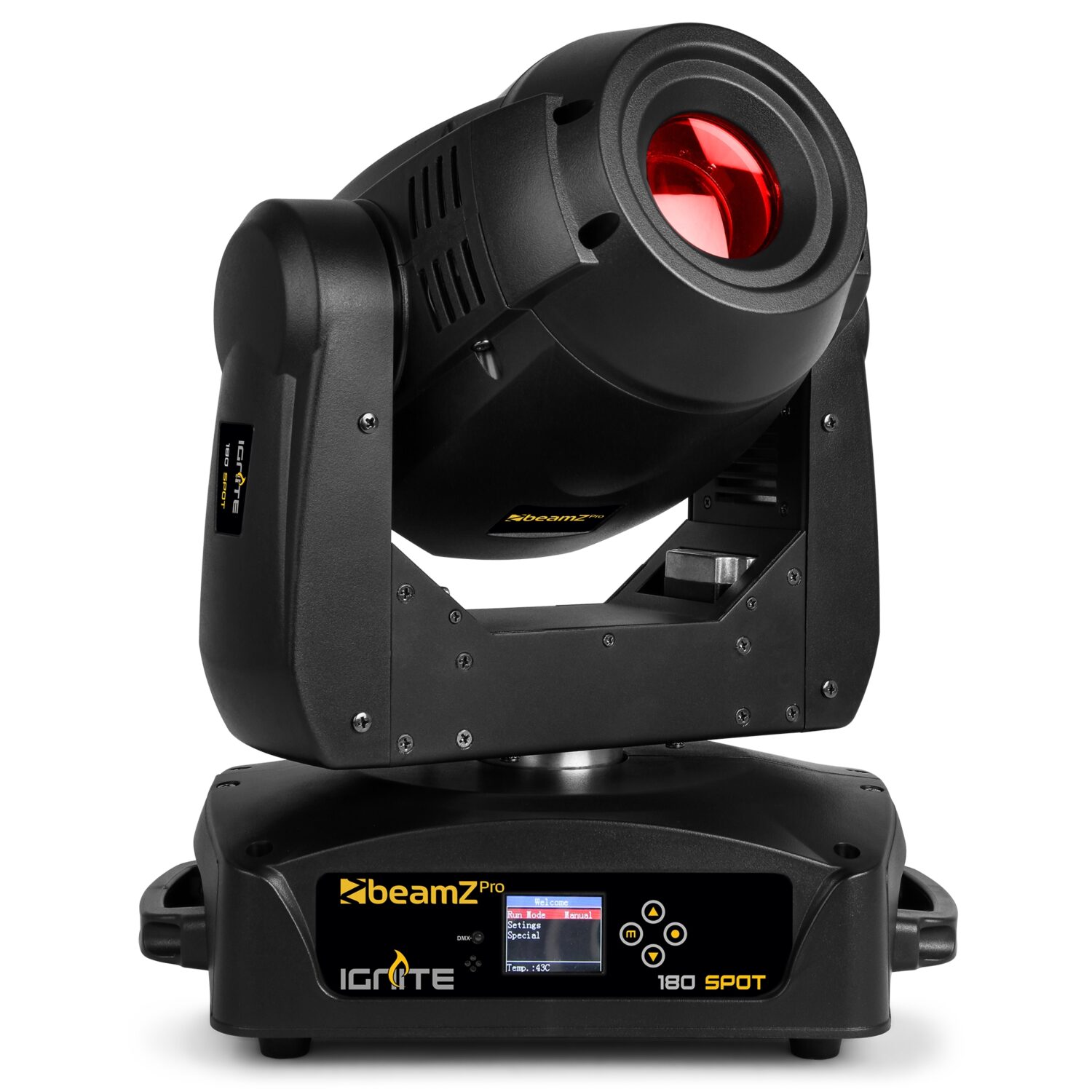

IGNITE180S LED Spot Moving Head

beamZ Pro

150.371
  • 180W High Intensity LED
  • 13 or 17 DMX channels
  • DMX and Stand-alone mode
  • Master/slave synchronization
  • Sound activated with adjustable sensitivity
  • Auto mode
  • Beam angle 15°

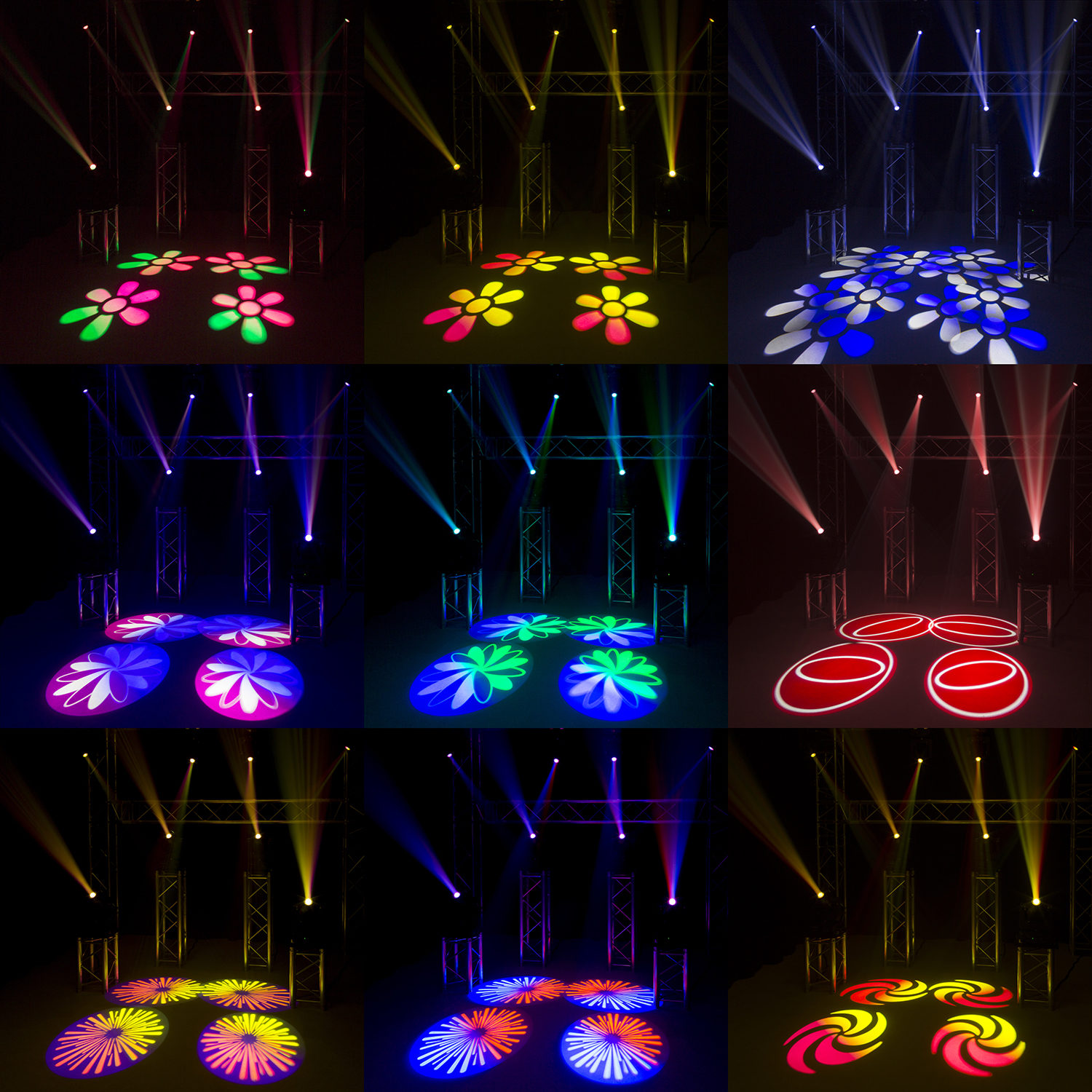

  • Gobo Wheel 1: 3x glass and 3x metal gobos + open (interchangeable)
  • Gobo Wheel 2: 8x metal gobos + open
  • Gobo functions: gobo shake and gobo rotation

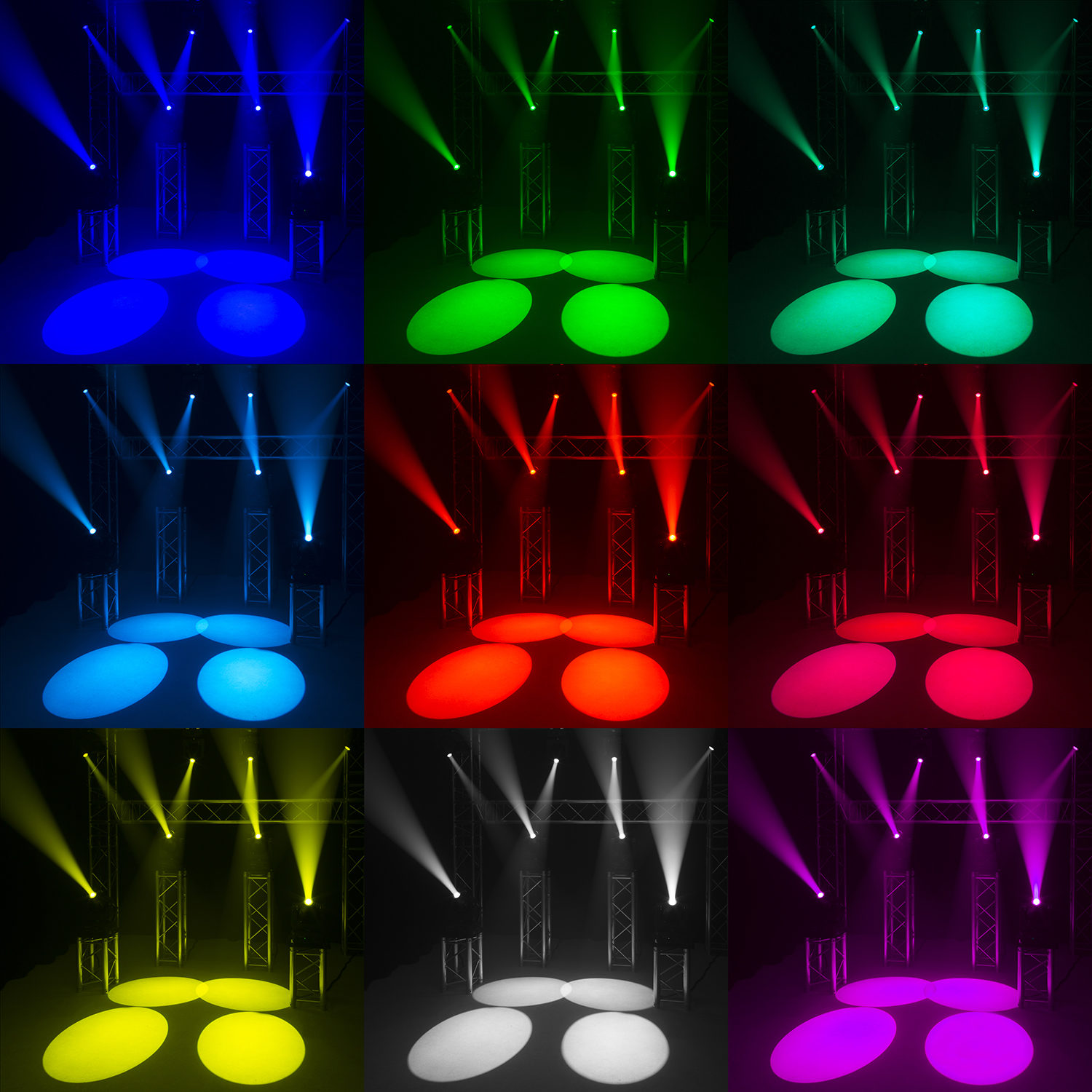

  • 7 Colours + open
  • Split colour, rainbow effect
  • Rotatable 3 facet prism
  • Rotatable 6 facet prism – Linear
  • Motorized focus
  • 0-100% Electronic Dimmer
  • Strobe: 0-20Hz
  • Automatic pan/tilt correction
  • Reset function
  • Control panel with full-colour LCD display

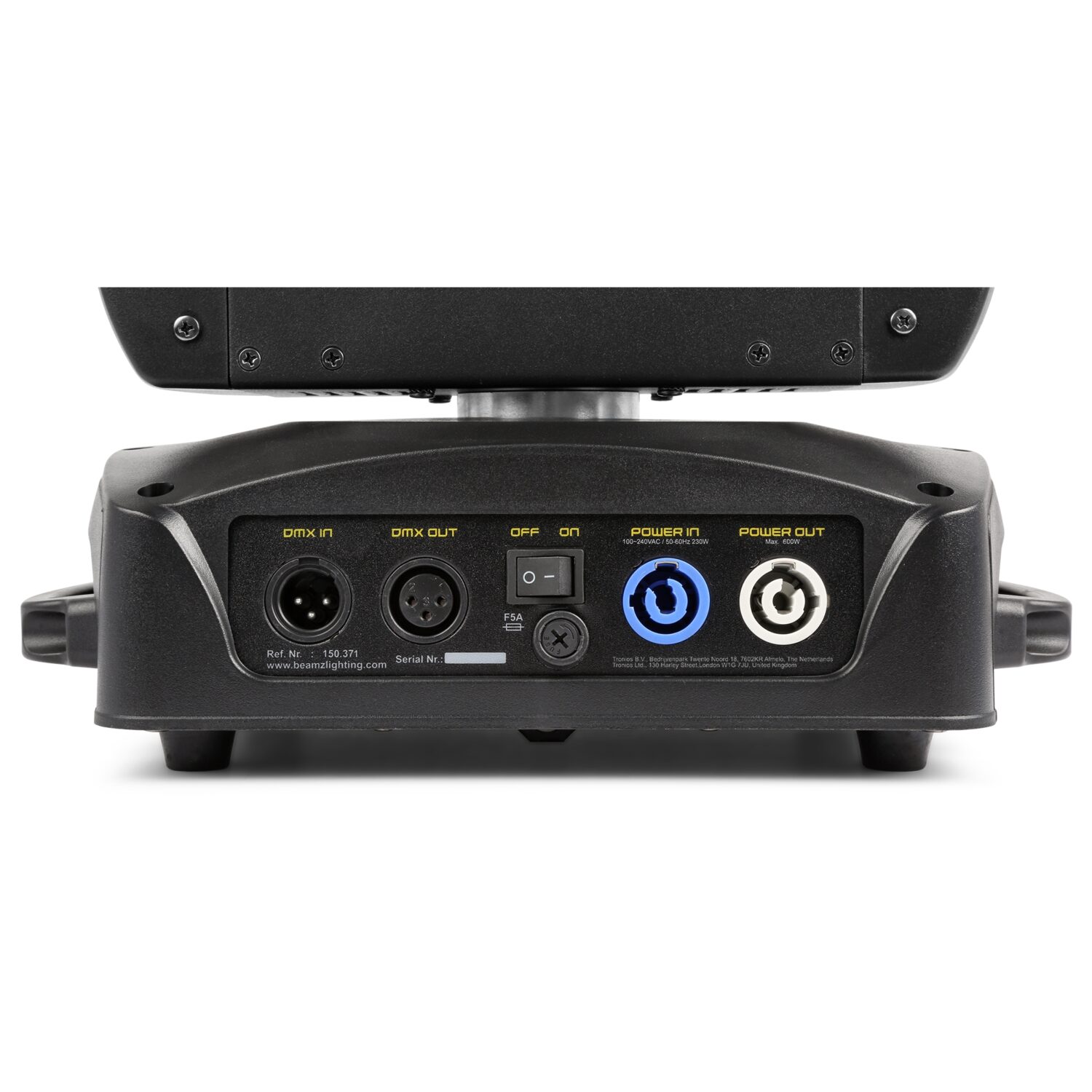

  • DMX in/output via 3-pin XLR
  • Powerconnector input/output

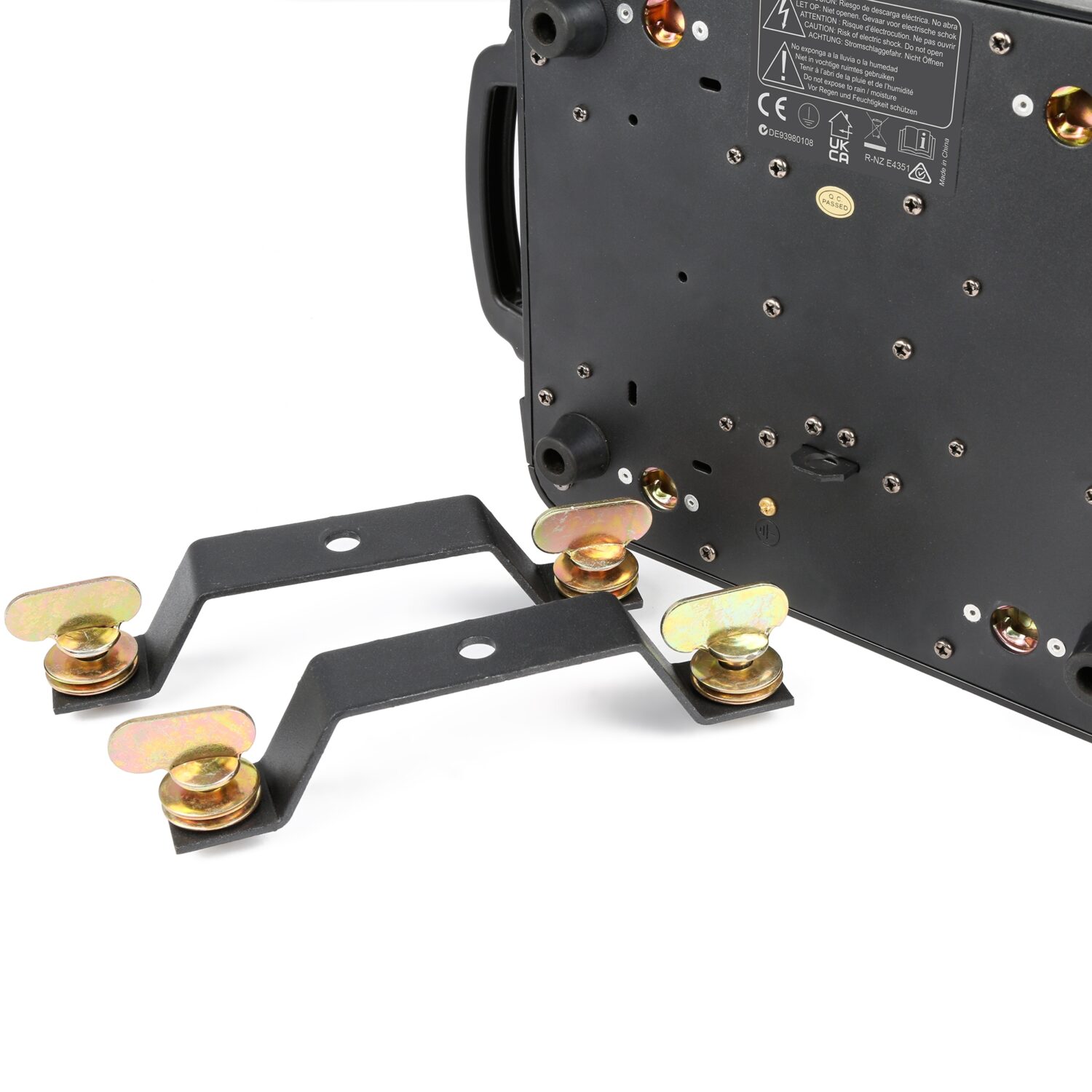

  • Quick lock omega clamp included (2x)
  • DMX cable included
  • Powerconnector cable included
Light source Single colour LED
Colours White
LED power (single LED) 180W
Quantity of LEDs 1
Colour wheel 7 colours + open
Beam angle 15°
Motorized focus Yes
Illuminance 131.000lx@1m
Head movement: Pan 540
Head movement: Tilt 270
Static gobo: Quantity 15
Rotating gobos: Quantity 6
Gobo shake Yes
Interchangeable gobos Yes
Gobo dimensions 21mm
Prisma 1 3 Facet
Prisma 2 6 Facet
Flash rate per second 0 - 20Hz
Modes Automatic programs, DMX, Manual
Sound to light mode Yes
DMX channels 13, 17
DMX connection 3-pin XLR
Display LCD
IP rating IP20

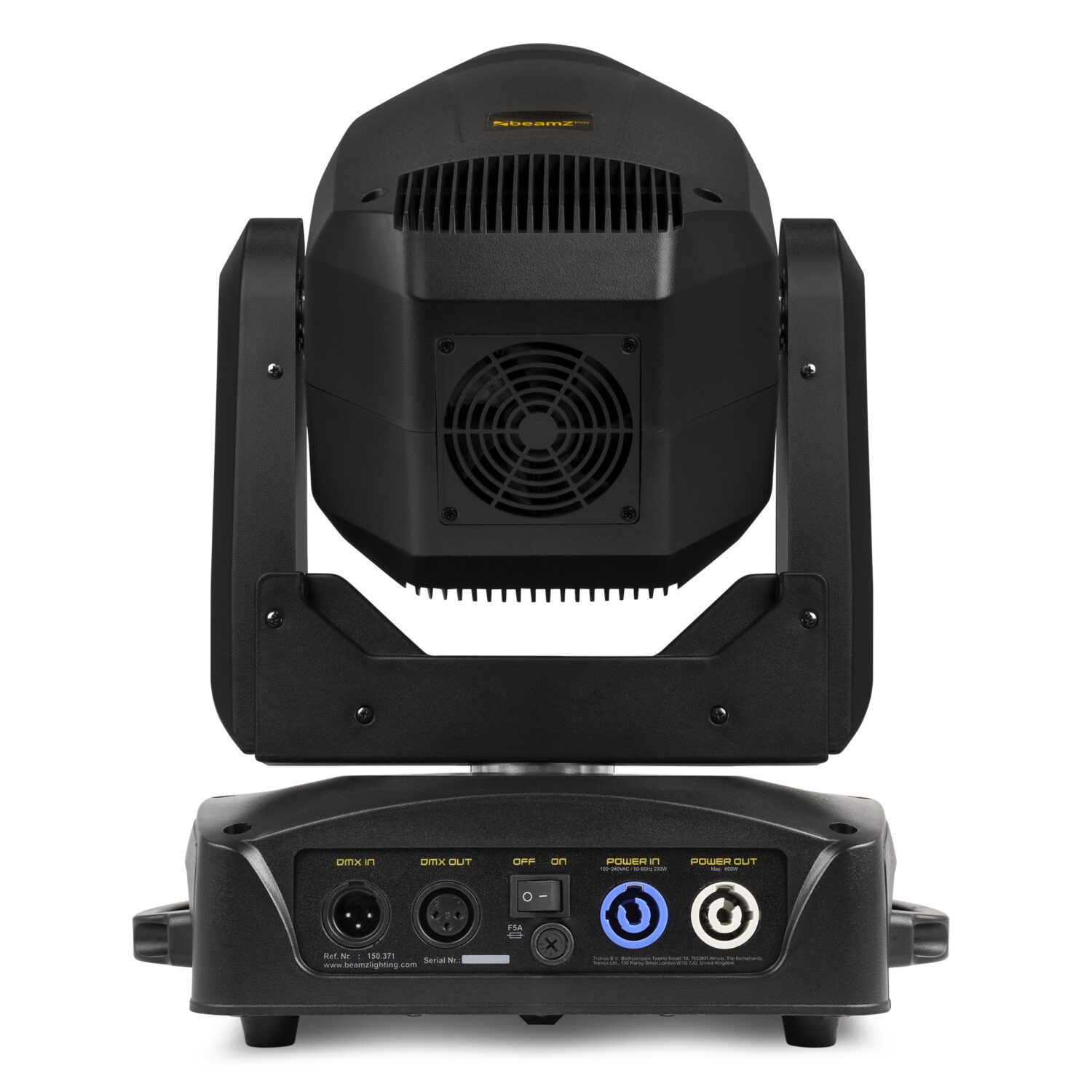

Cooling Temperature controlled fan
Power plug P-Con
Power consumption 2 - 0.98A
Power supply 100-240VAC 50/60Hz
Dimensions (L x W x H) 320 x 220 x 360mm
Weight (kg) 10.2000
Included accessories Mounting bracket, Power cable, DMX cable

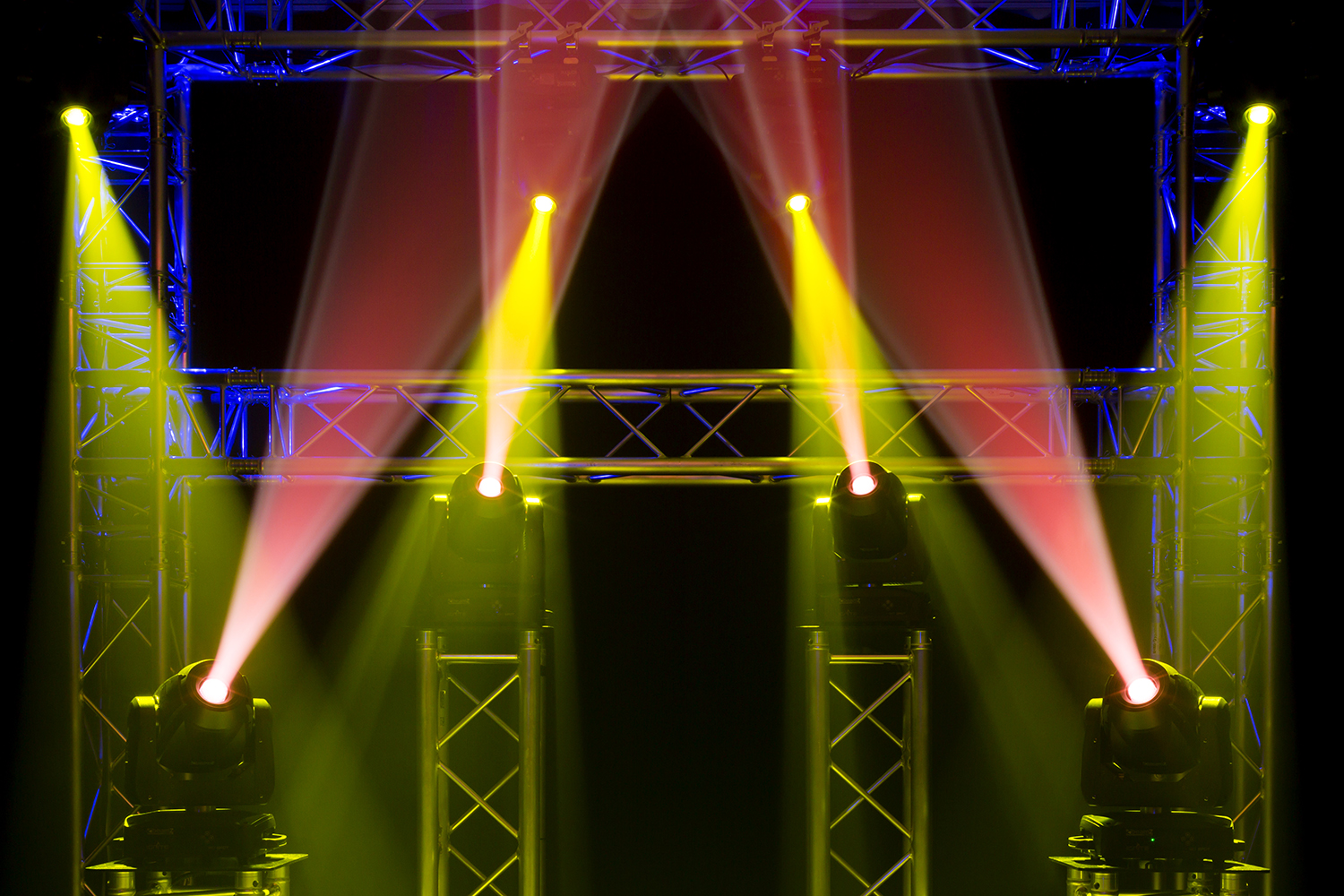

The IGNITE180S is a powerful LED moving head with a 180W bright white LED source. Equipped with a double gobo wheel (with interchangeable gobos) to create stunning overlay effects. Combined with 2 individually rotating prisms (3+6) to make stunning aerial effects in 8 colours. The 15 degrees beam angle make this the ideal fixture to use for gobo projection and sharp beam figures.
