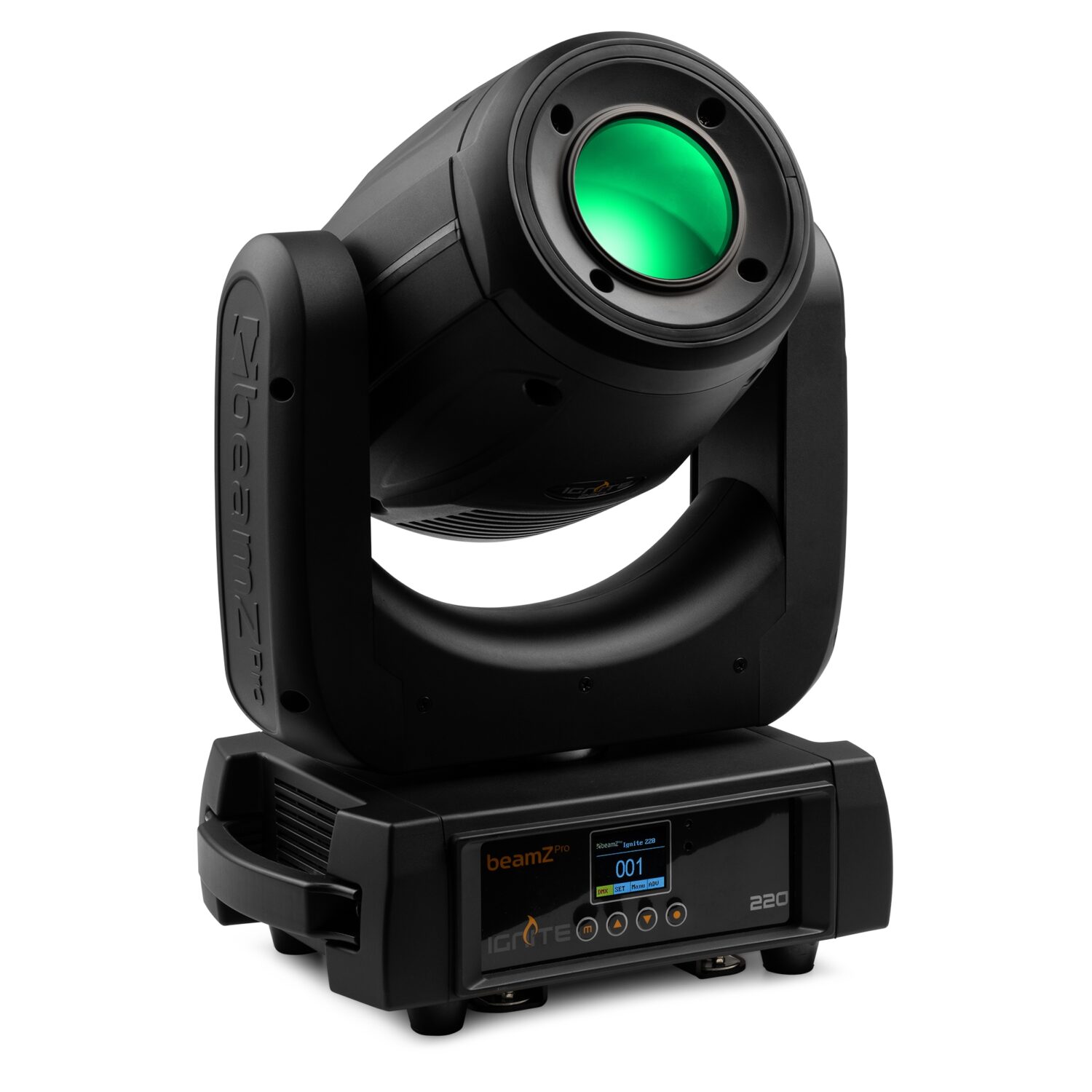

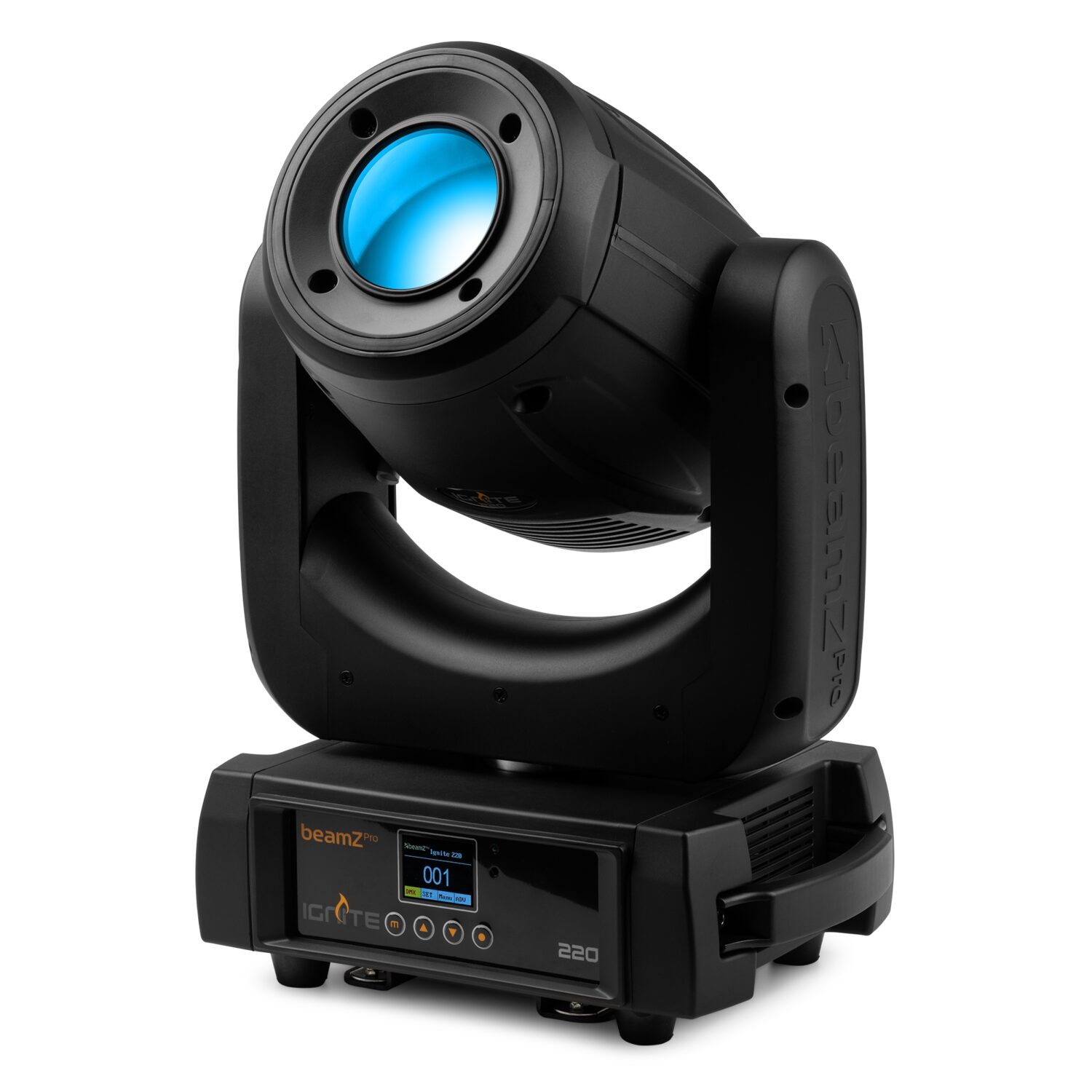

IGNITE220 LED Spot Moving Head

152.087

Spot Moving Head with zoom
220W High Intensity White LED
Linear motorized zoom
Static Gobo Wheel: 7x gobos + open
Rotating Gobo Wheel: 6x gobos + open (interchangeable)
Colour wheel: 7 Colours + open
Rotatable 3 facet prism
0-100% Electronic Dimmer
Electric focus 2.5m – 30m
13, 15 or 17 DMX channels
DMX and Stand-alone mode
Master/slave synchronization
Sound activated mode (9 programs)
Auto mode (9 programs)
Invertible pan/tilt
Control panel with LCD display
DMX in/output via 3/5-pin XLR
Powerconnector input/output
Quick lock omega clamp included
Powerconnector cable and safety cord included

Specifications

Specifications
Description
Download & links

Light source	Single colour LED
Colours	White
LED power (single LED)	220W
Quantity of LEDs	1
Colour wheel	7 colours + open
Beam angle: Min	12°
Beam angle: Max	24°
Zoom	Yes
Motorized focus	Yes
Illuminance	130.115 lx @ 1m
Head movement: Pan	540°
Head movement: Tilt	270°
Static gobo: Quantity	7
Rotating gobos: Quantity	6
Interchangeable gobos	Yes
Prisma 1	3 Facet
Flash rate per second	1 - 25Hz
Modes	Automatic programs, DMX, Master/Slave
Sound to light mode	Yes
DMX channels	13, 15, 17
DMX connection	3-pin XLR, 5-pin XLR
Display	LCD
IP rating	IP20
Cooling	Temperature controlled fan
Power plug	P-Con
Power consumption	2.4 - 1.119A
Power supply	100-240VAC 50/60Hz
Dimensions (L x W x H)	305 x 225 x 420mm
Weight (kg)	10.3000
Included accessories	Mounting bracket, Safety cord, Power cable

The IGNITE220 is a spot moving head with a linear motorized zoom, equipped with a powerful ultra-bright 220 Watt LED according to the latest technology. This moving heads also features 2 gobo wheels and a 3-facet rotating prism to create stunning 8-color aerial effects. The beam angle of 12 degrees makes this the ideal fixture to use for gobo projection and sharp beam figures. The IGNITE220 is suitable for DMX control in 3 different channel modes, master/slave or stand-alone operation. It includes several show presets, strobe and dimmer functions, and a built-in microphone for sound activation. Perfectly useable for many events and club installs.
