Products > Install > Static Lighting > LED Bars > LCB144 MKII LED Colour Bar

LCB144 MKII LED Colour Bar

beamZ

150.706
  • 144x SMD RGB LEDs
  • 3, 4, 7, 24 or 28 DMX channels
  • 8 Sections controllable
  • DMX and Stand-alone mode
  • Master/slave function
  • Sound activated with adjustable sensitivity
  • Auto mode with adjustable speed
  • IR remote control
  • DMX in/output via 3-pin XLR
  • IEC-connector input/output
  • Control panel with LED display
Specifications
Product colour Black
Light source 3-in-1 LED
LED colours Red, Green, Blue
Quantity of LEDs 144
Flash rate per second 1 - 24Hz
DMX channels 3, 4, 7, 24, 28
DMX connection 3-pin XLR
Modes Automatic programs, DMX, Manual, Master/Slave
Daisy chain Yes (max. 6 bars)
IP rating IP20
Cooling Convection
Display LED
Power plug IEC
Power supply 100-240VAC 50/60Hz
Dimensions (L x W x H) 1080 x 100 x 100mm
Weight (kg) 1.4500
Included accessories Remote control (wireless), Mounting bracket, Power cable

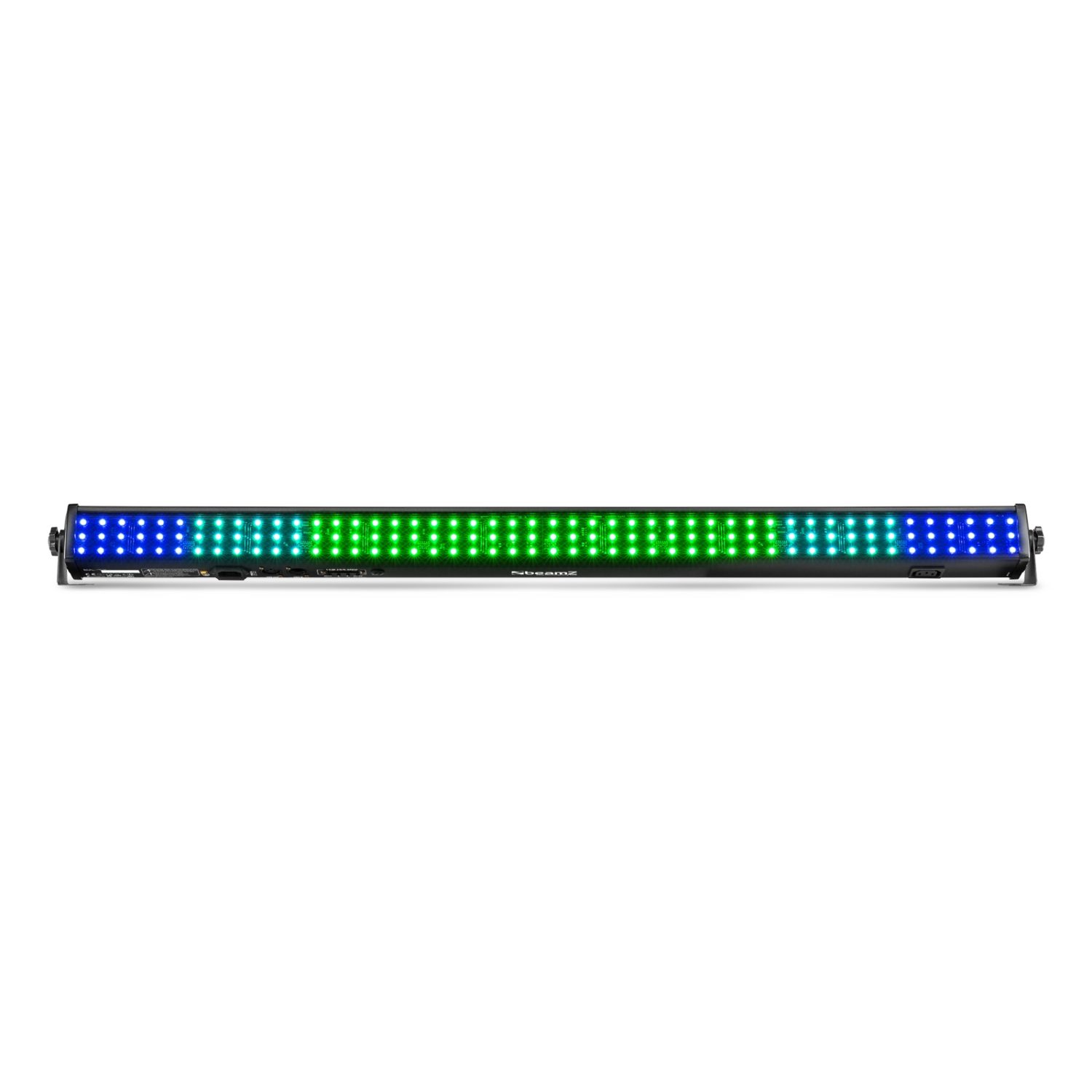

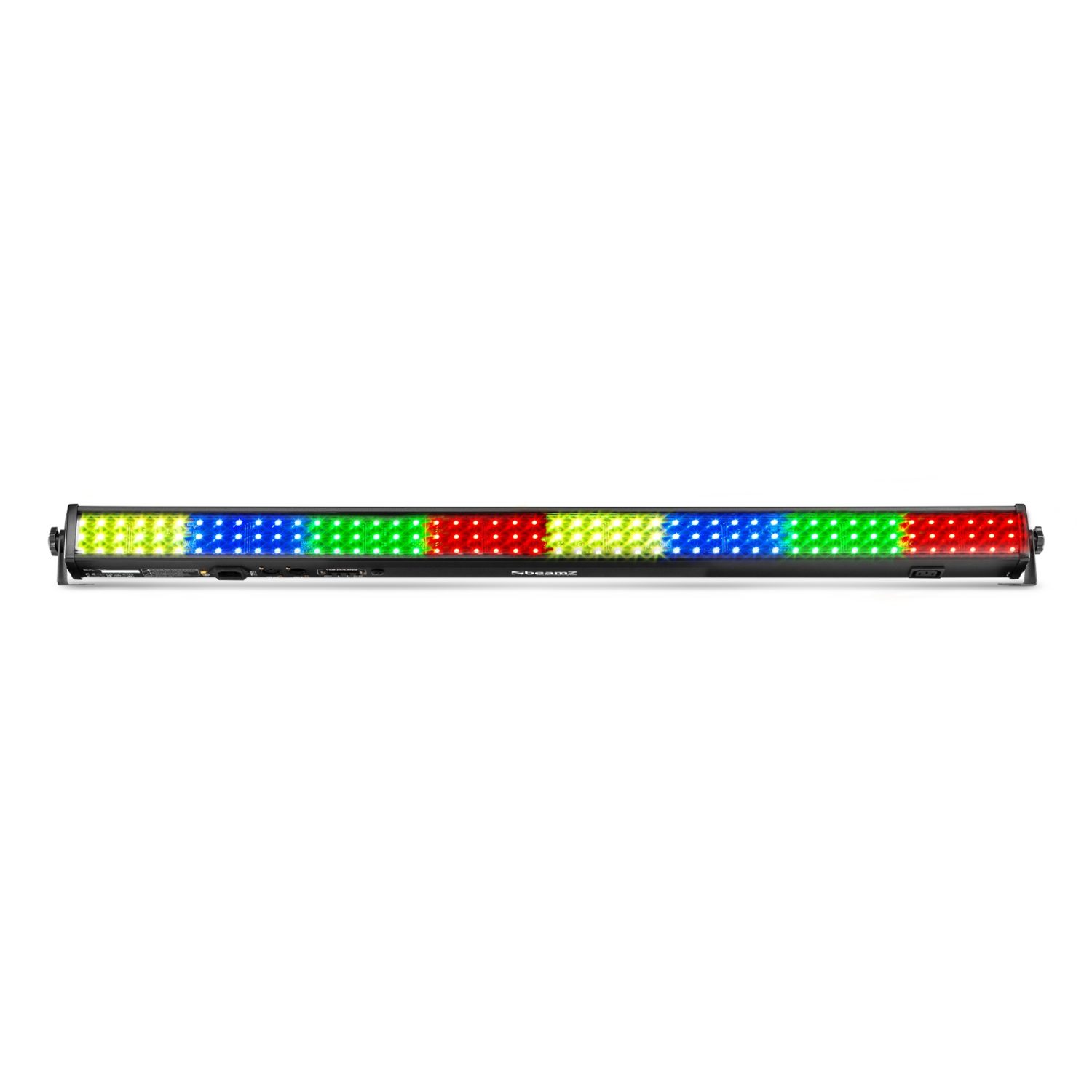

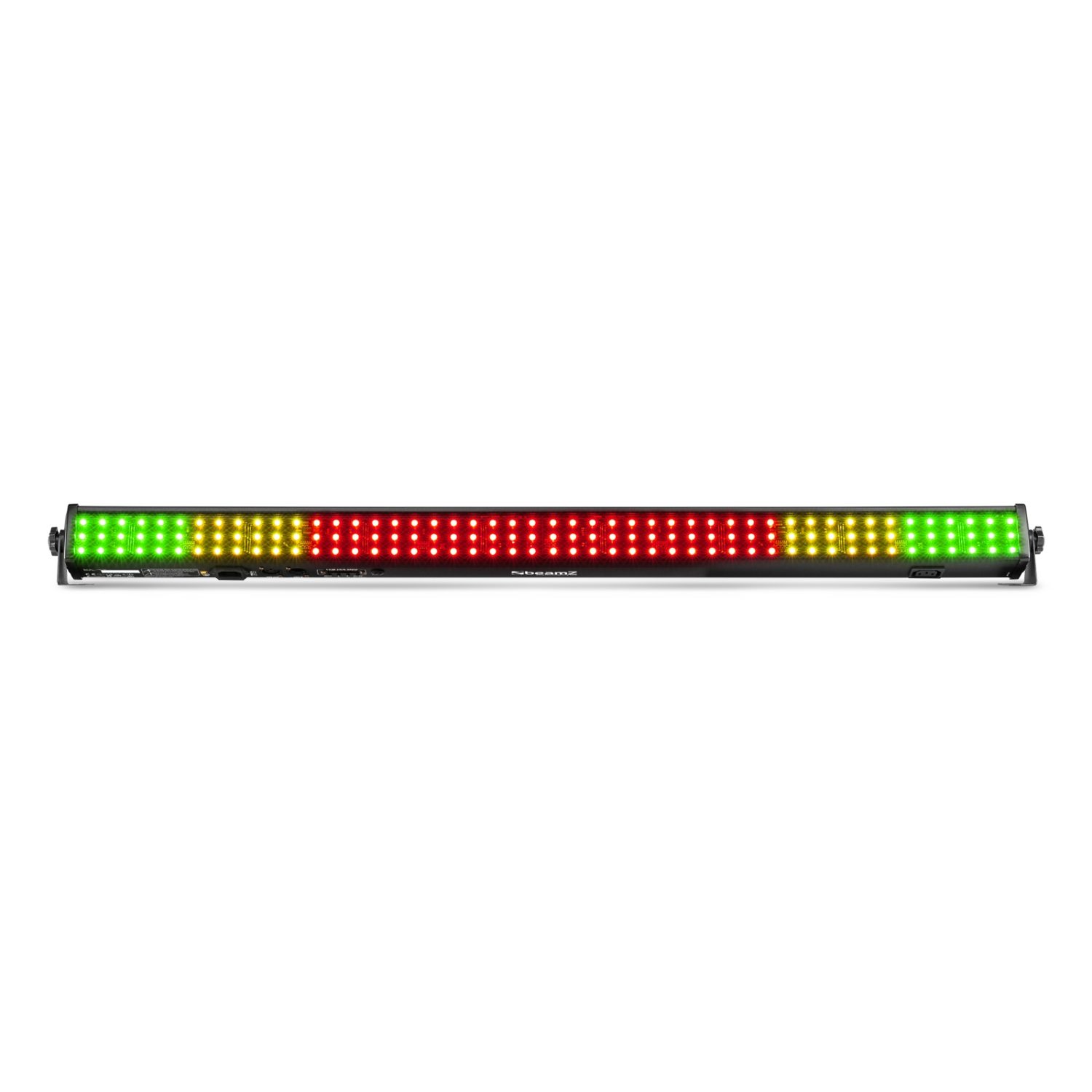

The LCB144 MKII is a LED bar with 144 pieces SMD RGB LEDs. The LEDs are divided in 8 separately controllable sections, with each section having its own RGB colour setting in DMX mode. While using the fixture in stand-alone mode there are 10 pre-programmed shows that you can run automatically or sound activated. The extra IEC output enables you to simply link the power of multiple units together into a single socket.
