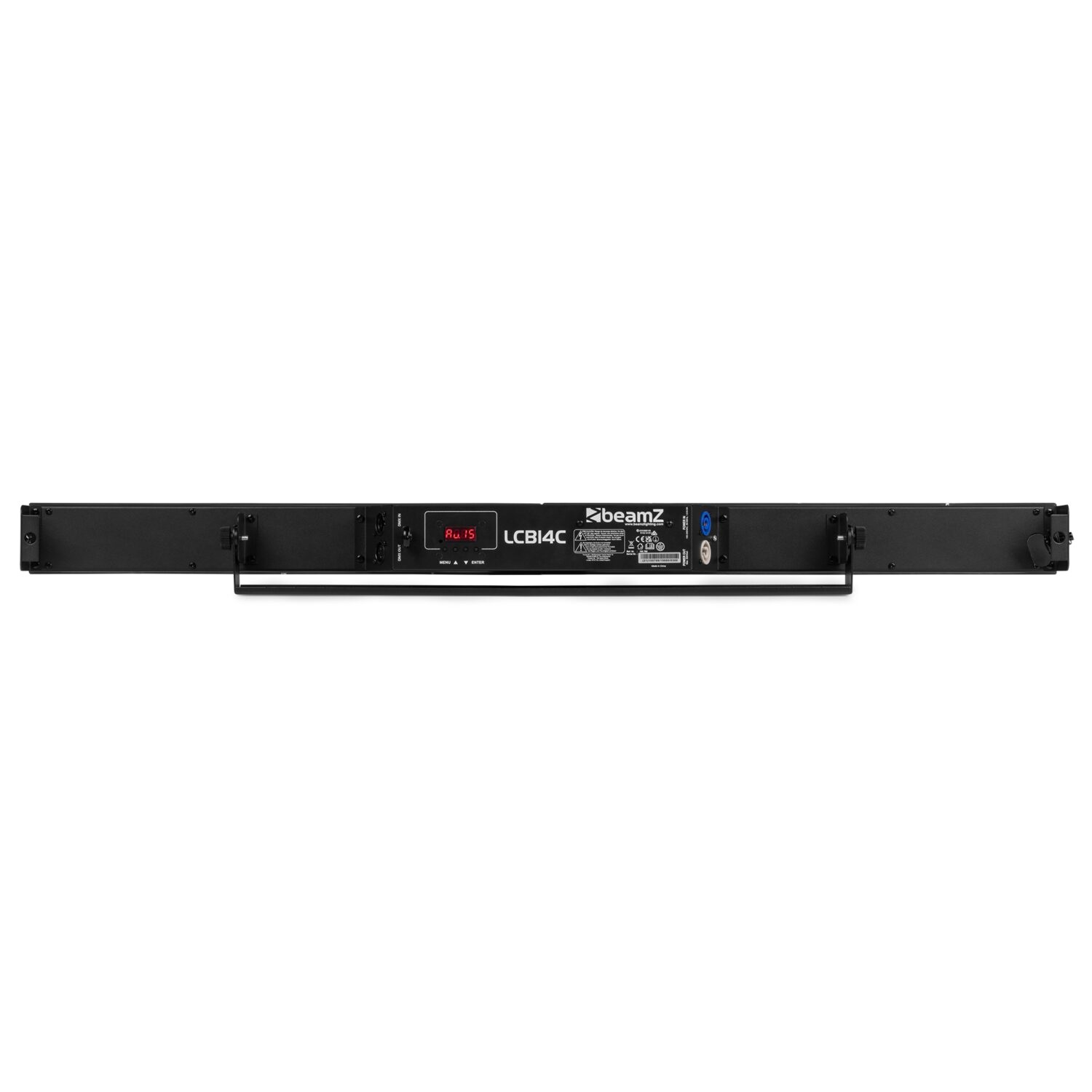

LCB14C Hybrid LED BAR RGBW/RGB Pixel Control

150.709

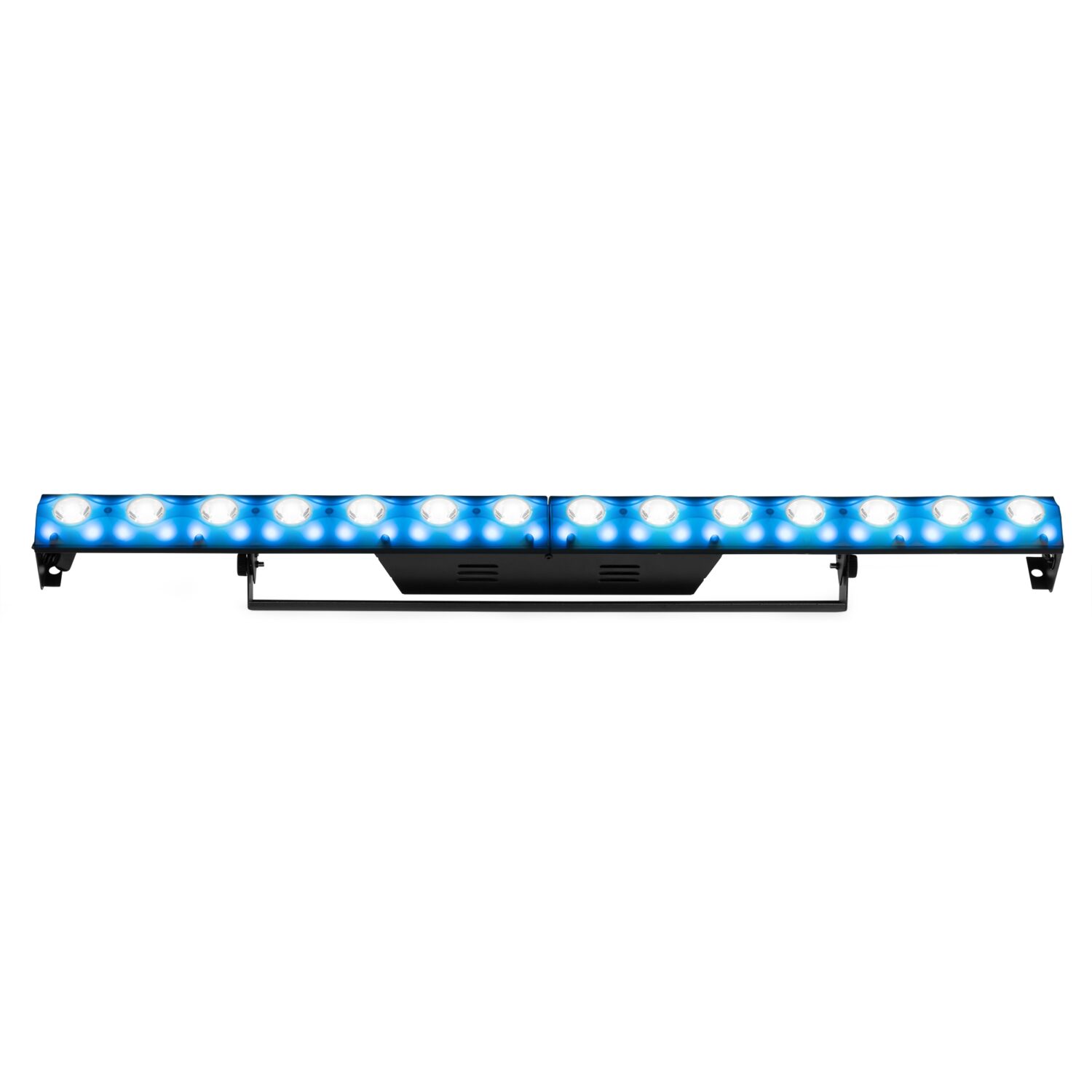

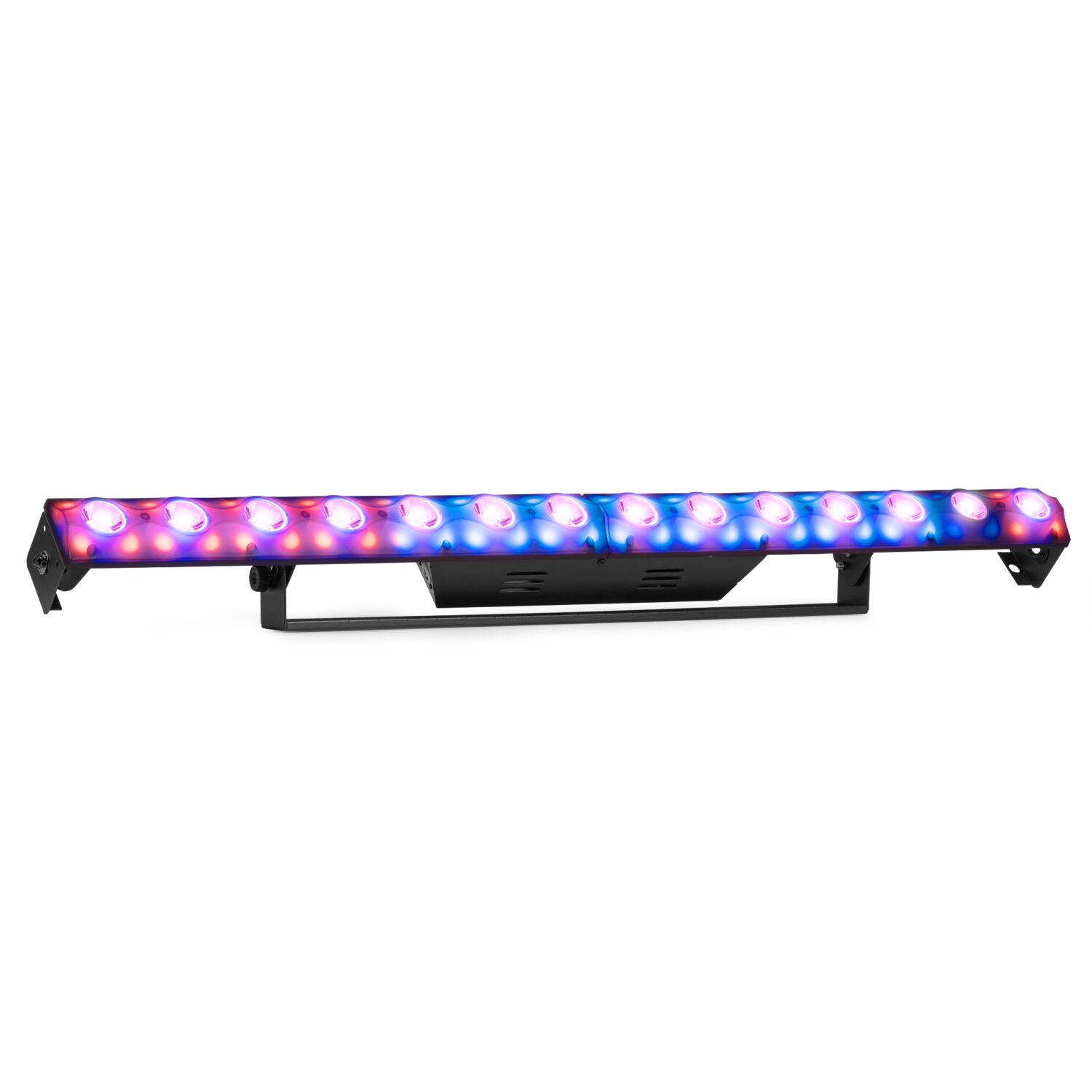

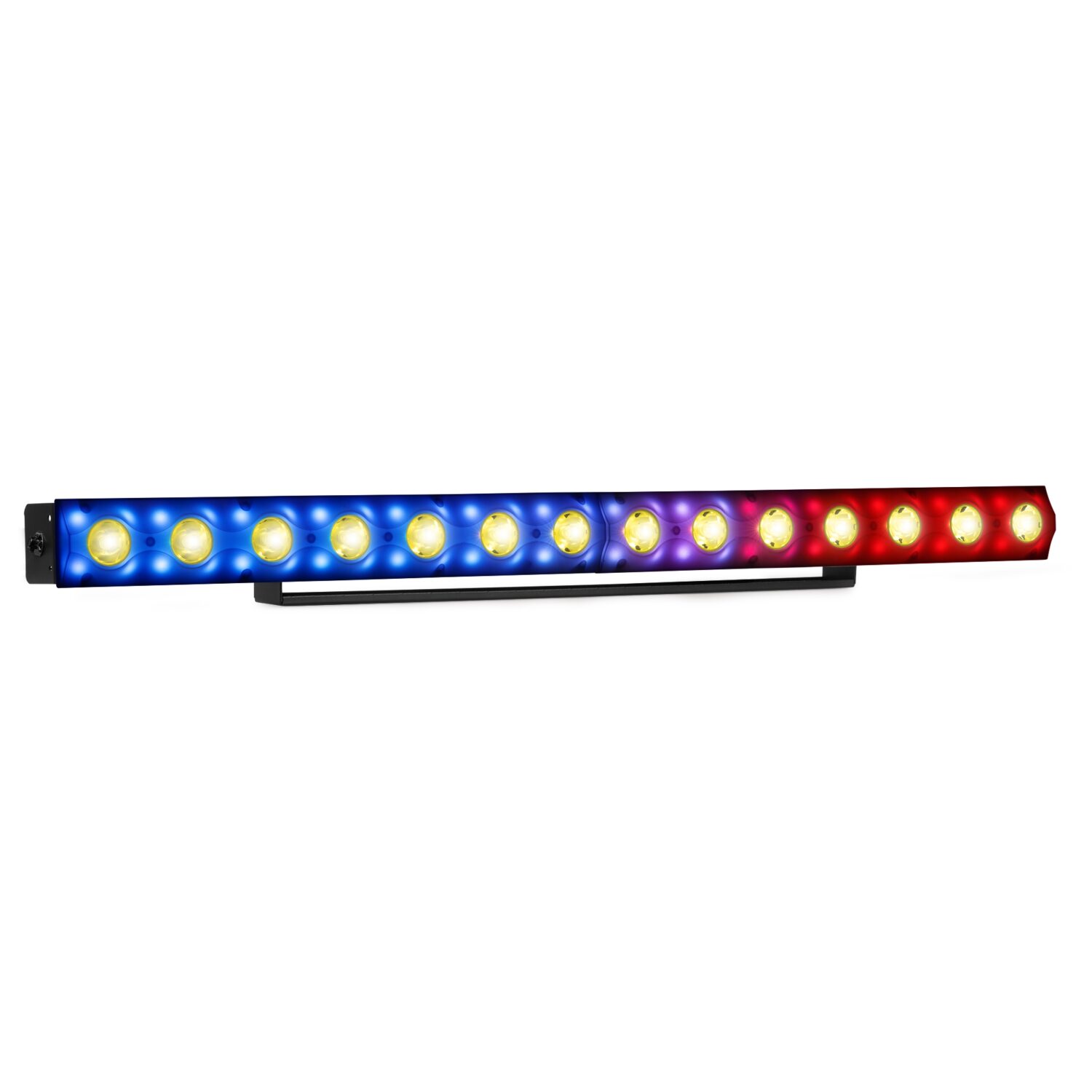

14x 4W RGB LEDs for sharp 5° beams
56x SMD RGB LEDs (backlight)

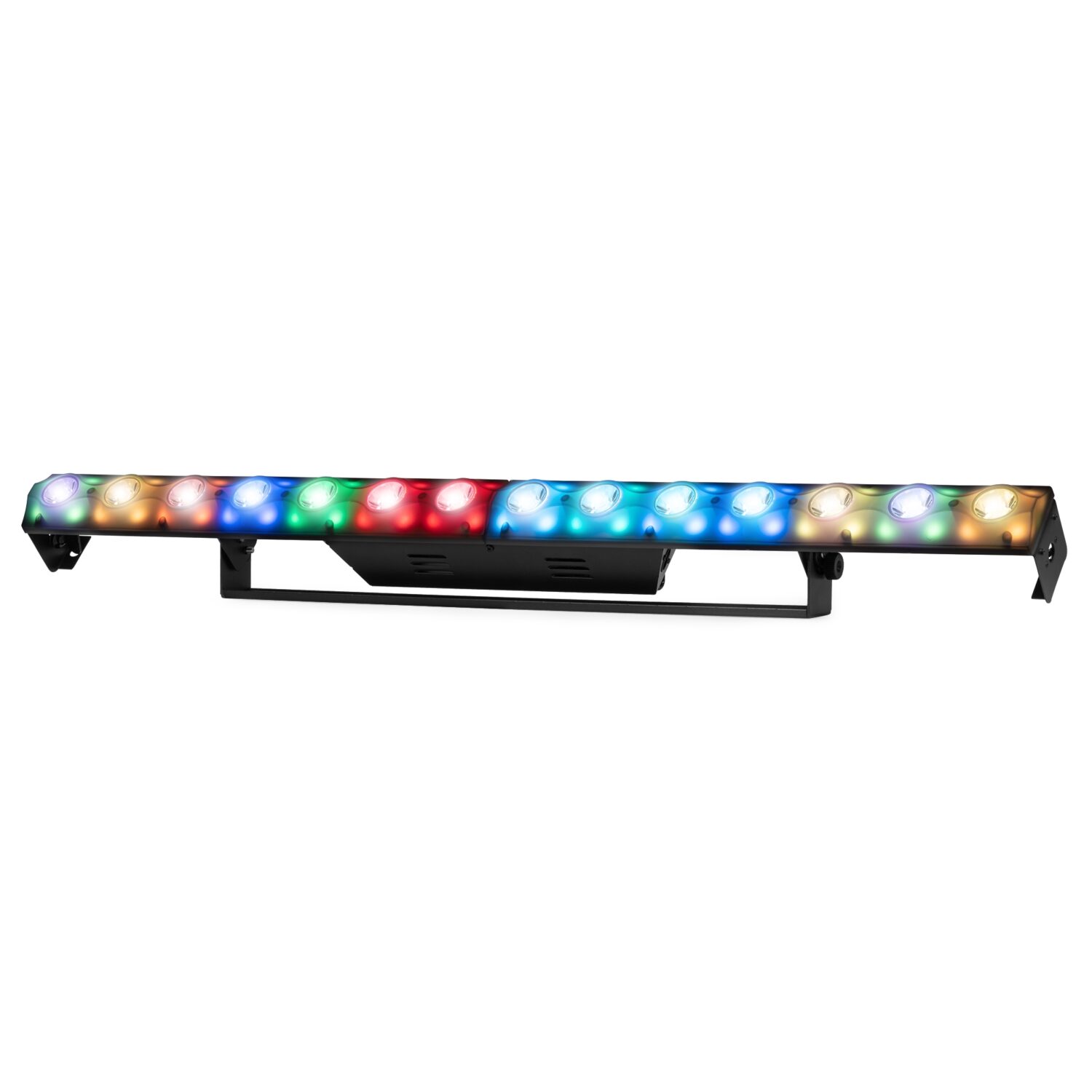

Single pixel control
Built-in programs
Silent operation

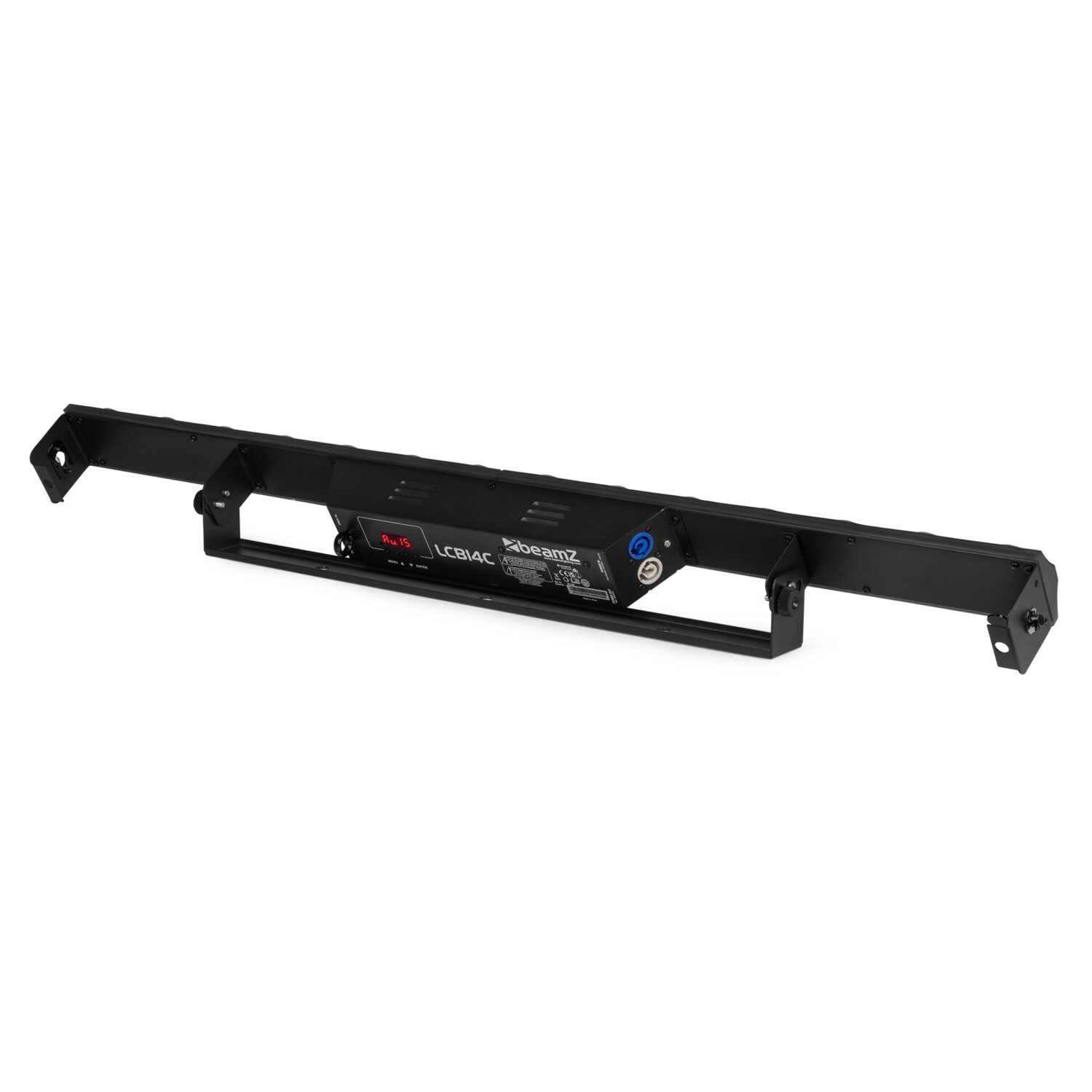

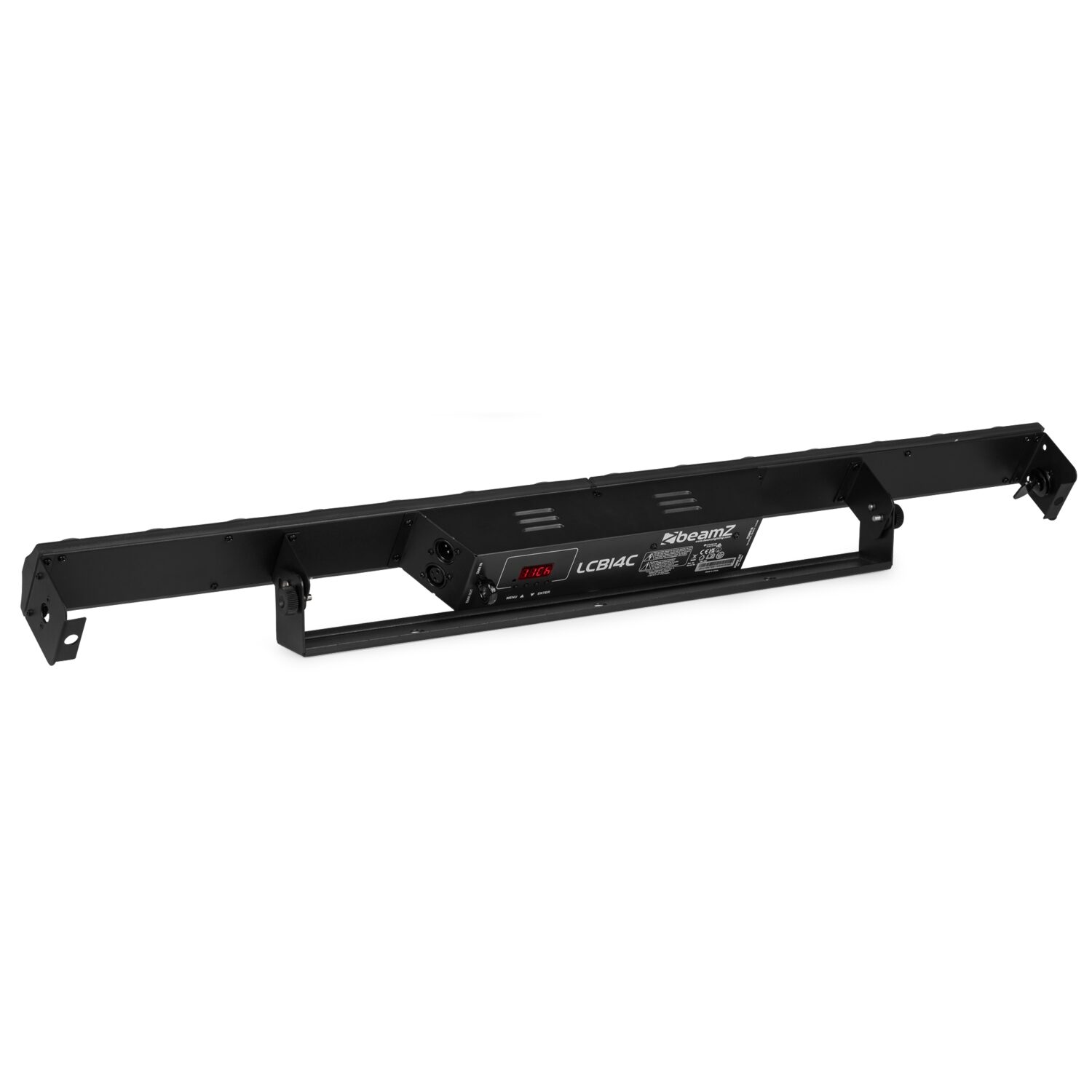

Multifunctional bracket (floor and truss mounting)
Electronic dimming: 0 – 100%

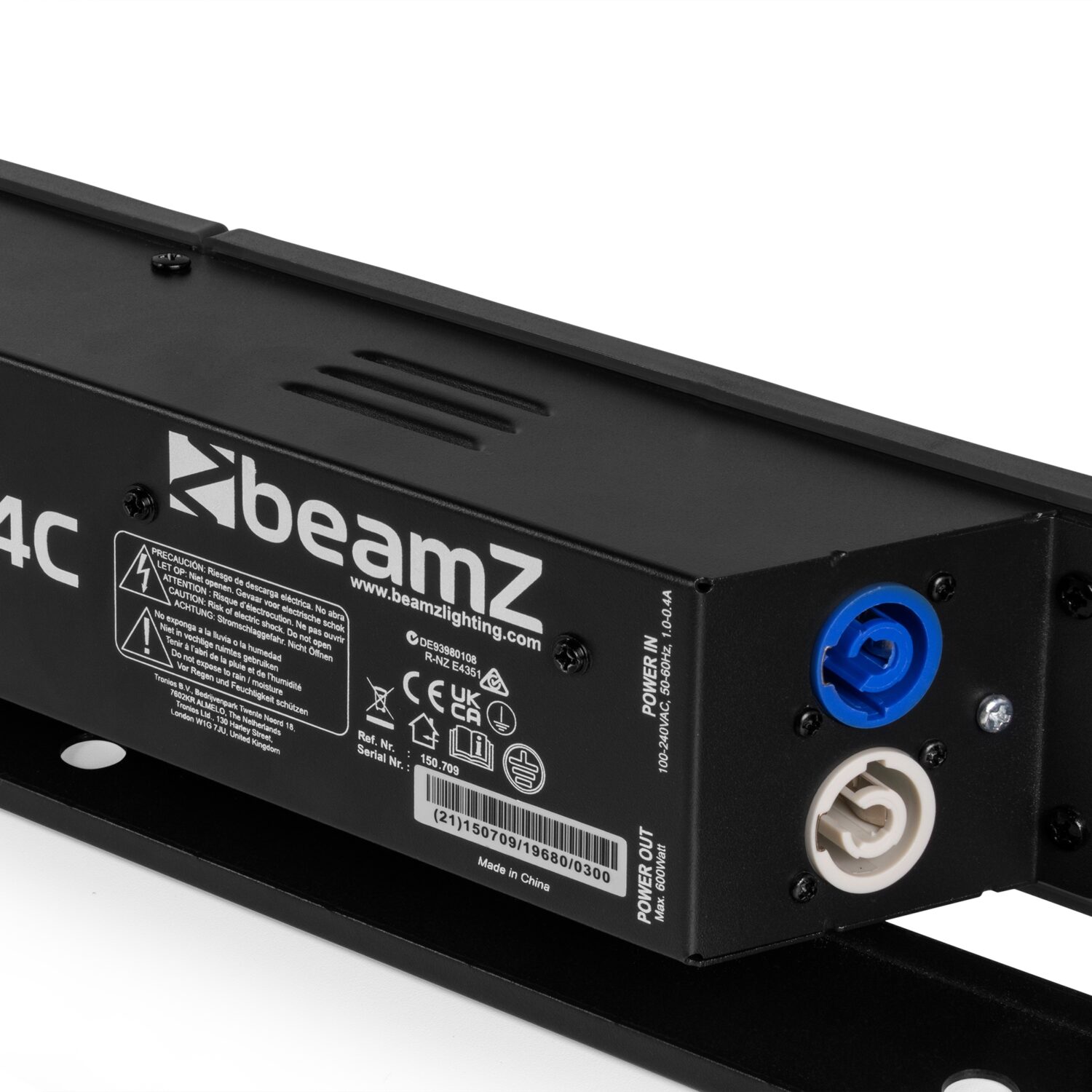

Power Connector input/output

Specifications

Specifications
Description
Download & links

Product colour	Black
Light source	3-in-1 LED, 4-in-1 LED
Colours	Red, Green, Blue, White
LED power (single LED)	4W
Quantity of LEDs	14
LED power: Backlight	SMD
Quantity of backlight LEDs	56
Beam angle	5°
Field angle	10°
Illuminance	8.294 lx @ 1m
Flash rate per second	1 - 30Hz
Modes	Automatic programs, DMX
Sound to light mode	Yes
DMX channels	8, 11, 32, 98

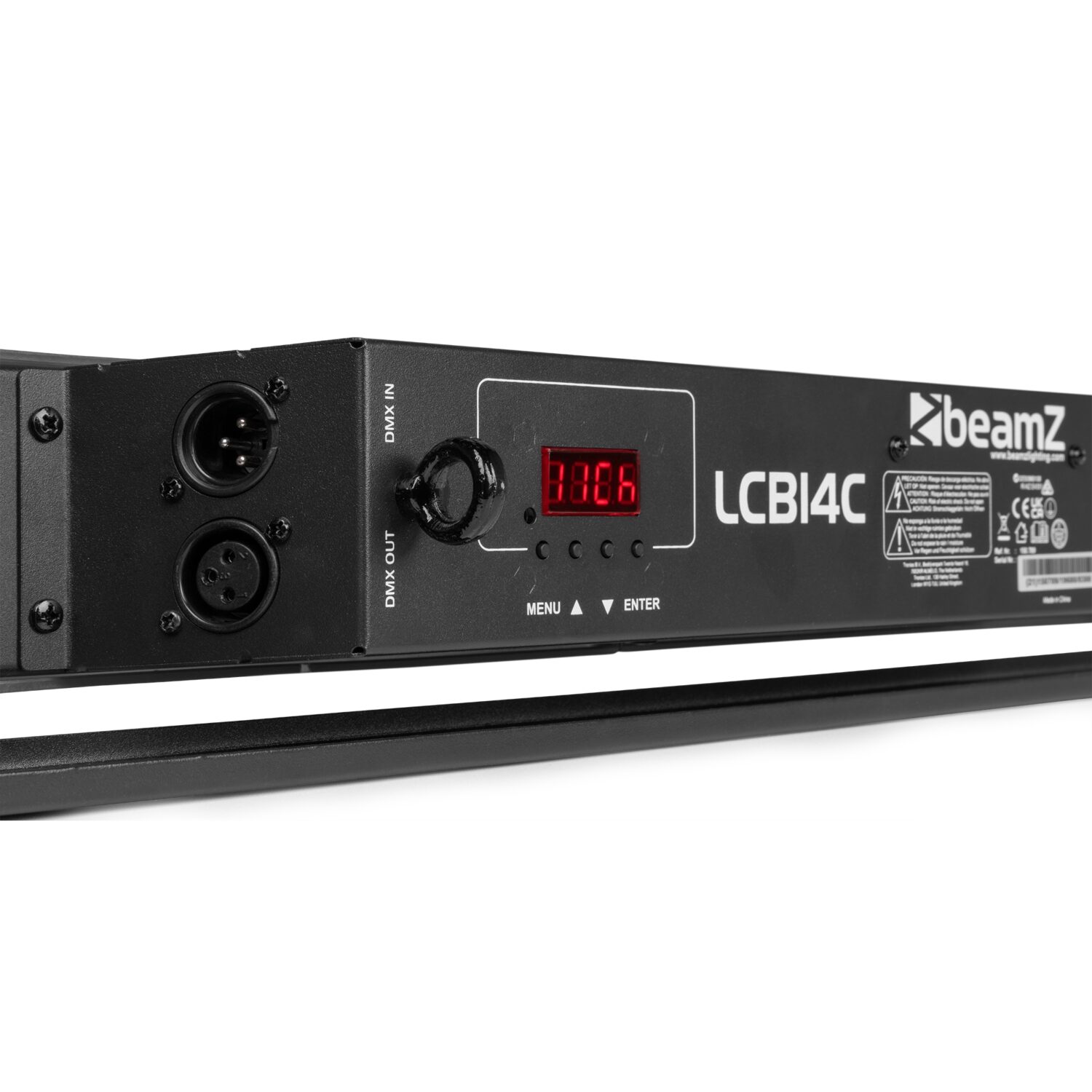

DMX connection	3-pin XLR
Daisy chain	Yes (max. 6 bars)
IP rating	IP20
Cooling	Fan
Display	LED
Power plug	P-Con
Power consumption	1.310 - 0.637A
Power supply	100-240VAC 50/60Hz
Dimensions (L x W x H)	1000 x 70 x 120mm
Weight (kg)	2.8000
Included accessories	Mounting bracket, Power cable

The LCB14C is a hybrid LED bar equipped with 14x 4W RGBW LEDs and 56x SMD RGB LEDs for spectacular backlight effect. The LEDs can be programmed in single pixels for stunning chase effects. While using the fixture in stand-alone mode, there are pre-programmed shows that you can run automatically or sound activated. It’s also possible to create your own mixture of colours in RGB mode (for background light). The extra power connector output enables you to simply link the power of multiple units together into a single socket.
