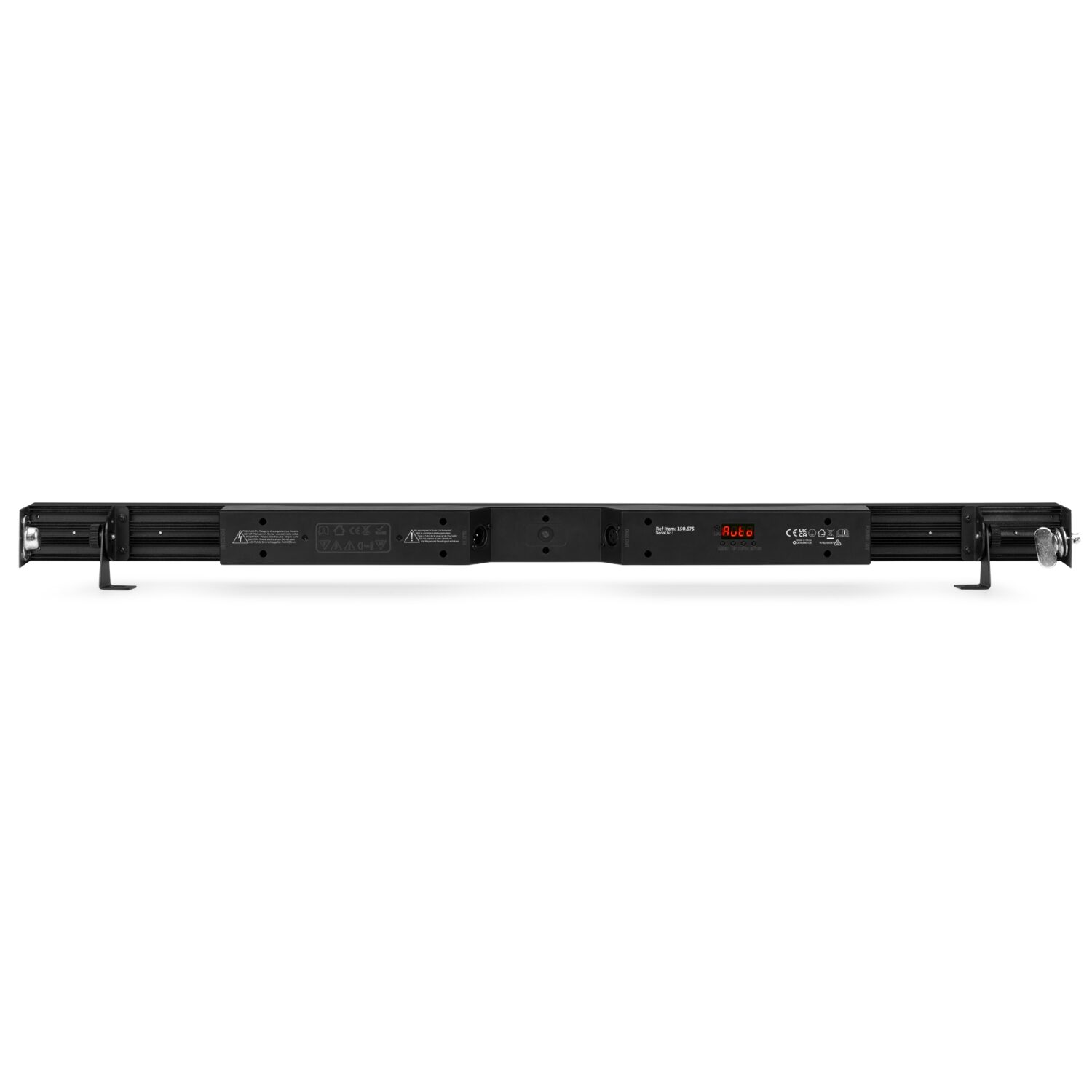

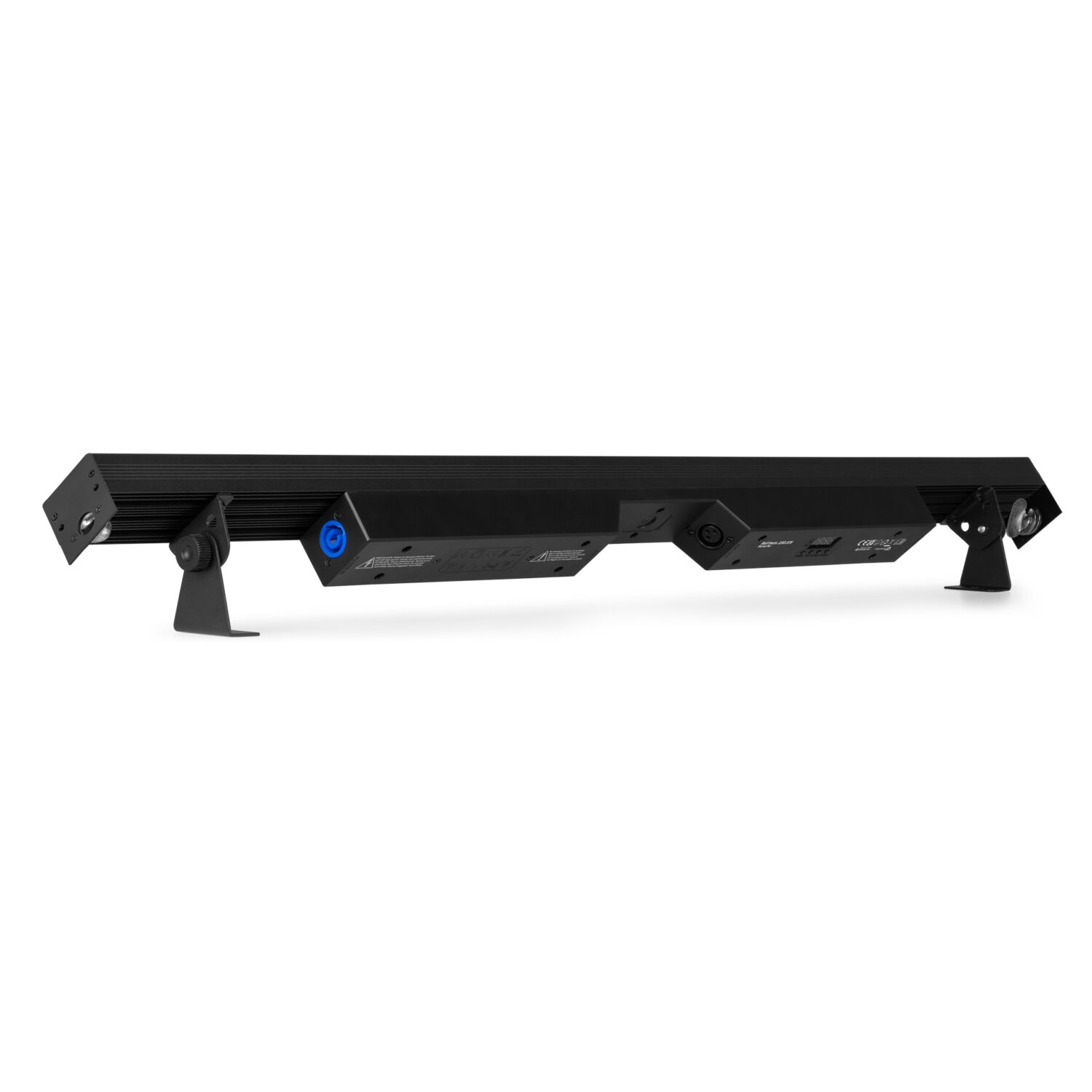

LCB244 LED Bar 24x 4W RGBW

150.575

24x 4W 4-in-1 LEDs
RGBW Colour mixing
Colour presets
Pre programmed shows
Electronic Dimming: 0 – 100%
DMX and Stand-alone mode
Master/slave function
Sound activated with adjustable sensitivity
Auto mode with adjustable speed
DMX in/output via 3-pin XLR
Control panel with LED display
Aluminium housing
Powerconnector input/output
Incl. Quick Lock Brackets

Specifications

Specifications
Description
Download & links

Product colour	Black
Light source	4-in-1 LED
Colours	Red, Green, Blue, White
LED power (single LED)	4W
Quantity of LEDs	24
Beam angle	11°
Field angle	24°
Illuminance	13.157 lx @ 1m
Flash rate per second	1 - 23Hz
Modes	Automatic programs, DMX, Manual, Master/Slave
Sound to light mode	Yes
RDM	Yes
DMX channels	4, 6, 9, 32, 36
DMX connection	3-pin XLR
Daisy chain	Yes (max. 6 bars)
IP rating	IP20
Cooling	Convection
Display	LED
Power plug	P-Con
Power consumption	1.983 - 0.912A
Power supply	100-240VAC 50/60Hz
Dimensions (L x W x H)	1000 x 55 x 105mm
Weight (kg)	2.4500
Included accessories	Mounting bracket, Power cable

The LCB244 is a LED bar with 4-in-1 RGBW LEDs. The unit is divided in 8 separately controllable sections. While using the fixture in stand-alone mode there are 54 pre-programmed shows that you can run automatically or sound activated, pick from the pre-set colour macros or create your own mixture of colours in RGBW mode. The extra P-Con output enables you to simply link the power of multiple units together into a single socket. Convection cooling for noiseless operation!
