LCB246 LED BAR 24x6W RGBAW-UV

beamZ

150.708
  • 24x 6W 6-in-1 LEDs
  • RGBAW-UV colour mixing
  • 8 separate controllable sections
  • Pre-programmed shows
  • 17 auto mode programs
  • Sound activated
  • 8, 11, 20, 36 or 74 DMX channels
  • DMX and Stand-alone mode
  • Master/slave function
  • DMX in/output via 3-pin XLR
  • Control panel with LED display
  • Aluminium housing
  • Powerconnector in/output
Specifications
Product colour Black
Light source 6-in-1 LED
LED colours Red, Green, Blue, Amber, White, Ultra Violet
LED power (single LED) 6W
Quantity of LEDs 24
Beam angle 20
Field angle 33
Illuminance 5.675 lx @ 1m
Flash rate per second 1 - 20Hz
Modes Automatic programs, DMX, Manual, Master/Slave
DMX channels 8, 11, 20, 36, 74
DMX connection 3-pin XLR
Daisy chain Yes (max. 8 bars)
IP rating IP20
Cooling Fan
Display LED
Power plug P-Con
Power consumption 1.70 - 0.90A
Power supply 100-240VAC 50/60Hz
Dimensions (L x W x H) 1010 x 75 x 76mm
Weight (kg) 3.6500
Included accessories Mounting bracket, Power cable

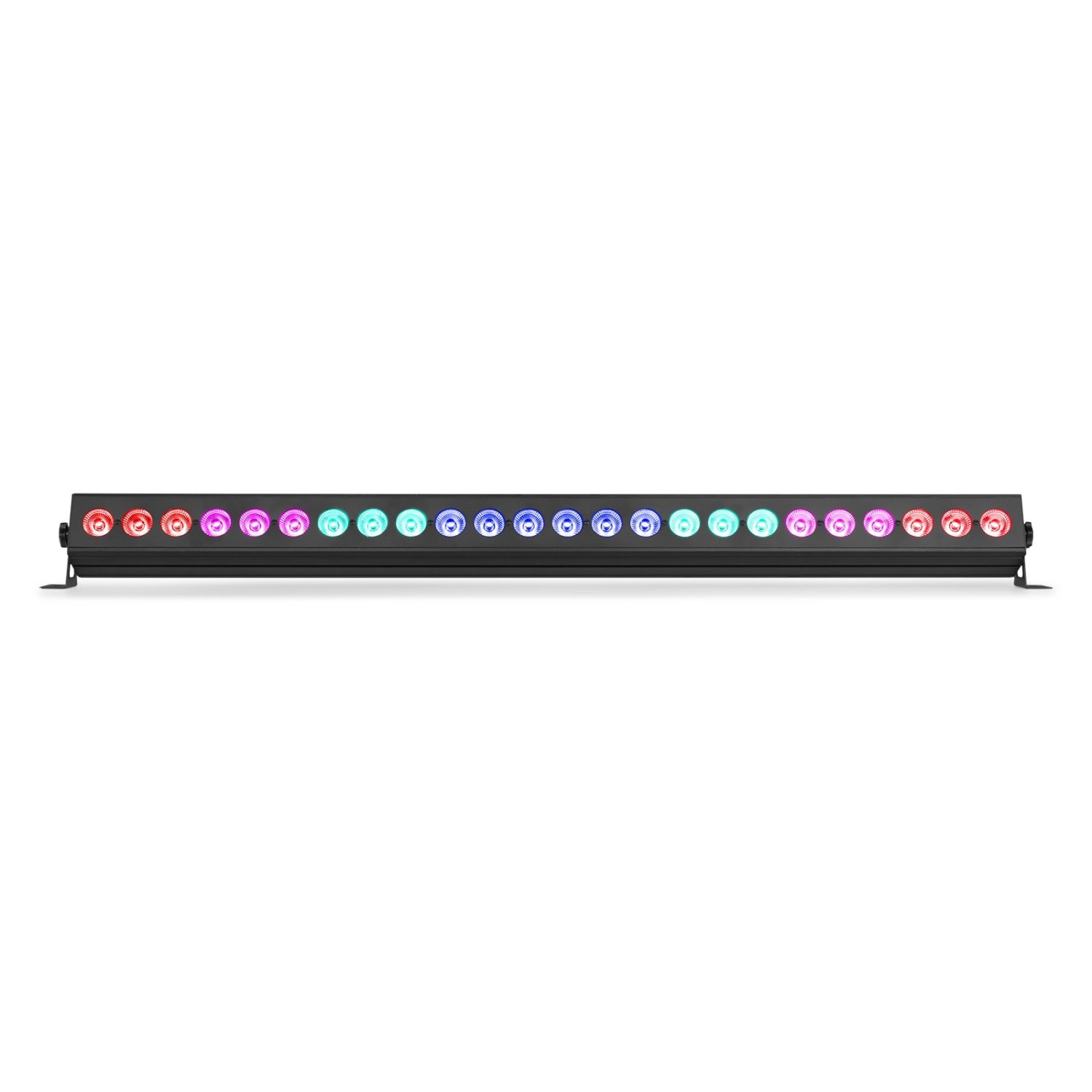

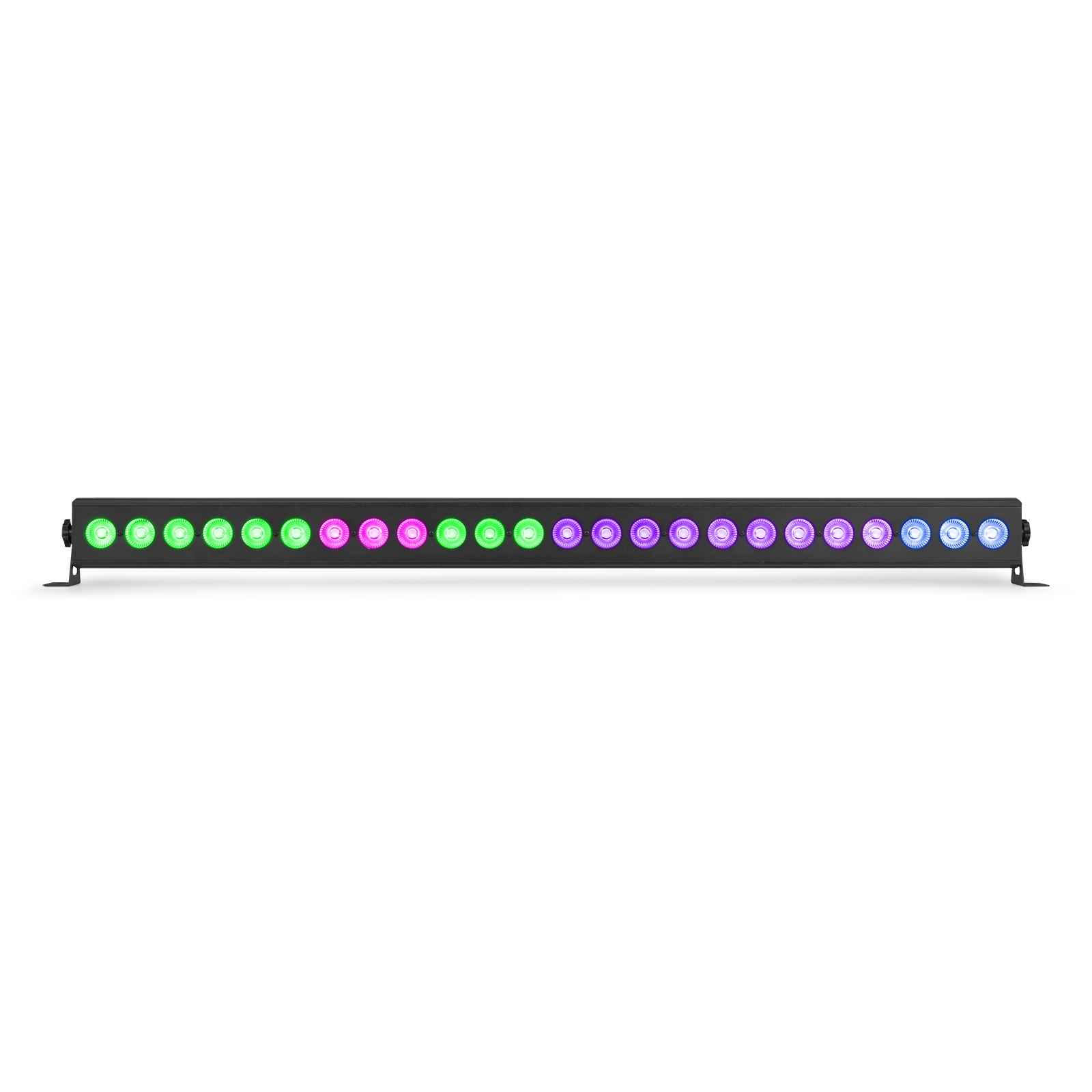

The LCB246 is a LED bar equipped with 24x 6W pieces RGBAW-UV LEDs. The LEDs are divided into 8 individually controllable sections of 3 LEDs each. While using the fixture in stand-alone mode there are pre-programmed shows that you can run automatically or sound activated, pick from the pre-set colour macros or create your own mixture of colours in RGBAW-UV mode. The extra power output enables you to simply link the power of multiple units together into a single socket.
