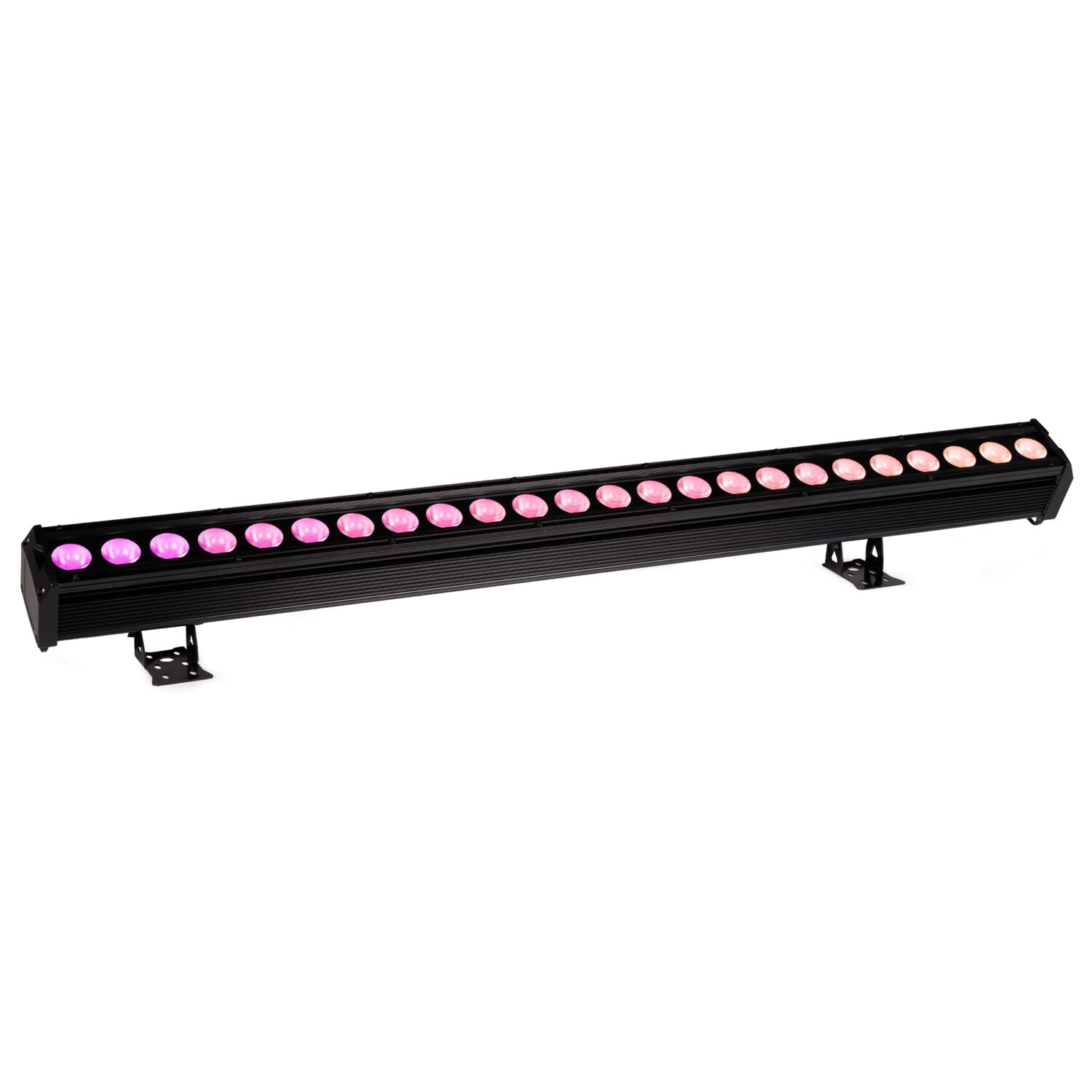

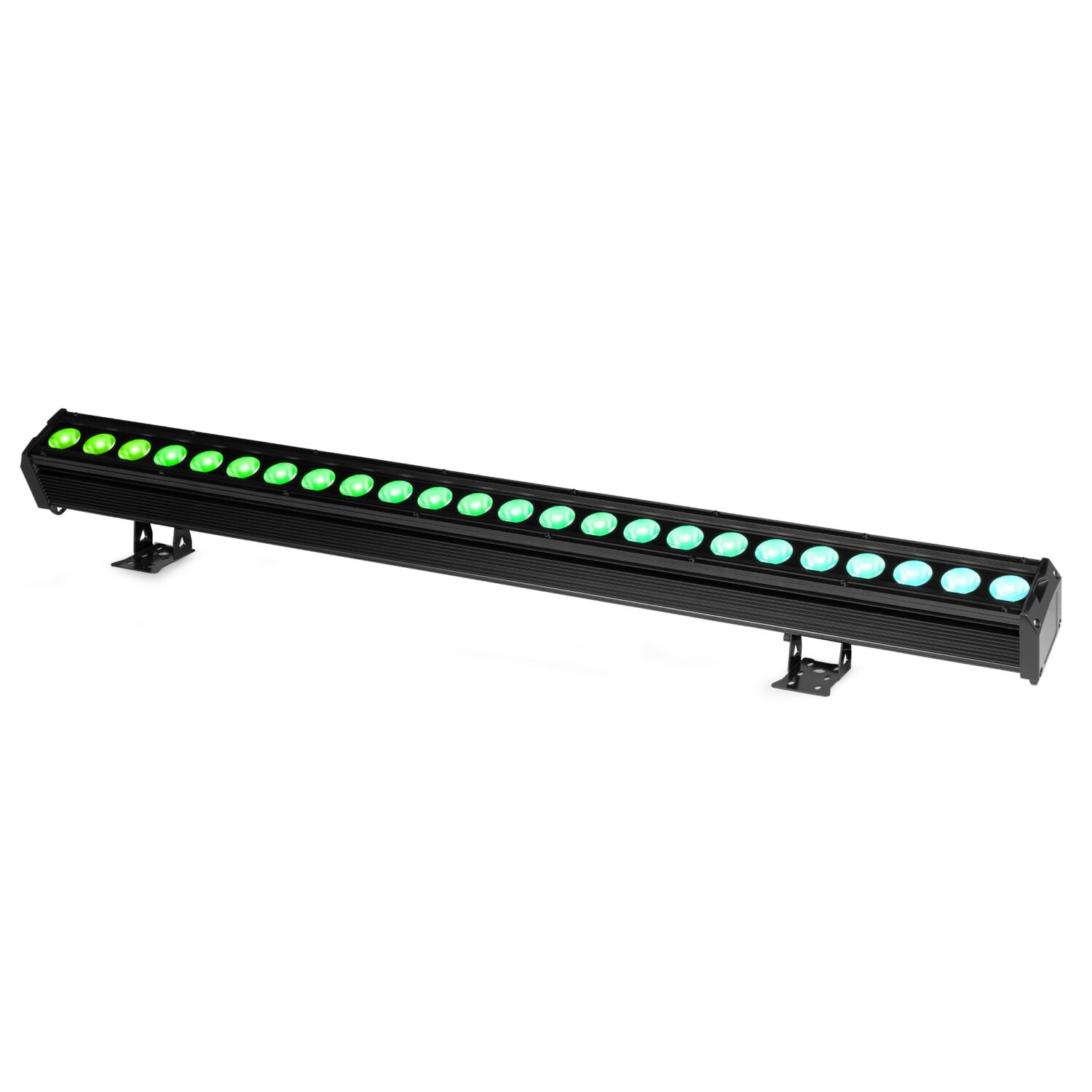

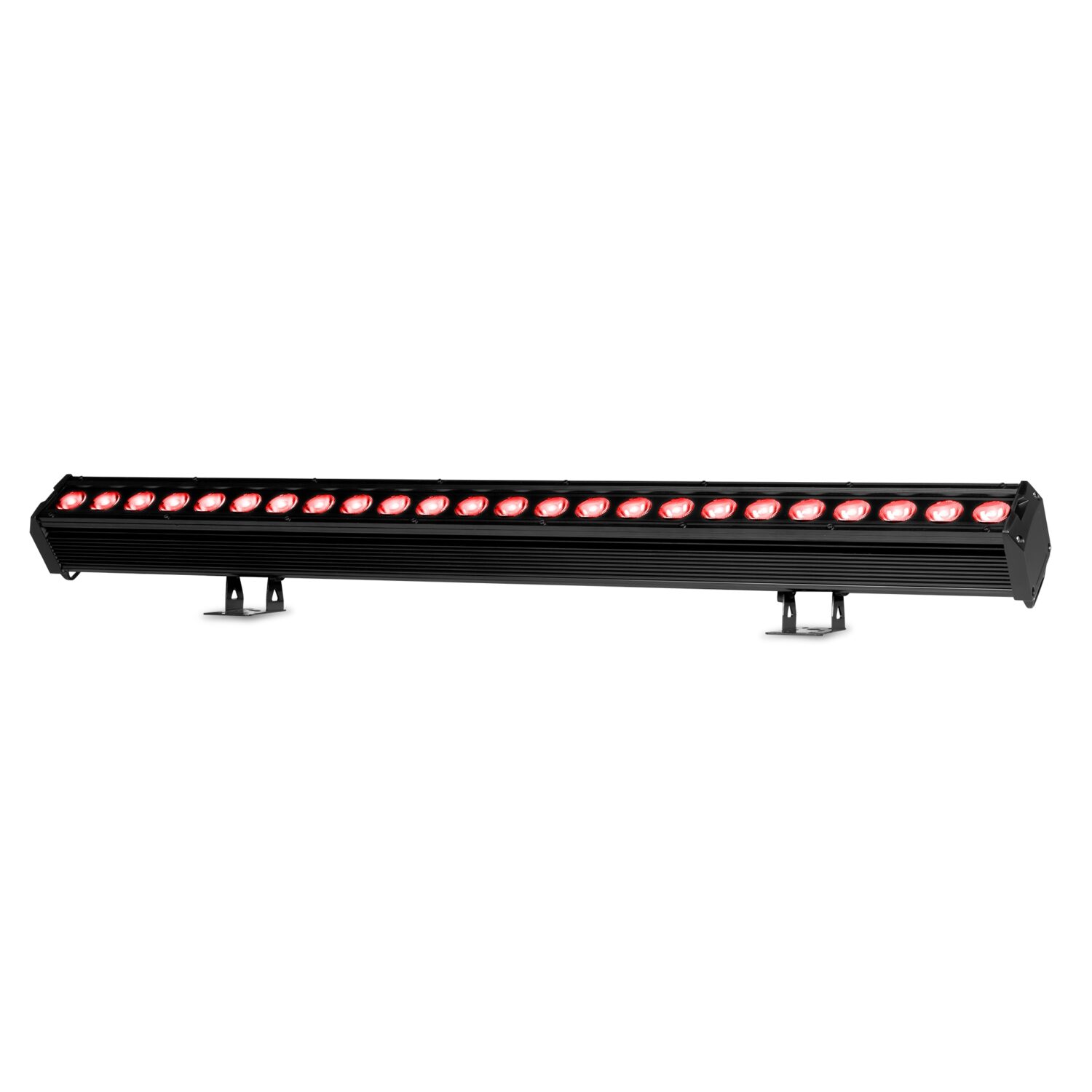

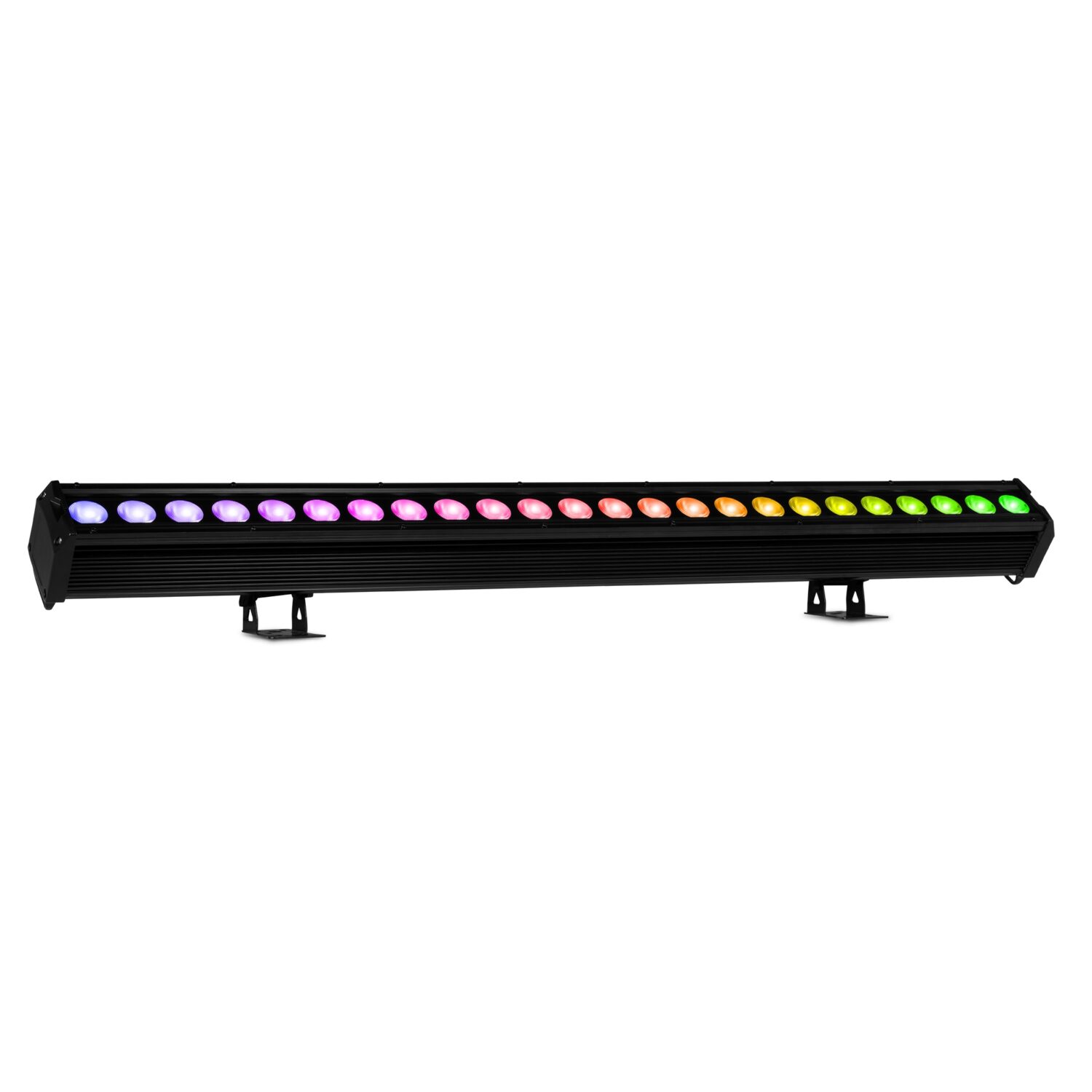

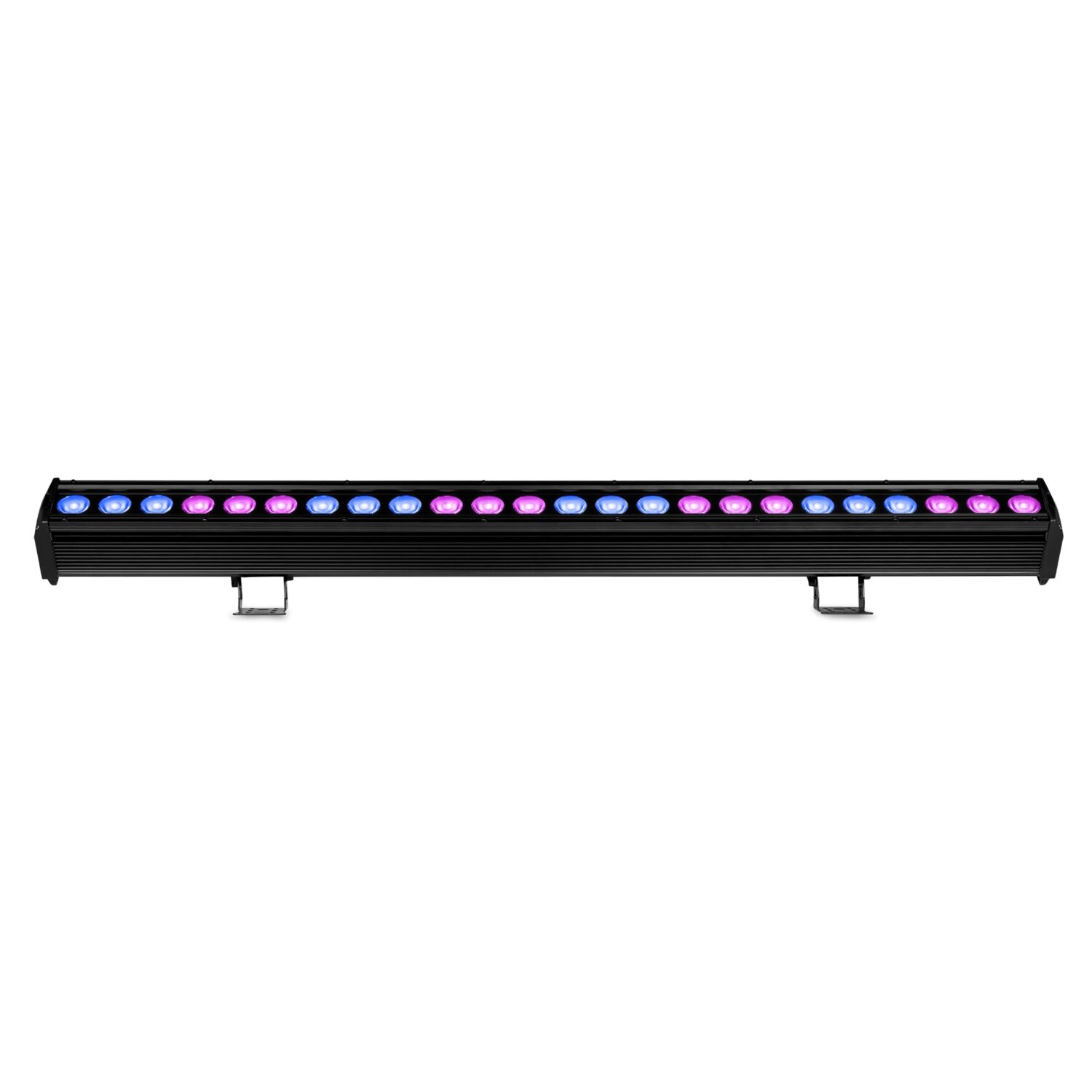

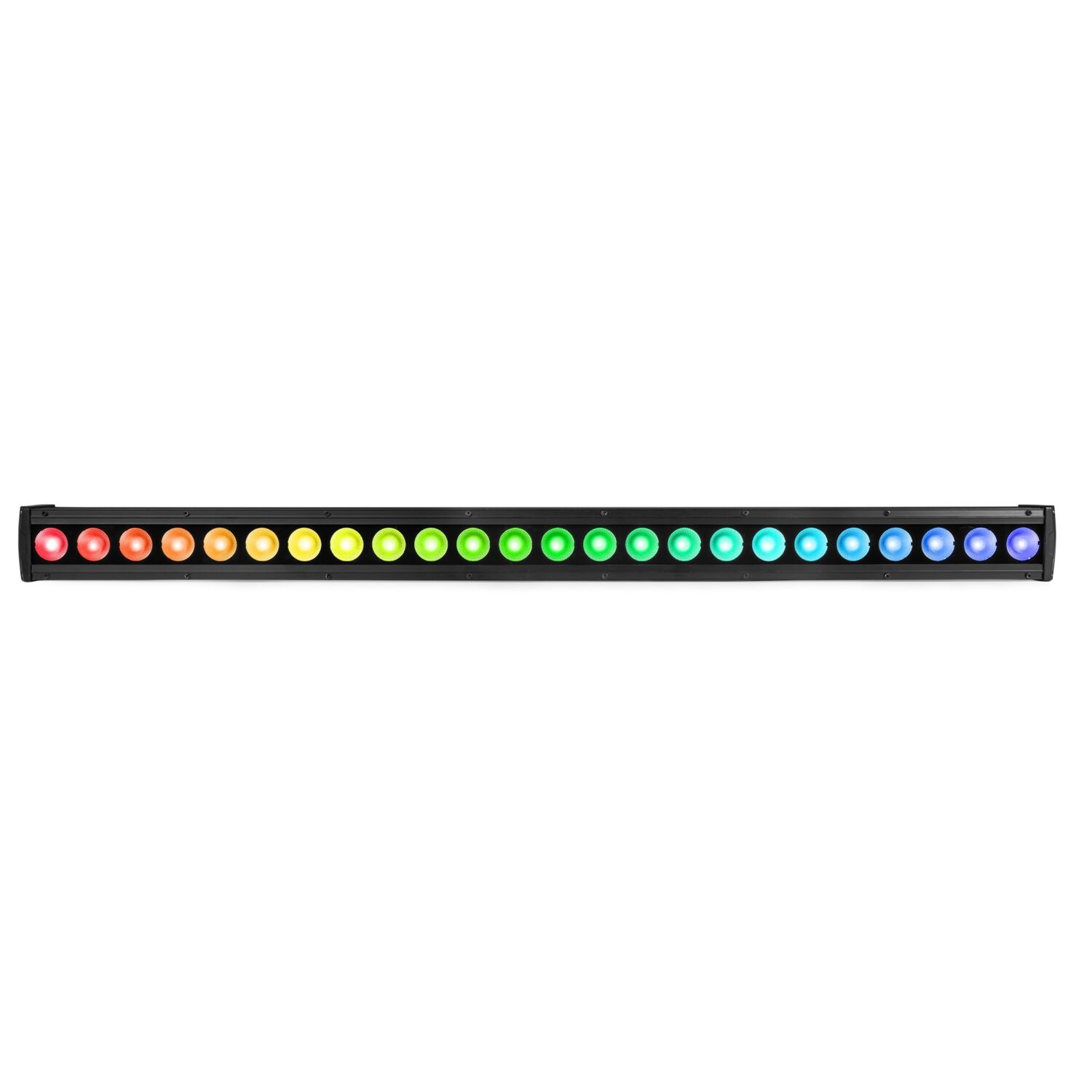

LCB246IP Outdoor LED BAR 24x 6W

150.190

24x 6W 6-in-1 LEDs
RGBWA-UV colour mixing
LEDs with independent control ability
Waterproof IP65 for indoor/outdoor use
Different colour presets
Pre-programmed shows and adjustable speed
Electronic dimming
Strobe effect
DMX and Stand-alone mode
Master/Slave function
Control panel with LED display (touch button)
Aluminium housing with convection cooling
Waterproof connectors DMX and power

Specifications

Specifications
Description
Download & links

Product colour	Black
Light source	6-in-1 LED
Colours	Red, Green, Blue, Amber, White, Ultra Violet
LED power (single LED)	6W
Quantity of LEDs	24 (8 sections)
Beam angle	20°
Field angle	48°
Illuminance	11.023 lx @ 1m
Flash rate per second	1 - 23Hz
Modes	Automatic programs, DMX, Manual, Master/Slave
Sound to light mode	Yes
DMX channels	6, 8, 11, 48, 52
DMX connection	3-pin Screw Connector
Daisy chain	Yes (max. 6 bars)
IP rating	IP65
Cooling	Convection
Display	LCD
Power plug	Fixed power lead
Power consumption	1.395 - 0.751A
Power supply	100-240VAC 50/60Hz
Dimensions (L x W x H)	1000 x 80 x 135mm
Weight (kg)	3.7500

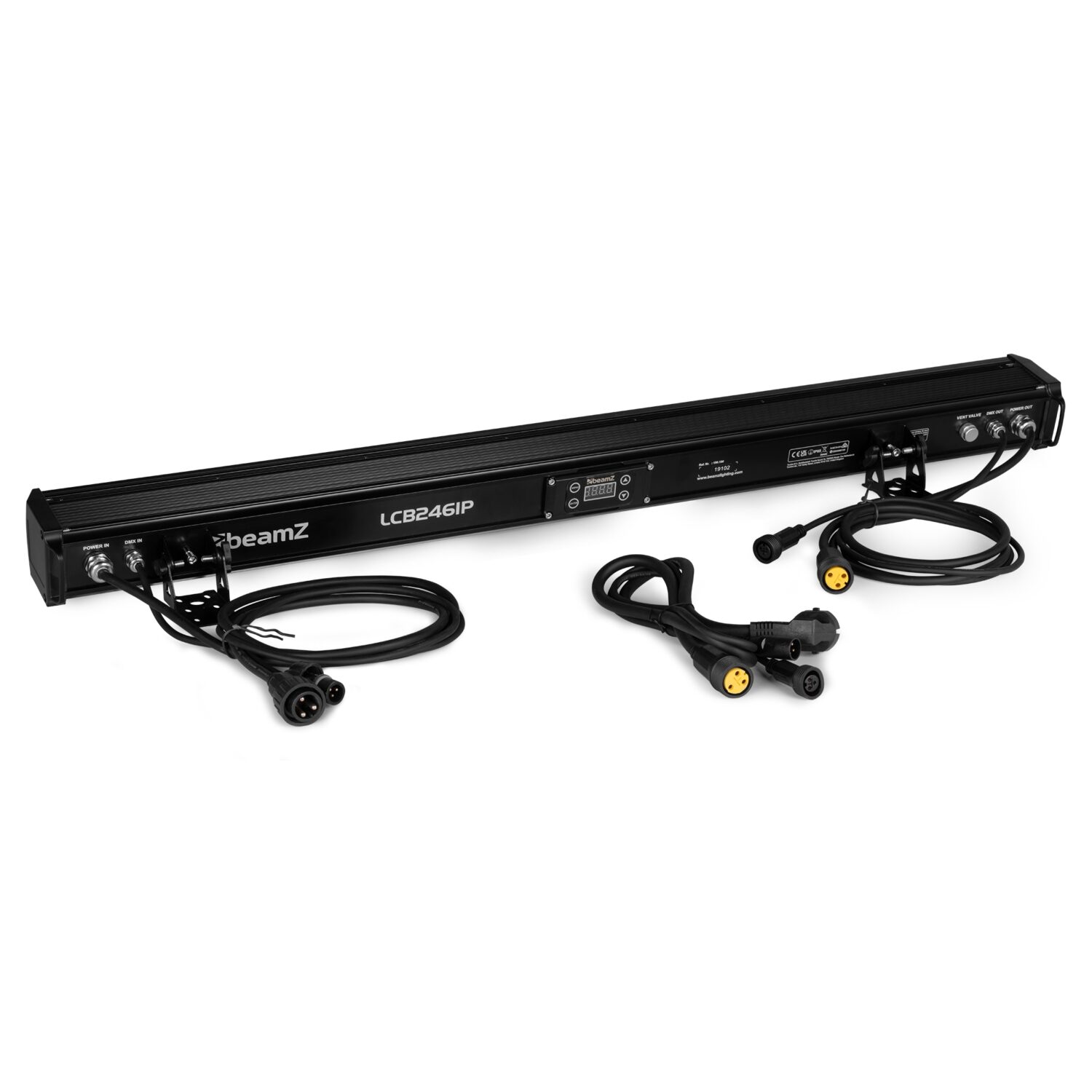

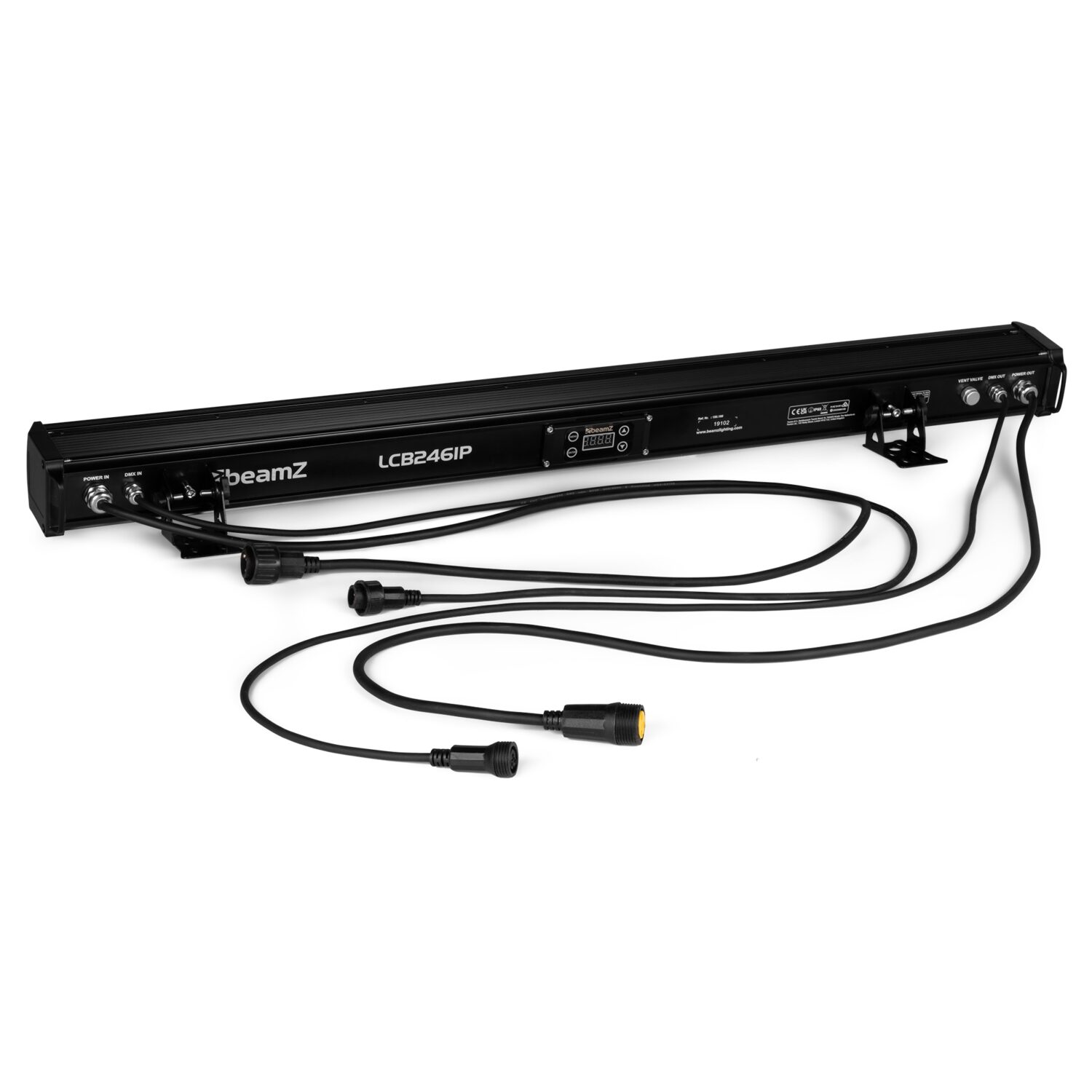

Included accessories	Mounting bracket, Power cable

The LCB246IP is a durable aluminium LED bar engineered for outdoor environments. Leveraging cutting-edge LED technology, the LCB246IP delivers stunning wash effects. This fixture is versatile, perfect for everything from uplighting expansive venues and buildings to illuminating stages for live events. Featuring a convection-cooled cast aluminium housing, it includes watertight internal gaskets and weather-resistant power and DMX cable in/out connections. Delivery includes an infrared remote control for quick and easy operation.
