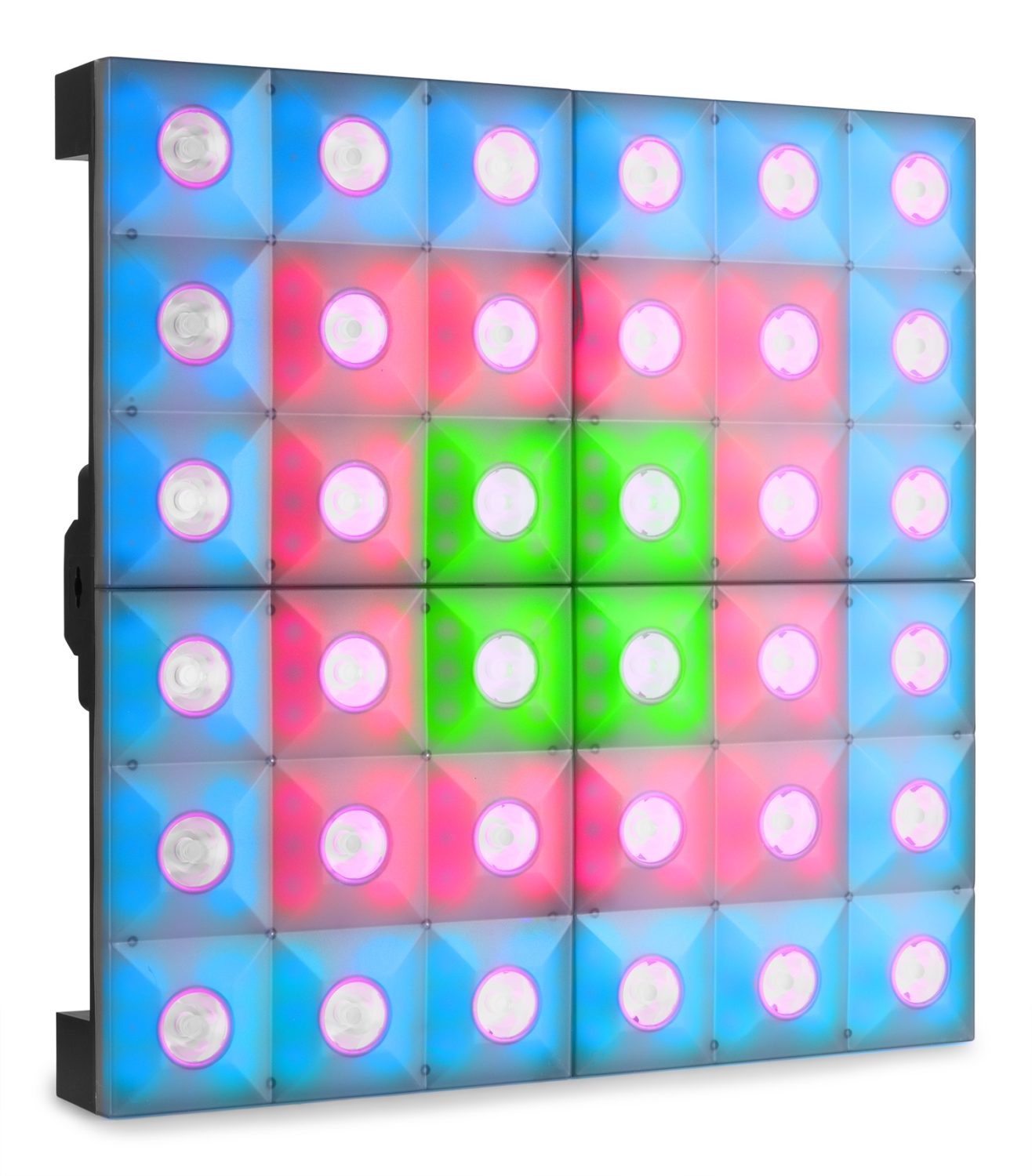

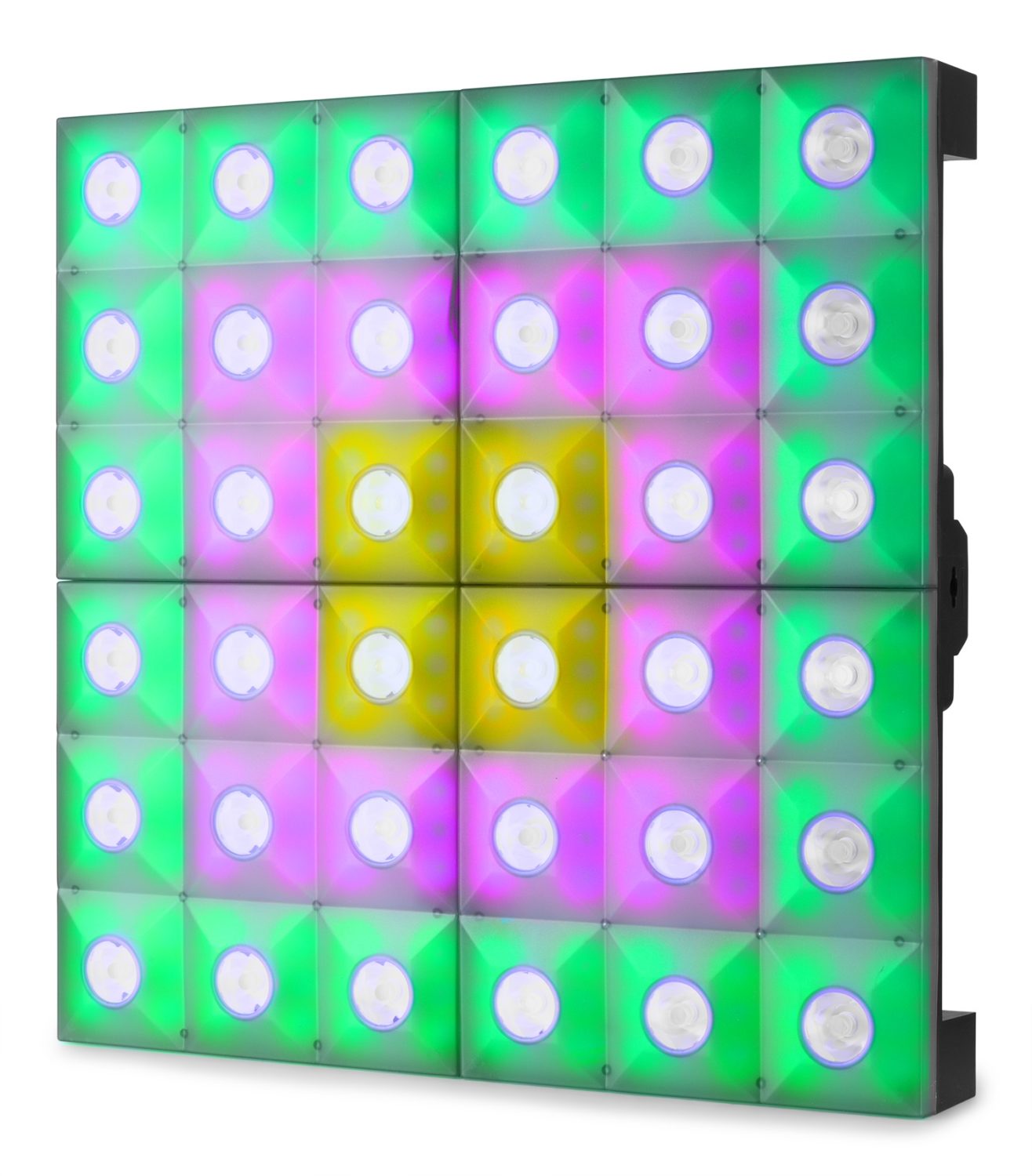

LCB366 Hybrid LED Panel Pixel Control

150.675

36x 3W Warm White LEDs for sharp 5° beams
216x SMD RGB LEDs (backlight)
Single pixel control
RDM/DMX protocols
Built-in programs
Silent operation, natural convection cooling system.

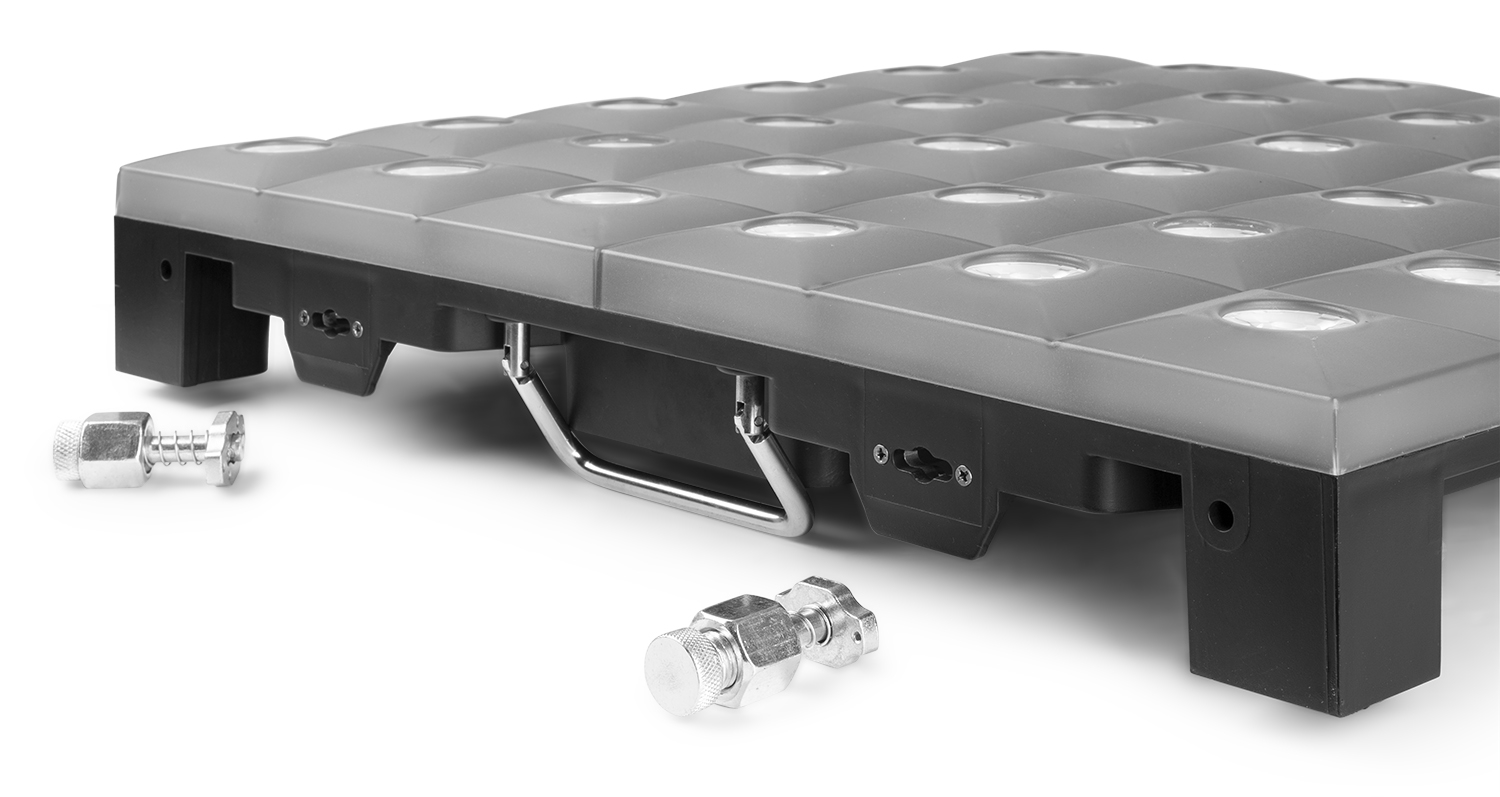

Linking multiple panels together with quick locks
OLED colour display
Electronic Dimming: 0 – 100%
Power Connector TR input/output

Specifications

Specifications
Description
Videos
Download & links

Product colour	Black
Light source	Single colour LED, 3-in-1 LED
LED colours	Red, Green, Blue, Warm White
LED power (single LED)	3W
Quantity of LEDs	36
LED power: Backlight	SMD
Quantity of backlight LEDs	216
Beam angle	5
Field angle	10
Illuminance	15000 lx @ 1m
Flash rate per second	0 - 20Hz
DMX channels	8, 144
DMX connection	3-pin XLR
Modes	Automatic programs, DMX, Manual, Master/Slave
IP rating	IP20
Cooling	Convection
Display	oLed
Power plug	Power-connector
Power consumption	1.8 - 0.9A
Power supply	110-250VAC 50/60Hz
Dimensions (L x W x H)	500 x 500 x 80mm
Weight (kg)	6.7000
Included accessories	Mounting bracket, Power cable

The LCB388 is a hybrid LED panel equipped with 36x 3W Warm White LEDs and 216x SMD RGB LEDs for spectacular backlight effect. The LEDs can be programmed in single pixels for stunning chase effects. While using the fixture in stand-alone mode there are pre-programmed shows that you can run automatically or sound activated. It’s also possible to create your own mixture of colours in RGB mode (for background light). The extra power connector output enables you to simply link the power of multiple units together into a single socket. It’s also equipped with a rigging system for a quick and easy way to build a LED wall.

LCB366 Hybrid LED Panel Pixel Control
