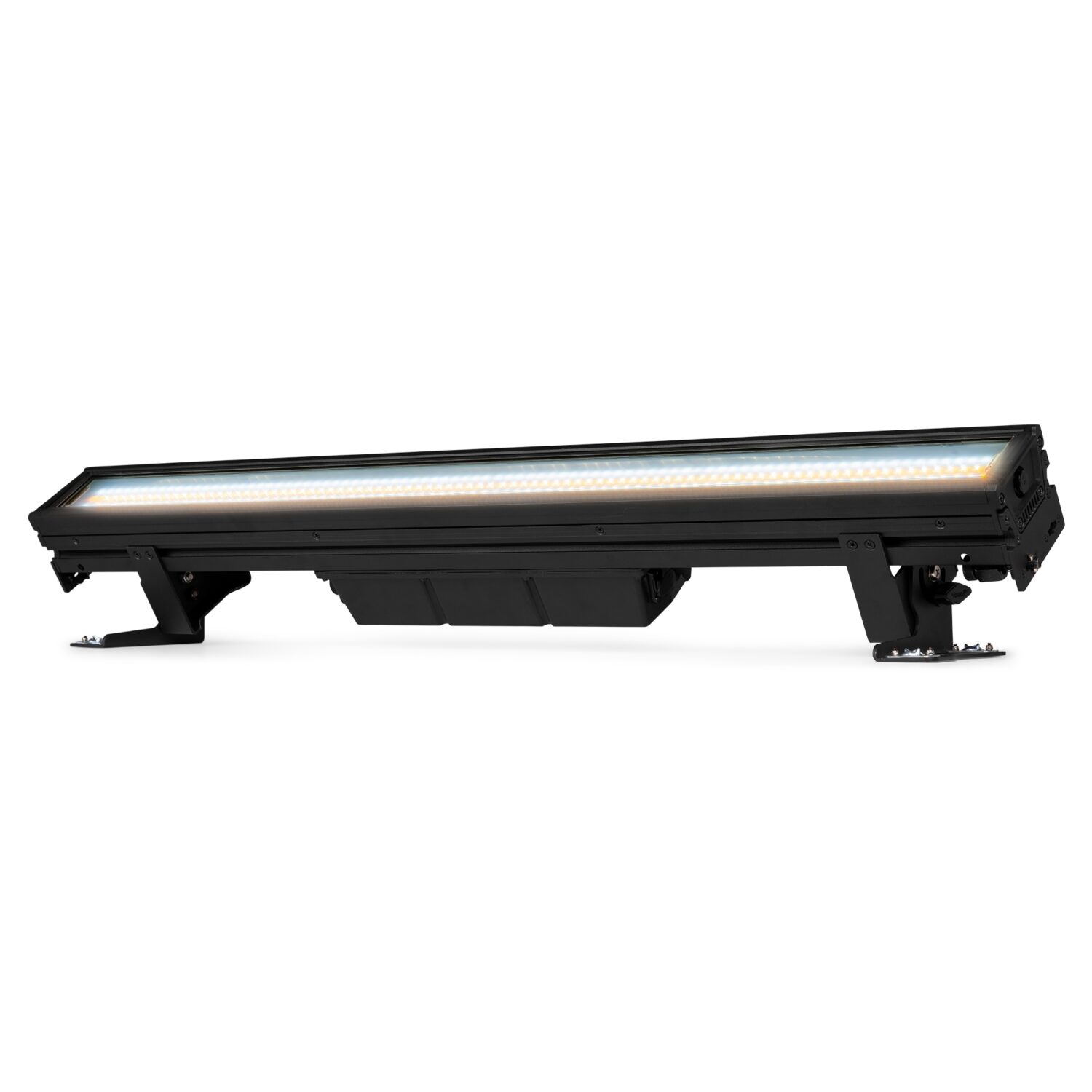

LCB400IP Outdoor LED BAR

150.170

IP65 LED Bar
504x SMD RGB LEDs
168x SMD Cool White LEDs
84x SMD Amber LEDs

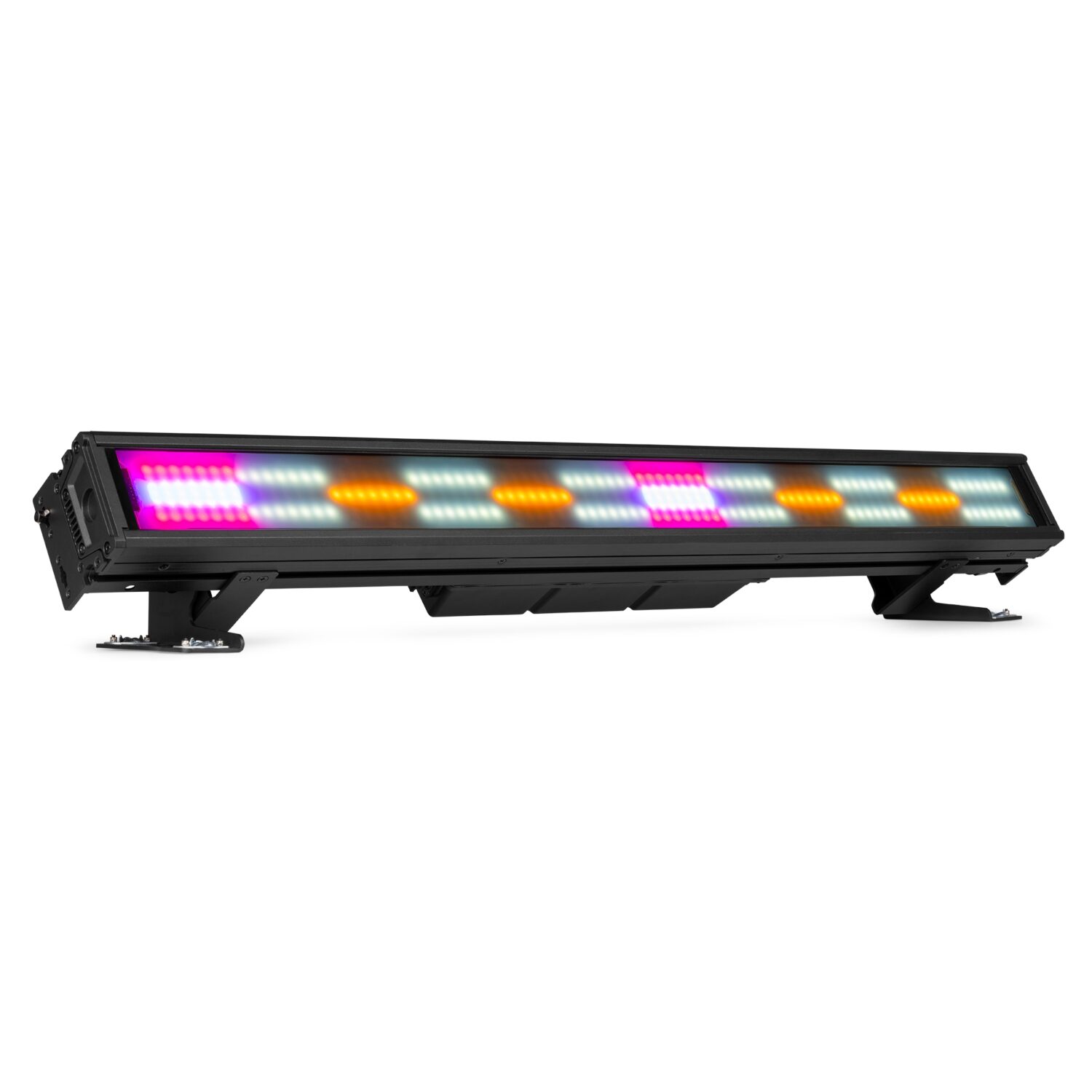

Separate controllable sections (RGB 36, CW 24 and Amber 12 sections)
Weatherproof IP65 for indoor/outdoor use
Pre-programmed shows and adjustable speed
Electronic frost filter
Strobe effect
DMX and Stand-alone mode
Master/Slave function

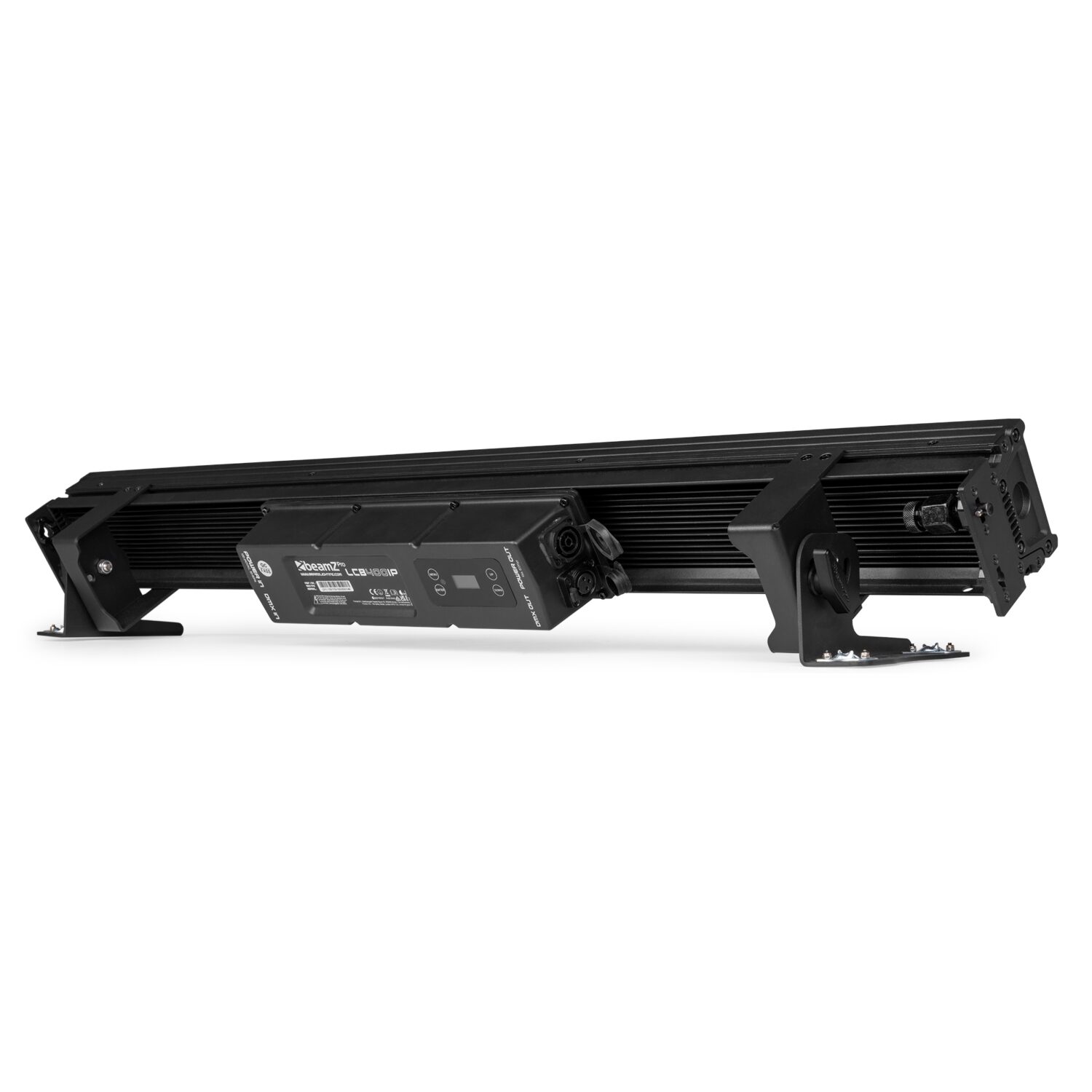

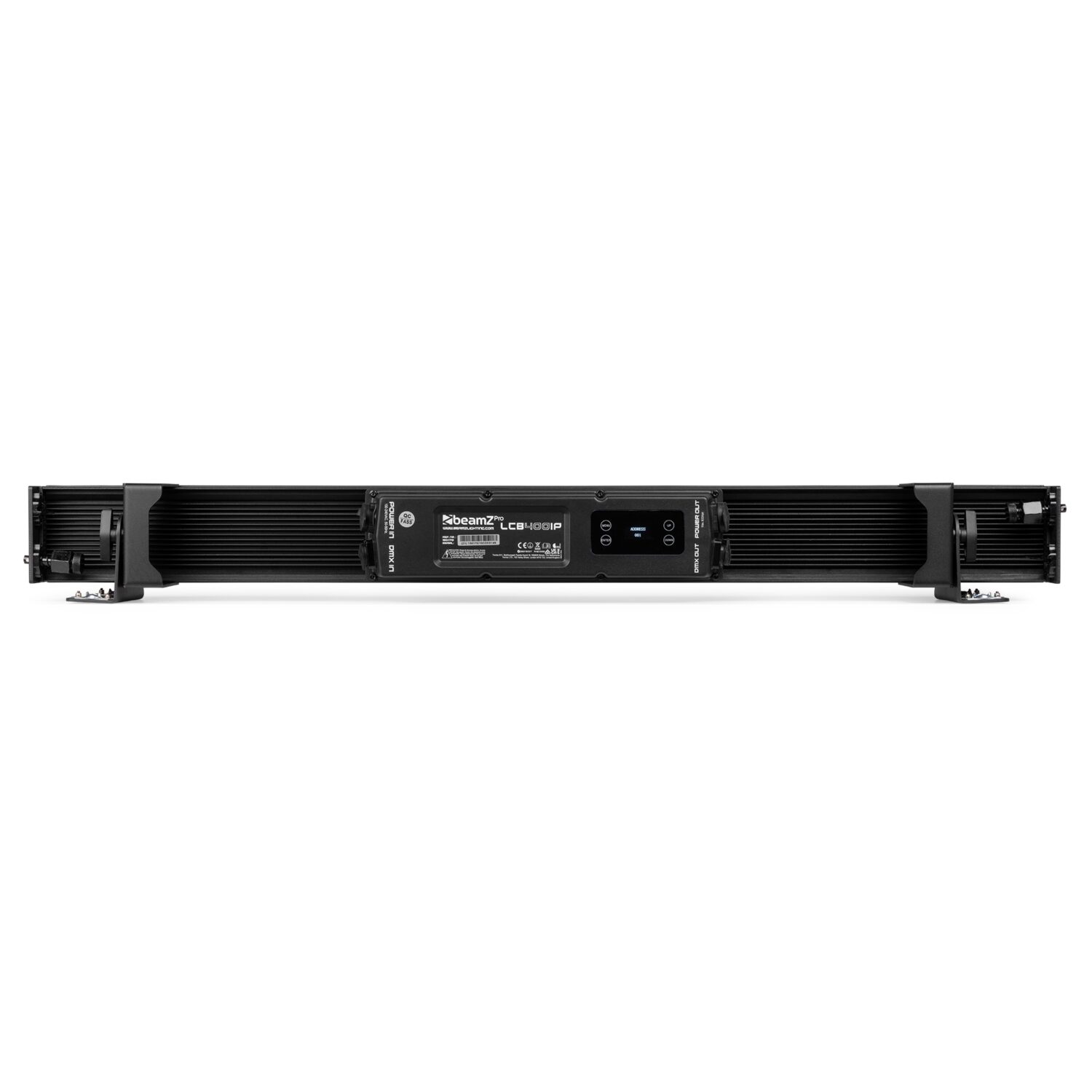

Control panel with OLED display

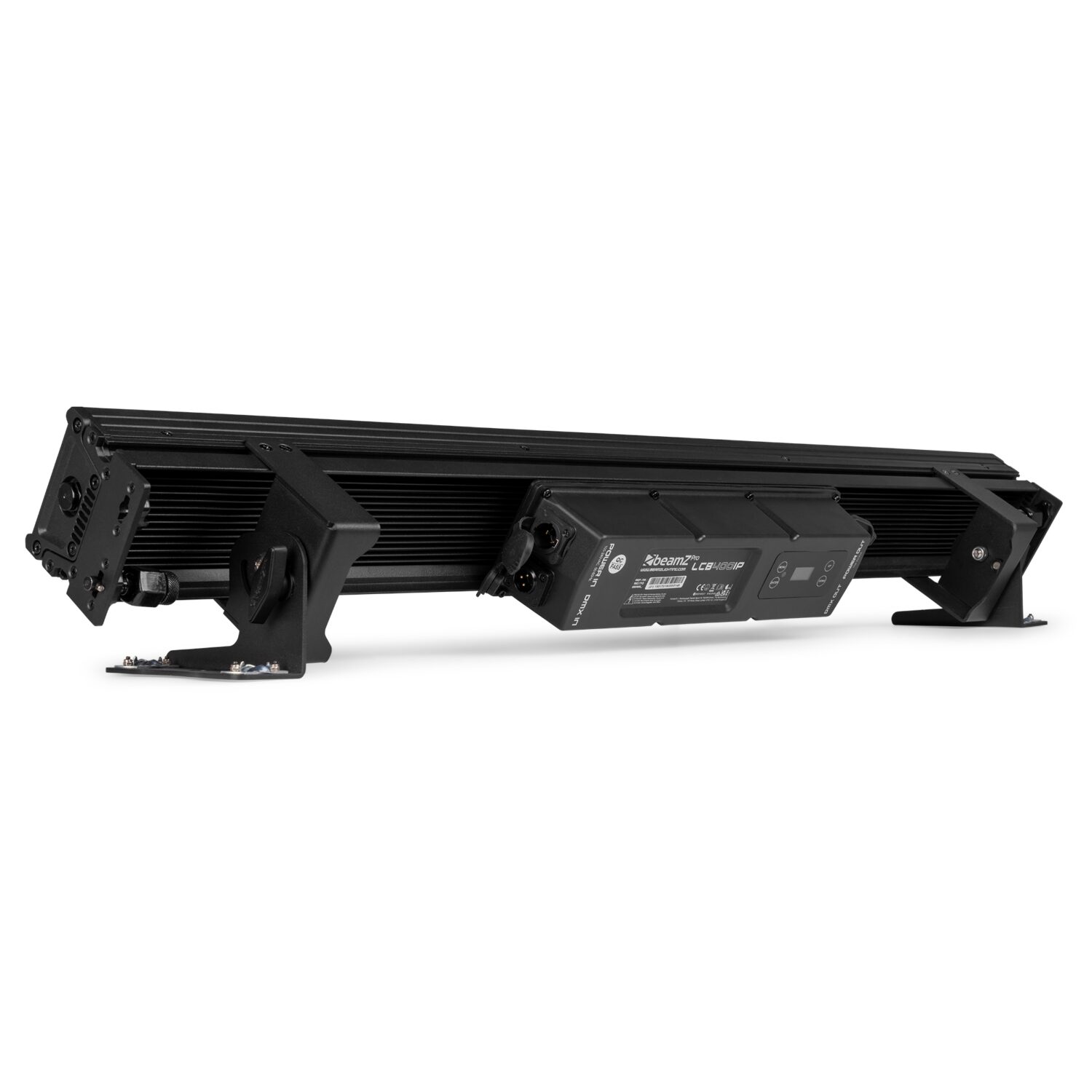

Aluminium housing with convection cooling

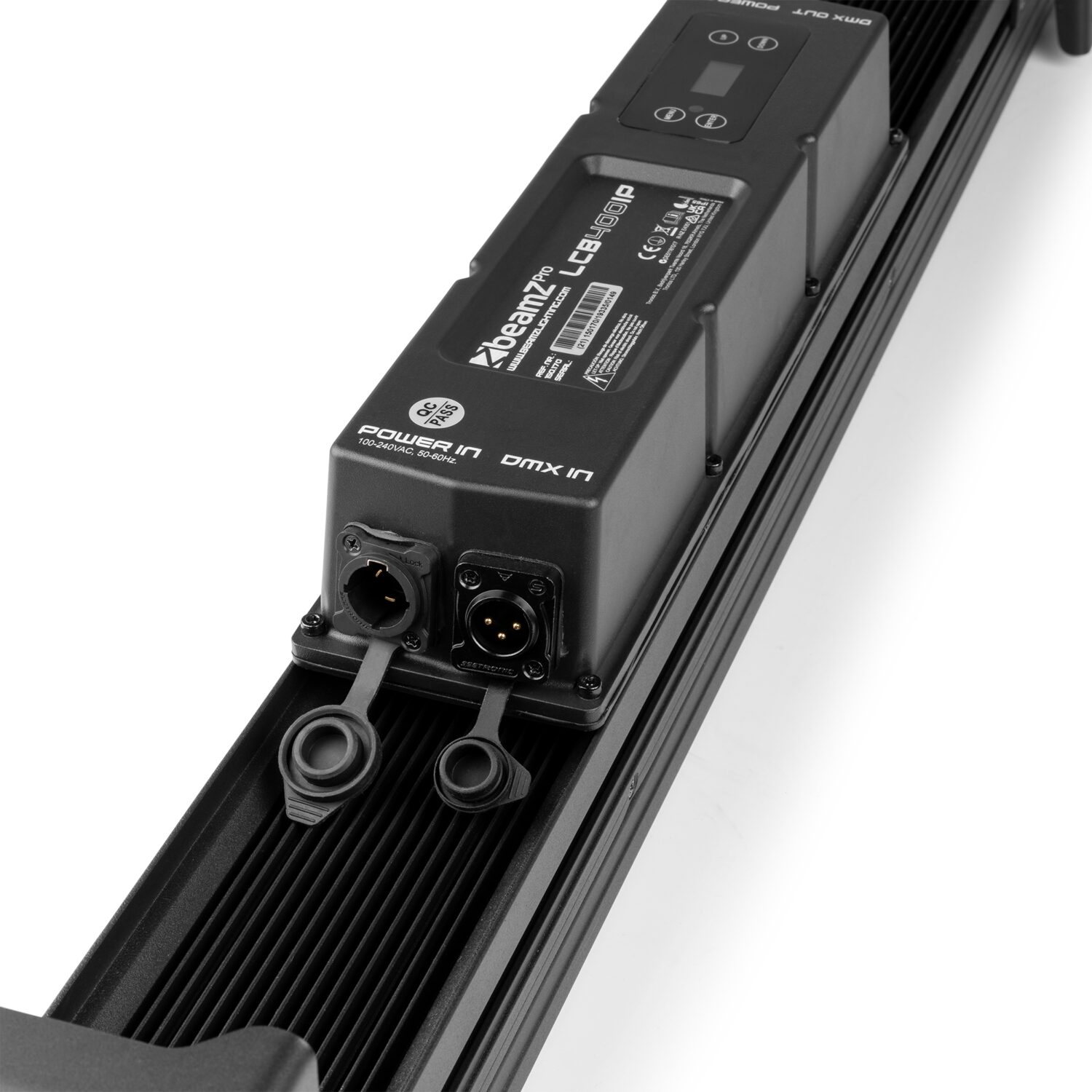

Waterproof in/output connectors for DMX and power

Specifications

Specifications
Description
Download & links

Product colour	Black
Light source	Single colour LED, 3-in-1 LED
Colours	Red, Green, Blue, Amber, Cool White
LED power (single LED)	0.5W, 1W
Quantity of LEDs	504 RGB + 168 Cool White + 84 Amber
Beam angle	93°
Field angle	127°
Illuminance	19.772 lx @ 0.5m
Flash rate per second	1 - 25Hz
Modes	Automatic programs, DMX, Master/Slave
RDM	Yes
DMX channels	4, 6, 7, 12, 15, 35, 45, 75, 159, PX6 (RGB) 19 channels , PX6 All 31 channels, PX12 (RGB) 37 channels, PX12 All 61 channels, PX36 (RGB) 109 channels, PX All 145 channels
DMX connection	3-pin XLR
IP rating	IP65
Cooling	Convection
Display	oLed
Power plug	P-Con TR1
Power consumption	2.660 - 1.259A
Power supply	100-240VAC 50/60Hz
Dimensions (L x W x H)	1040 x 140 x 115mm
Weight (kg)	9.8000

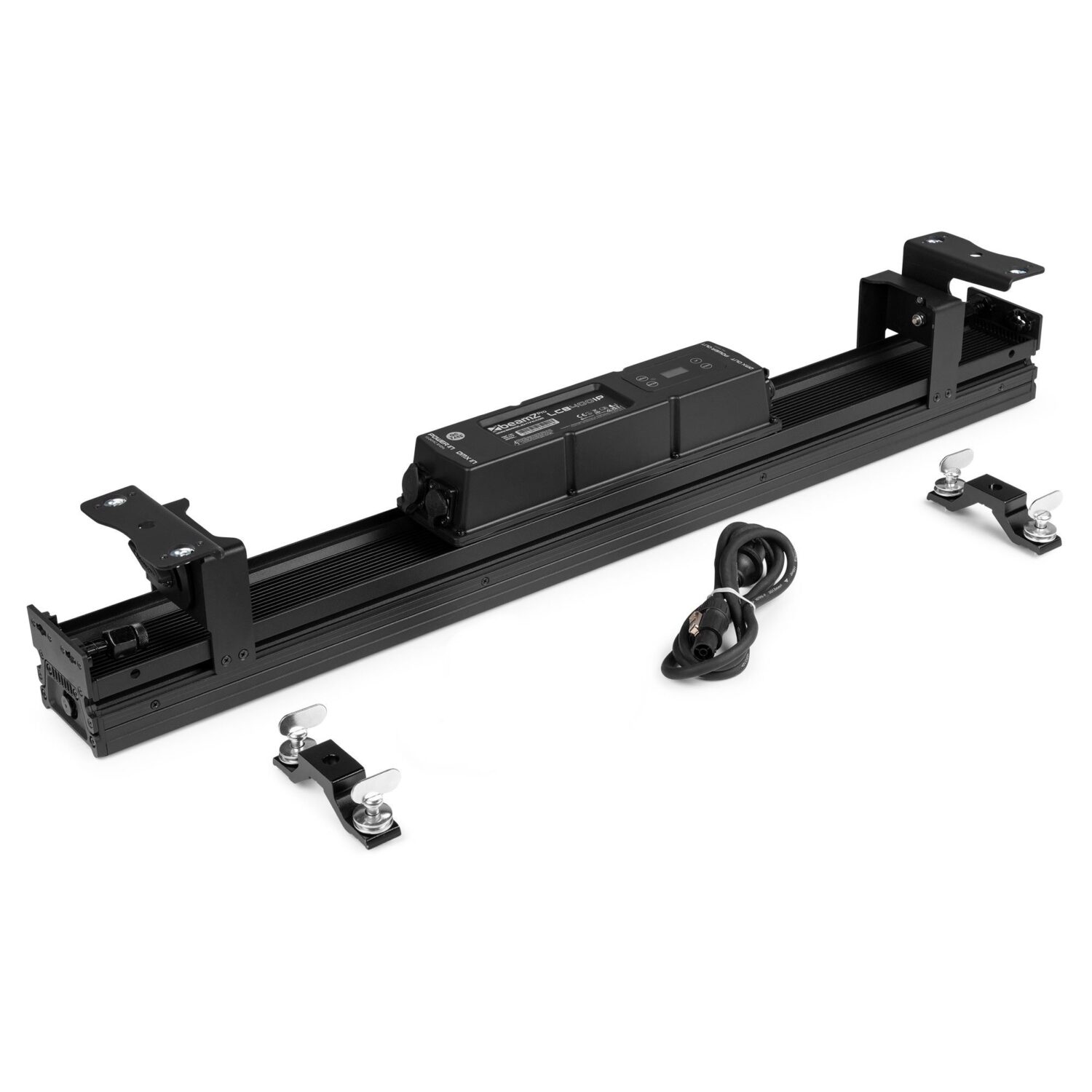

Included accessories	Mounting bracket, Power cable

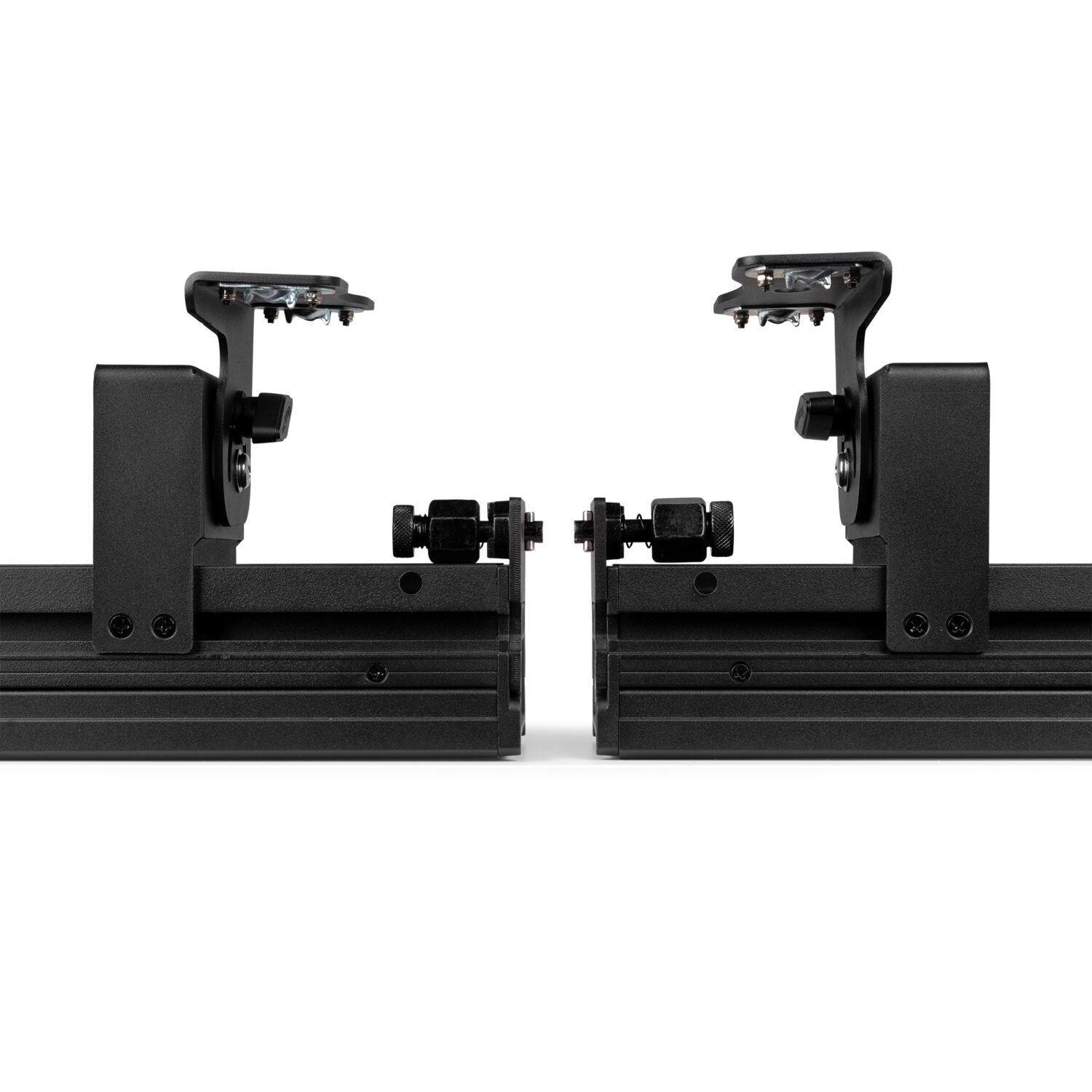

The LCB400IP is a robust aluminium LED bar specifically designed for indoor and outdoor environments. Utilizing advanced LED cutting-edge technology with RGB, Cool White and Amber SMD LEDs, the LCB400IP produces remarkable effects, making it versatile for a range of applications. It’s ideal for uplighting large venues and buildings or illuminating stages at live events. The fixture features a convection-cooled cast aluminium housing with watertight internal gaskets and weather-resistant power and DMX cable in/out connections. Quick Lock brackets are included for easy setup.
