LCB803 LED BAR 80x 3-in-1 DMX IRC

beamZ

150.561
  • 80x 3W RGB 3-in-1 LEDs
  • Red, green and blue colour mixing
  • 3, 6, 12, 24 or 48 DMX channels
  • 1, 2, 4 or 8 Sections controllable
  • DMX and stand-alone mode
  • Master/slave synchronization
  • Sound activated
  • Auto mode with adjustable speed

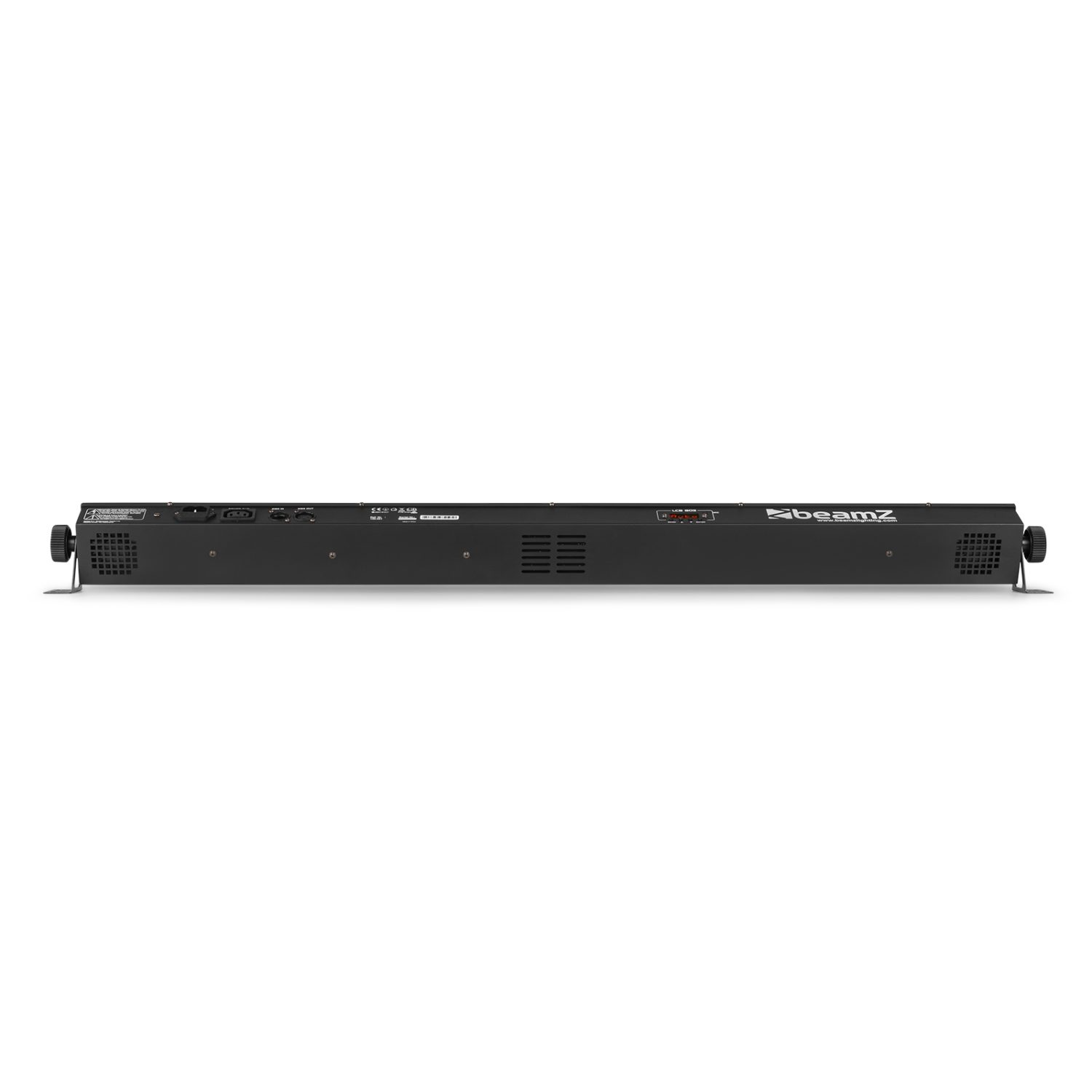

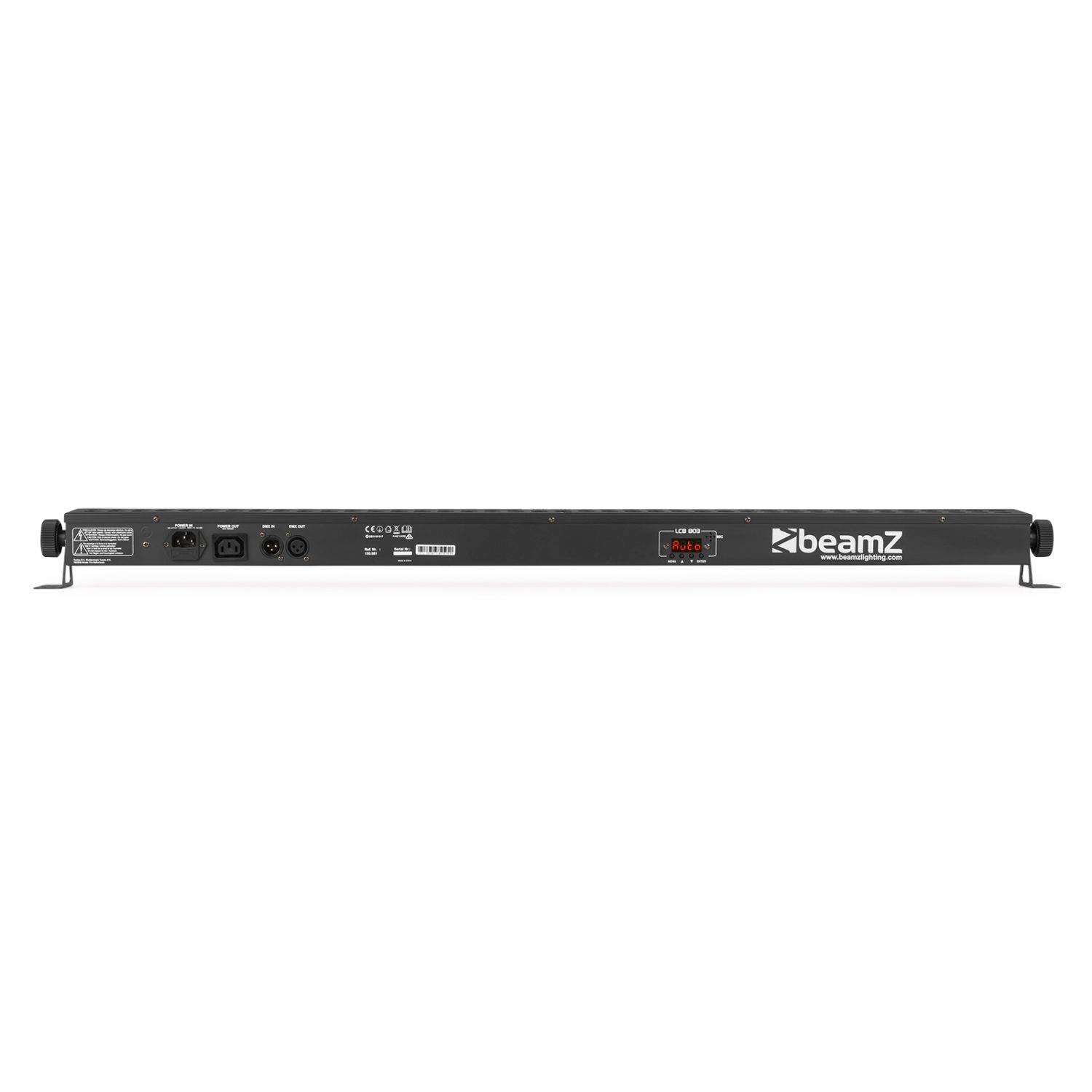

  • DMX in-/output via 3-pin XLR
  • IEC-connector in-/output
  • Control panel with LED-display

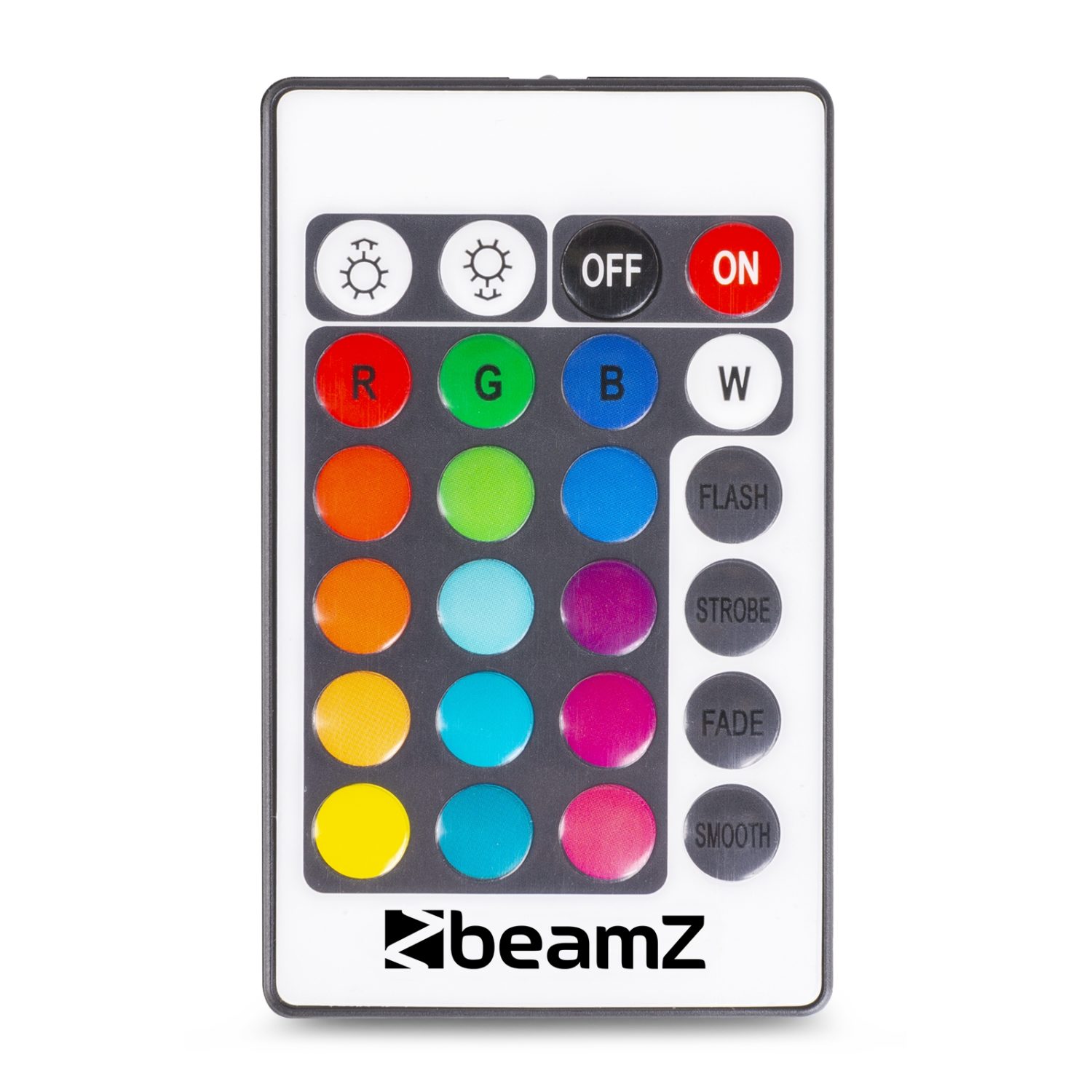

  • IR-Remote control
Specifications
Product colour Black
Light source 3-in-1 LED
Colours Red, Green, Blue
LED power (single LED) 3W
Quantity of LEDs 80
Beam angle 15
Field angle 30
Illuminance 6700 lx @ 1m
Modes Automatic programs, DMX
DMX channels 3, 6, 12, 24, 48
DMX connection 3-pin XLR
Daisy chain Yes (max. 6 bars)
IP rating IP20
Power plug IEC
Power consumption 120W
Power supply 100-240VAC 50/60Hz
Dimensions (L x W x H) 990 x 85 x 75mm
Weight (kg) 3.8500

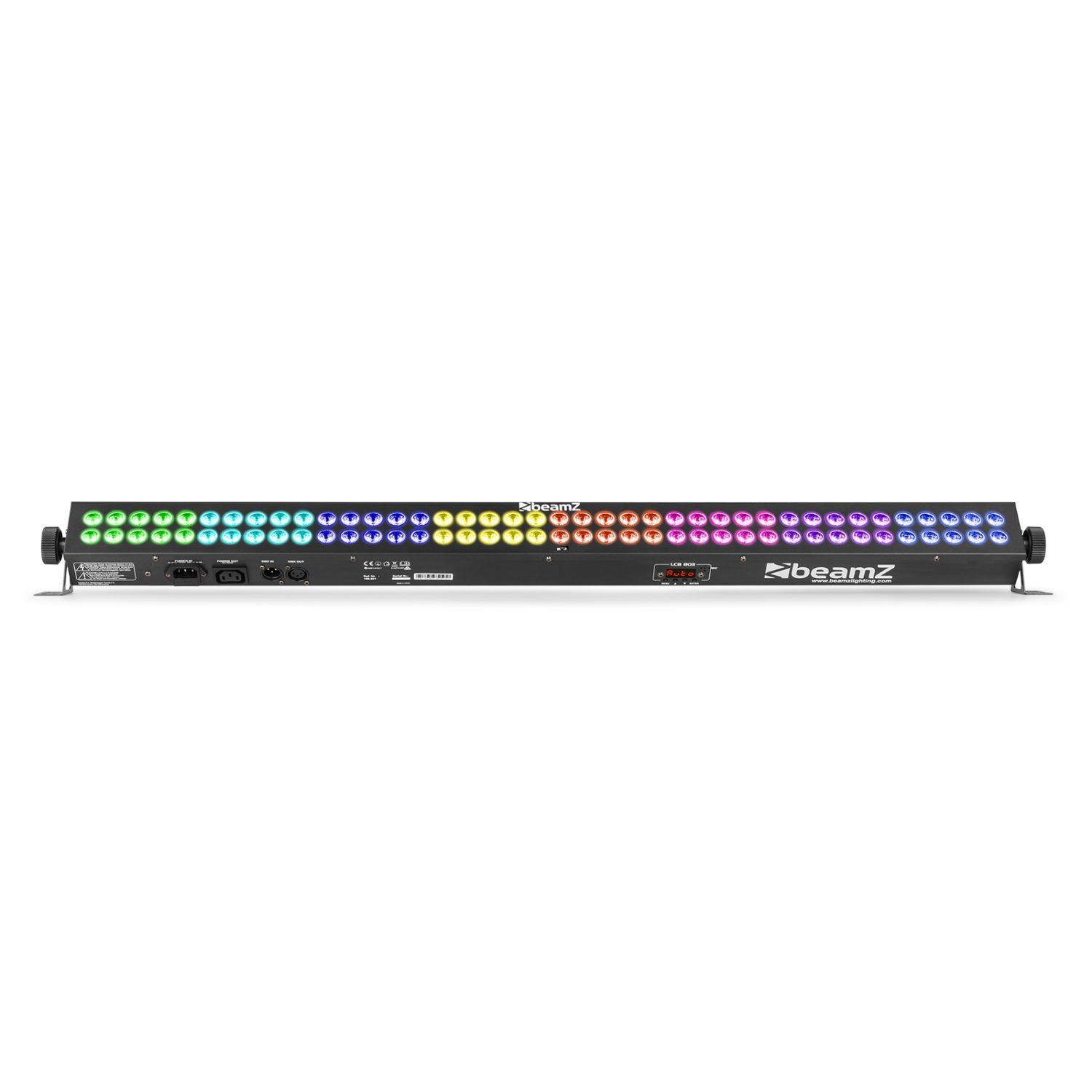

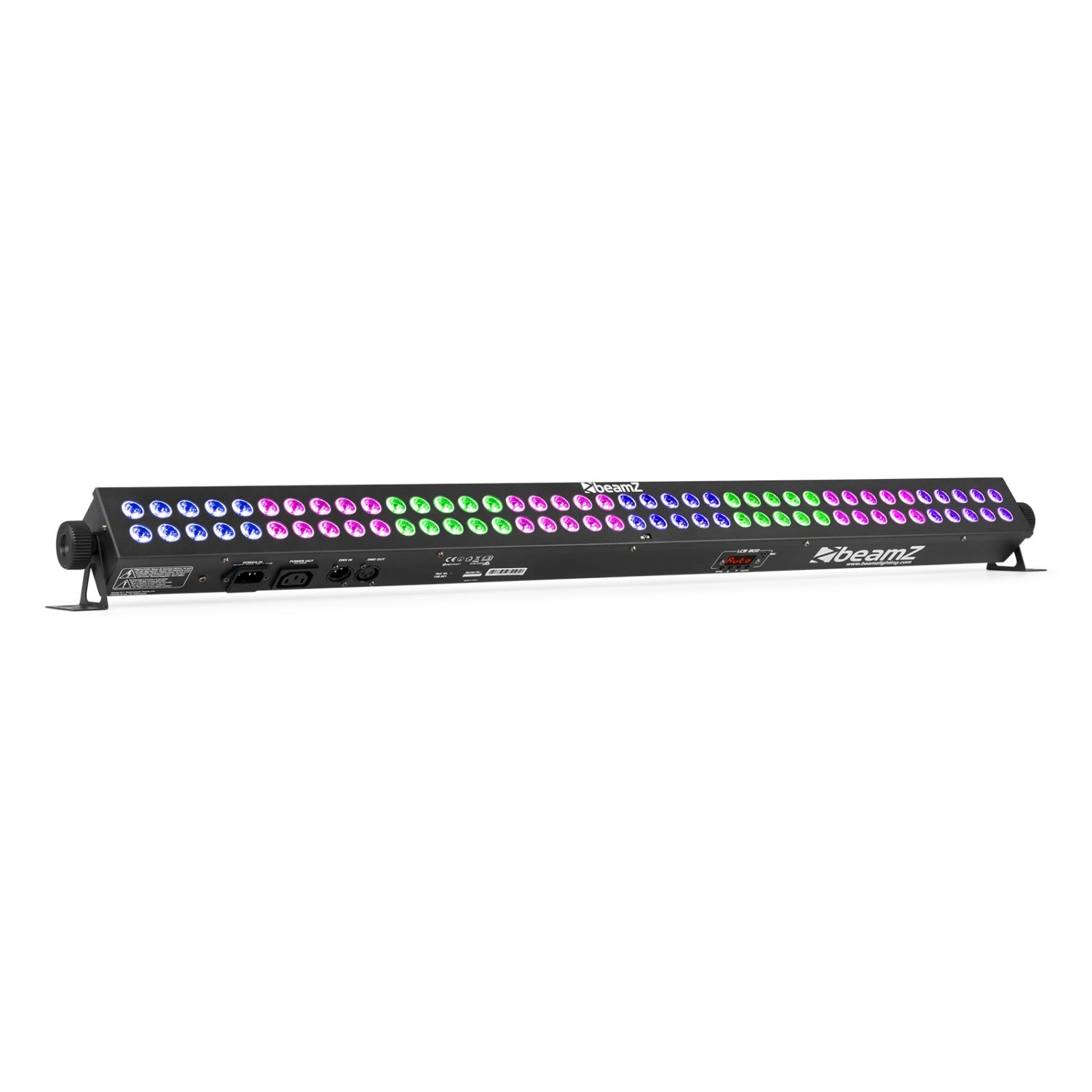

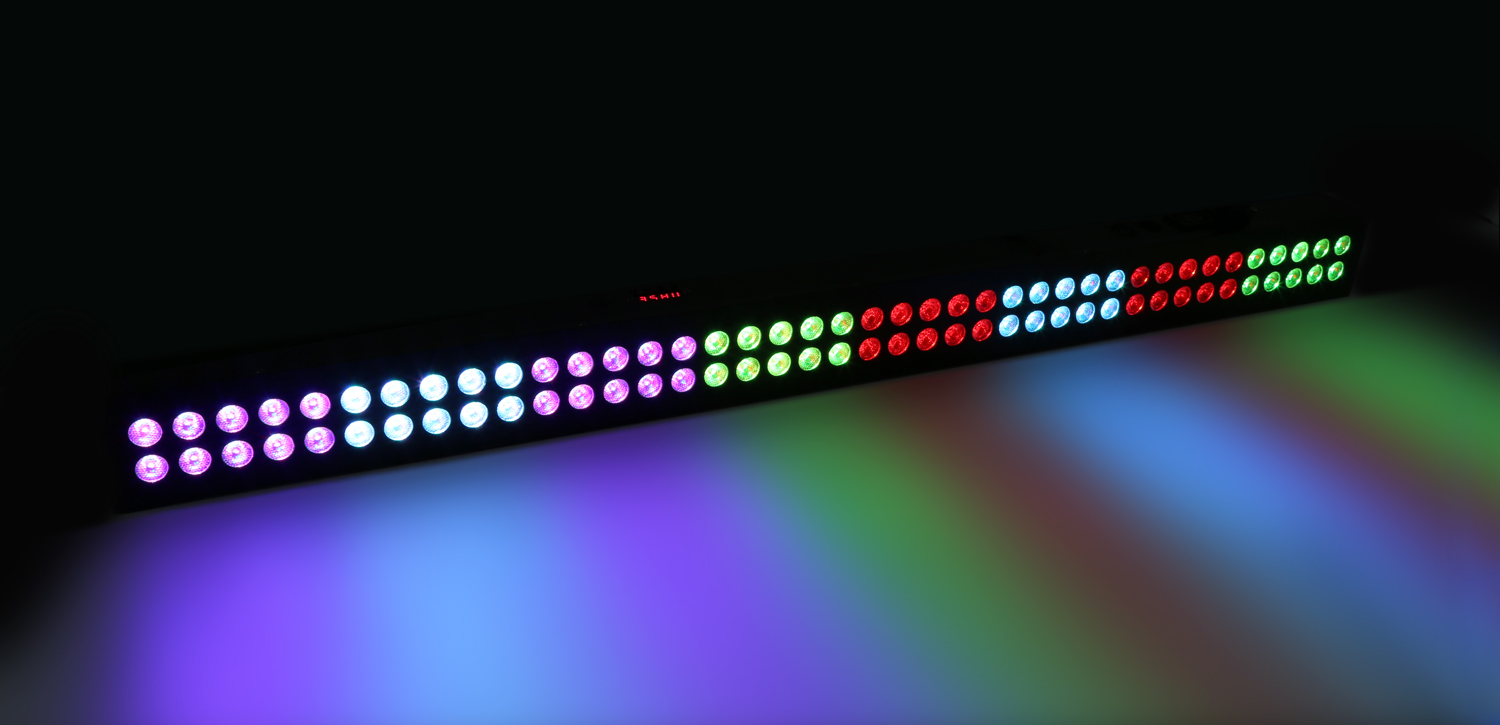

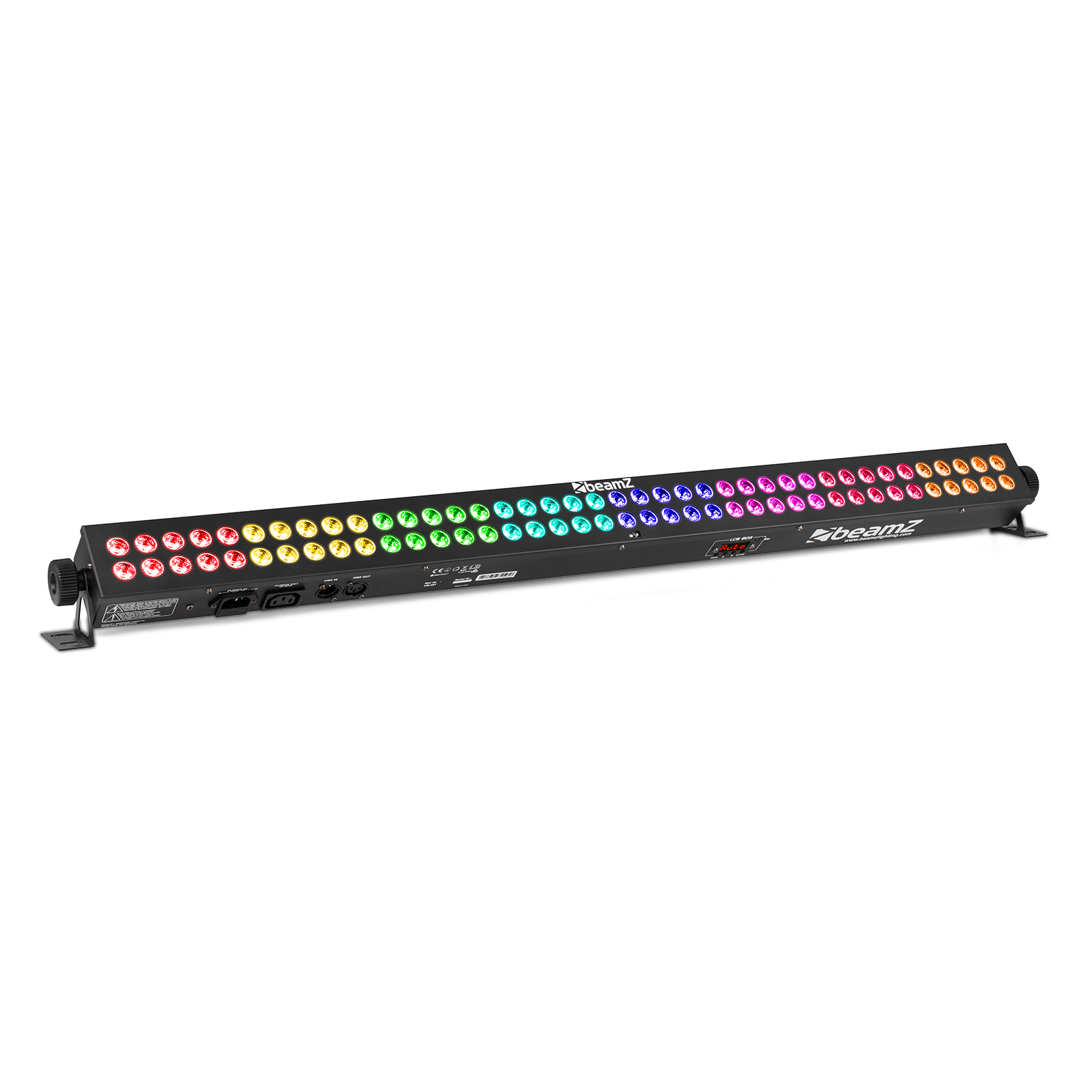

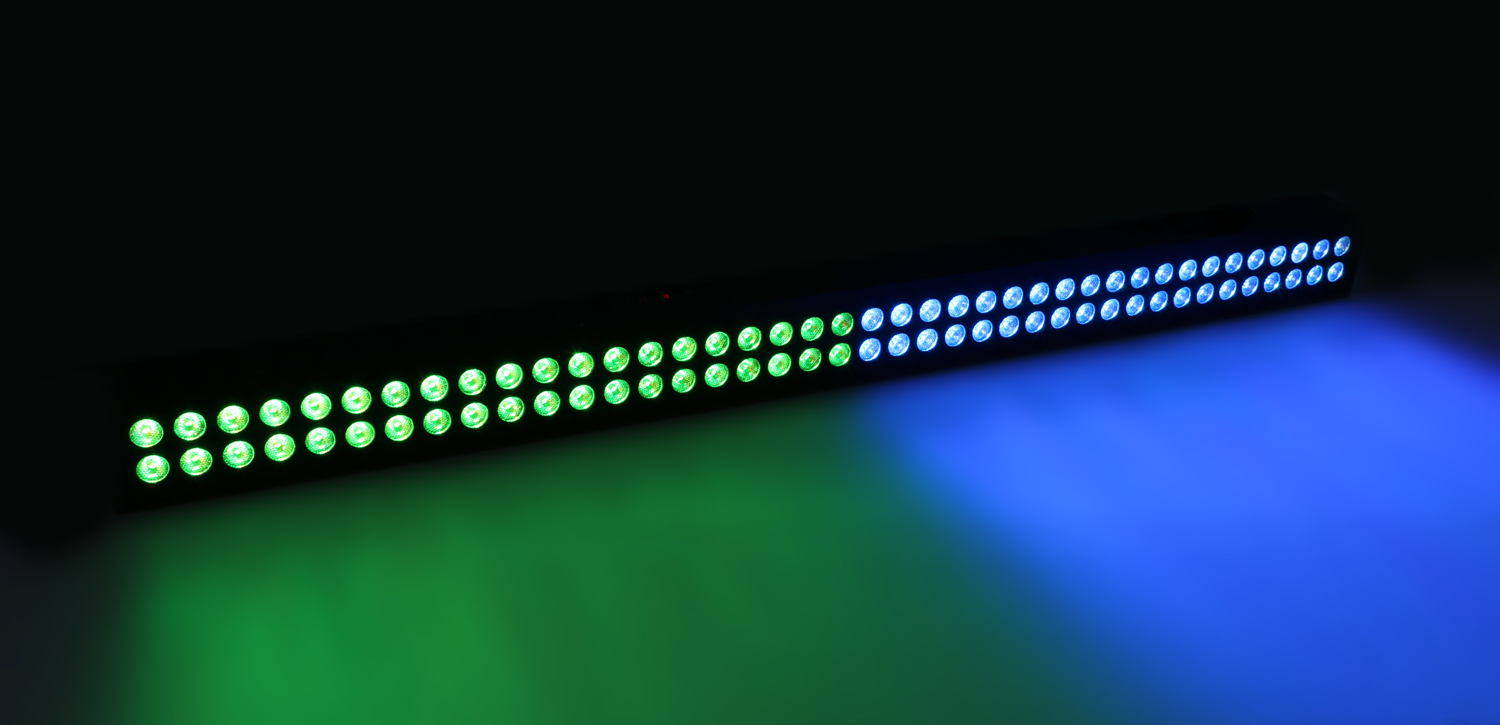

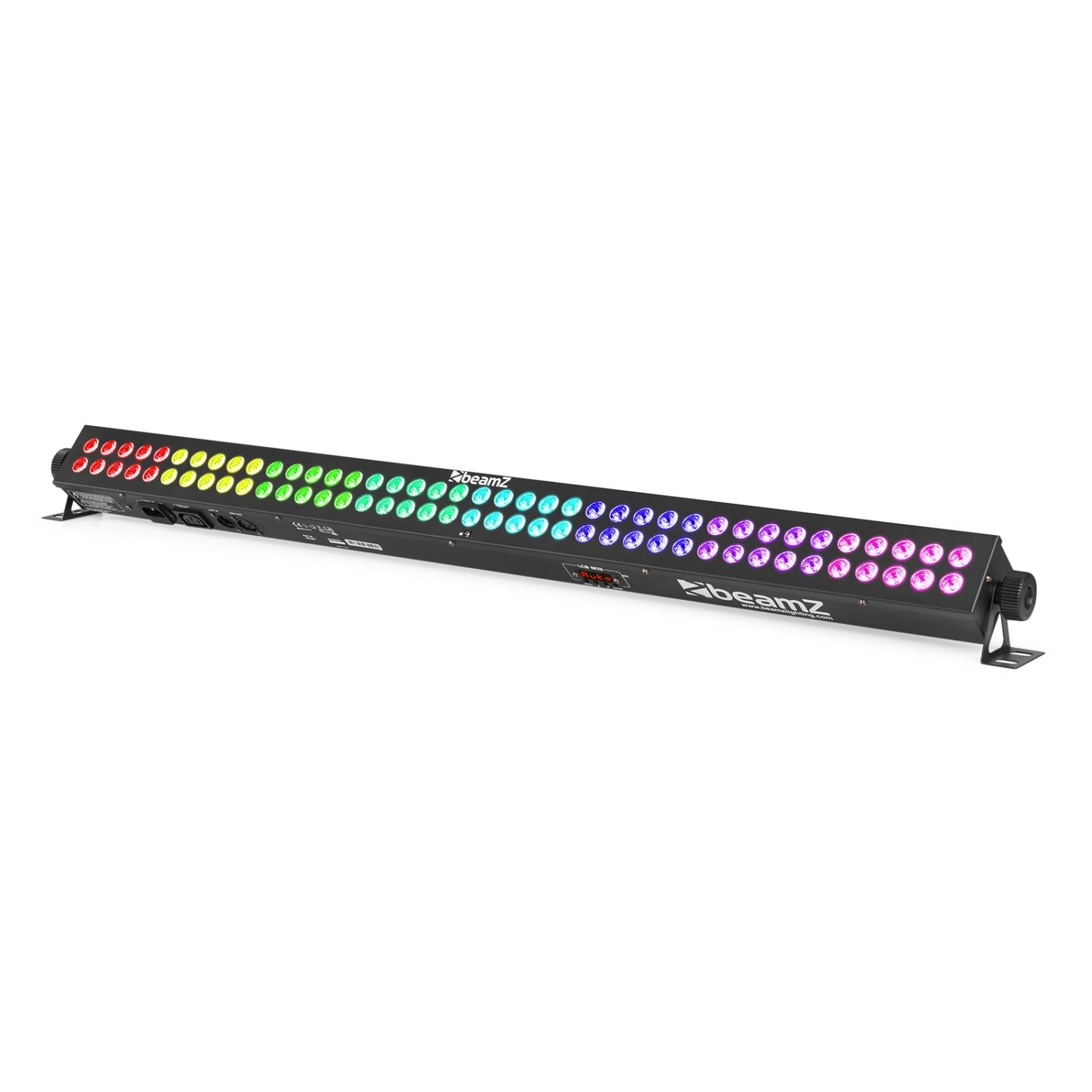

The LCB803 is a LED bar with 80 pieces 3-in-1 LEDs. The LEDs are divided in separately controllable sections. Each section having its own RGB colour setting in DMX mode. While using the fixture in stand-alone mode there are 16 pre-programmed shows that you can run by sound activation. The extra IEC output enables you to simply link the power of multiple units together into a single socket.
