LMB1040IP Outdoor Moving Bar with Zoom

153.282

High Performance Outdoor Moving Bar with Zoom
Source: 10x 40W 4-in-1 LEDs
Single pixel control
Effect: Beam/Wash with RGBW Colour mixing
Tilt movement: 240°
Motorized zoom (3° – 37°)
Linear dimmer: 0-100%
DMX and Stand-alone mode
Master/slave function
Auto mode with adjustable speed
Control panel with LCD display
Efficient low noise fan cooling system
DMX in/output via 3/5-pin IP65 XLR
P-Con TR input/output

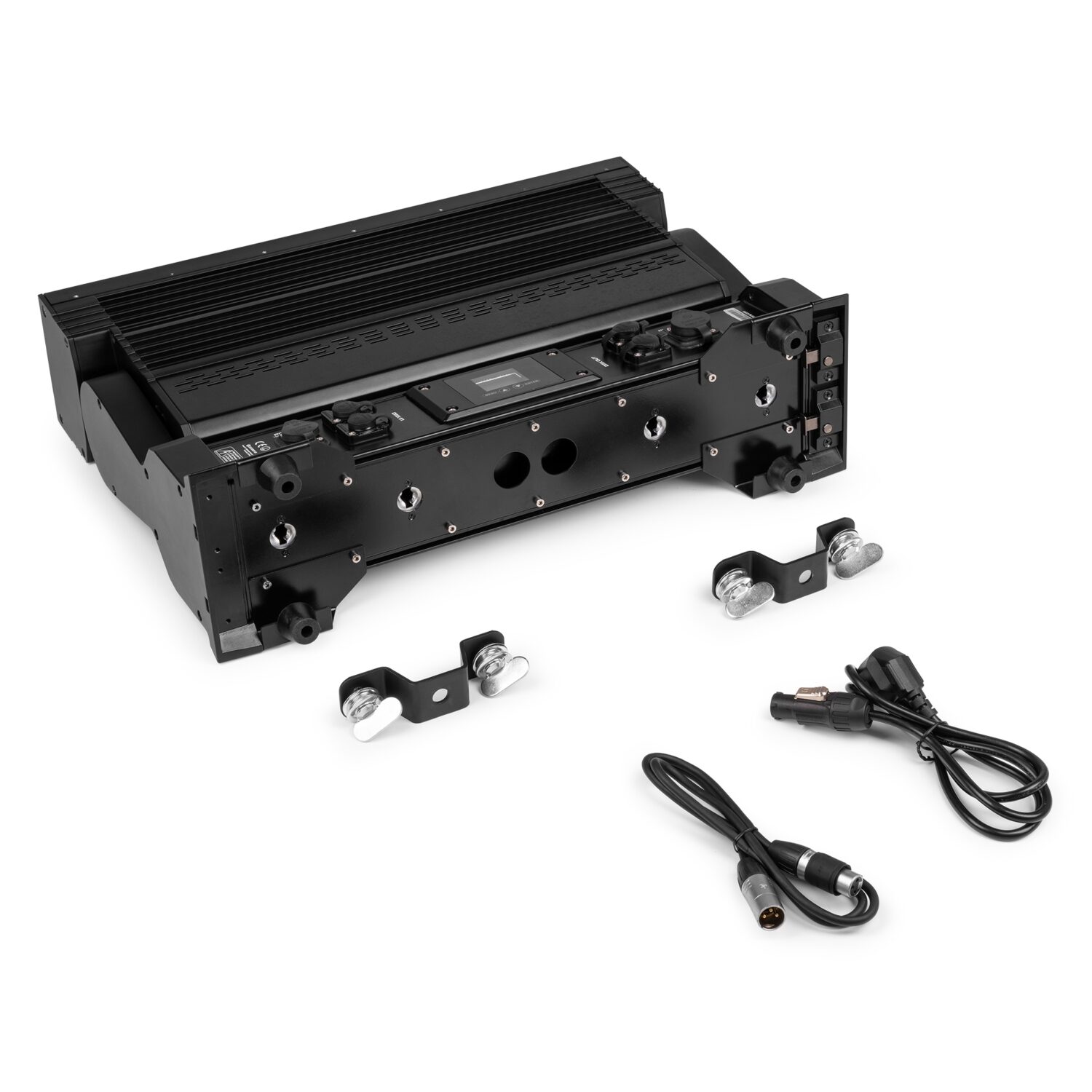

Including Omega brackets

Specifications

Specifications
Description
Videos
Download & links

Product colour	Black
Colour temperature	2700K - 8000K
Light source	4-in-1 LED
Colours	Red, Green, Blue, White
LED power (single LED)	40W
Quantity of LEDs	10
Beam angle: Min	3°
Beam angle: Max	37°
Field angle: min	6°
Field angle: max	59°
Illuminance	20.666 lx @ 1m
Flash rate per second	1 - 24Hz
Modes	Automatic programs, DMX, Master/Slave
DMX channels	13, 26, 27, 28, 29, 46, 47
DMX connection	3-pin XLR, 5-pin XLR
Display	LCD
IP rating	IP65
Cooling	Temperature controlled fan
Power plug	P-Con TR1
Power consumption	2.98 - 1.40A
Power supply	100-240VAC 50/60Hz
Dimensions (L x W x H)	536 x 159 x 398mm
Weight (kg)	17.9500

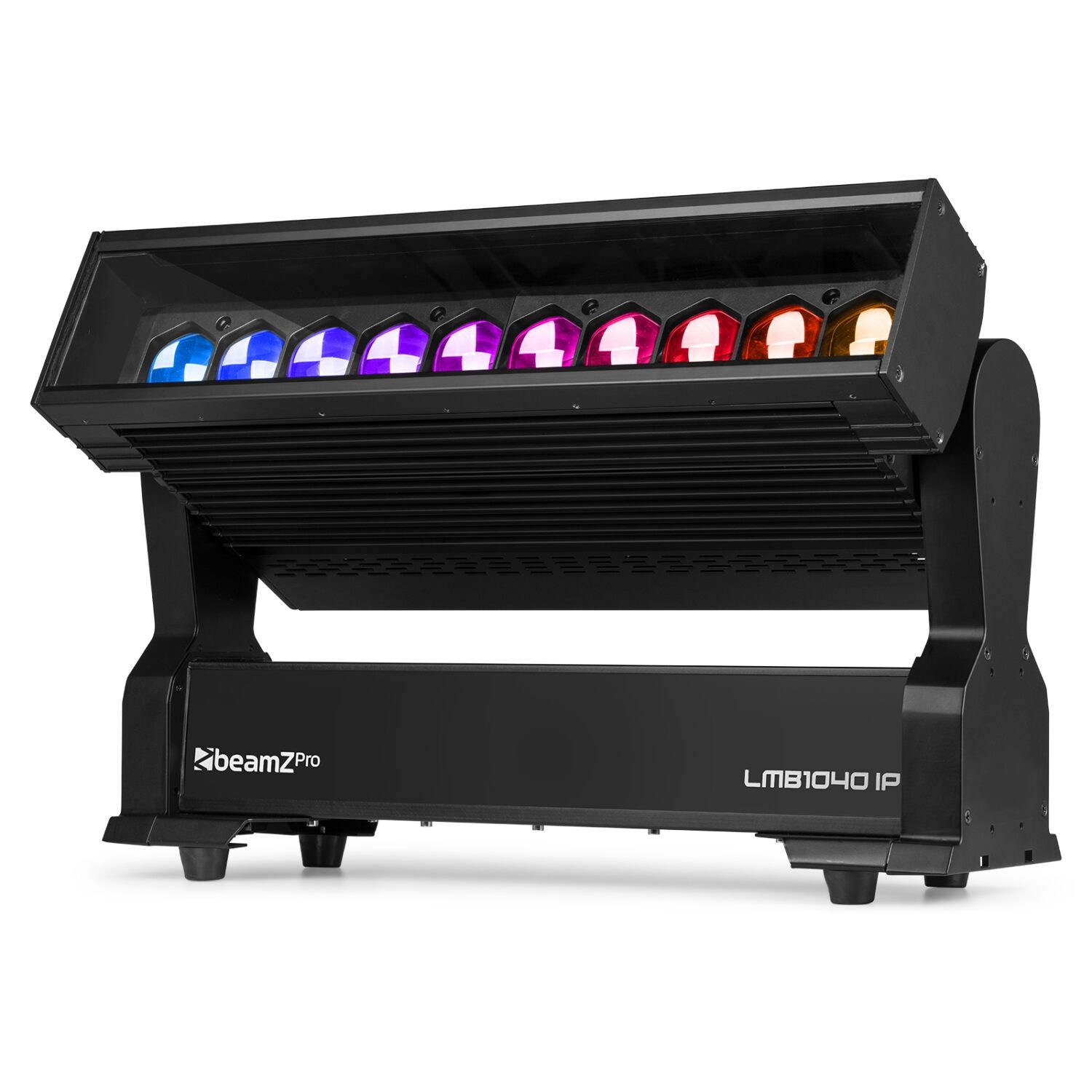

The LMB1040 is a high-performance weatherproof LED bar that produces a powerful zoomable range of movable light via its ten RGBW 4-in-1 40W high-quality LEDs. Each pixel can be controlled individually, and the light output can be easily converted into dynamic bundles full of numerous beams. This bright, moving pixel bar features a zoom range of 3º to 37º, a linear dimmer from 0 to 100%, an electronic strobe and a variable colour temperature from 2,700 K to 8,000 K. The fixture can be used on the ground or can be quickly and easily hung from a truss with the supplied Omega brackets.
