NEUTRON-ATOM TM Linkable 160W WW+Amber+RGB

151.533

High power warm white + Amber LED
Tungsten mode
Pixel-controllable RGB Aura backlight
Compact and lightweight aluminium housing
IP65 Rating, for indoor and outdoor use
Beam angle of 23 degrees
16-bit PWM dimming
Smart coupling system (2 pcs included)
Control panel with OLED display
Key lock option and possibility of reverse display
Auto mode
Intelligent cooling system
Weatherproof connectors, DMX and Power Connector TR (in/out)

Specifications

Specifications
Description

Product colour	Black
Light source	2-in-1 LED
Colours	Red, Green, Blue, Amber, Warm White
LED power (single LED)	160W
Quantity of LEDs	1
LED power: Backlight	1W
Quantity of backlight LEDs	36
Beam angle	23°
Illuminance	44.688 lx @ 1m
Flash rate per second	1 - 31Hz
RDM	Yes
DMX channels	4, 9, 11, 15, 18, 112, 123
DMX connection	3-pin XLR, 5-pin XLR
Modes	Automatic programs, DMX, Master/Slave
IP rating	IP65
Cooling	Convection
Display	oLed
Power plug	P-Con TR1
Power consumption	1.483 - 0.714A
Power supply	100-240VAC 50/60Hz
Dimensions (L x W x H)	185 x 235 x 300mm
Weight (kg)	3.7500

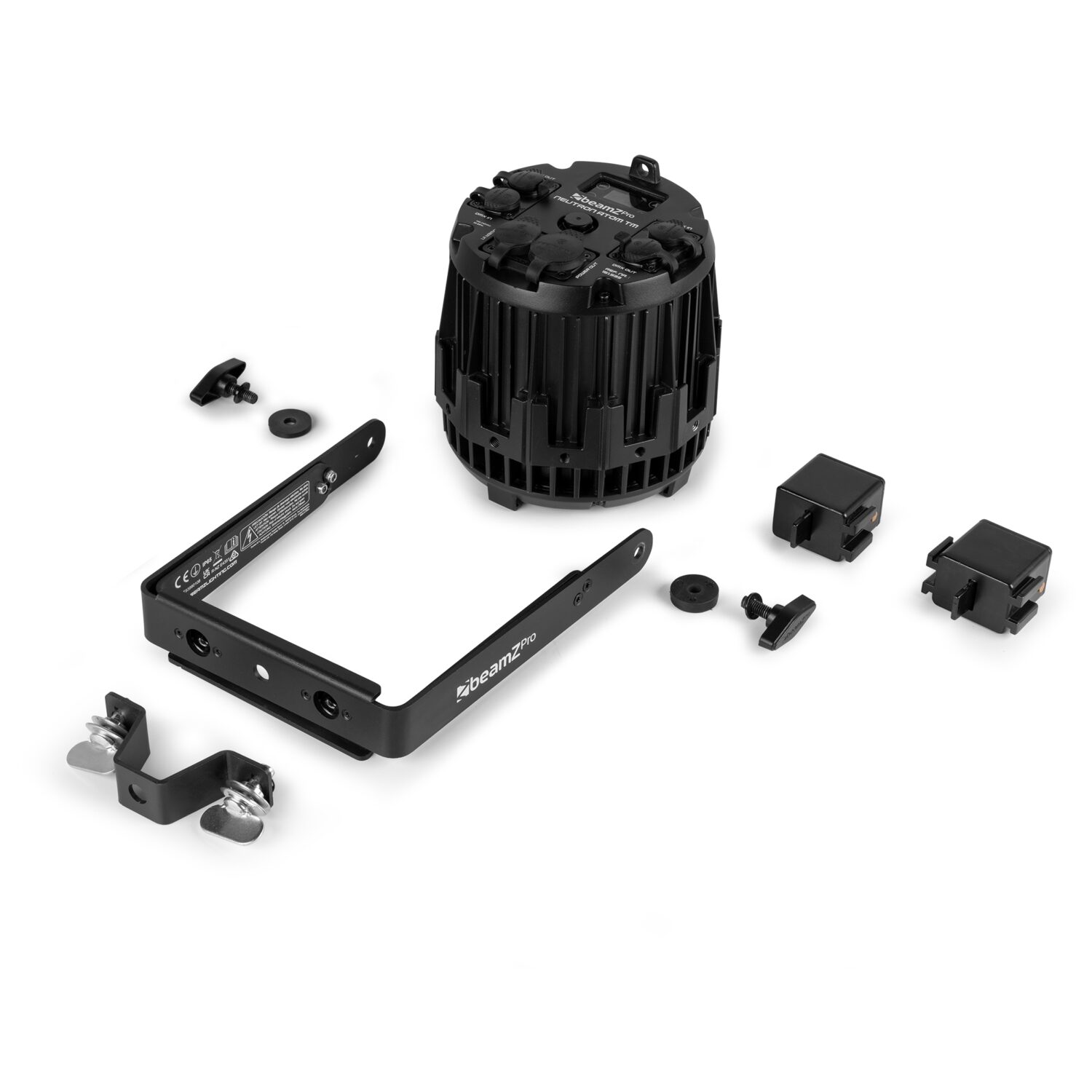

Included accessories	Mounting bracket, Power cable

The beamZ Neutron-Atom is a versatile LED hybrid fixture that seamlessly combines style with creativity. This dynamic lighting solution transcends traditional boundaries, making it ideal for a wide range of applications. From serving as an audience blinder and strobe light to functioning as a creative LED pixel mapping surface, eye candy effect light and stage wash, the Neutron-Atom delivers it all in a single compact design.
The intelligent coupling technology seamlessly connects the Neutron fixtures with each other to create a world of creative possibilities. Fixtures can then be combined into light bars, arrays or other imaginative shapes. These fixtures are built to withstand harsh weather conditions.
