NEUTRON-DOT Linkable 60W WW + RGB

151.525

High power warm white LED (2700K)
Pixel-controllable RGB Aura backlight
Compact and lightweight aluminium housing
IP65 Rating, for indoor and outdoor use
Beam angle of 23 degrees
16-bit PWM dimming
Smart coupling system (2 pcs included)
Control panel with OLED display
Key lock option and possibility of reverse display
Auto mode
Intelligent cooling system
Weatherproof connectors, DMX and Power Connector TR (in/out)
For architectural and entertainment use

Specifications

Specifications
Description
Videos
Download & links

Product colour	Black
Light source	Single colour LED
Colours	Red, Green, Blue, Warm White
LED power (single LED)	60W
Colour temperature	2700K
Quantity of LEDs	1
LED power: Backlight	1W
Quantity of backlight LEDs	16
Beam angle	23°
Illuminance	20.357 lx @ 1m
Flash rate per second	0 - 20Hz
RDM	Yes
DMX channels	1, 3, 4, 16, 64
DMX connection	3-pin XLR
Modes	Automatic programs, DMX, Master/Slave
IP rating	IP65
Cooling	Convection
Display	oLed
Power plug	P-Con TR1
Power consumption	0.944 - 0.473A
Power supply	100-240VAC 50/60Hz
Dimensions (L x W x H)	142 x 142 x 218mm
Weight (kg)	2.3000

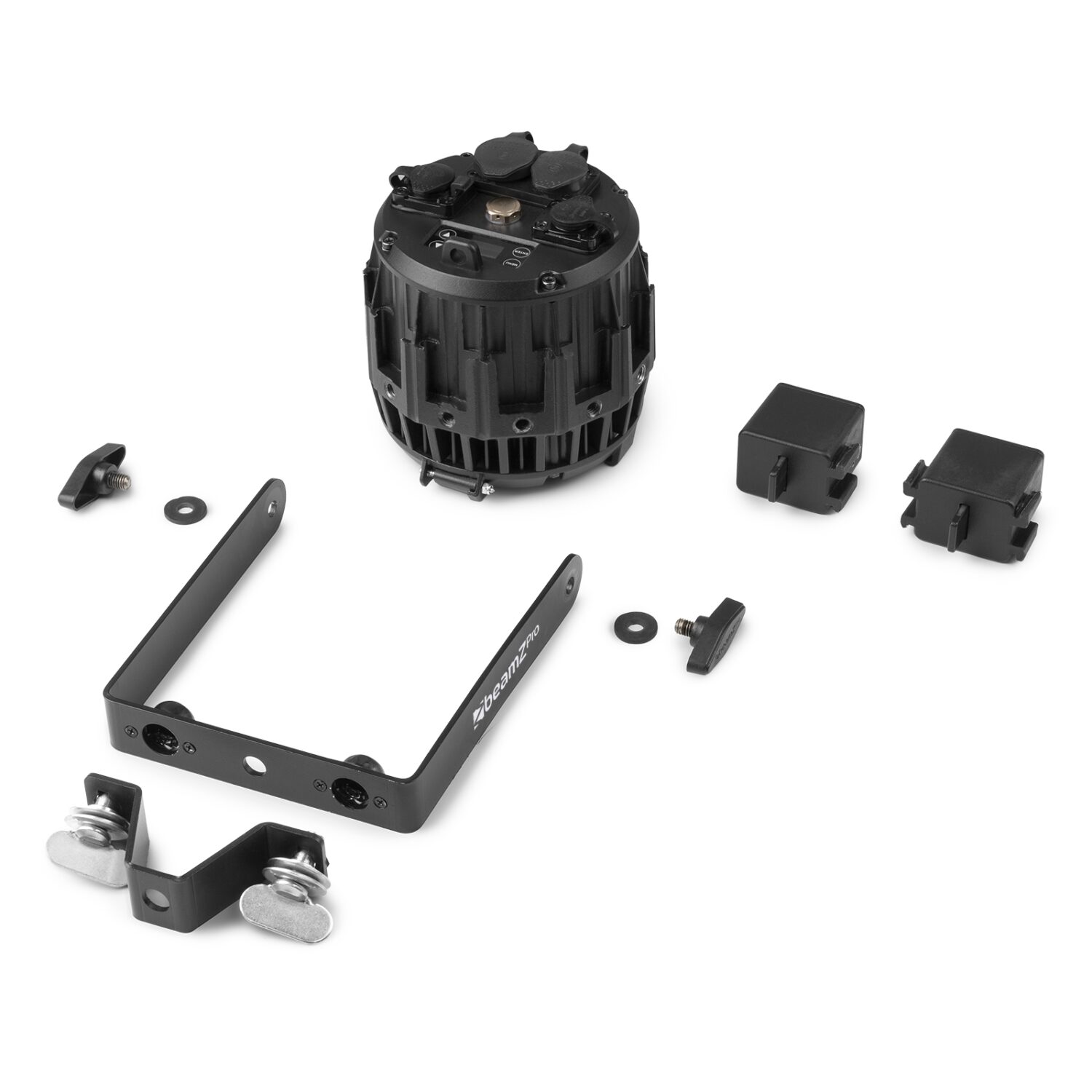

Included accessories	Mounting bracket, Power cable

The beamZ Neutron-Dot is a versatile LED hybrid fixture that seamlessly combines style with creativity. This dynamic lighting solution transcends traditional boundaries, making it ideal for a wide range of applications. From serving as an audience blinder and strobe light to functioning as a creative LED pixel mapping surface, eye candy effect light and stage wash, the Neutron-Dot delivers it all in a single compact design.
The intelligent coupling technology seamlessly connects the Neutron-Dot fixtures with each other to create a world of creative possibilities. Fixtures can then be combined into light bars, arrays or other imaginative shapes. These fixtures operate effortlessly in temperatures from -20 to +40 degrees Celsius and are built to withstand harsh weather conditions.

NEUTRON-DOT Linkable 60W WW + RGB
