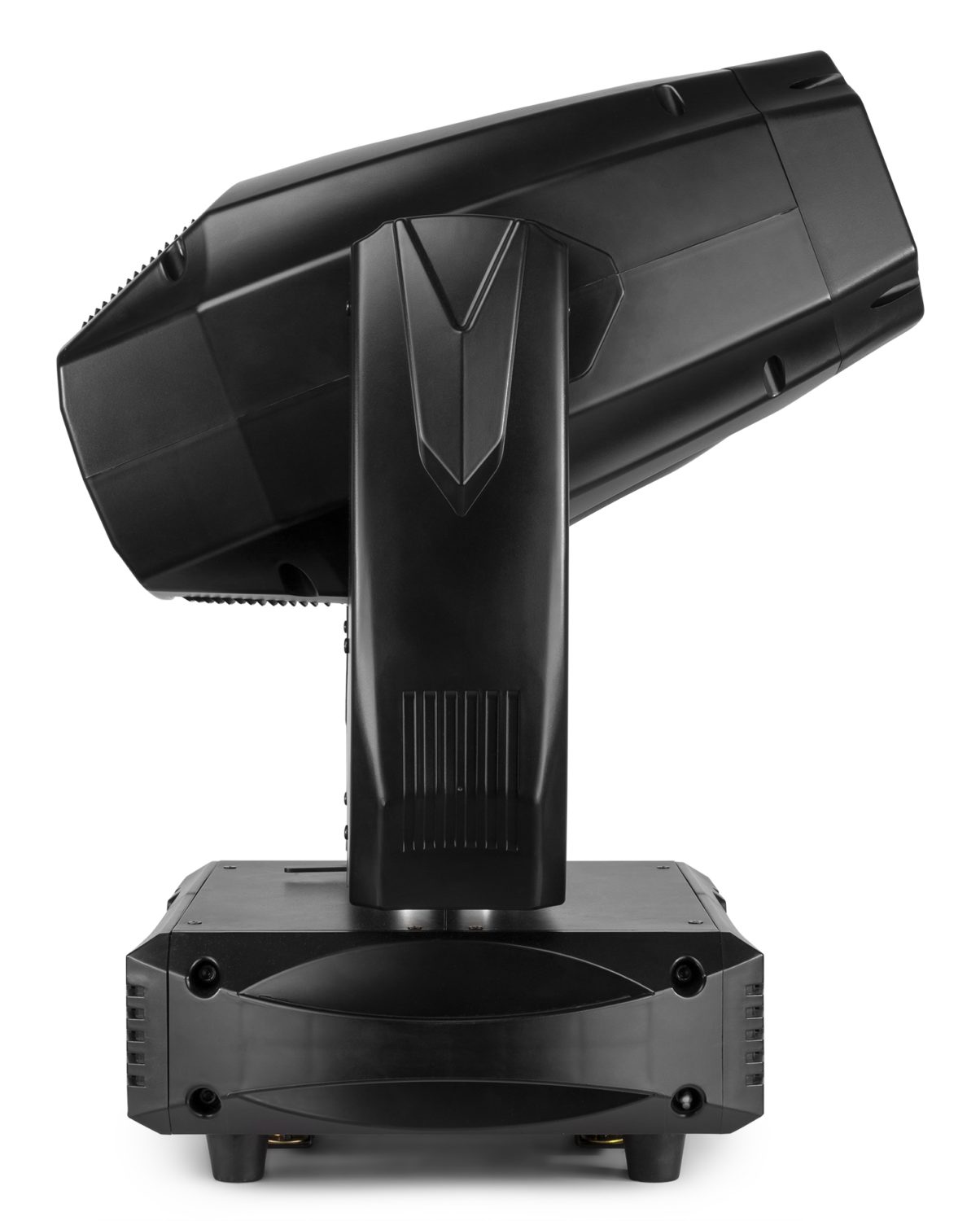

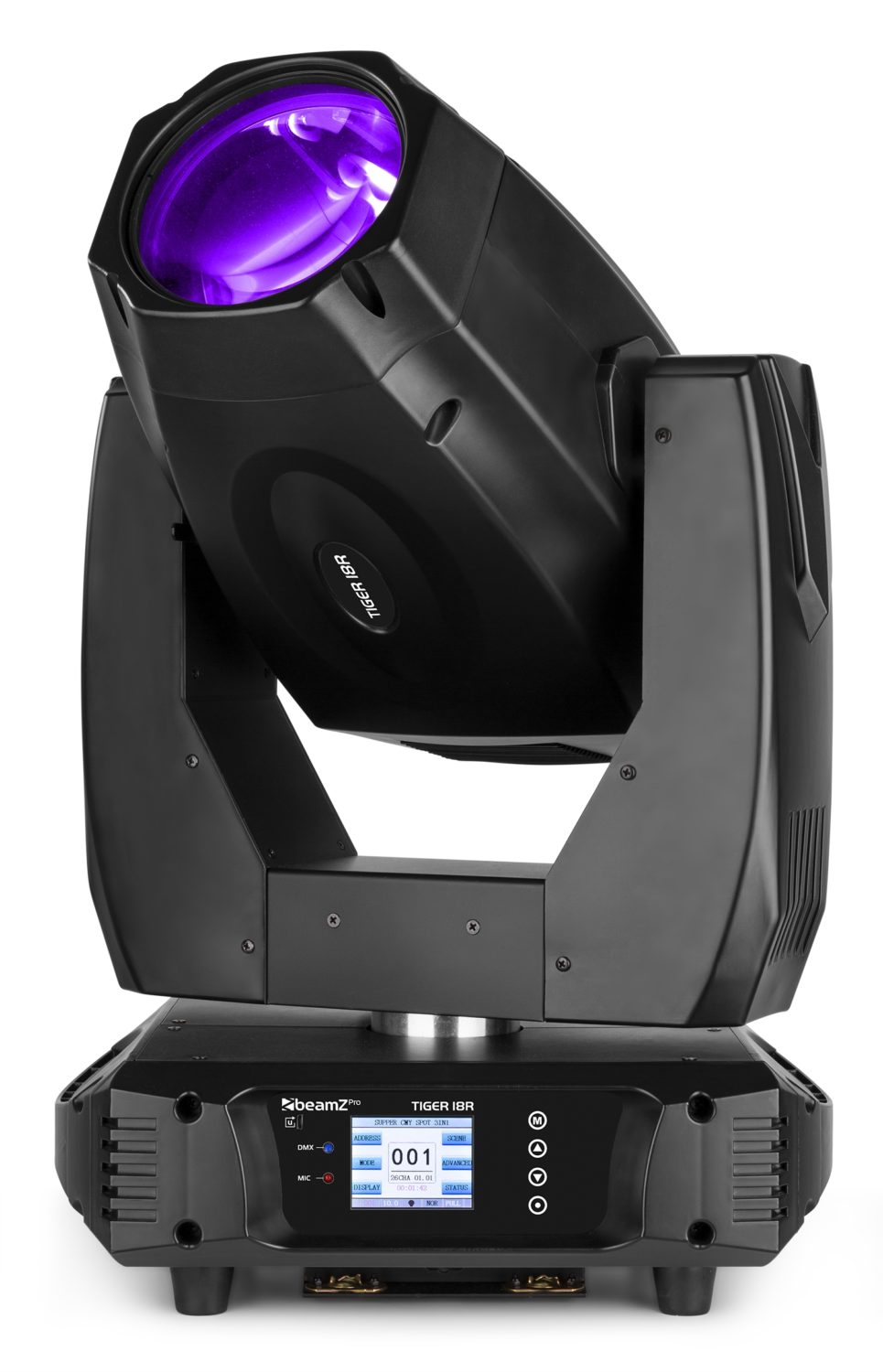

Tiger 18R BSW 380W CMY Moving Head 2pcs in Flightcase

150.395

3-in-1: Beam, Spot and Wash
380W 18R High Intensity discharge bulb included
Gobo Wheel 1: 9 gobos + open + bi-directional flow effect
Gobo Wheel 2: 10 gobos + different size beam holes + bi-directional flow effect
Gobo Wheel 3: 7 + open rotation gobo’s (interchangeable)
Colour Wheel: 12 Colours + 2 CTO + 1 CTB
Gobo shake effect
Frost effect filter (for wash effect)
Prisms: rotatable 8 facet prism + rotatable 16 facet prism
Motorized focus
Mechanical shutter and adjustable speed strobe effect (1-20 x per sec)
Dimmer: 0 – 100% linear dimmer
23 or 26 DMX Channels
DMX, Auto mode and Master/Slave function
RDM/DMX protocols
Sound activated with adjustable sensitivity
Automatic pan/tilt correction
Pan: 540° and Tilt: 250° Movement
Transport pan/tilt lock system
Pan/Tilt Resolution: 16bit
Control panel with LCD display, touch screen
DMX in/output via 3-pin XLR
Powerconnector input/output

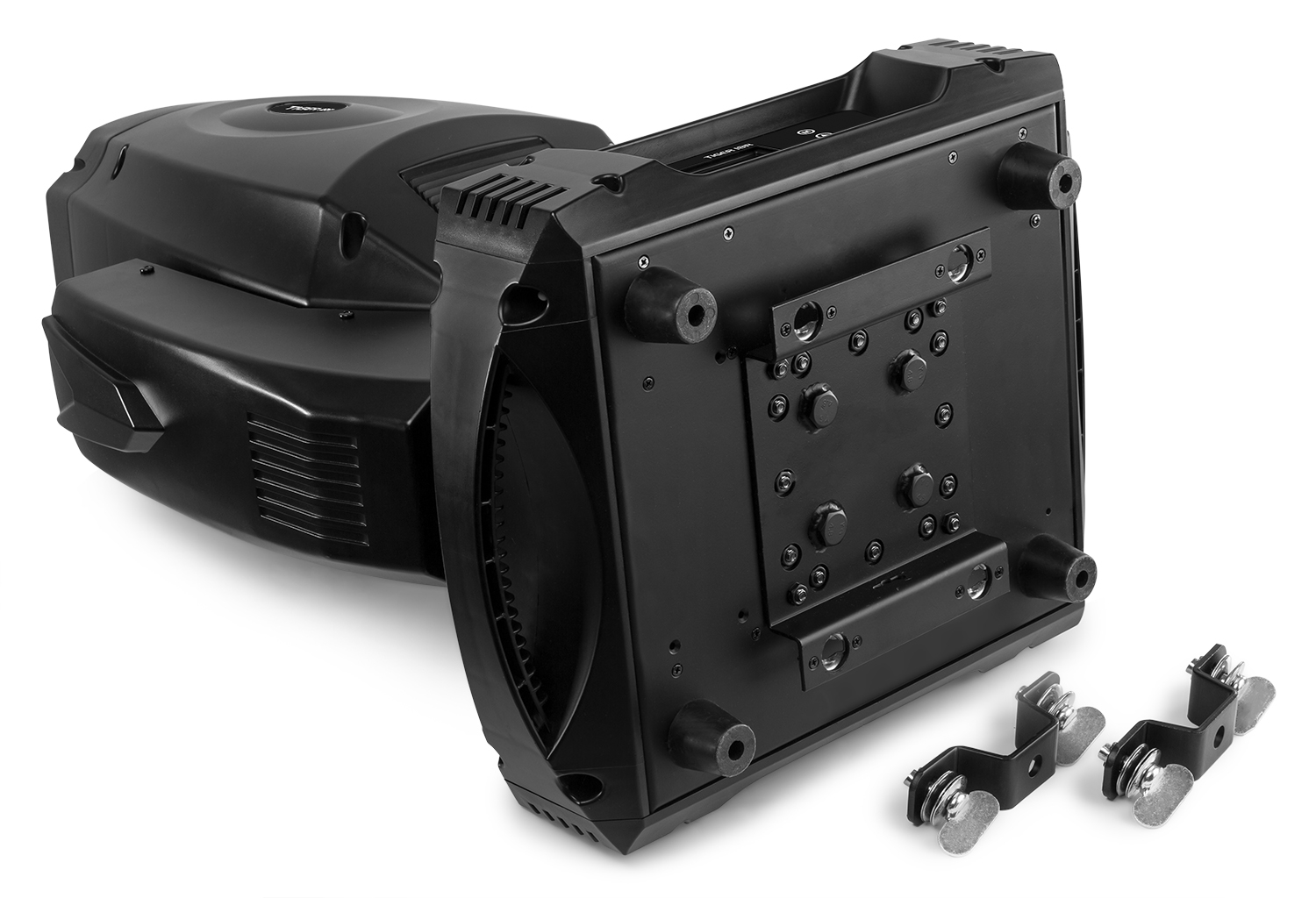

Quick lock omega clamp included (2x)
DMX cable included
Powerconnector cable included

Specifications

Specifications
Description
Download & links

Colour temperature	8000K
Light source	MSD 18R 380W bulb
CMY wheel	Yes
Dispersion: Beam	2º - 9º
Dispersion: Spot	21º - 62º
Dispersion: Wash	23º - 64º
Zoom	Yes
Illuminance	207.000lx@10m
Head movement: Pan	540
Head movement: Tilt	270
Static gobo: Quantity	22
Rotating gobos: Quantity	7
Gobo shake	Yes
Interchangeable gobos	Yes
Prisma 1	8 Facet
Prisma 2	16 Facet
Frost filter	Yes
Flash rate per second	1 - 20Hz
Modes	Automatic programs, DMX, Manual, Master/Slave
Sound to light mode	Yes
RDM	Yes
DMX channels	23, 26
DMX connection	3-pin XLR
Display	LCD
IP rating	IP20
Cooling	Temperature controlled fan
Power plug	Power-connector
Power consumption	3.8 - 2.1A
Power supply	100-240VAC 50/60Hz
Dimensions (L x W x H)	420 x 450 x 550mm
Weight (kg)	71.0000
Weight: Each	24
Included accessories	Mounting bracket, Power cable, DMX cable

A kit of 2 professional Tiger 18R 3-in-1 moving heads, supplied in a solid and rugged flightcase. The Tiger 18R offers three effects; Beam, Spot and Wash and is equipped with a 18R 380W high intensity discharge bulb. It has also a colour (CMY Colours), frost, gobo and double prism effect wheel for ultimate control. Works both in DMX or stand-alone mode. When operating in DMX mode you have complete control with 23 or 26 DMX channels. Among its features are an mechanical shutter and adjustable speed strobe, frost filter, rotation prism, motorized focus and mechanical dimmer.
