BT420 Lightweight Par 7x 10W + SMD Combi Effect

151.349

7x 10W 4-in-1 LEDs and 60x RGB SMD LEDs
RGBW Colour mixing with full saturation control
Colour Temp. 2700 – 8000K
CTB and CTO Colour
Lightweight ABS housing
12 or 17 DMX channels
Built-in programs
DMX and Stand-alone mode
Master/slave function
0-100% Dimmer
Sound controlled
Auto mode
DMX in/output via 3-pin XLR
Control panel with LED display
Power-connector input/output
IR remote control
Double bracket also acts as floor stand

Specifications

Specifications
Description
Videos
Download & links

Product colour	Black
Light source	4-in-1 LED
LED colours	Red, Green, Blue, White
LED power (single LED)	10W
Colour temperature	2700K - 8000K
Quantity of LEDs	7
LED power: Backlight	SMD
Quantity of backlight LEDs	60
Beam angle	23°
Field angle	38°
Illuminance	8365 lx @ 1m
Flash rate per second	0 - 25Hz
DMX channels	12, 17
DMX connection	3-pin XLR
Modes	Automatic programs, DMX, Master/Slave
IP rating	IP20
Cooling	Fan
Display	LED
Power plug	Power-connector
Power consumption	0.86 - 0.4A
Power supply	100-240VAC 50/60Hz
Dimensions (L x W x H)	220 x 270 x 115mm
Weight (kg)	2.2000
Included accessories	Remote control (wireless), Mounting bracket, Safety cord, Power cable, DMX cable

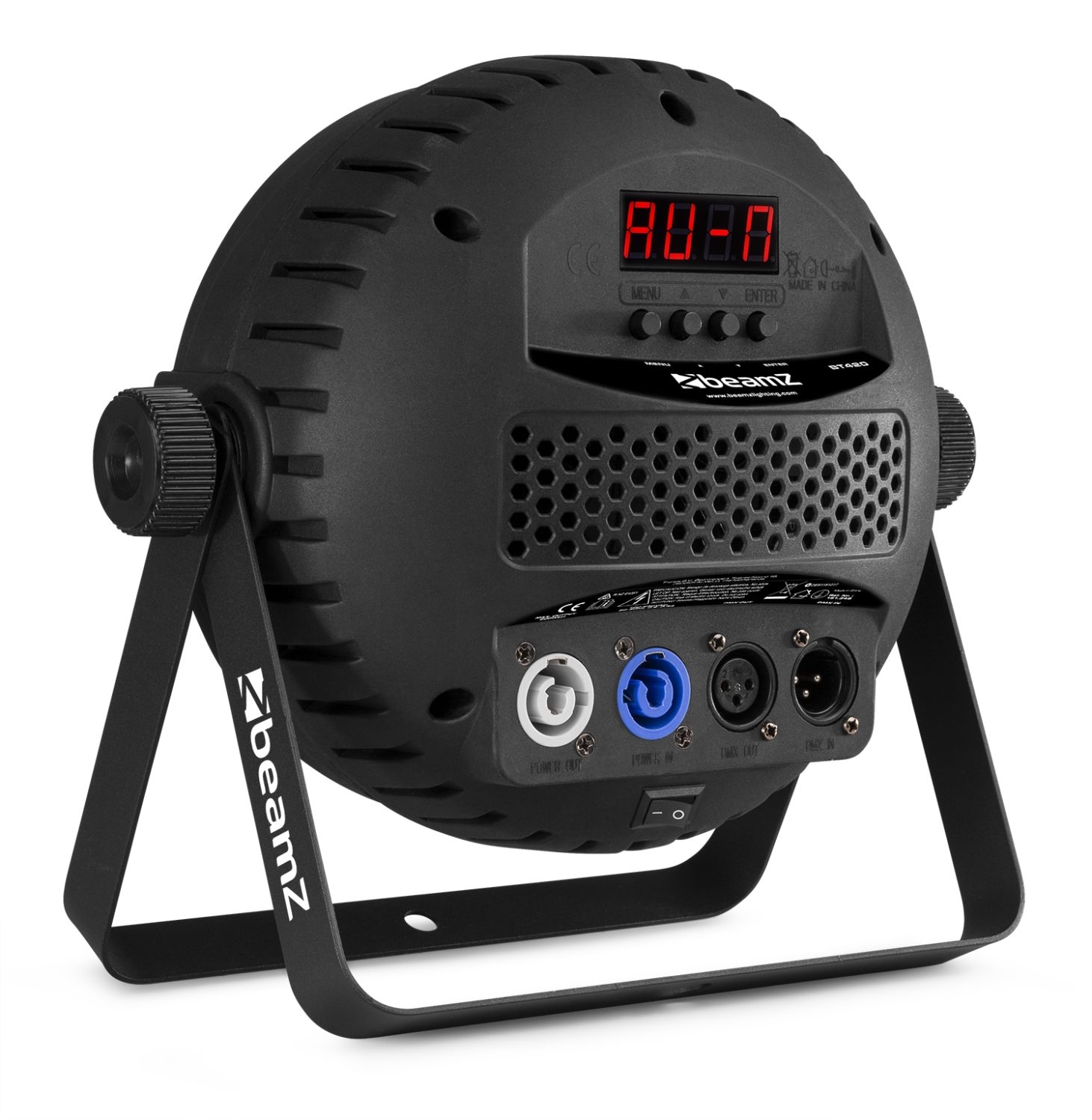

The BT-4 series is a range of high powered LED pars built into a slimline ABS housing so it can fit in the tightest of spaces like box truss. These fixtures are equipped with a power-connector in/out for daisy chaining multiple units together. All BT4 models have pre-set programs that can be used in stand-alone mode. In the DMX settings there is the choice of different DMX modes with pre-set colour macro’s or a mode where you can control every single colour individually per section. The same can be done in stand-alone mode with the supplied remote control. The robust ABS housing and double stand also make the BT Pars ideal for rental as they are lightweight and easy to setup. Ideal for DJs, bands, stages and venues wanting a great colour wash.
