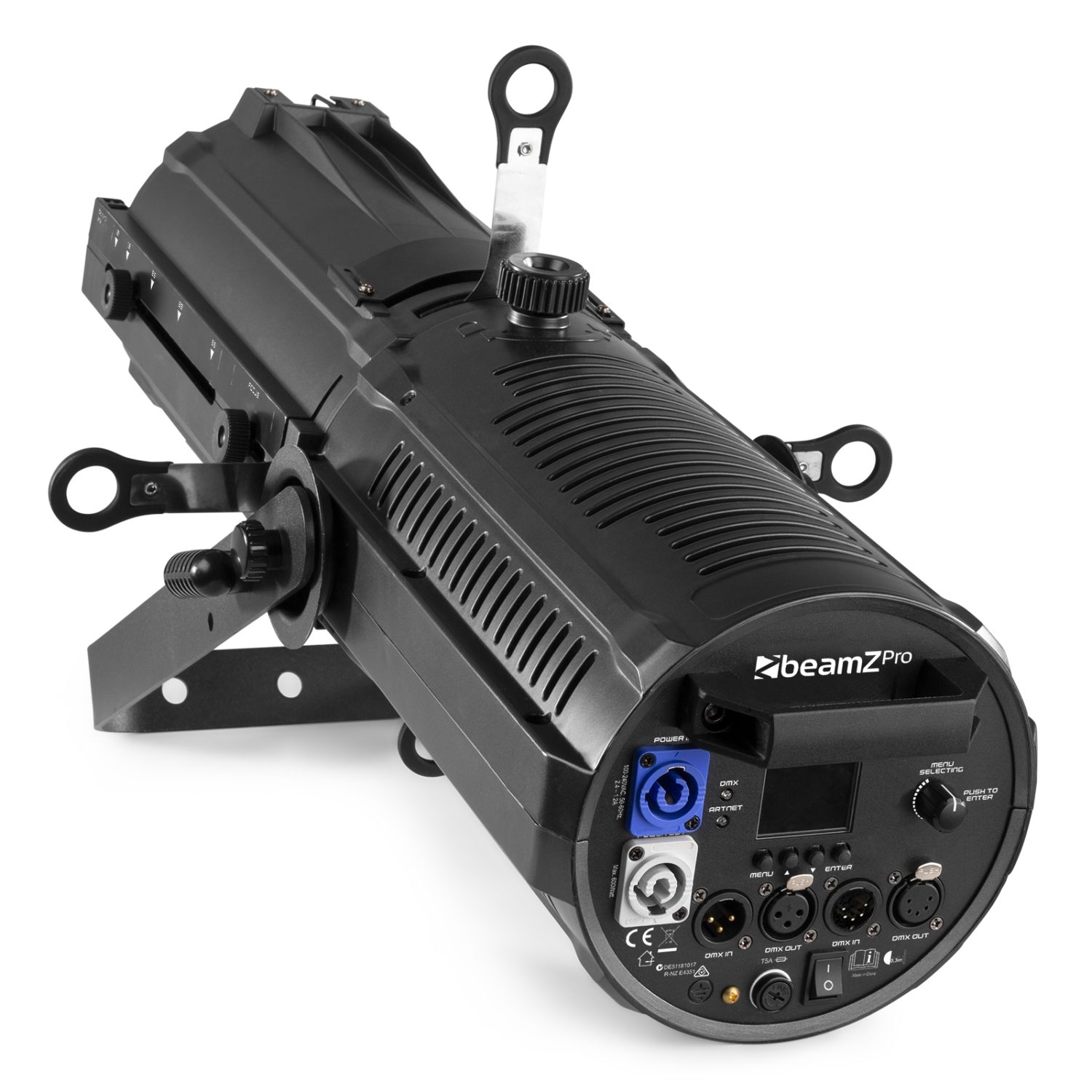

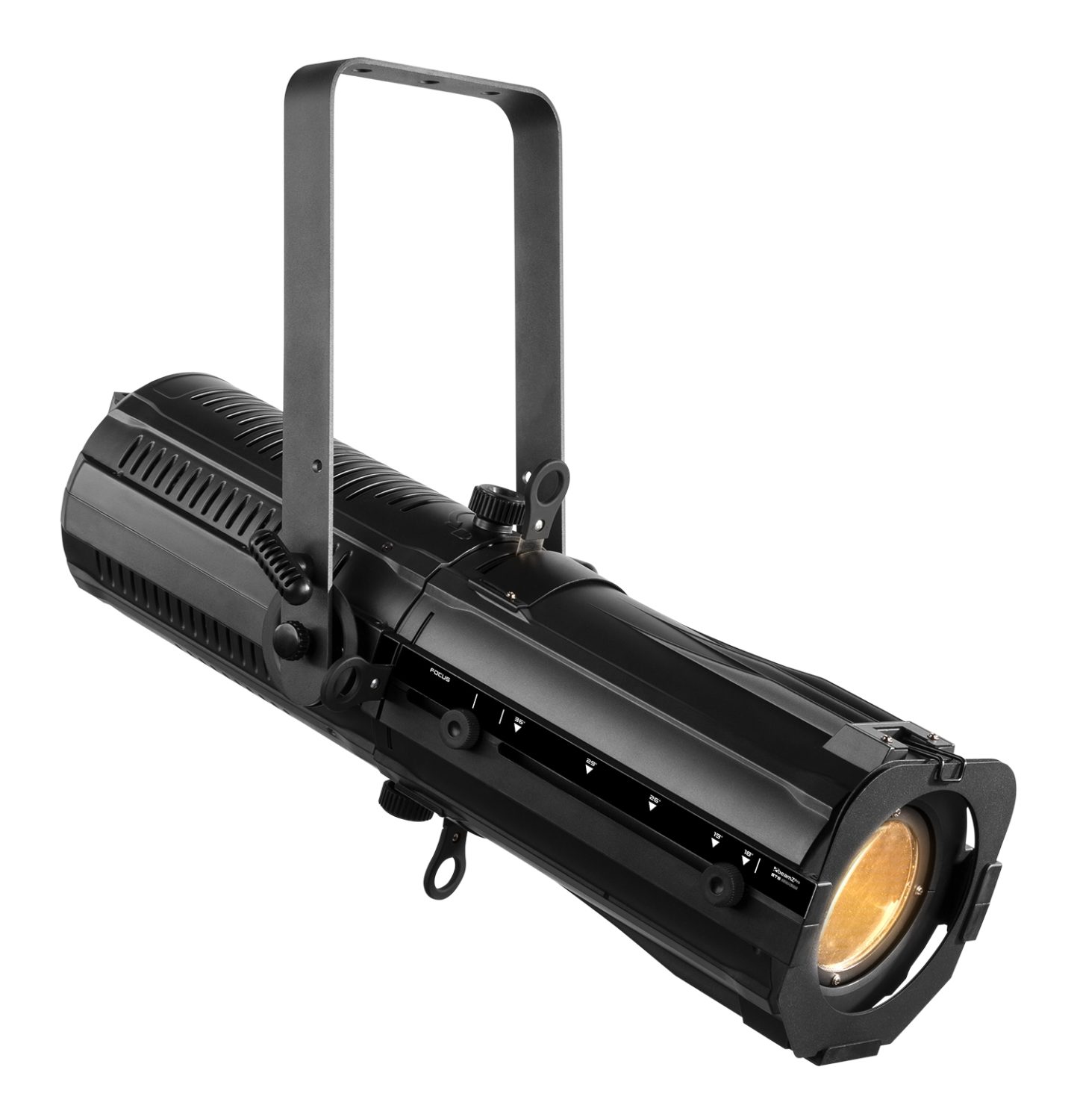

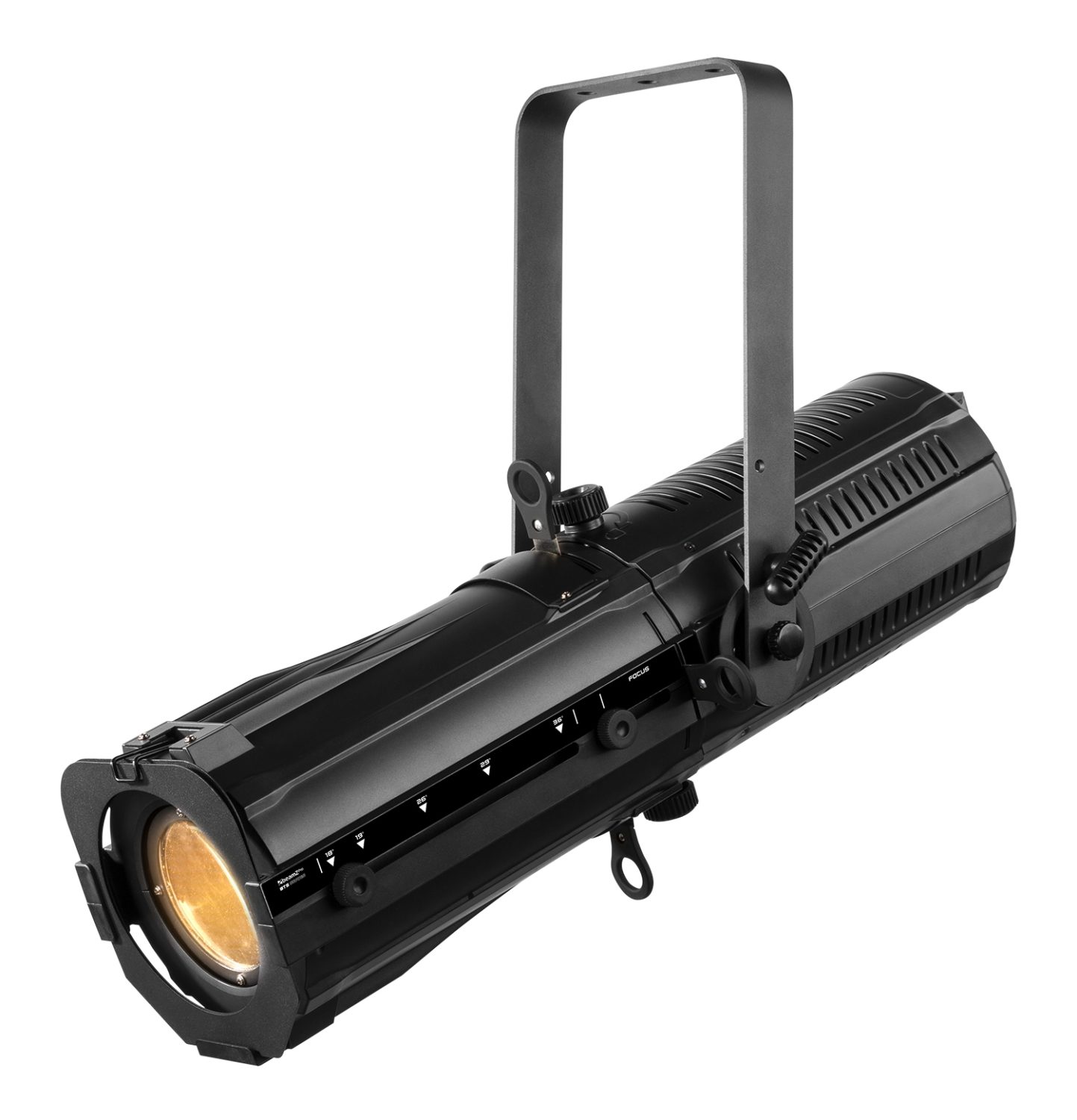

BTS300Z LED Profile Spot Zoom 300W Warm White

beamZ Pro

  • 300W Warm White COB LED 3200K
  • Lifetime LED: 50.000 hours
  • 18° to 36° Manual zoom
  • Replaces 1KW – 1.5KW Tungsten Halogen profile spots
  • Compact and lightweight ABS body
  • HQ optical system, beam with clean metal shutter cuts
  • 16 bit dimming via DMX
  • Flicker free with selectable PWM
  • Control Panel: full colour LCD Display
  • CRI 97, TLCI up to 98
  • DMX and manual control options
  • Gobo slot
  • 5 dimmer curves
  • Intelligent temperature control for silent operation
  • Powerconnector in&out
  • Including safety cord and colour frame
Product colour Black
Light source Single colour LED
Colour temperature 3200K
LED colours Warm White
LED power (single LED) 300W
Quantity of LEDs 1
Beam angle: Min 18
Beam angle: Max 36
Illuminance 93538 lx (zoom in)
Flash rate per second 1 - 15Hz
DMX channels 1, 2, 3
DMX connection 3-pin XLR, 5-pin XLR
Modes DMX
IP rating IP20
Power plug P-Con
Power consumption 2.5 - 1.5A
Power supply 100-240VAC 50/60Hz
Dimensions (L x W x H) 294 x 745 x 294mm
Weight (kg) 9.2000
Included accessories Mounting bracket, Safety cord, Power cable

The BTS300Z is a 300W COB high power LED profile spot with manual zoom. The zoom range can be set from 18° to 36° and covers the most regular 19°, 26°, 36° lenses. It features a HQ optical system, a strong ABS housing and an ultra-low power consumption with a surprising output thanks to the 300W LED power source. With this high output LED engine that has near silent cooling it can be used in theatre, studio and concert venues of all types.
