Fuze Twin LED Wash Moving Head Bar

150.378

Moving heads: 6x 12W RGBW LEDs each
LED T-Bar: 6x 15W RGBW LEDs
DMX and Stand-alone mode
0-100% Electronic Dimmer
User-selectable pan and tilt
Strobe: 1-16Hz
Master/slave synchronization
Sound activated with adjustable sensitivity
Auto programs and Sound programs
Control panel with LCD display
DMX in/output via 3-pin XLR
P-Con input/output
Two handles for easy transport

Specifications

Specifications
Description
Download & links

Product colour	Black
Light source	4-in-1 LED
Colours	Red, Green, Blue, White
LED power (single LED)	12W, 15W
Quantity of LEDs	6 + 6
Beam angle: Min	2°
Beam angle: Max	24°
Field angle: min	8°
Field angle: max	41°
Zoom	Yes
Illuminance	39.000lx@1m
Head movement: Pan	630°
Head movement: Tilt	270°
Flash rate per second	1 - 21Hz
Modes	Automatic programs, DMX, Manual, Master/Slave
Sound to light mode	Yes
DMX channels	23, 38, 62
DMX connection	3-pin XLR
Display	LCD
IP rating	IP20
Cooling	Temperature controlled fan
Power plug	P-Con
Power consumption	2.49 - 1.31A
Power supply	100-240VAC 50/60Hz
Dimensions (L x W x H)	570 x 143 x 330mm
Weight (kg)	8.8500
Included accessories	Mounting bracket, Power cable

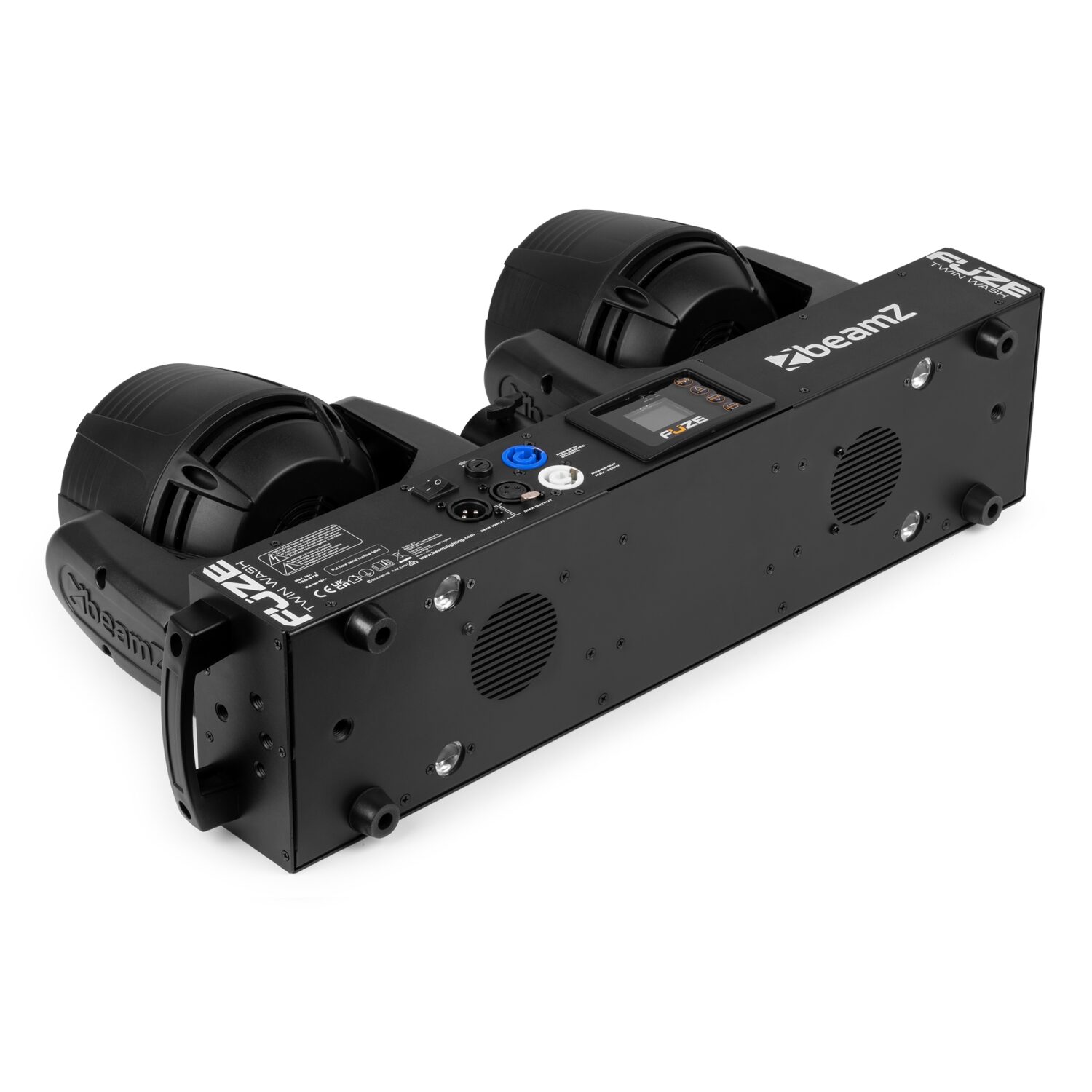

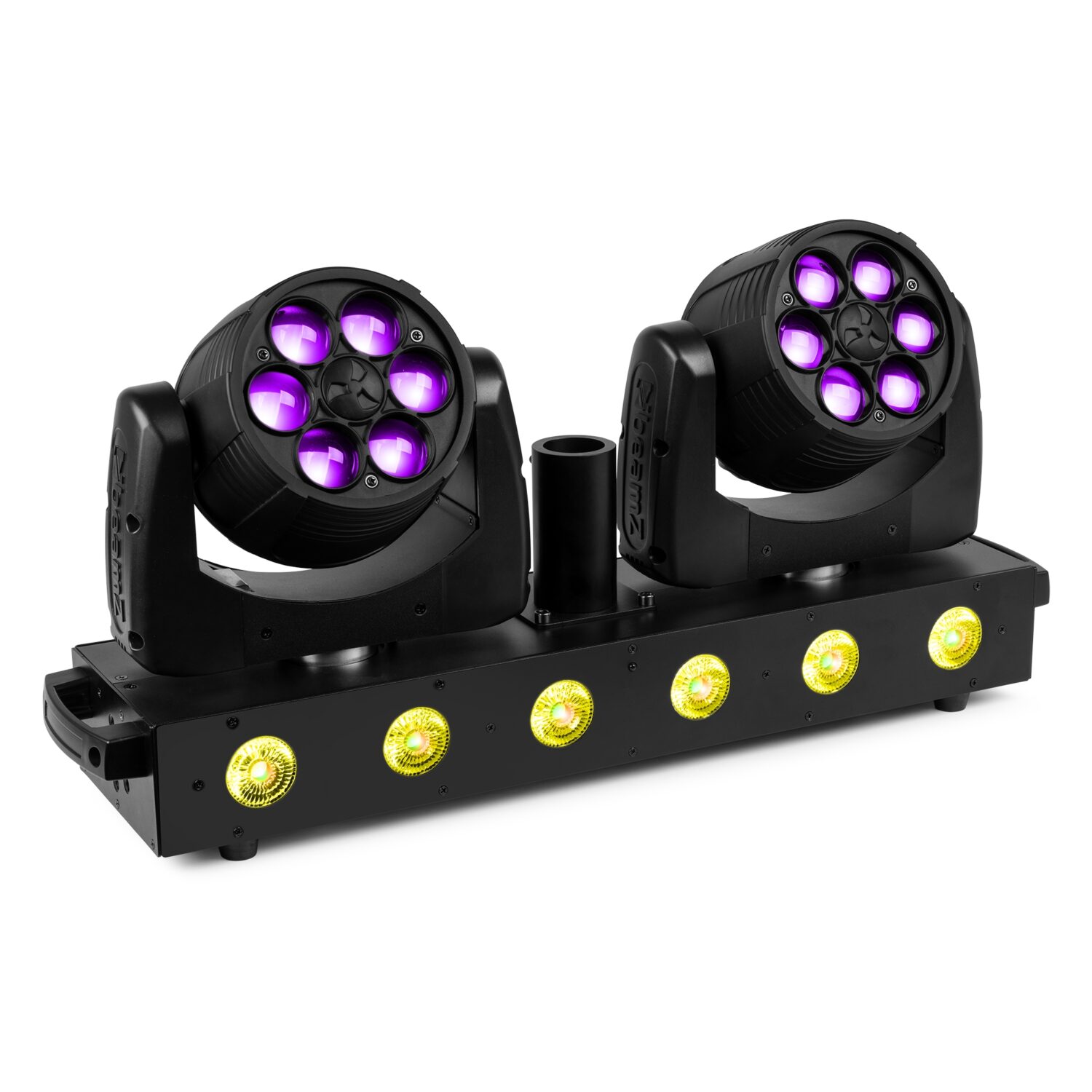

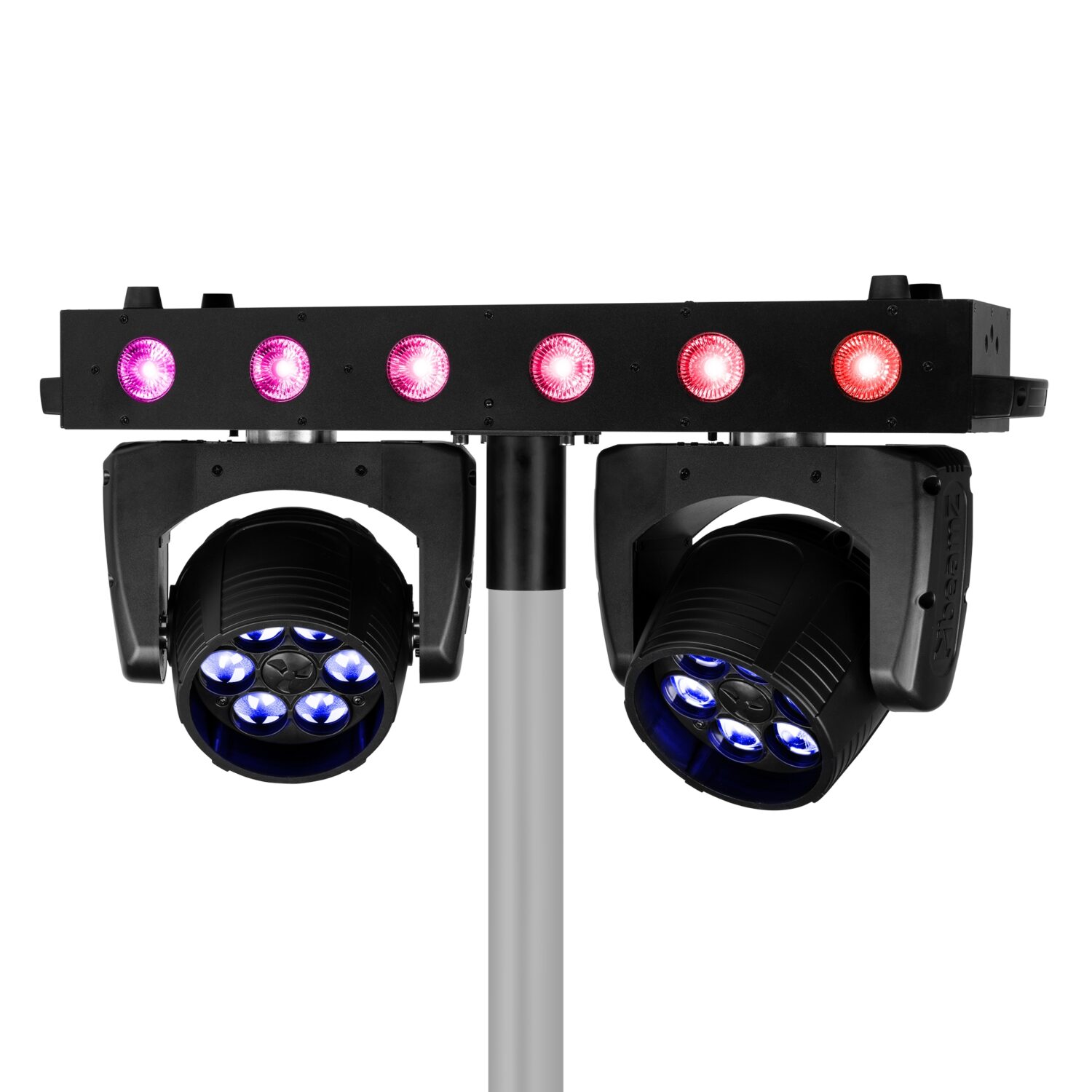

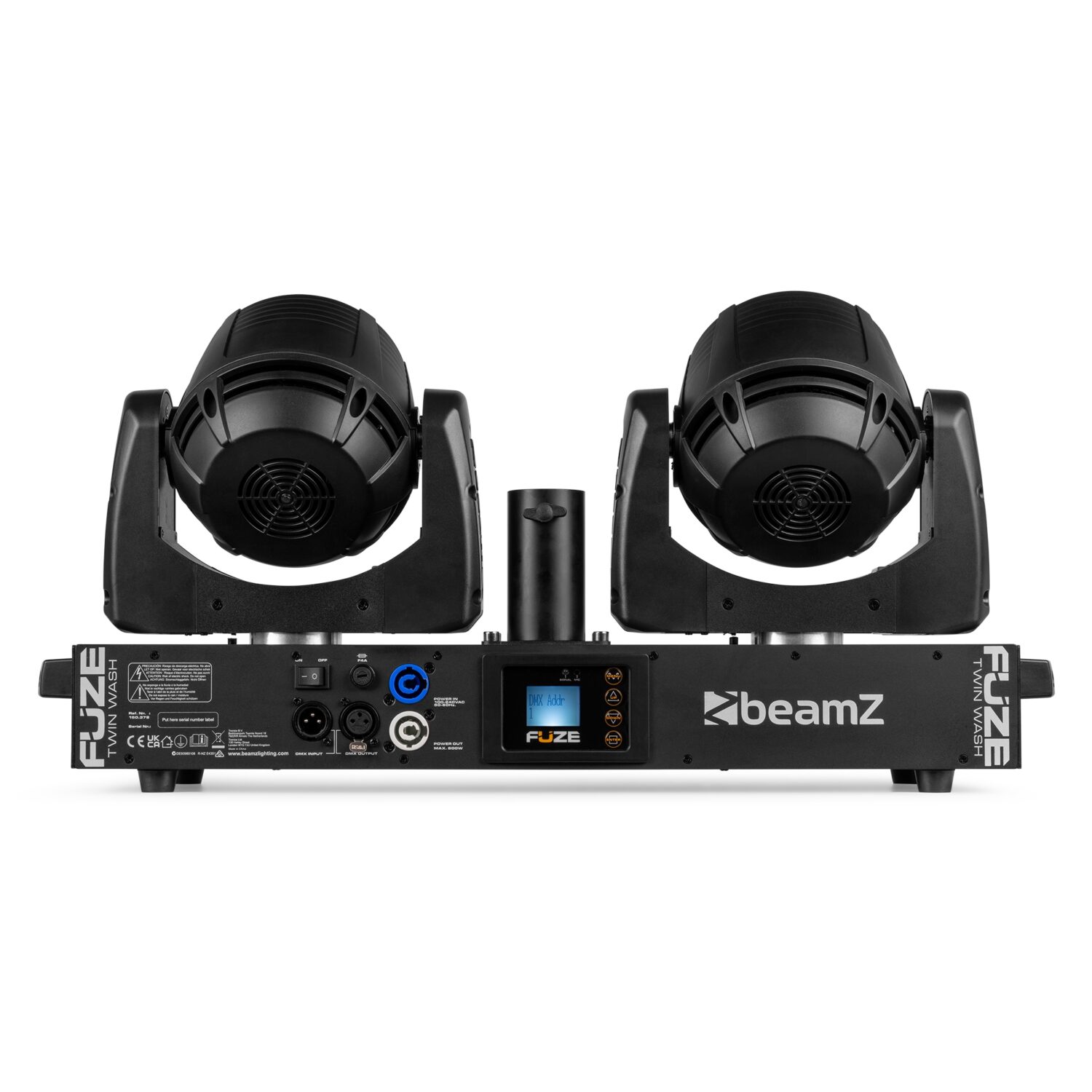

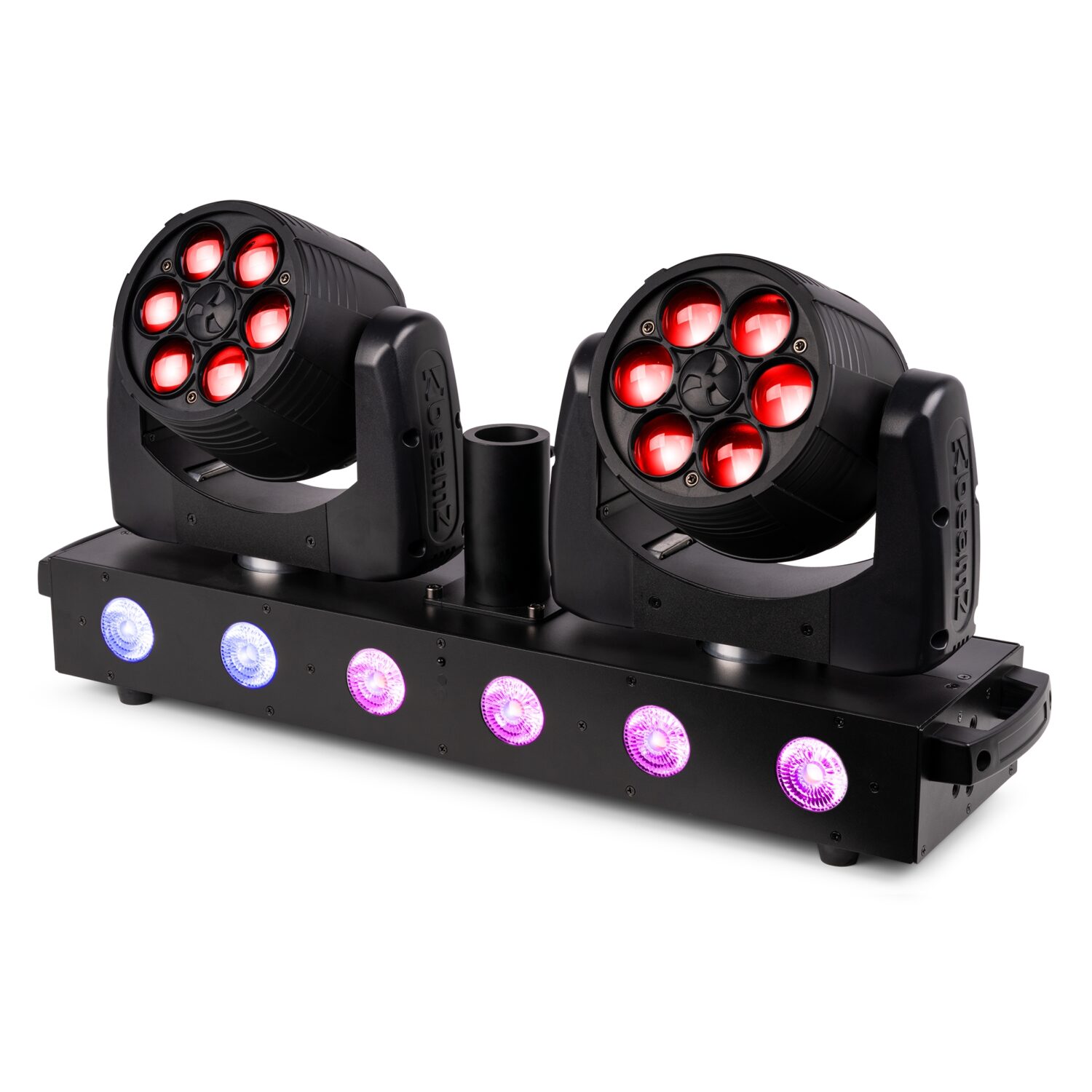

The Twin LED Moving Head Bar consists of 2 individual moving heads mounted on a sturdy metal T-bar that is also equipped with 6 high power RGBW LEDs. The two moving heads are equipped with 6x 12 RGBW LEDs and can be independently controlled via DMX, allowing you to tailor your lighting effects with unparalleled precision. In addition to DMX control, this fixture offers a range of automated features. Engage the various automatic programs to effortlessly transform your venue with captivating light patterns. For those who prefer a hands-free experience, the fixture includes a sound-to-light mode, syncing its movements and colours to the beat of the music, adding an extra layer of excitement to any event. Link multiple units together with P-Con and DMX in and outputs. The Twin LED Moving Head Bar can be mounted on a standard 35mm stand.
