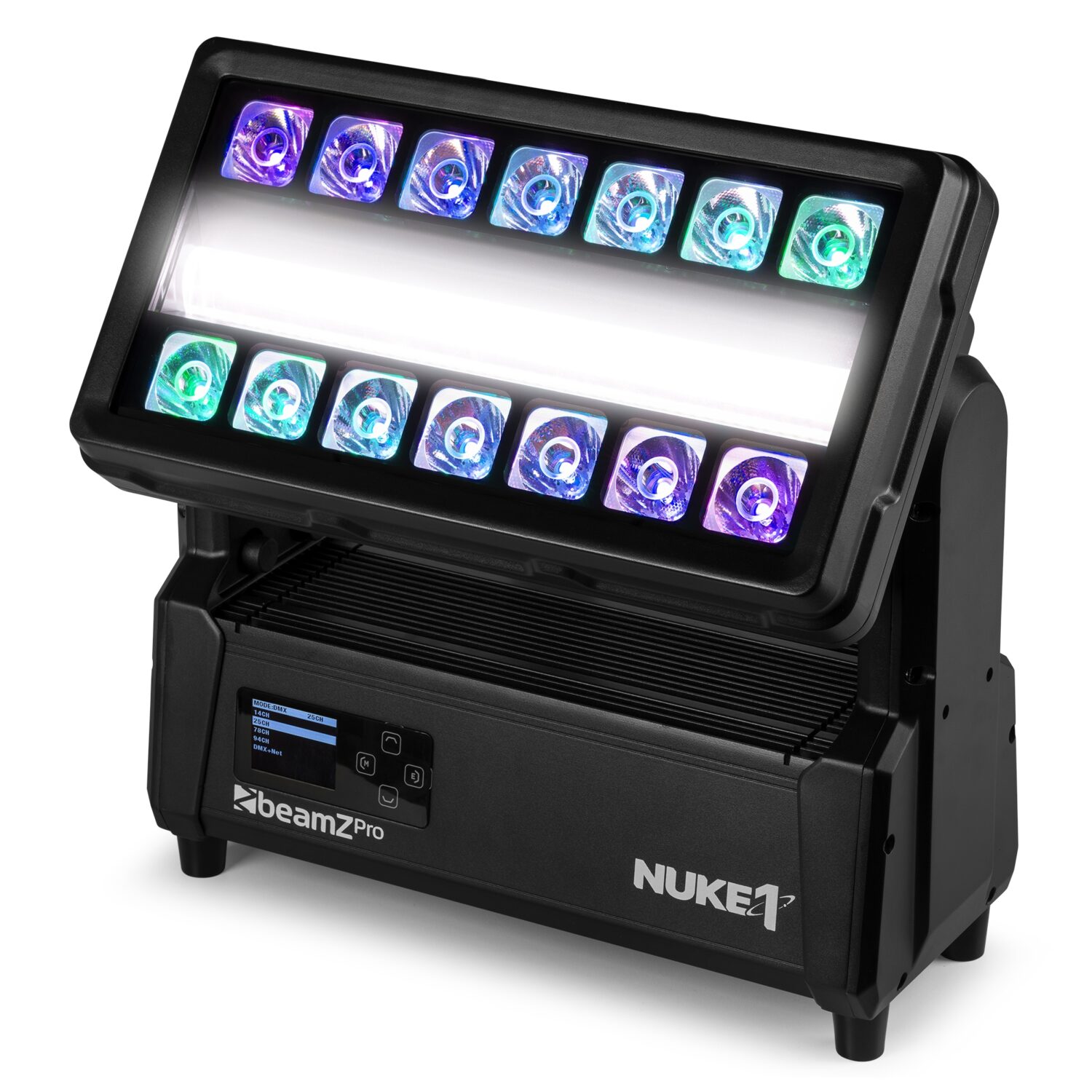

NUKE1 Motorized Strobe/Beam Outdoor

153.295

Hybrid strobe/beam with motorized 180° tilt range
96x 10W Cool White LEDs controlled in 12 sections
14x 40W RGBW High Power LEDs controlled in 14 sections
Pixel-mappable zones
RGBW + Cool White colour mixing
DMX512, stand alone and Master/slave Mode
4 Different DMX channel modes
DMX (RDM) and ArtNet control capability
Automatic programs and Pre-programmed shows
Adjustable speed
Control panel with LCD display and key lock
Waterproof IP65 for outdoor use
Dimming: 0 – 100% 16 bit dimming
Various dimmer curves adjustable
P-Con TR1 input

Specifications

Specifications
Description
Download & links

Product colour	Black
Light source	Single colour LED, 4-in-1 LED
LED colours	Red, Green, Blue, White, Cool White
LED power (single LED)	40W
Quantity of LEDs	14
LED power: Strobe	10W
Quantity of strobe LEDs	96
Beam angle	Beam 110°, Pixel 6°
Illuminance	97.675 lx @ 1m (Strobe 115.940 lx @ 0,5m)
IP rating	IP65
DMX channels	14, 25, 78, 94
DMX connection	ART-Net, 3-pin XLR, 5-pin XLR, RJ45
Flash rate per second	1 - 31Hz
Head movement: Tilt	180°
Modes	Automatic programs, DMX, Master/Slave
Power consumption	6.38 - 3.03A
Power supply	100-240VAC 50/60Hz
Included accessories	Mounting bracket
Dimensions (L x W x H)	420 x 225 x 403mm
Weight (kg)	22.3500

The Nuke1 Motorized Strobe/Beam is a dynamic lighting powerhouse designed for versatility and impact. With a motorised 180° tilt range, this hybrid fixture switches seamlessly between a powerful strobe and a colourful beam, or a captivating combination of both effects. Featuring 96x 10W Cool White LEDs and 14x 40W RGBW High Power LEDs, the Nuke1 provides a brilliant palette of colours and intense white light. Pixel-mappable zones, DMX control, and automated programs make creating stunning lighting effects a breeze. Its IP65 waterproof rating ensures reliable outdoor performance, making the Nuke1 an ideal choice for both indoor and outdoor events.
