BTK200C Fresnel 200W CW/WW Manual Zoom

155.108

200W Cool White/Warm White COB LED
Colour Temperature: between 2800K and 6000K
Lifetime LED: 50.000 hours
15° to 40° Manual zoom
Compact and lightweight Aluminium body
HQ optical system
CRI >95 (Colour Rendering Index)
Dimming: 0 – 100% (2 manual dimmers)
Flicker free
Control Panel: LED Display
DMX 3-pin or manual control options
Intelligent temperature control for silent operation
P-Con in&out
Including power cable and barndoor

Specifications

Specifications
Description
Videos
Download & links

Product colour	Black
Light source	Single colour LED
Colour temperature	2800K - 6000K
Colours	Cool White, Warm White
Quantity of LEDs	1
Beam angle: Min	15°
Beam angle: Max	40°
Illuminance	55.013 lx @ 1m
Flash rate per second	1 - 14Hz
DMX channels	2, 6
DMX connection	3-pin XLR
Modes	DMX, Manual
IP rating	IP20
Cooling	Temperature controlled fan
Display	LCD
Power plug	P-Con
Power consumption	0.681A
Power supply	100-240VAC 50/60Hz
Dimensions (L x W x H)	355 x 395 x 210 mm
Weight (kg)	6.3500
Included accessories	Mounting bracket, Power cable, XLR cable

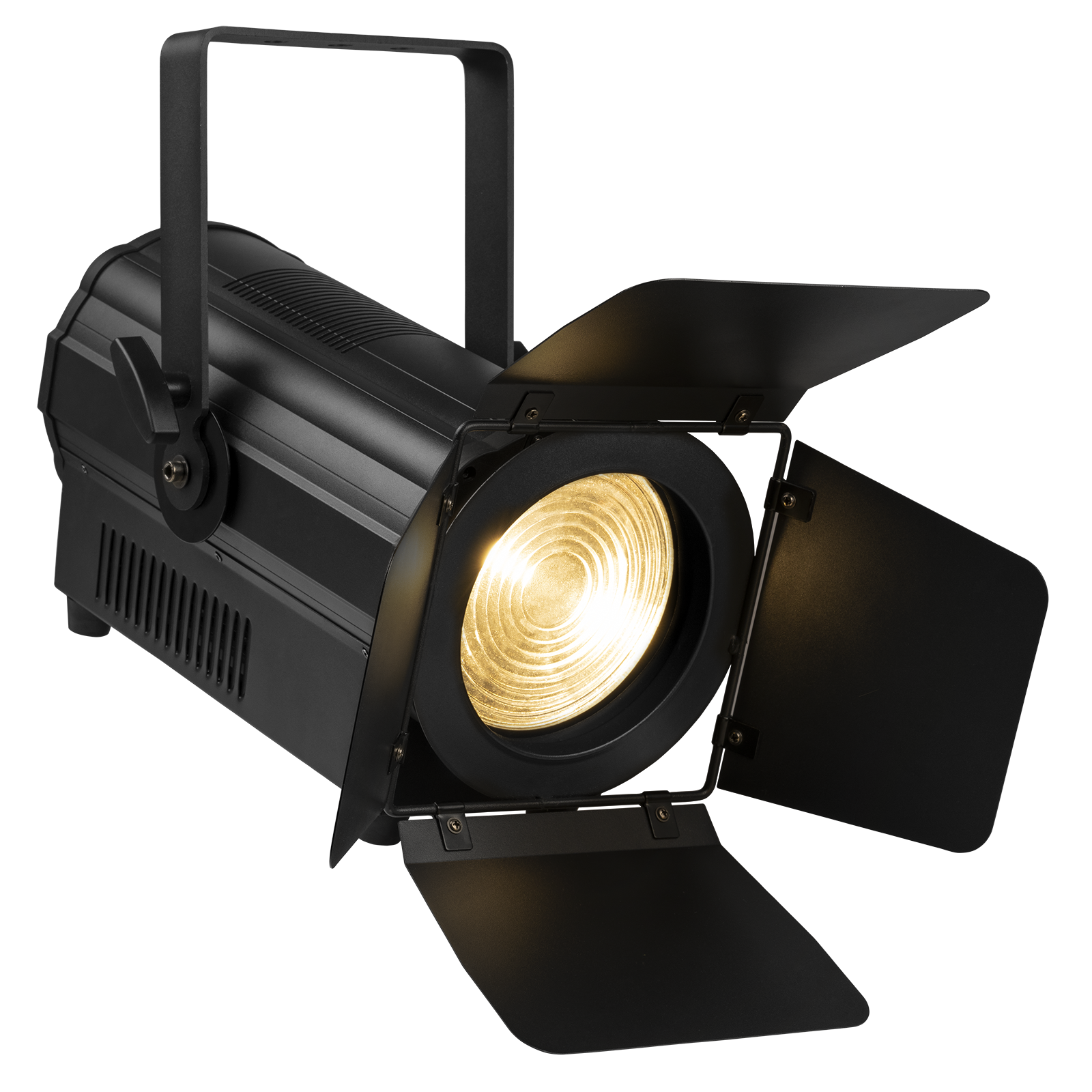

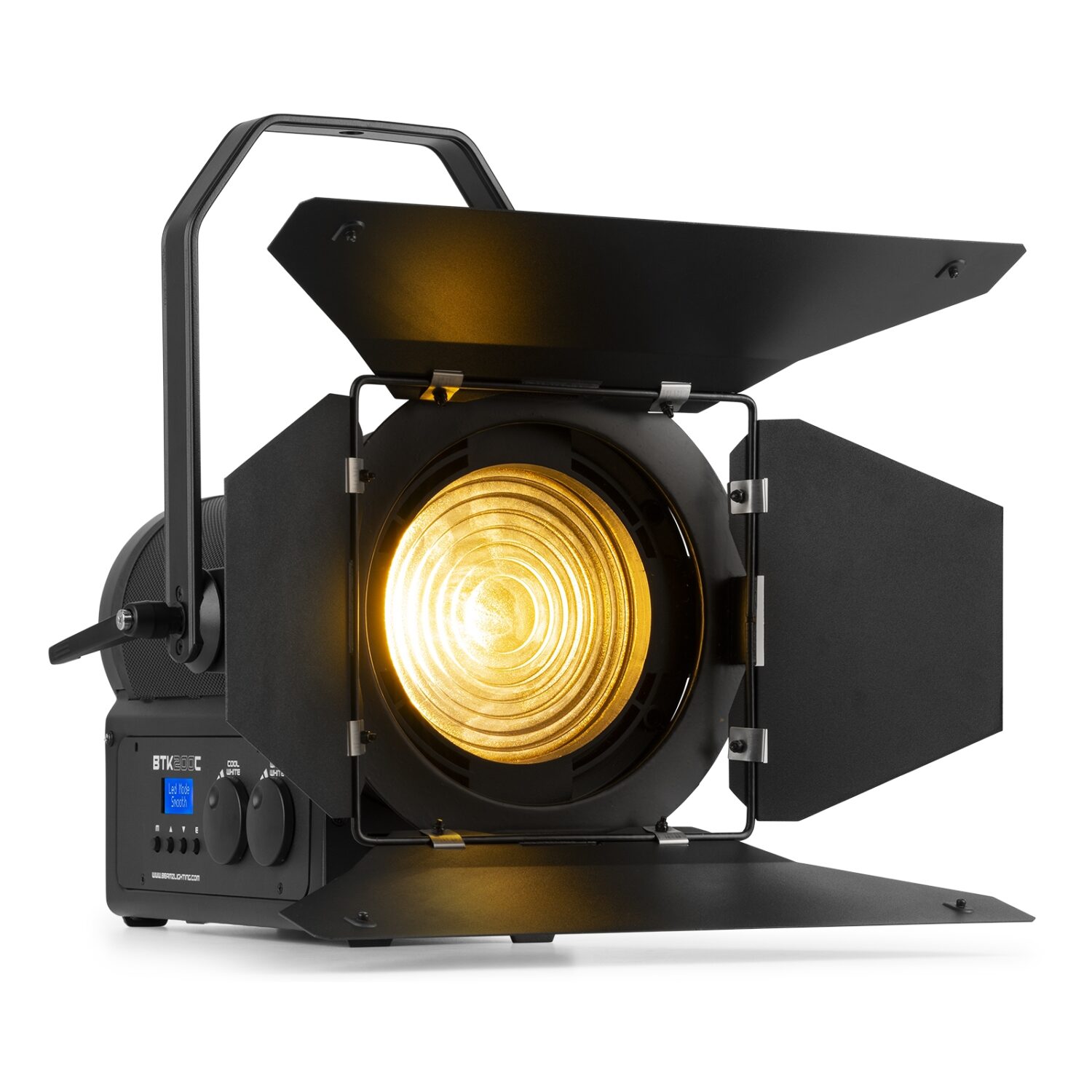

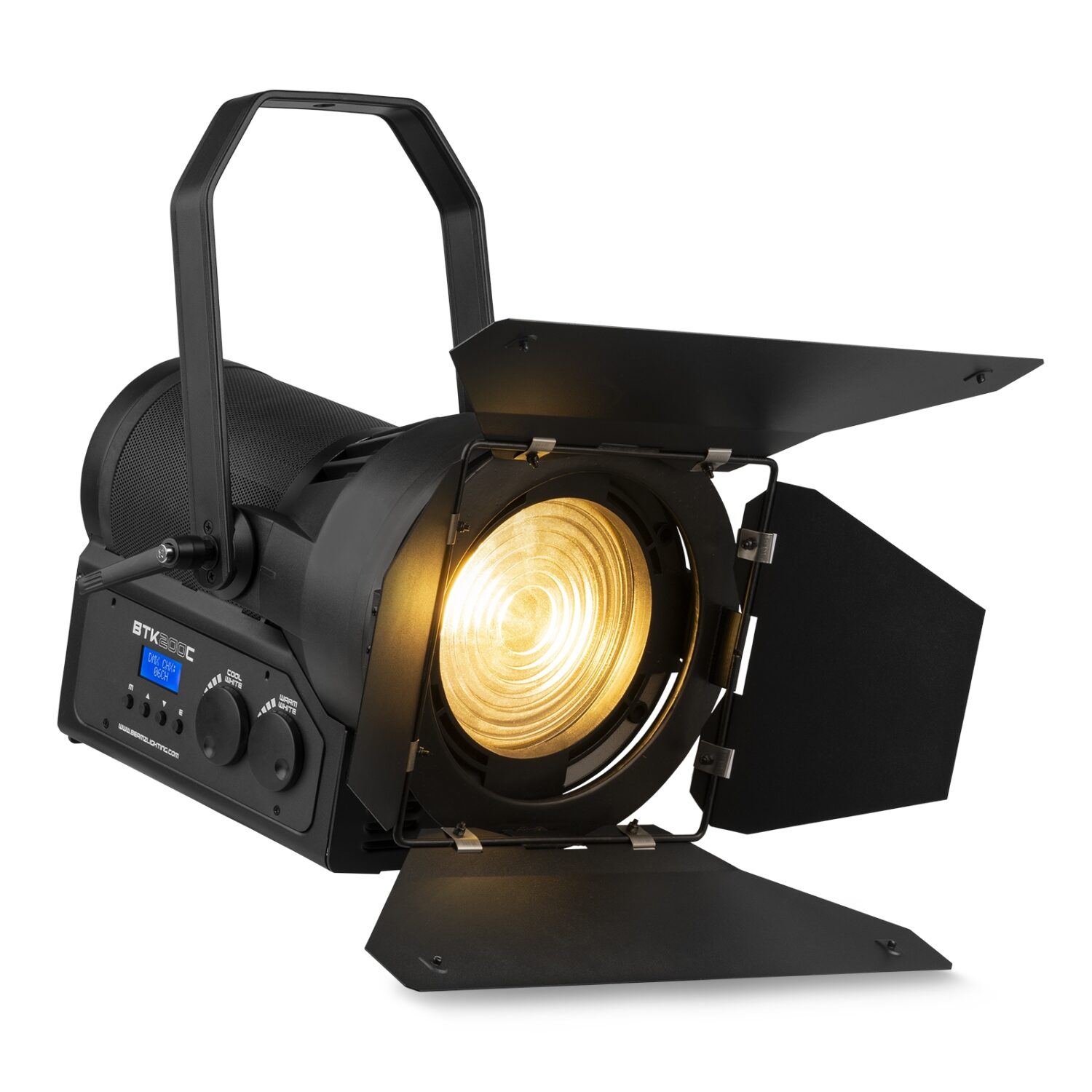

The BTK200C is a compact and easy-to-maintain LED Fresnel spotlight with a versatile 15°-40° beam angle. Utilizing a two-stage focusing optical system, this fixture creates a soft and uniformly illuminated field of cool or warm white light with a high Color Rendering Index (CRI). Crafted from durable die-cast aluminum, the stylishly designed BTK200C combines the functionality of traditional tungsten fixtures in combination with optimized color correction for video cameras. P-Con in/out and 3-pin DMX in/out connections are standard equipment on this Fresnel, ensuring compatibility with your existing equipment and a simple installation process. Ideal for TV studios, conference rooms, theaters, houses of worship, and more, the BTK200C is designed to meet your lighting needs with precision and style.
