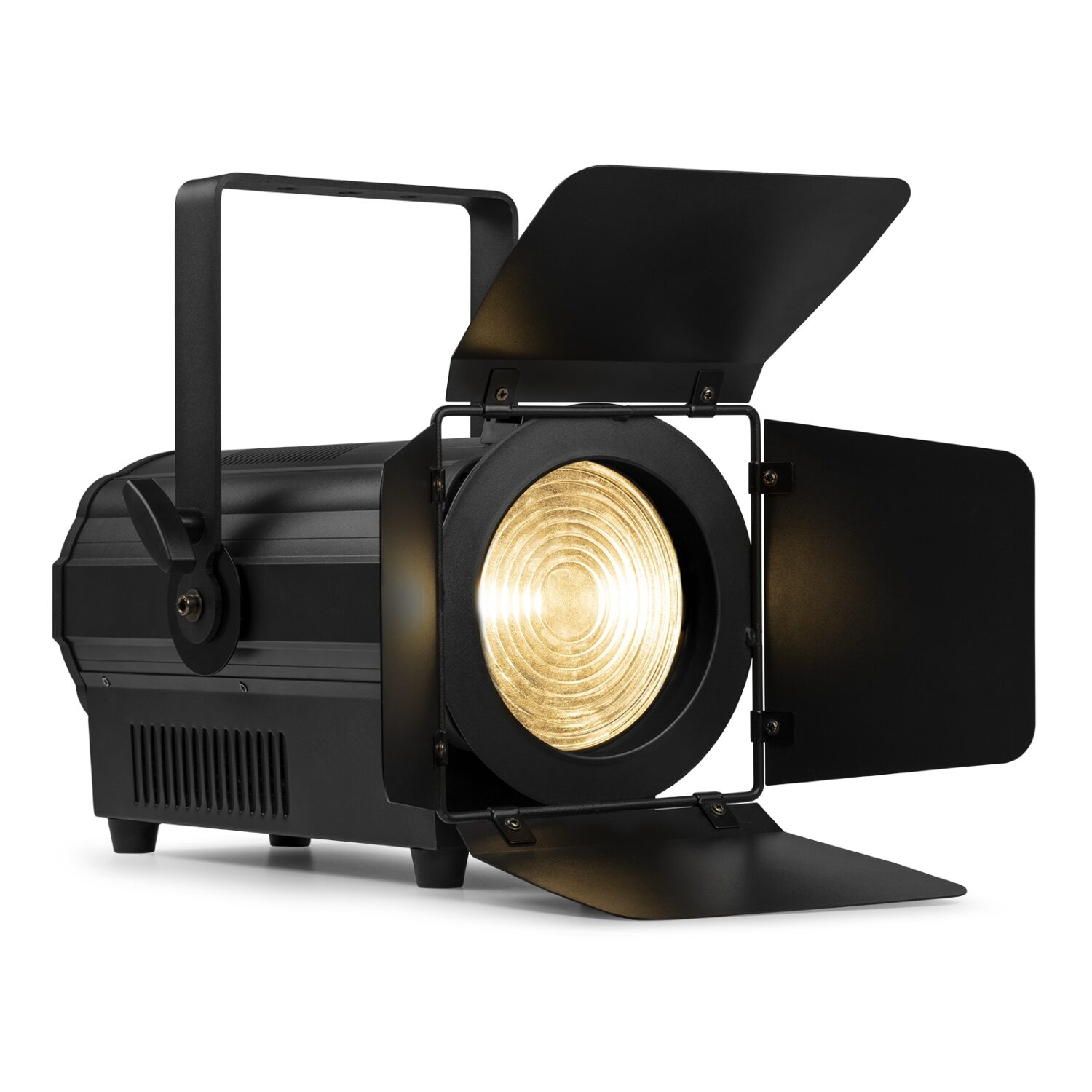

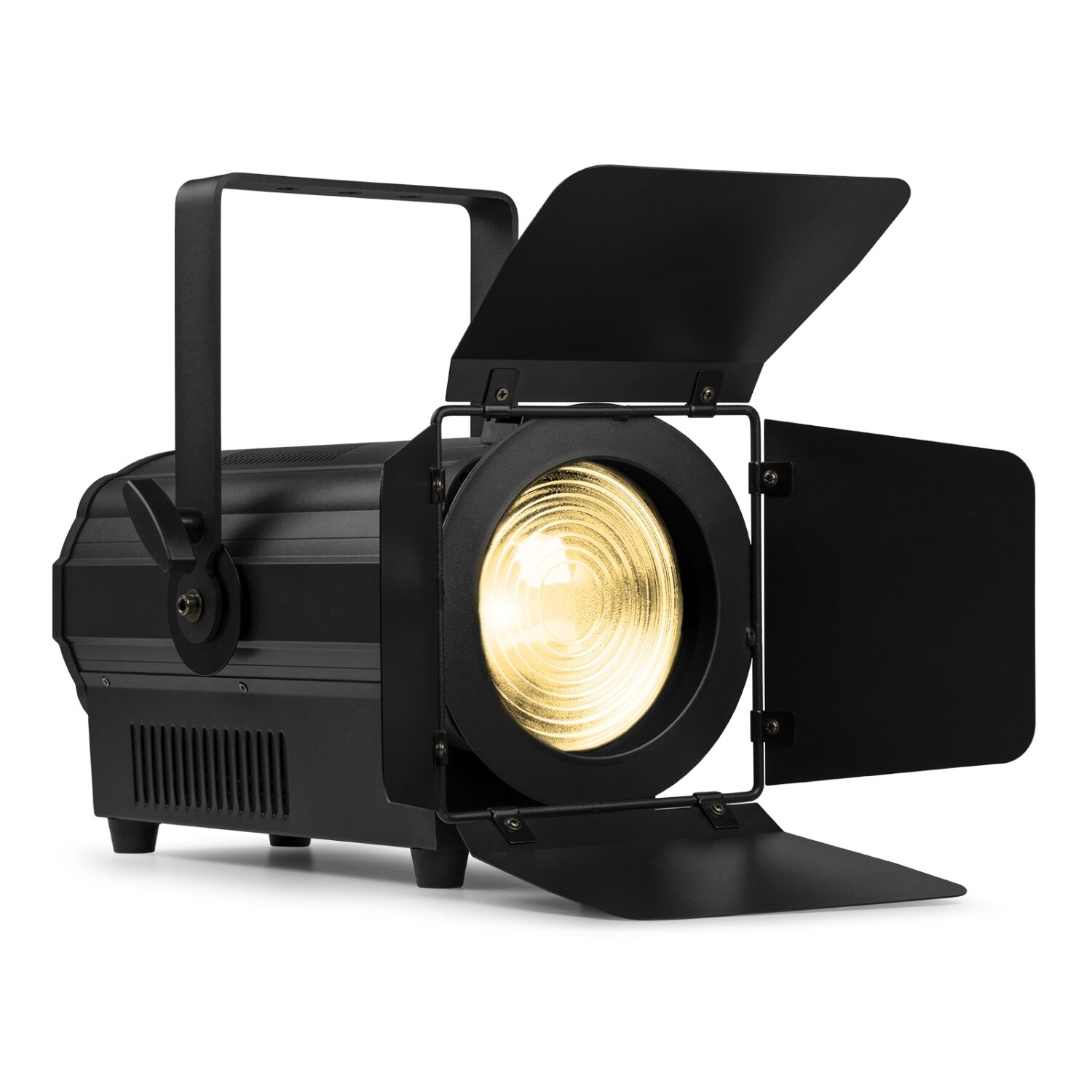

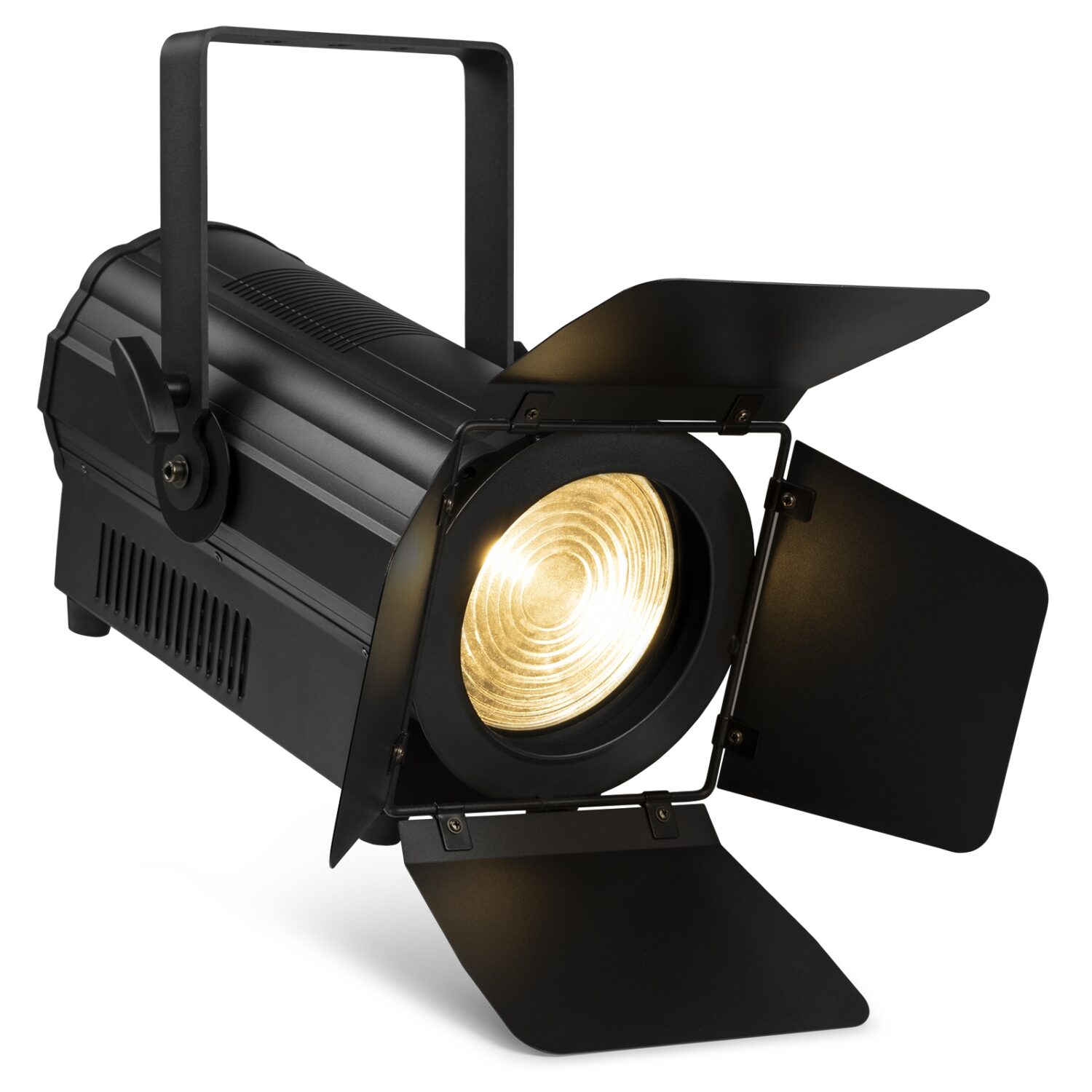

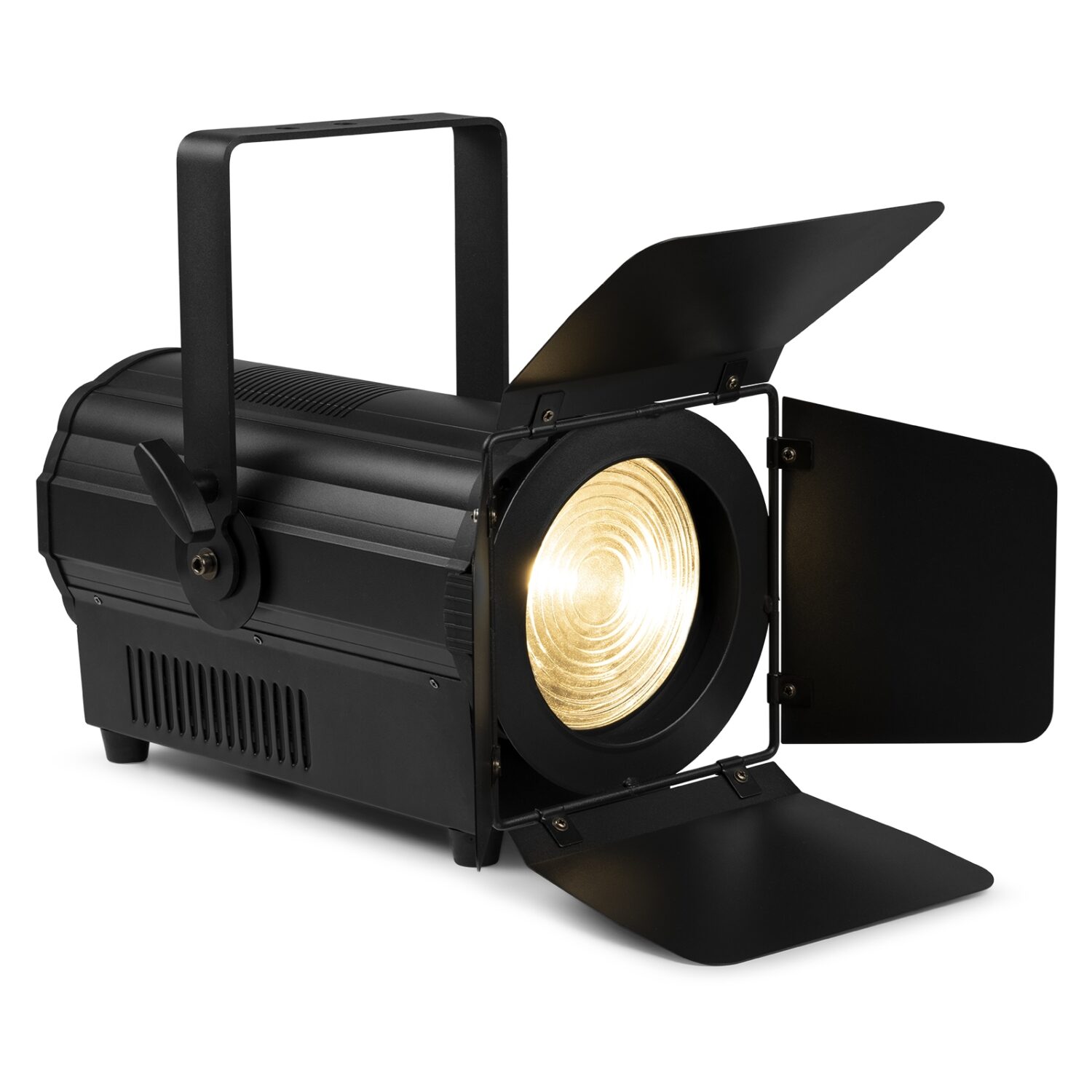

BTK200W Fresnel 200W WW Manual Zoom

155.105

200W Warm White COB LED
Colour Temperature: 3000K
Lifetime LED: 50.000 hours
Manual zoom
Compact and lightweight Aluminium body
HQ optical system
CRI 97 (Colour Rendering Index) TLCI up to 98
Flicker free

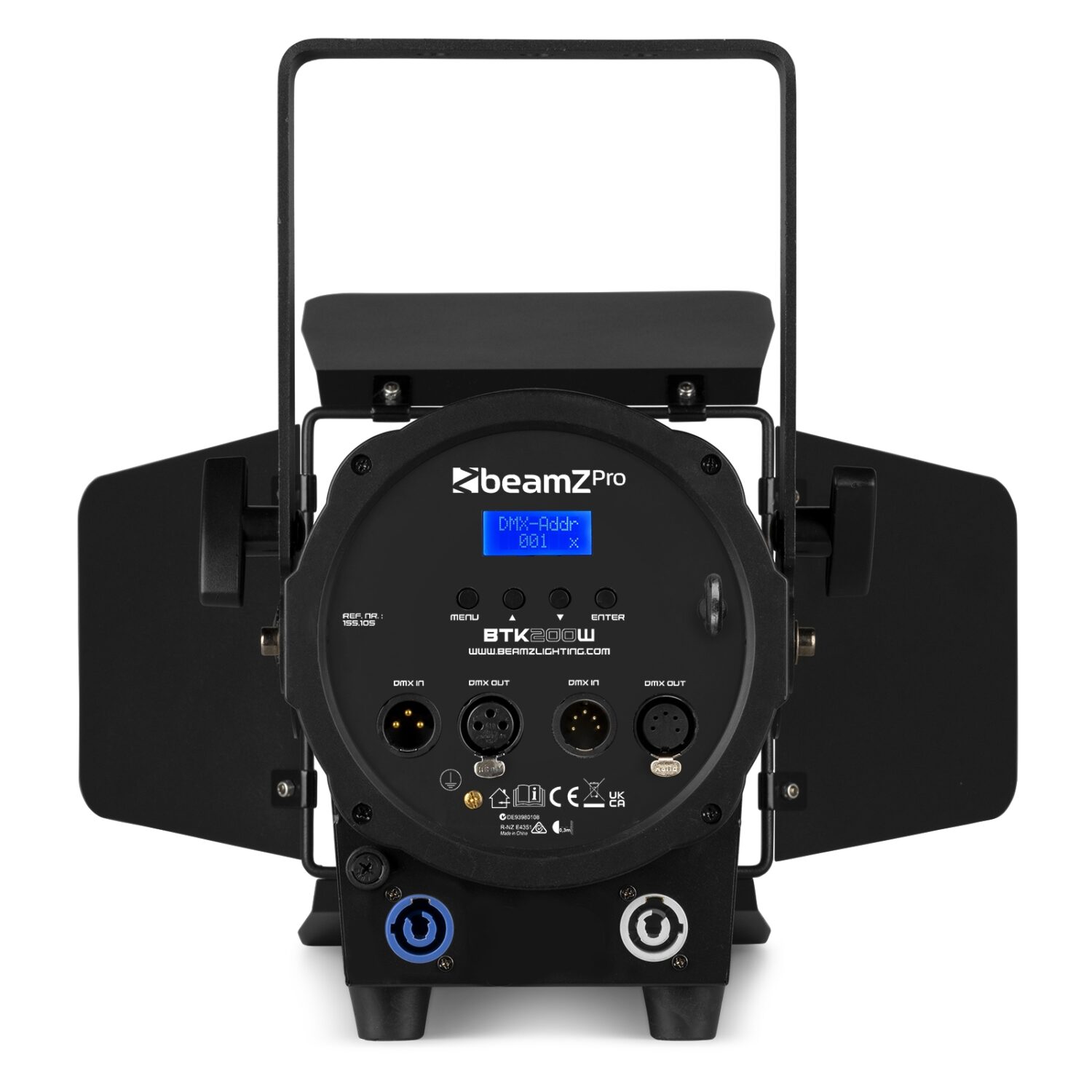

Control Panel: LED Display
DMX 3/5-pin or manual control options
Intelligent temperature control for silent operation
Powerconnector in&out
Including power cable and barndoor

Specifications

Specifications
Description
Download & links

Product colour	Black
Light source	Single colour LED
Colour temperature	3000K
LED colours	Warm White
Quantity of LEDs	1
Beam angle: Min	15°
Beam angle: Max	46°
Illuminance	93.261 lx @ 1m
Flash rate per second	1 - 19Hz
DMX channels	2
DMX connection	3-pin XLR, 5-pin XLR
Modes	DMX
Cooling	Temperature controlled fan
Display	LCD
Power plug	Power-connector
Power consumption	2.50 - 1.406A
Power supply	100-240VAC 50/60Hz
Dimensions (L x W x H)	400 x 255 x 250mm
Weight (kg)	6.3000
Included accessories	Mounting bracket, Power cable

The BTK200W Fresnel is an affordable lighting fixture that, thanks to the latest LED technology, revolutionizes the way we illuminate stages, theaters and broadcast studios. This Fresnel fixture uses a powerful LED engine and guarantees a smooth and evenly distributed field of warm white light, serving as a contemporary replacement for conventional Fresnels. The adjustable, variable beam angle of 15-46 degrees ensures a soft, high-quality field with >97% CRI. The BTK200W comes equipped with PowerConnectors and a 3-pin and 5-pin DMX as standard, ensuring compatibility with your existing equipment and a simple installation process. The barn door is included for precise beam shaping and glare reduction.
