IGNITE400 LED BSW Moving Head with CMY

152.092

3-in-1: Beam, Spot and Wash Moving Head with CMY
400W High Intensity white LED
Gobo Wheel 1 : 10 static gobos
Gobo Wheel 2 : 8 replaceable glass gobos
Colour Wheel: 8 colours + white
CTO and CMY colour system
Motorized linear zoom
Frost effect filter
Rotatable 3 and 5 facet prisms (can be overlapped) with adjustable rotating speed and direction
Linear motorized focus
Dimmer: 0 – 100% linear dimmer
25 DMX Channels
DMX, Auto mode and Master/Slave function
Pan: 540° and Tilt: 270° Movement
With pan/tilt lock mechanism
Pan/Tilt Resolution: 16bit
Control panel with touch screen LCD display
DMX in/output via 3-pin or 5-pin XLR
Powerconnector input/output
Quick lock omega clamp included
Powerconnector cable included

Specifications

Specifications
Description
Videos
Download & links

Colour temperature	7000K
Light source	Single colour LED
Colours	White
LED power (single LED)	400W
Quantity of LEDs	1
Colour wheel	8 colours + open
CMY wheel	Yes
Beam angle: Min	2°
Beam angle: Max	38°
Zoom	Yes
Motorized focus	Yes
Illuminance	209.026 lx @ 1m
Head movement: Pan	540°
Head movement: Tilt	270°
Static gobo: Quantity	10
Rotating gobos: Quantity	8
Interchangeable gobos	Yes
Prisma 1	3 Facet
Prisma 2	5 Facet
Frost filter	Yes
Flash rate per second	0 - 30Hz
Modes	Automatic programs, DMX, Master/Slave
Sound to light mode	Yes
RDM	Yes
DMX channels	25
DMX connection	3-pin XLR, 5-pin XLR
Display	LCD
IP rating	IP20
Cooling	Temperature controlled fan
Power plug	P-Con
Power consumption	4.13 - 1.95A
Power supply	100-240VAC 50/60Hz
Dimensions (L x W x H)	660 x 360 x 370mm
Weight (kg)	20.6000

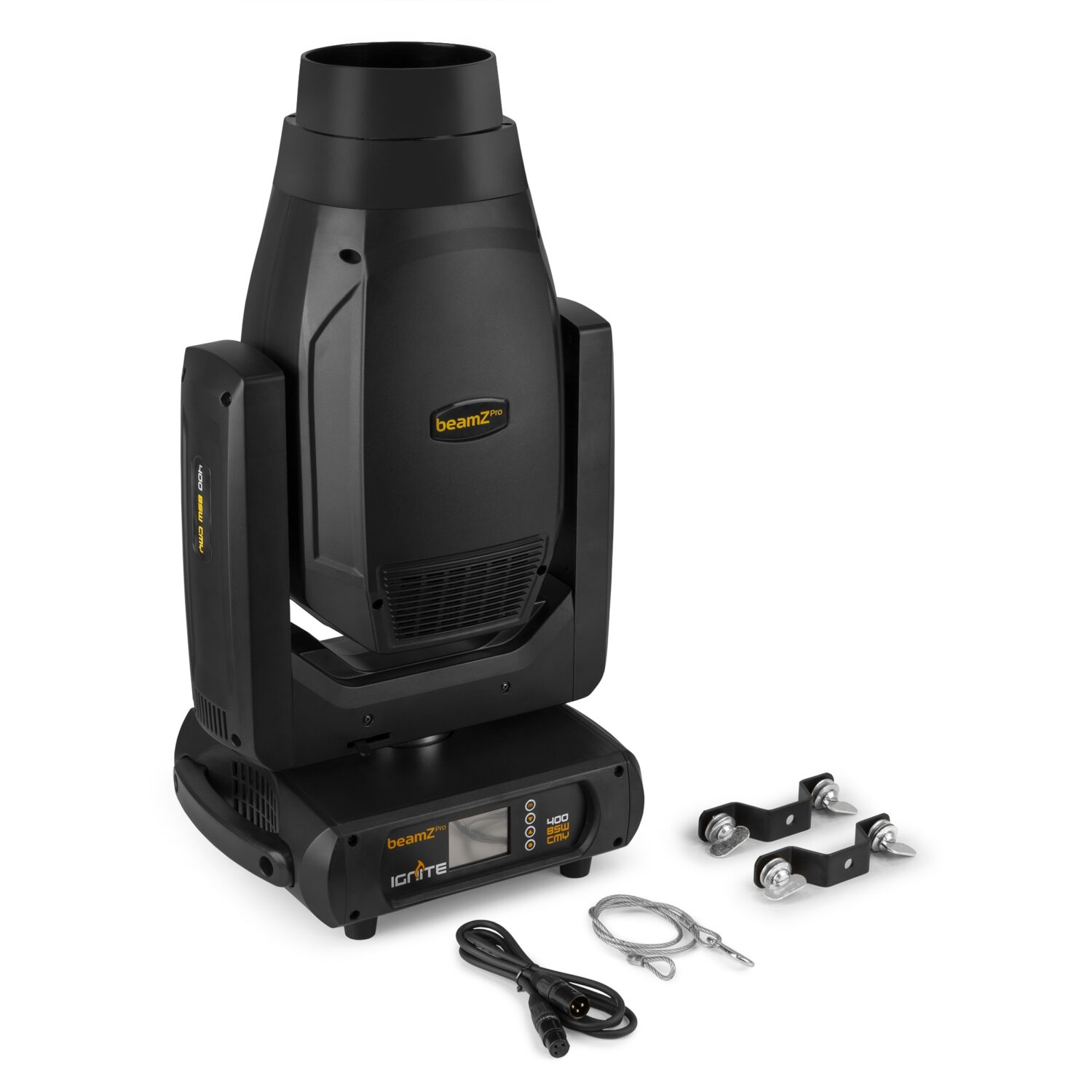

Included accessories	Mounting bracket, Power cable

The IGNITE400 features a very powerful 400W LED source, enough to light up even the biggest dance floors. Equipped with a dual gobo wheel (1x with interchangeable glass gobos) to create stunning overlay effects, the IGNITE400 also features a CMY + CTO colour mixing system. The zoom function and 2 individually rotating prisms (3+5 facets) create stunning effects and patterns on any dance floor or stage. Ideal for productions, events, and installations that require a larger output fixture.
