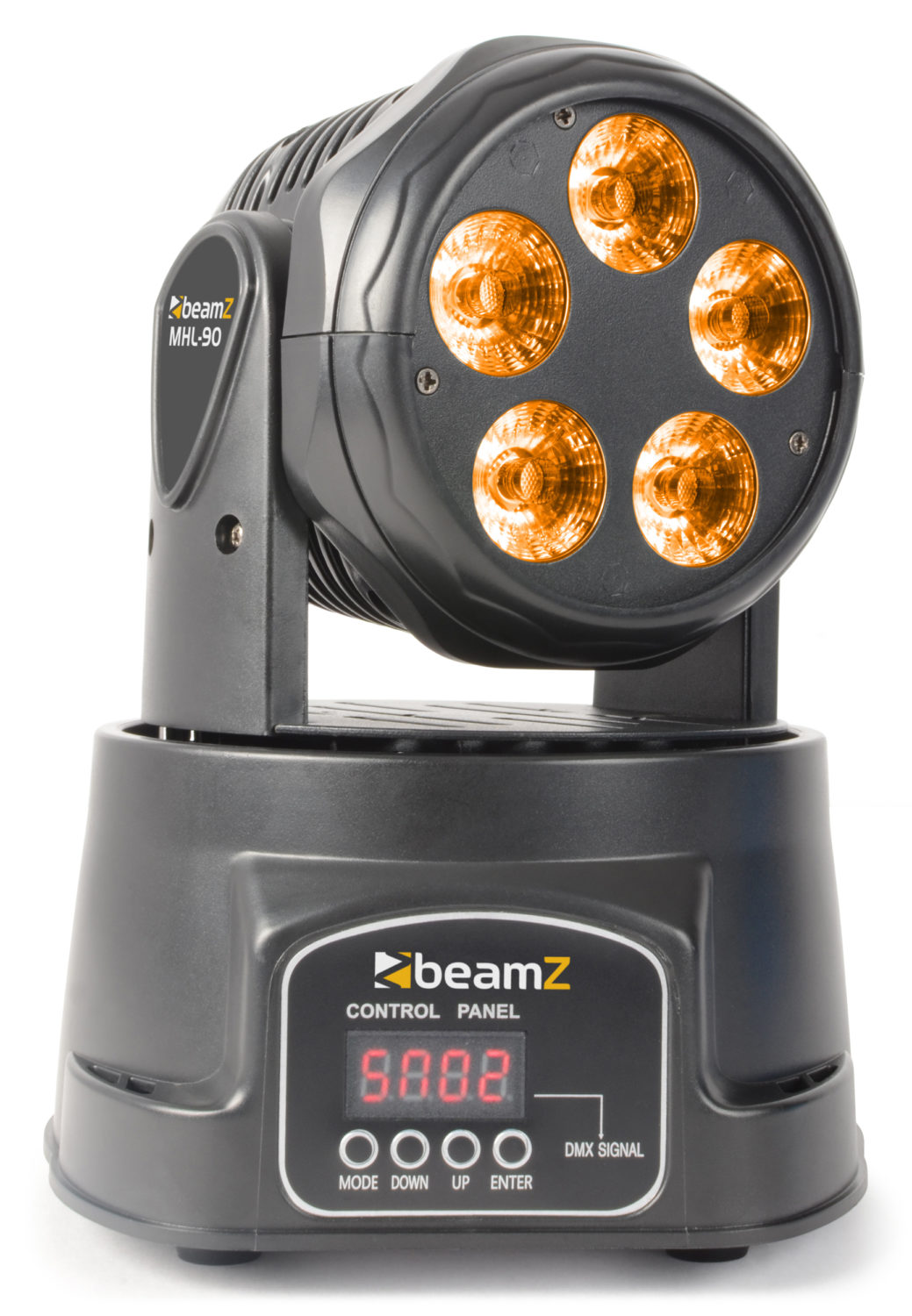

MHL90 LED Wash Moving Head 5x18W

150.530

High power 5x 18W 6-in-1 LEDs
RGBAW-UV colour mixing
11 or 15 Channel DMX mode
Adjustable Pan/Tilt speed
Adjustable strobe speed
0-100% Dimmer
DMX and Stand-alone mode
Master/Slave function
Control panel with LED display
DMX in/output via 3-pin XLR

Specifications

Specifications
Description
Videos
Download & links

Light source	6-in-1 LED
Colours	Red, Green, Blue, Amber, White, Ultra Violet
LED power (single LED)	18W
Quantity of LEDs	5
Beam angle	22
Field angle	42
Illuminance	3.440 lx @ 1m
Head movement: Pan	540
Head movement: Tilt	180
Modes	Automatic programs, DMX
DMX channels	11, 15

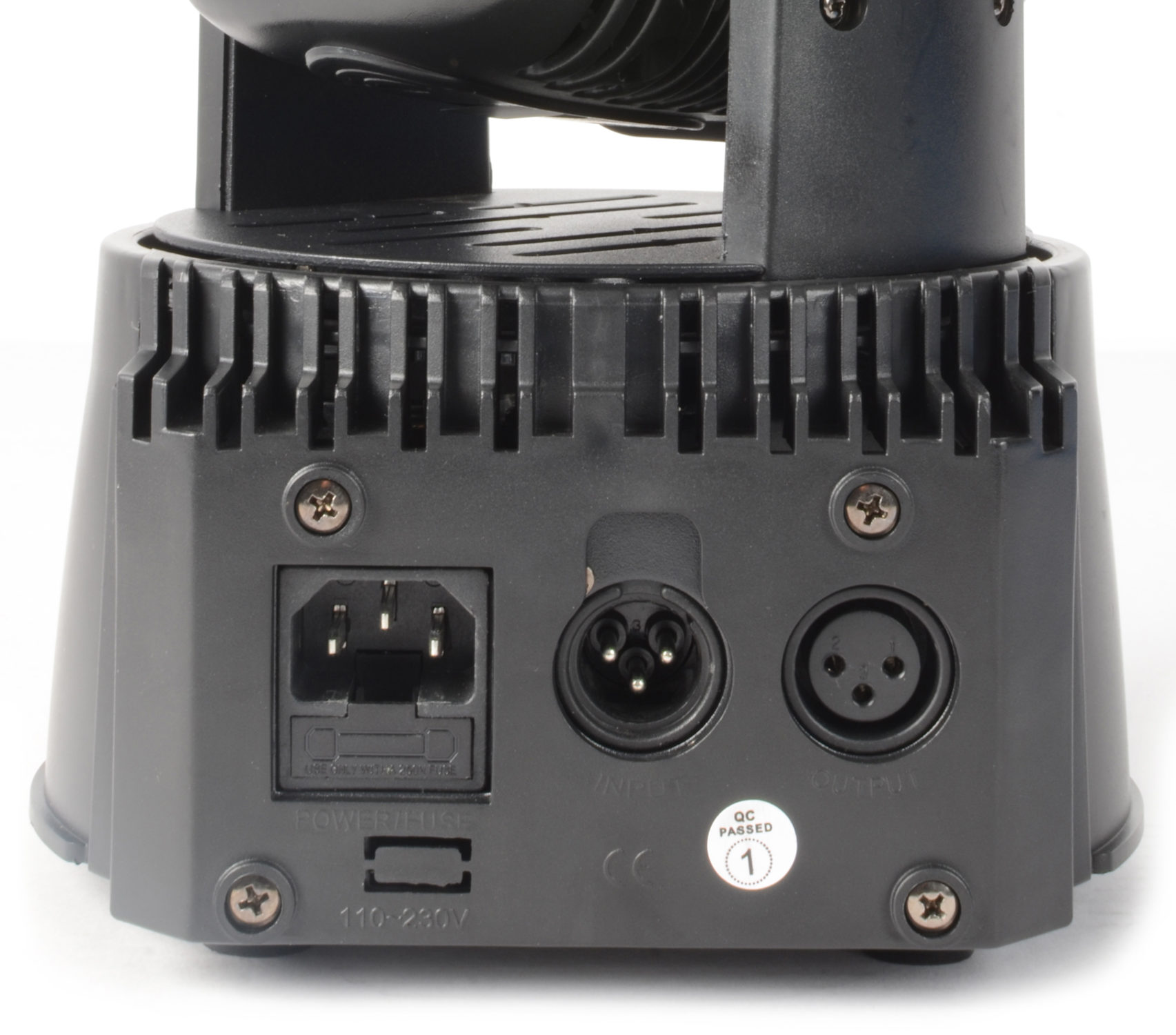

DMX connection	3-pin XLR
Power plug	IEC
Power consumption	60W
Power supply	100-240VAC 50/60Hz
Dimensions (L x W x H)	175 x 175 x 245mm
Weight (kg)	3.3000

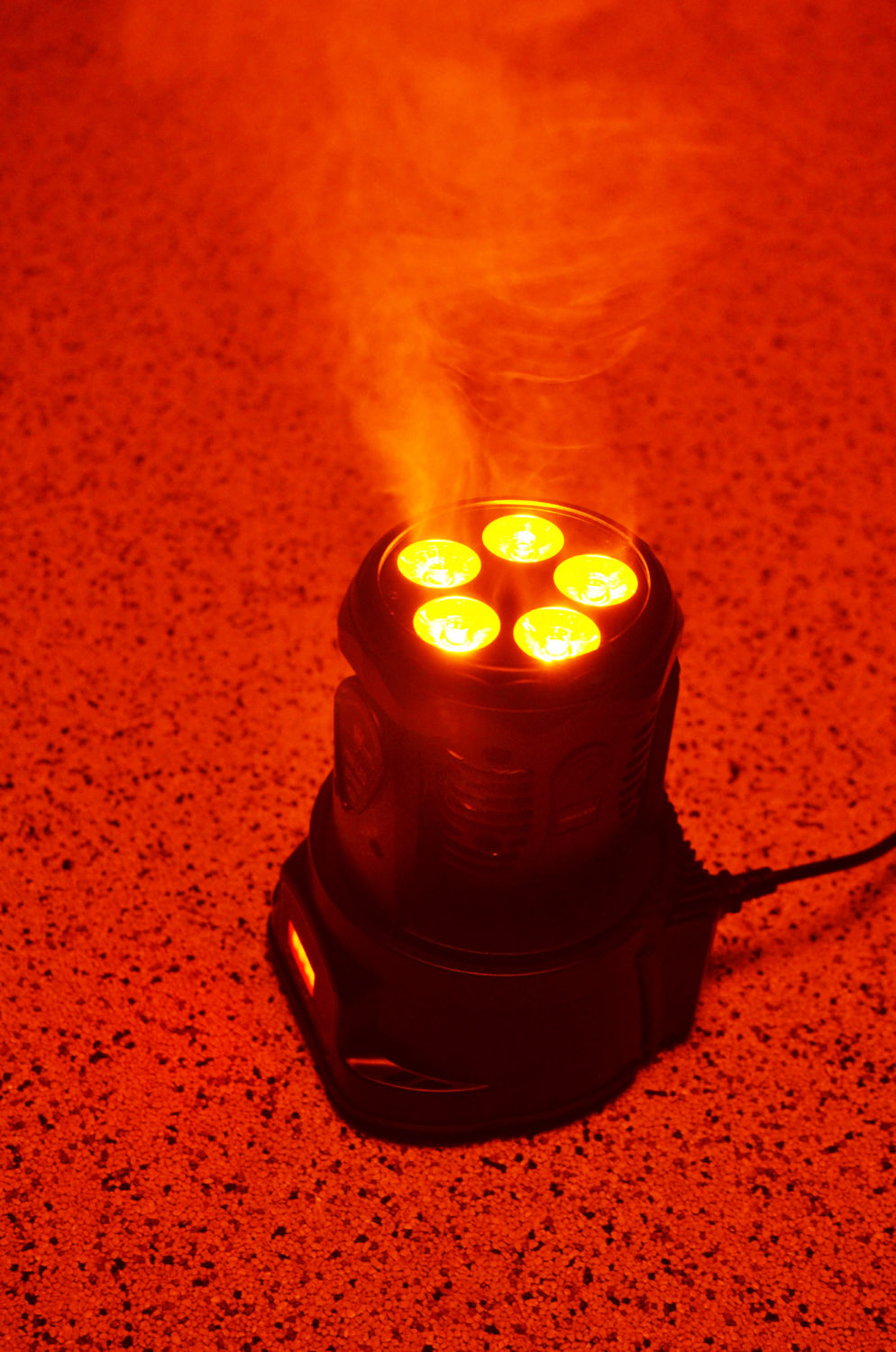

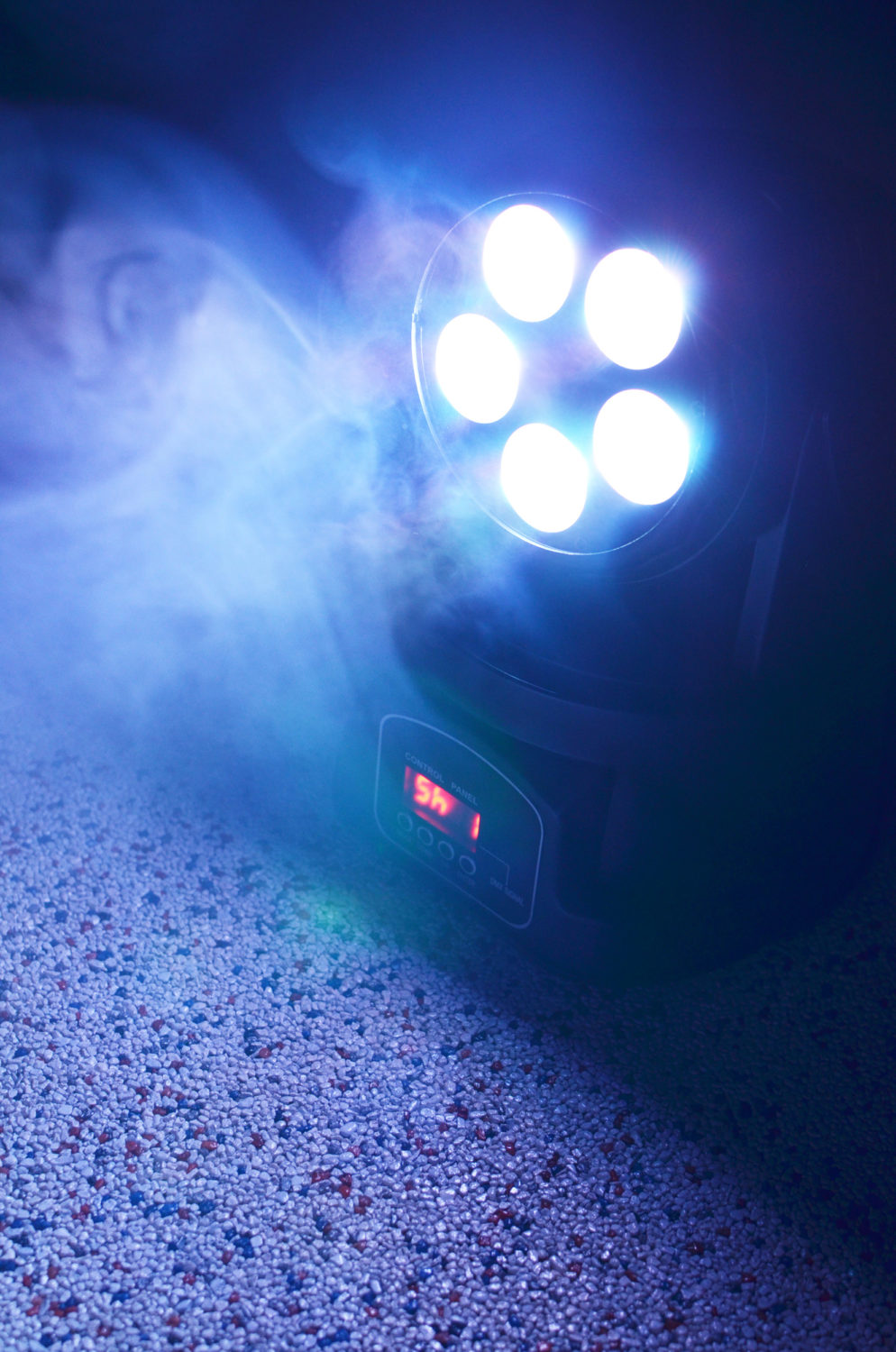

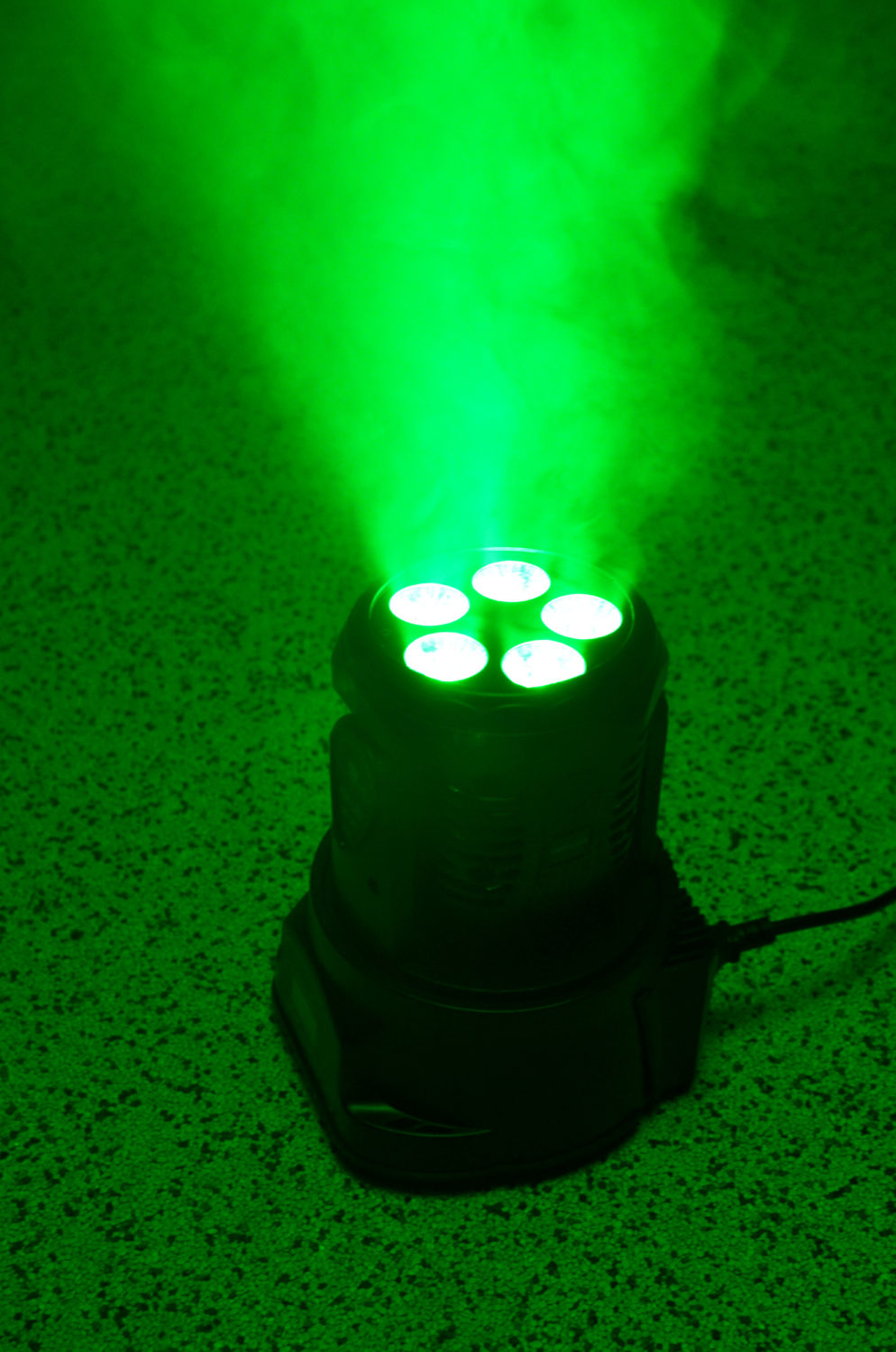

A very compact LED moving head wash for professional use, based on 5x 18W (RGBAW-UV) 6-in-1 colour LEDs, characterizing an extremely high light output to produce an ingenious light show with colourful wash effects. The UV light provides an extra dimension to white clothing and objects illuminating brightly. Comes with 4 operation modes and an 11 or 15 channel DMX mode, DMX controllable strobe-speed, electronic dimmer, smooth and very fast pan and tilt movements etc. Suitable for use in clubs, bars, discos, on parties and DJ moving shows.

Downloads

Manual

MHL90 LED Wash Moving Head 5x18W
