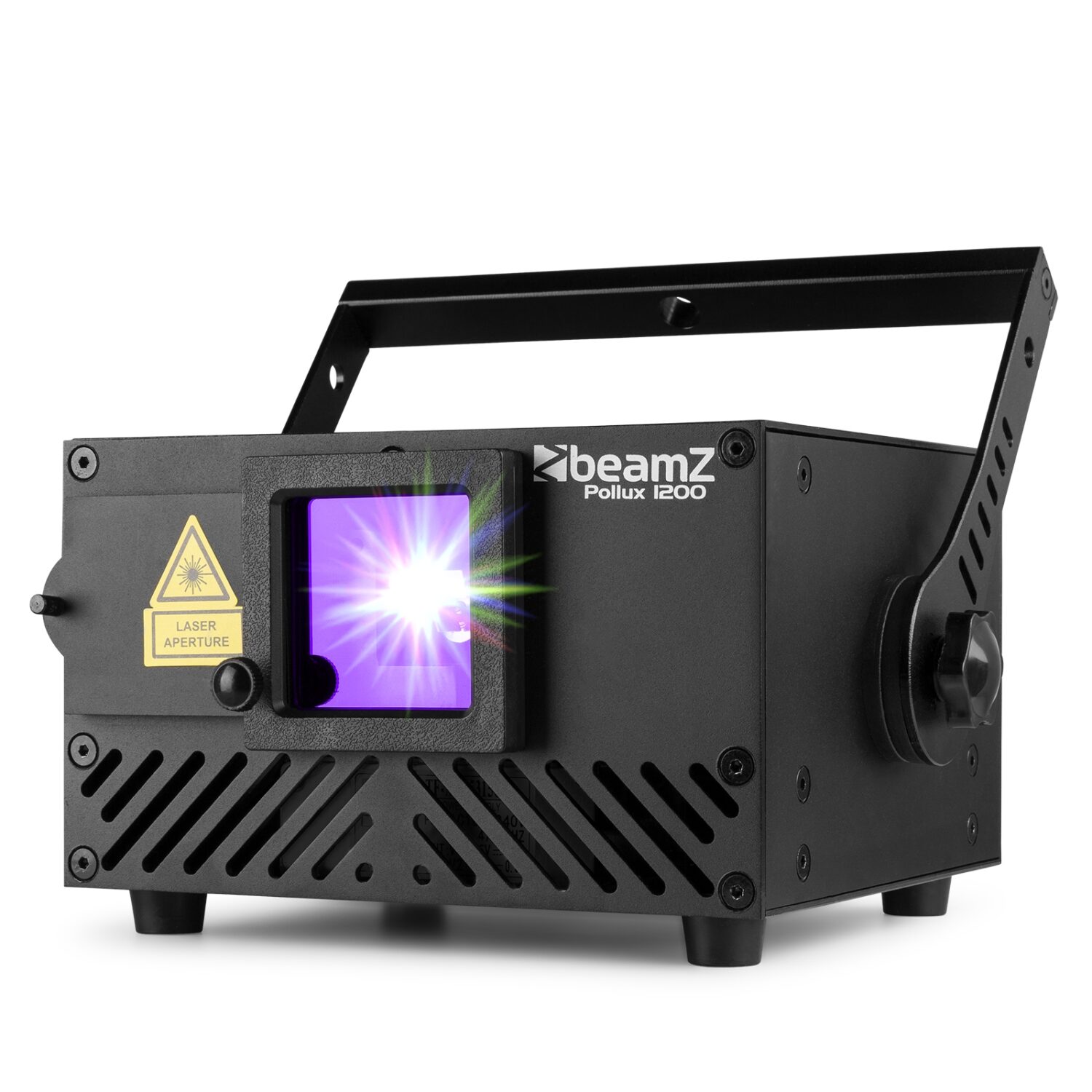

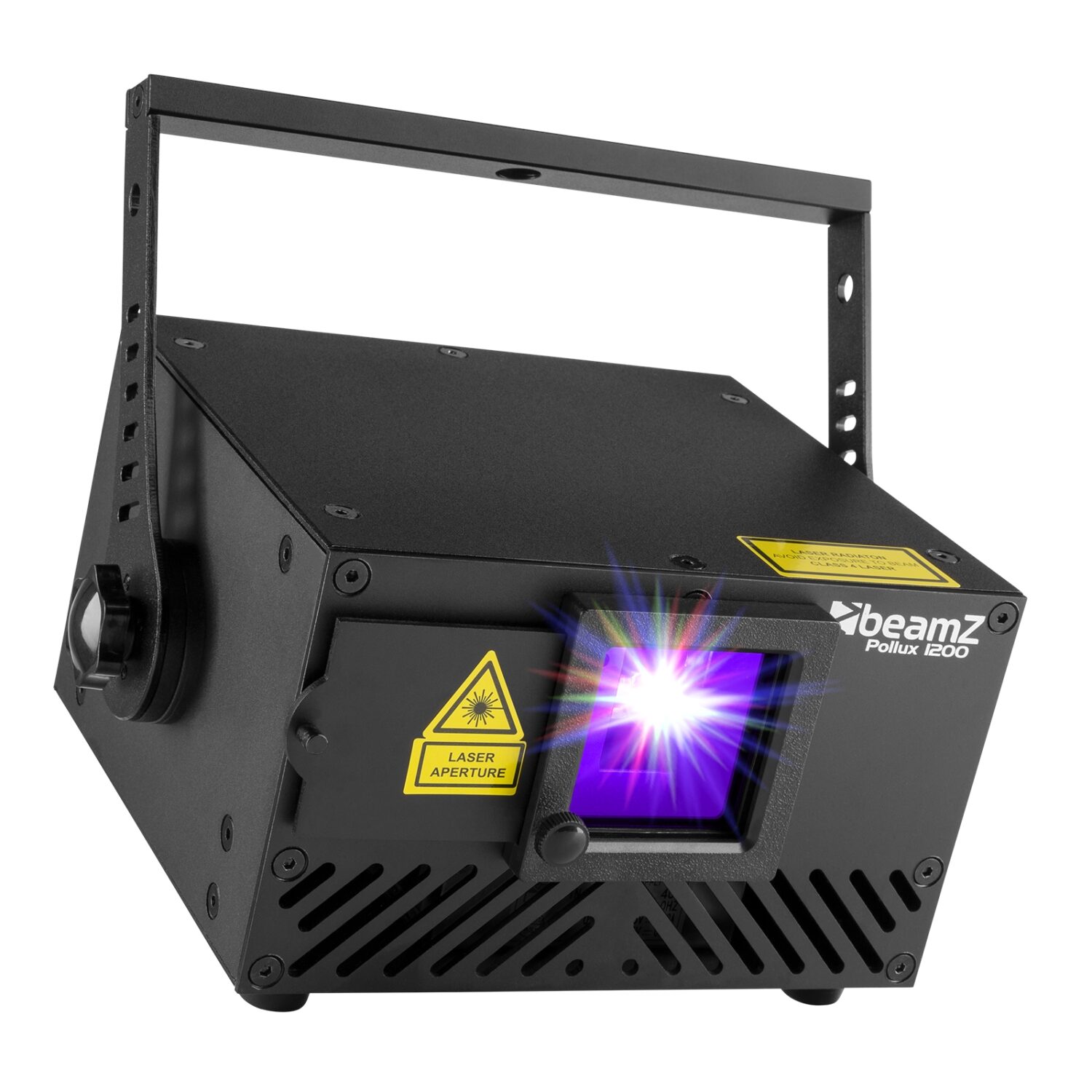

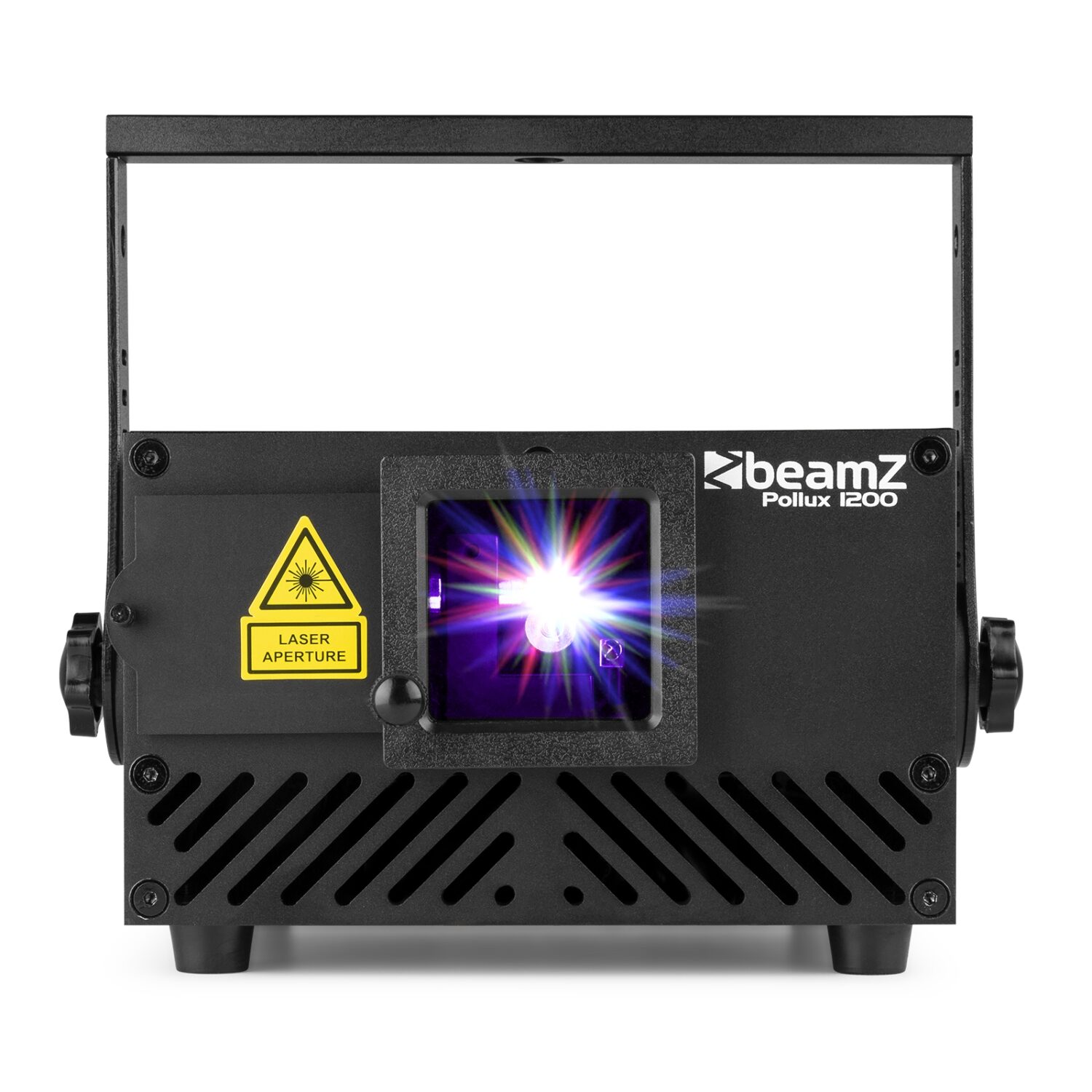

Pollux 1200 TTL Laser System

beamZ

152.526
  • Powerful 1,2W TTL animation laser
  • Red (350mW), Green (150mW) and Blue (700mW) laser modules
  • 15K high speed optical scanner system
  • DMX and Stand-alone mode
  • 17 DMX channels
  • Master/slave function
  • Sound activated with adjustable sensitivity
  • Auto mode
  • Preprogrammed patterns and animations
  • DMX in/output via 3-pin XLR
  • ILDA in/output
  • Control panel with LCD display

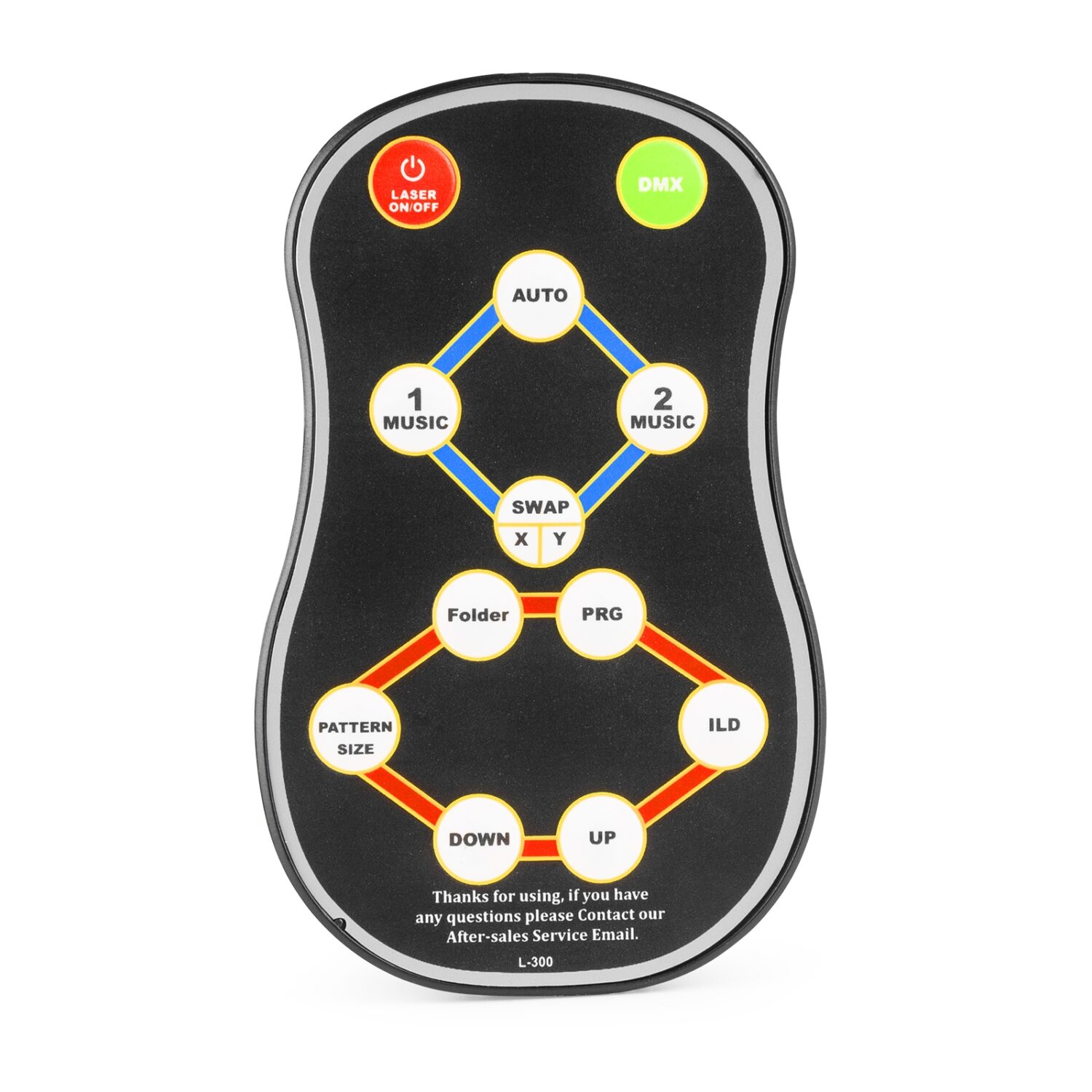

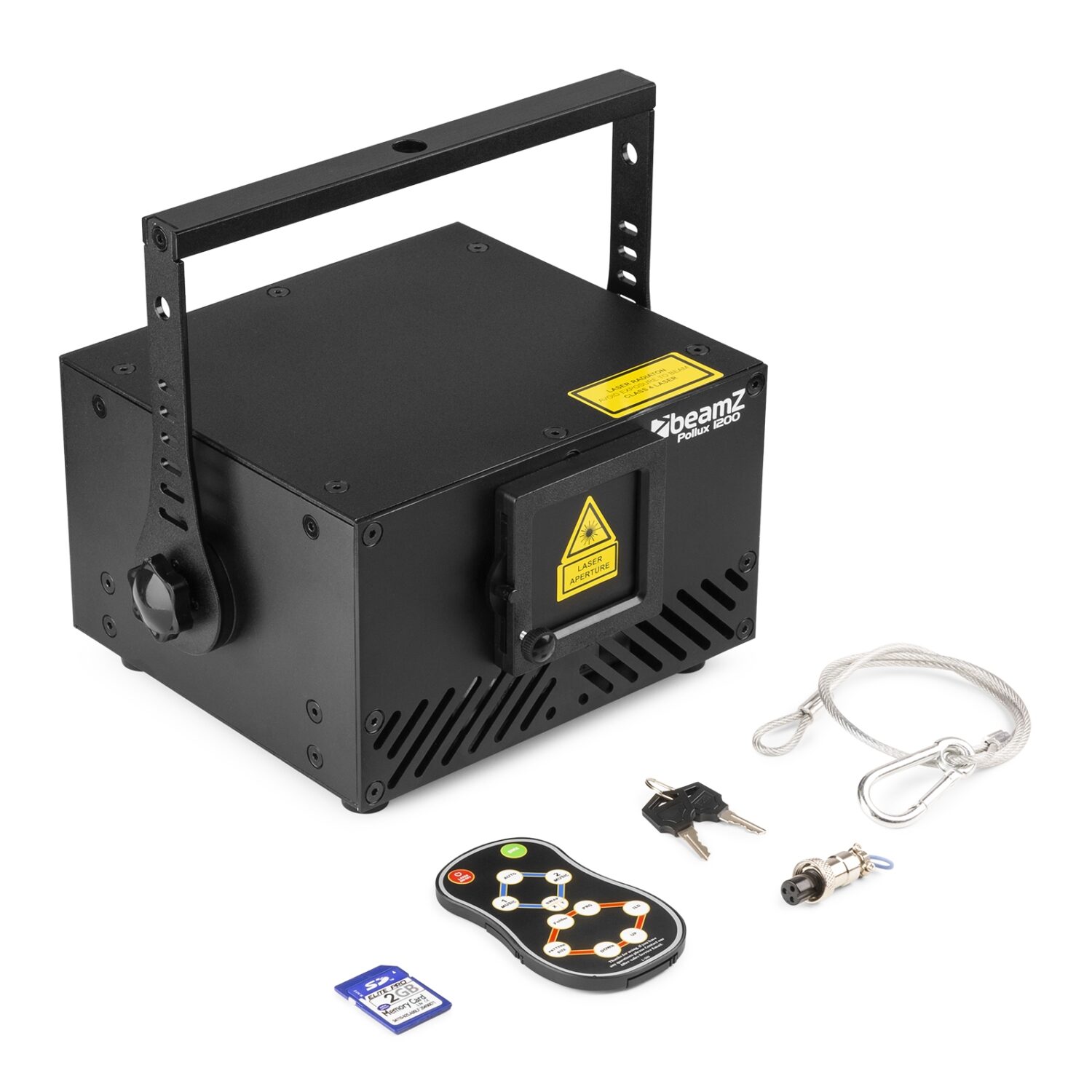

  • Incl. 2GB SD Card and remote control
Specifications
Product colour Black
Input connections SD
DMX channels 17
DMX connection 3-pin XLR
ILDA DB25
Laser Red 350mW @ 650nm
Laser Green 150mW @ 532nm
Laser Blue 700mW @ 445nm
Scanner system 15kpps @ 8°
Guaranteed output (99mW) 1000mW
Maximum output (99mW) 1200mW
Power consumption 0.4 - 0.2A
Power supply 100-240VAC 50/60Hz
Dimensions (L x W x H) 215 x 215 x 191 mm
Weight (kg) 2.5000

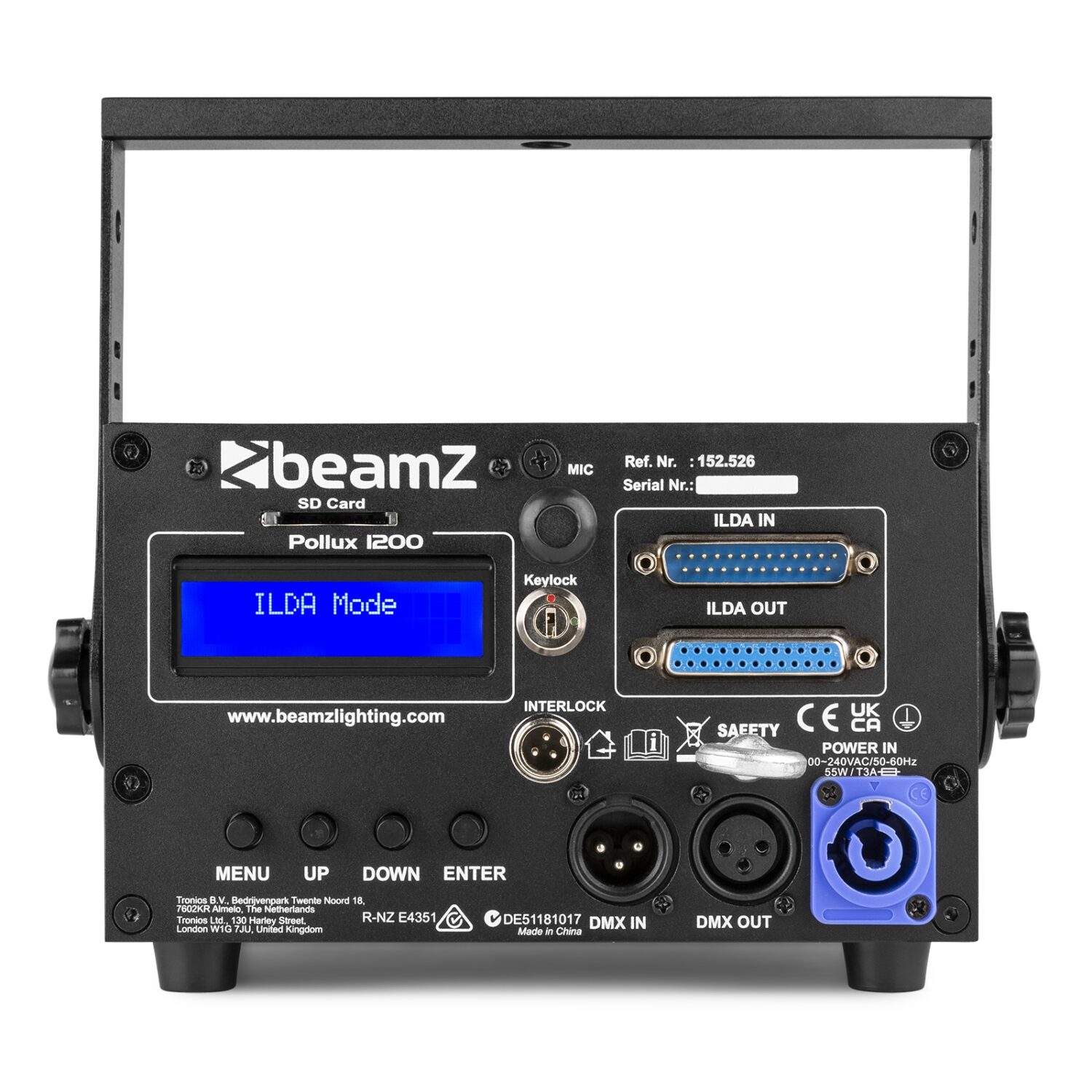

The Pollux is a DMX Super animation laser with over hundred incorporated effects on the enclosed SD card. The Pollux 1200 TTL features a TTL (transistor-transistor-logic) modulation. This basically allows you can create 7 colours at their full intensity thanks to the RGB mixing capabilities. On the back you will find a DMX in/output with 3-pin XLR and an ILDA in/out connection. An ILDA connector is the standard connector for show laser lights that connect the laser display with an ILDA cable to the laser control device. When using a DMX controller the Pollux laser offers 17 DMX channels in DMX mode. It’s also possible to set the Pollux 1200 TTL into a sound-activated mode with the built-in microphone on the back of the laser. Including a 2GB SD card and remote control.
