Phantom 10000B Pure Diode laser RGB

beamZ Pro

152.493
  • Red (2700mW), Green (2700mW) and Blue (4600mW) Powerful laser
  • Guaranteed 10W output
  • Analog RGB colour modulation
  • 30K @ 8° high speed optical scanner system
  • X- and Y-Size inverter
  • DMX and Stand-alone mode
  • 12 or 23 DMX channels
  • Master/slave function
  • Sound activated or auto mode
  • Pre-programmed shows
  • DMX in/output via 3-pin XLR
  • Ilda in/output

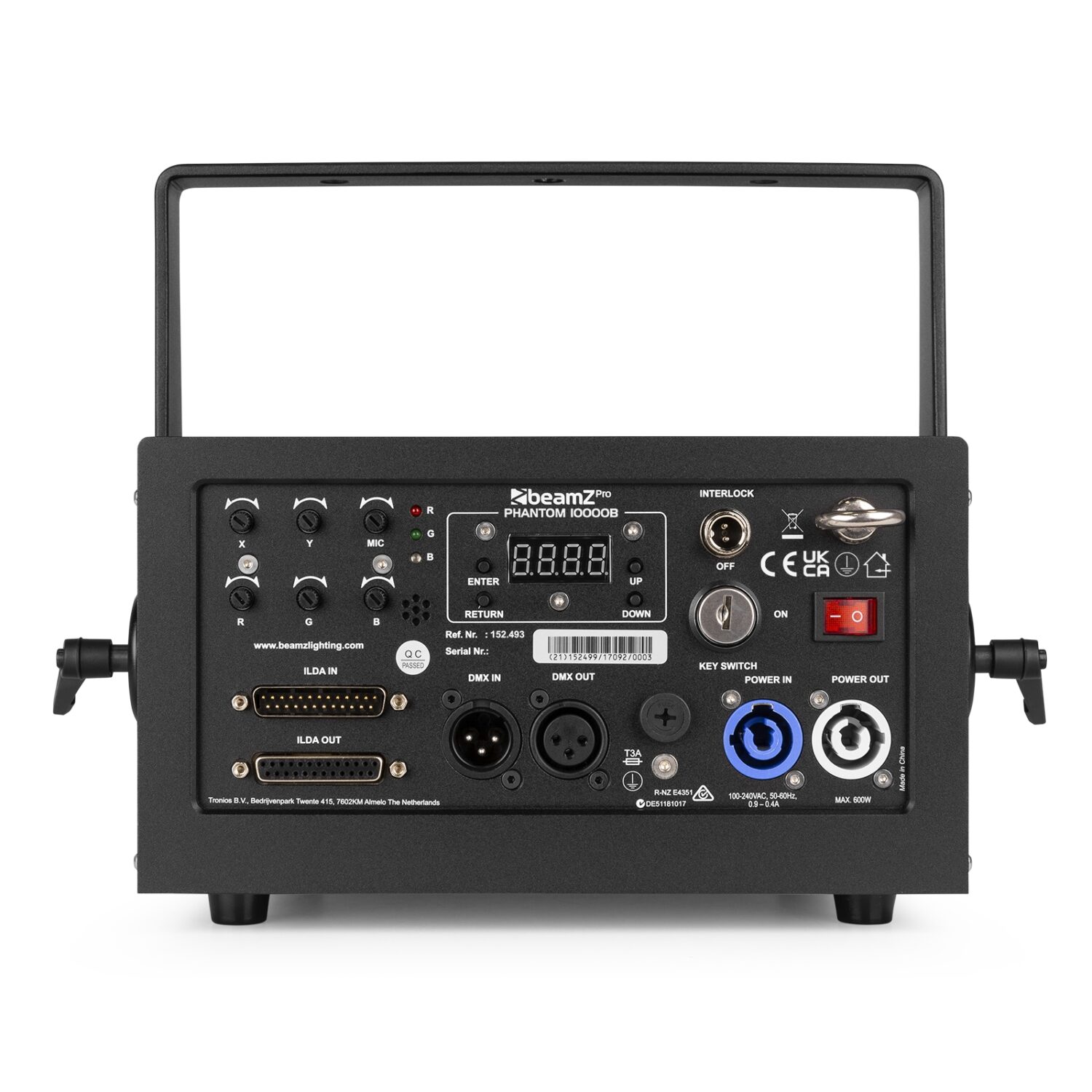

  • Control panel with LED display
  • Interlock
  • Powerconnector in/output
  • Including solid waterproof PP flightcase
Specifications
Product colour Black
Input connections XLR (3-pin)
Output connections XLR (3-pin)
DMX channels 12, 23
DMX connection 3-pin XLR
ILDA DB25
Laser Red 2700mW @ 638nm
Laser Green 2700mW @ 525nm
Laser Blue 4600mW @ 455nm
Scanner system 30kpps @ 8°
Maximum scanner angle 60 degrees
Guaranteed output (99mW) 10000mW
Power supply 100-240VAC 50/60Hz
Dimensions (L x W x H) 340 x 247 x 148mm
Weight (kg) 12.0000

The Phantom Laser Series are characterized by the compact design and the guaranteed output power. These show lasers provides an analogue modulation what results in a better colour fading and a much broader colour. The lasers can be controlled over ILDA and DMX or run stand-alone in auto or sound activated mode. You can produce the exact effect you want with the DMX and ILDA control. Ideal for any kind of application – fixed installations, mobile use, multimedia projects, long distance outdoor applications and extra precise graphics projections. Delivery in a customized waterproof PP flightcase.
