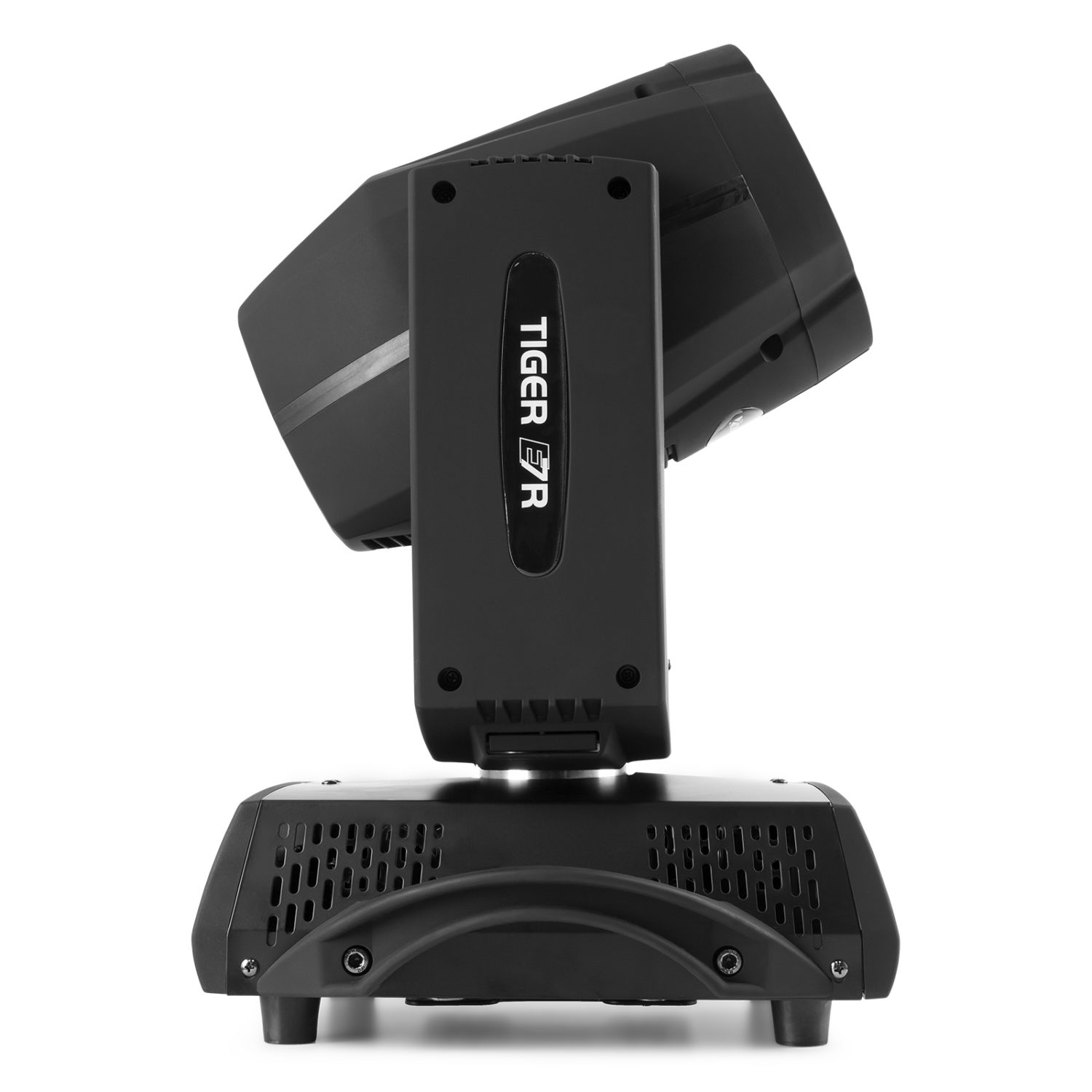

Tiger E 7R MKIII 230W Beam Moving Head

beamZ Pro

150.417
  • 230W 7R High Intensity discharge bulb (included)
  • Beam angle 1°
  • 17 Gobos + open beam
  • 14 Colours + open
  • Gobo shake effect
  • Frost effect lense
  • Rotatable 16 facet prism
  • Motorized focus
  • Mechanical shutter and adjustable speed strobe effect
  • Mechanical dimmer
  • 15 or 19 DMX channels
  • DMX and Stand-alone mode
  • Automatic pan/tilt correction
  • Reset function
  • Control panel with LCD display
  • DMX in/output via 3-pin XLR
  • Powerconnector input
  • Quick lock omega clamp included (2x)
  • DMX cable included
  • Powerconnector cable included
Specifications
Colour temperature 8000K
Light source MSD 7R 230W bulb
Colour wheel 14 colours + open
Beam angle 1°
Field angle 3°
Illuminance 186.695 lx @ 7m
Head movement: Pan 540
Head movement: Tilt 180
Static gobo: Quantity 17
Gobo shake Yes
Prisma 1 16 Facet
Frost filter Yes
Flash rate per second 0 - 10Hz
Modes Automatic programs, DMX, Manual, Master/Slave
Sound to light mode Yes
DMX channels 15, 19
DMX connection 3-pin XLR
Display LCD
IP rating IP20
Cooling Temperature controlled fan
Power plug P-Con
Power consumption 1.3 - 2.75A
Power supply 100-240VAC 50/60Hz
Dimensions (L x W x H) 325 x 395 x 515mm
Weight (kg) 16.5500
Included accessories Mounting bracket, Power cable, DMX cable

The Tiger E 7R moving head MKIII has a very bright output due to the use of the 7R 230W high intensity discharge bulb. The moving head is equipped with a colour, frost, gobo and prism effect wheel for ultimate control; the gobo wheel is provided with 17 different gobos + open and the colour wheel with 14 colours + open. Together with the motorized 16-facet rotating prism it can create a wide range of spectacular light effects. The Tiger E 7R moving head MKIII works both in DMX or stand-alone mode. When operating in DMX mode you have complete control with 15 or 19 DMX channels. Among its features are a mechanical shutter and adjustable speed strobe, frost lens, rotation prism, motorized focus and mechanical dimmer. Simple operation and easy to adjust.
