Products > Install > Static Lighting > LED Bars > LCB224 LED Bar 224x SMD RGB

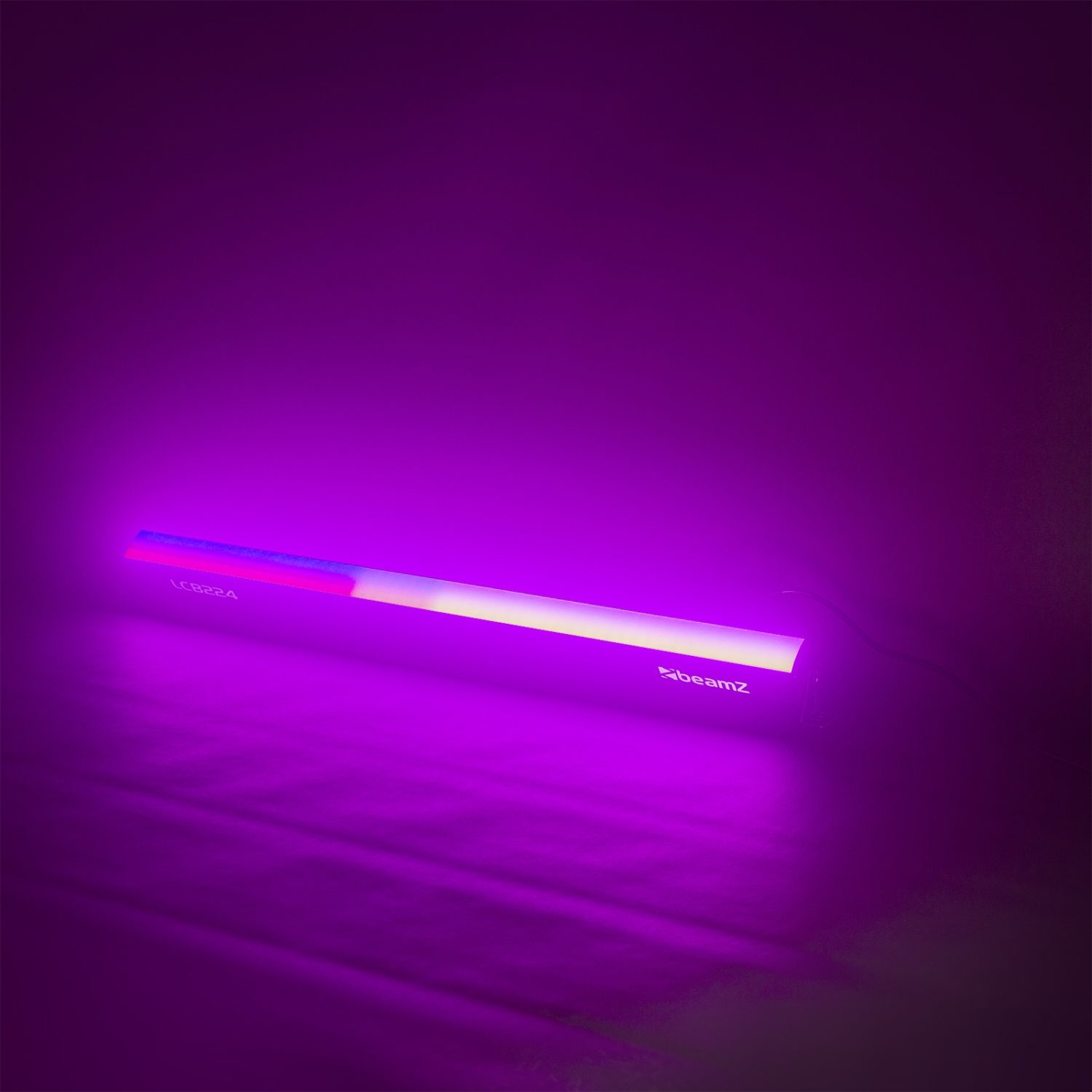

LCB224 LED Bar 224x SMD RGB

beamZ

150.713
  • 224x SMD RGB LEDs
  • 3, 5, 8, 24, 48 or 53 DMX channels
  • 16 Sections controllable
  • DMX and Stand-alone mode
  • Master/slave function
  • Sound activated with adjustable sensitivity
  • 54 Built-in effects
  • Pre-programmed shows
  • 25 Colour pre-sets
  • 24 Effect patterns
  • DMX in/output via 3-pin XLR
  • IEC-connector input/output
Specifications
Product colour Black
Light source 3-in-1 LED
LED colours Red, Green, Blue
Quantity of LEDs 224
Beam angle 90°
Flash rate per second 1 - 19Hz
DMX channels 3, 5, 8, 24, 48, 53
DMX connection 3-pin XLR
Modes Automatic programs, DMX, Manual, Master/Slave
IP rating IP20
Cooling Convection
Display LED
Power plug IEC
Power consumption 0.75 - 0.41A
Power supply 100-240VAC 50/60Hz
Dimensions (L x W x H) 1000 x 65 x 90mm
Weight (kg) 1.6500
Included accessories Mounting bracket, Power cable

The LCB224 is a LED bar with 224 pieces SMD RGB LEDs. The LEDs are divided in 16 separately controllable sections, with each section having its own RGB colour setting in DMX mode. While using the fixture in stand-alone mode there are pre-programmed shows runs automatically or sound activated, pick from pre-programmed automatic programs or create your own mixture of colours in RGB mode. The extra IEC output enables you to simply link the power of multiple units together into a single socket.
